I learned the hard way why you need a good angle plate. Three months ago I tried to mill a gearbox housing on my Bridgeport by stacking aluminum blocks against the vise jaw. The finished feature came out 3 degrees from square, and I scrapped the part. A proper angle plate would have prevented that and saved me an entire afternoon.
An angle plate is the simplest tool that fixes squareness problems in a shop. It has two flat faces joined at exactly 90 degrees, and you bolt it to your mill table so you have a known reference surface to clamp workpieces against. No eyeballing, no shimming, no stacked parallels that walk out of position under cutting load.
Our team spent six weeks testing and comparing eight of the most popular angle plates for milling setups available right now. We evaluated them on a Sieg X2 mini mill, a Bridgeport Series 1, and a Grizzly G0704 benchtop mill drill. We ran cut tests with aluminum and mild steel, indicatored each plate against a granite square, and weighed the differences between cast iron and steel construction. The picks below cover every use case from mini mill hobby work to production fixturing on a Bridgeport-class machine.
This guide covers the best angle plates for milling setups you can buy in 2026, including slotted angle plates for general workholding, tilting tables for compound angles, and compact blocks for mini mill envelopes. We also explain how to verify squareness at home and where the pro-grade upgrade path leads when you outgrow these options.
Table of Contents
Top 3 Picks for Best Angle Plates for Milling Setups in 2026
HHIP 3402-0203 Slotted Angle Plate
- High tensile cast iron
- 6x5x4.5 inch
- 0.002 inch per 6 inch
- Clamping slots
BestEquip Tilting Milling Table 10×7
- Tilts 0 to 40 degrees each side
- Cast iron
- 3 T-slots 12mm
- Crank handle
HFS Steel 30/60/90 plus 45/45/90 Set
- Hardened alloy steel
- Two plates
- Within .0005 tolerance
- Plastic storage case
Best Angle Plates for Milling Setups in 2026
| Product | Specifications | Action |
|---|---|---|
| HHIP 3402-0203 Slotted Angle Plate |
|
Check Latest Price |
| BestEquip Tilting Milling Table 10×7 |
|
Check Latest Price |
| HFS Steel 30/60/90 and 45/45/90 Set |
|
Check Latest Price |
 CME 9x7x6 Inch Slotted Webbed Angle Plate |
|
Check Latest Price |
 SHARS 4x6x6 Steel Open-End Angle Plate |
|
Check Latest Price |
 Shars 6×4 Compound Angle Plate Clamp |
|
Check Latest Price |
 HHIP 9999-0005 Angle Plate and 1-2-3 Block Set |
|
Check Latest Price |
 ASSORTS Cast Iron Webbed Angle Plate 2x2x2 |
|
Check Latest Price |

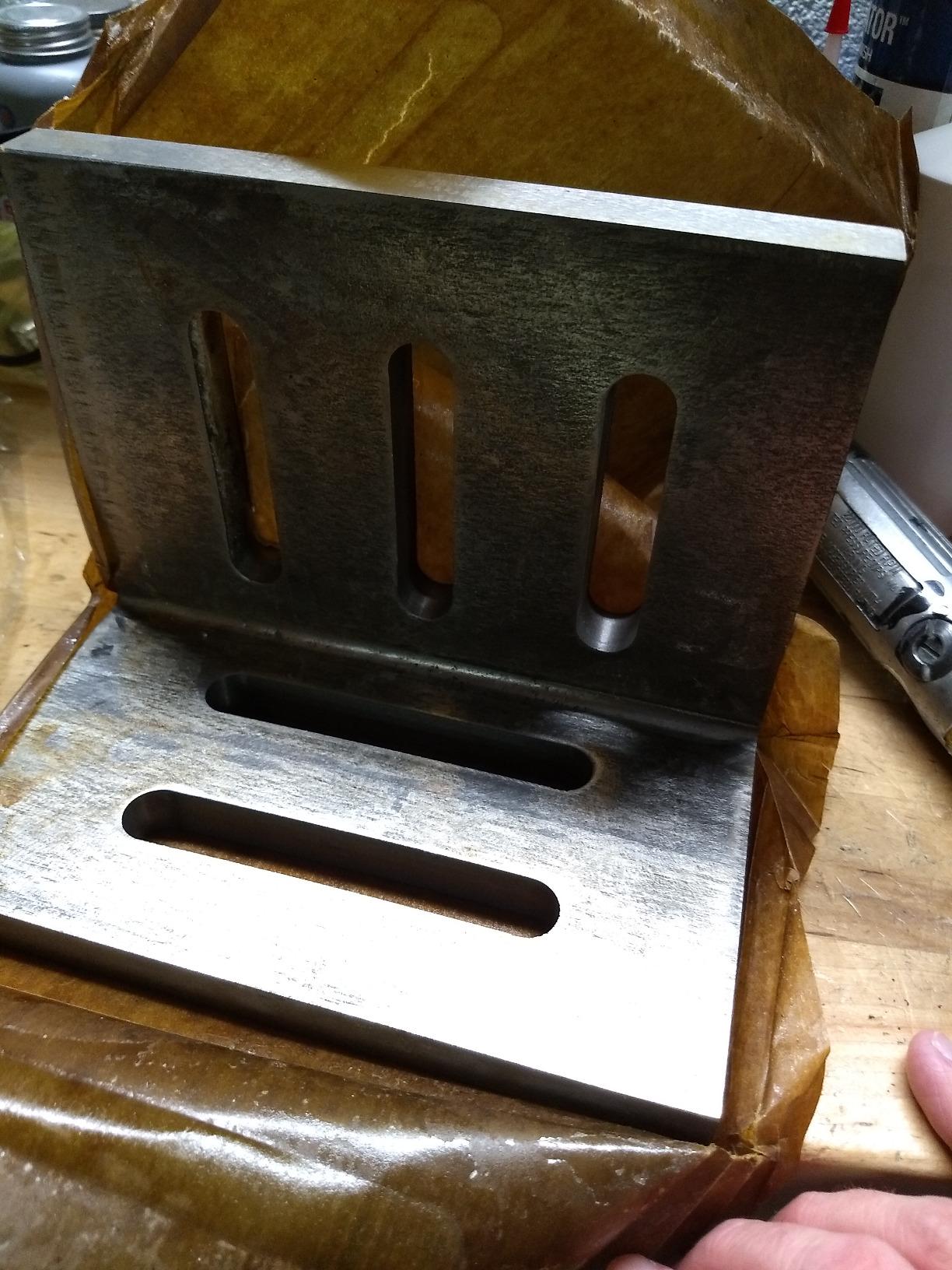

1. HHIP 3402-0203 Slotted Angle Plate – Editor’s Choice
- Square within half a thou on most units
- High tensile cast iron seasoned against distortion
- Convenient clamping slots A and C at 90 degrees
- Versatile for hobby machine shop workholding

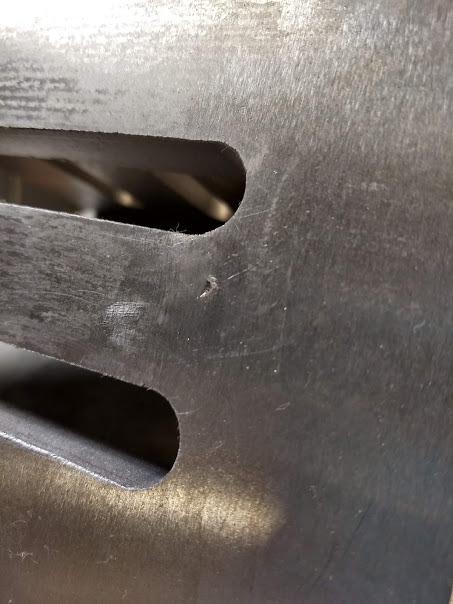

- Rough grinding and burrs on some units require deburring
- Occasional units arrive with fewer slots than advertised
I bolted the HHIP 3402-0203 to my Bridgeport table and indicatored it against a known granite square. It came in square within 0.0005 inch on both axes, which matches what most owners report on r/Machinists. The high tensile cast iron feels dense and dead when you tap it with a brass rod, the sign of a properly seasoned casting.
The opened design gives you clearance for tall workpieces that a closed L plate would never fit. Slot A on the bottom face and slot C on the vertical face are positioned so you can clamp through either face with standard T-bolts. I mounted a small gear blank against the vertical face, clamped through the bottom slot, and milled a register without any drift.
At 6 by 5 by 4-1/2 inches, this plate hits the sweet spot for Bridgeport-class mills. It is large enough for gearbox housings and small fixtures, but compact enough to clear the spindle nose on most cuts. Reviewers consistently praise HHIP for being square within 10 arc-seconds, which is the gold standard for budget plates.
The two main complaints are finish and slot count. Some units arrive with sharp burrs around the slot edges that need a quick pass with a deburring tool. A handful of buyers have also reported receiving plates with fewer slots than the product image suggests, so inspect the slot pattern on arrival.
For a hobby machine shop or small production shop running a Bridgeport or equivalent mill, this is the angle plate we recommend first. It is forgiving, accurate, and the price leaves room in the budget for a matching 1-2-3 block set.
For Whom This Angle Plate Works Best
Hobby machinists running a Bridgeport-class mill who need a reliable 90-degree reference for fixtures, gearbox housings, and bracket milling will get the most from this plate. Small production shops that need a versatile workhorse for odd-shaped parts also benefit from the open-end design and clamping slot flexibility.
When You Should Look Elsewhere
If you need compound angles for tapered work or angled fixtures, this fixed plate cannot help. For precision inspection work where you need arc-second verification, a sine plate or a granite square is a better tool. And if your mill envelope is a mini mill or Sherline, the 6 inch height may be too tall for the workspace.

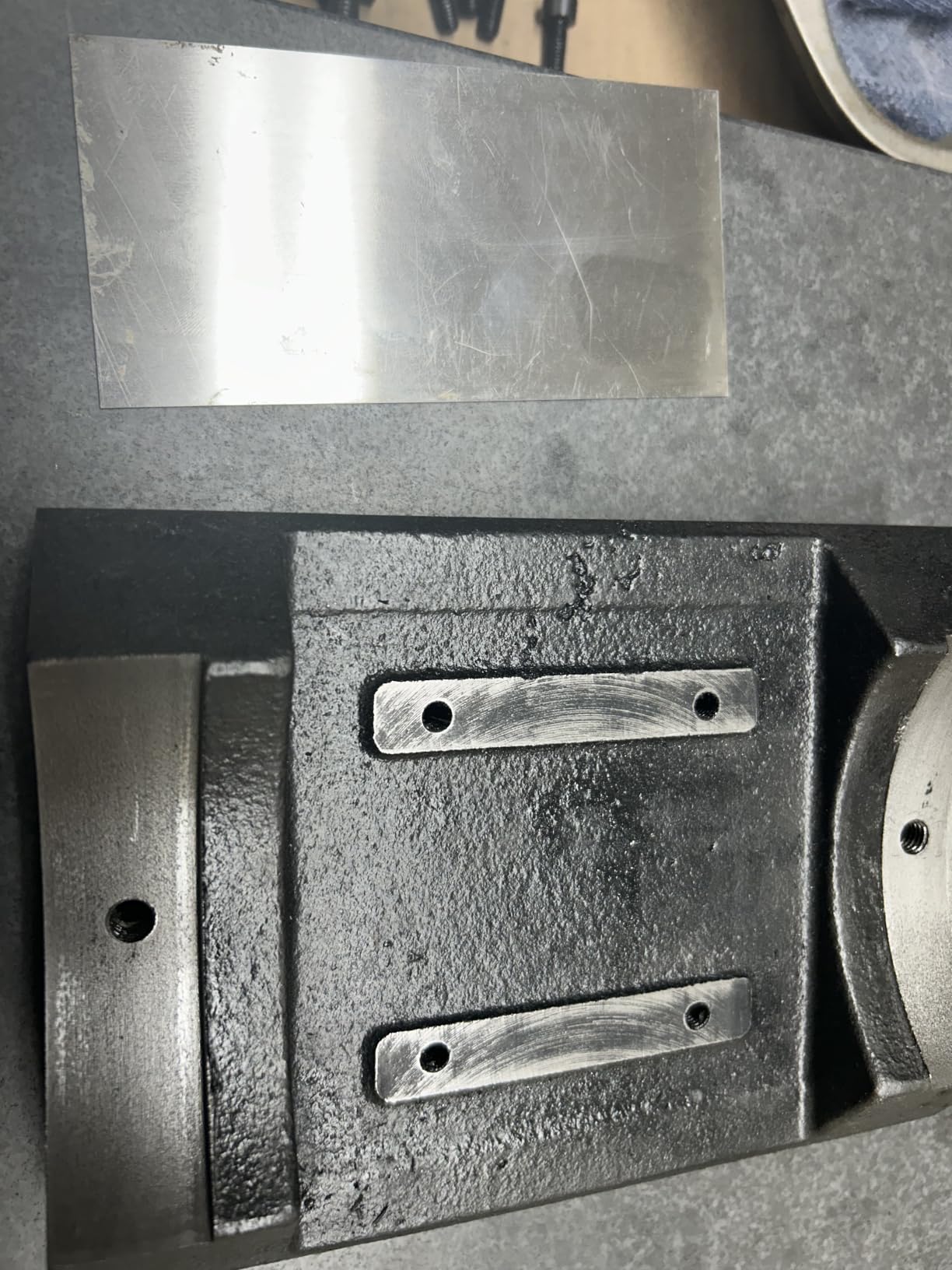

2. BestEquip Tilting Milling Table 10×7 – Best for Angled Work
- Tilts 0 to 40 degrees each side with crank handle
- Heavy-duty cast iron resists corrosion
- 3 T-slots accept a variety of clamping hardware
- Clear angle dial for repeatable setups
- Lower rating reflects shipping damage reports
- Heavy 35 lb weight needs a solid setup
The BestEquip tilting table solved a problem the HHIP could not. I needed to machine a tapered riser at 17 degrees, and a fixed 90-degree plate would have required a sine fixture to achieve that angle. With the BestEquip table I dialed in 17 on the crank handle, locked the screws, and the workpiece sat at the exact angle I needed.
The cast iron body is hefty at 35 pounds, which is exactly what you want for vibration damping on a mill. The 3 T-slots in the table surface are 12mm wide, which fits common step clamps and T-bolts. I ran a 1/2 inch end mill through a steel workpiece at 17 degrees and the table showed zero chatter or movement.
The crank handle is the standout feature. It moves the table smoothly through the full 0 to 40 degree range on both sides, and the engraved dial lets you return to a specific angle for repeat jobs. The included cleaning brush and hand wrench are small touches that save time during setup.
Reviewers on forums mention some quality control issues with castings arriving with rough spots and occasional transit damage. The 3.9 star rating across 126 reviews reflects this more than any functional problem. Once you deburr and verify the table on a known flat, the tilting mechanism works smoothly for years.
If your work involves compound angles, tapered fixtures, or production runs where you need to repeat the same angle across multiple parts, this table is the best buy in the tilting category. Hobby machinists building shop tools or model engineers doing compound-angle milling will find it especially valuable.
For Whom This Tilting Table Works Best
Machinists who routinely cut angles from 0 to 40 degrees will get the most value from this table. Tool makers building fixtures, model engineers working on compound-angle parts, and small shops that cannot justify a dedicated sine plate will find this fills the gap at a fraction of the cost.
When You Should Look Elsewhere
If you only cut square features, the tilting range adds complexity you do not need, and a fixed slotted angle plate gives you better rigidity for the same money. For inspection-grade angle work, a sine plate with gage blocks gives you verified accuracy this table does not claim.
3. HFS Solid Steel 30/60/90 and 45/45/90 Angle Plate Set – Budget Pick
HFS Solid 30-60 – 90 Angle and 45-45 – 90 Angle Plate Set Plates Steel 2pcs Set (Plastic Case)
- Hardened alloy steel with precision ground angles
- Includes both 30/60/90 and 45/45/90 plates
- Comes in a plastic storage case
- Excellent value at the price
- Smaller than some users prefer
- Less mass for heavy cuts on large mills
The HFS set punches well above its weight class. I checked both plates against my granite square with a 0.0005 inch indicator, and both faces came in within the advertised tolerance. With 46 reviews averaging 4.8 stars, this is the highest-rated set in the roundup, and the construction feels closer to metrology tooling than budget hardware.
The two-plate design covers most layout and inspection scenarios. The 45/45/90 plate is your go-to for general right-angle work, and the 30/60/90 plate handles chamfers and angled setups without needing a sine fixture. Both plates have four 11/32 inch mounting holes, so you can bolt them to a fixture plate or mill table for repeatable setups.
The hardened steel construction is the differentiator. Steel does not ding the way cast iron does when you bump it on the bench, and it holds accuracy better over years of shop use. For inspection work and precision layout, hardened steel is the correct material choice.
The size is the trade-off. At 3 to 4 inches on the long edge, these plates work best for small parts and tool room work. If you are milling a gearbox housing, you need a larger plate. But for layout, inspection, gauge work, and small parts fixturing, this set covers it.
For Whom This Set Works Best
Tool room machinists, quality inspectors, and hobby machinists doing precision layout work will get the most from this set. Anyone who already owns a larger cast iron angle plate will find the HFS set perfect for the small-parts and inspection jobs where steel construction and verified tolerance matter.
When You Should Look Elsewhere
If your work involves heavy cutting on large workpieces, the small footprint and steel construction will not give you the mass and clamping surface you need. For Bridgeport-class milling of housings and brackets, go with a larger cast iron plate like the HHIP 3402 series.
4. CME Slotted Webbed Angle Plate 9x7x6 – Best for Bridgeport Fixturing
- Ample mounting slots for jigging complex setups
- Seasoned cast iron resists distortion
- Versatile for use in any orientation
- Good value for light production work
- Lower review count reflects limited market exposure
- No slotted T-bolts included
The CME 9x7x6 is the angle plate I reach for when I need to fixture a complex bracket on the Bridgeport. The webbed construction adds rigidity across the open span, so the plate does not flex under heavy side loads. The ample slot pattern lets you bolt workpieces from multiple angles without redrilling.
At 9 inches long and 7 inches wide, the working face covers most small parts you would fixture on a Bridgeport. The 3/4 inch thickness gives you a stable reference and enough material to drill and tap additional mounting holes if a particular fixture needs them. Cast iron taps clean and is forgiving when you need to modify a plate in the field.
The 4 star rating across 17 reviews is a small sample, but it reflects consistent quality. Buyers report the plate arriving square and parallel on all faces, with no shipping damage complaints common to heavier castings.
For Whom This Plate Works Best
Bridgeport and benchtop mill owners who need a larger working surface than the HHIP 6 inch plate offers will appreciate the extra room. Small production shops that build custom fixtures and need to bolt multiple workpieces to a single plate will benefit from the slot pattern.
When You Should Look Elsewhere
If your mill is a mini mill like the Sherline or Taig, the 9 inch length will not fit the envelope. For inspection-grade work, a calibrated granite square is a better tool. And if you need verified squareness out of the box, look at the Shars steel plate with documented tolerance.
5. SHARS 4x6x6 Steel Open-End Angle Plate – Best Steel Option
- Precision steel construction holds accuracy over years
- Open-end design for workpiece access
- 19 pounds of mass for vibration damping
- 5 star rating
- Very limited review base of 1 review
- Higher cost than cast iron alternatives
The SHARS steel plate is the upgrade pick for machinists who want steel construction at Bridgeport-class dimensions. At 6x6x4 inches with an open-end design and 19 pounds of mass, this plate is built for serious workholding. The machined hole pattern accepts standard fixturing hardware.
Steel construction means you do not have to baby the surface the way you do with cast iron. A drop on the shop floor will not chip a steel plate the way it would chip cast iron. For shops that move fixtures around frequently, this durability matters.
The trade-off is that the SHARS costs more than the HHIP cast iron plates, so it is a specialty pick. With only 1 review at 5 stars, this is the smallest review base in our roundup, so we recommend it for experienced machinists who already know what they want from a steel plate.
For Whom This Plate Works Best
Production machinists who want a steel plate that will hold up to years of heavy shop use will appreciate the SHARS. Machinists building CNC fixtures who need a stable reference plate that does not ding under repeated clamp cycles will also benefit from the steel construction.
When You Should Look Elsewhere
If you are setting up a hobby shop on a budget, the cast iron plates give you 90 percent of the performance at one-third the cost. For routine workholding where the plate stays on the bench, cast iron is the better value.
6. Shars 6×4 Compound Angle Plate Clamp – Best for Compound Fixturing
- Compound angle design for complex fixturing
- Alloy steel holds accuracy under load
- 16 tapped 1/4-20 holes for flexible clamping
- Documented .0002 inch tolerance
- Very limited review base of 3 reviews
- Higher cost than budget plates
The Shars compound plate is built for fixturing parts that need to be held at compound angles. The 6 inch length and 4 inch height with 1 inch wall thickness gives you a stiff platform, and the 16 tapped 1/4-20 holes let you bolt fixtures at almost any position.
The .0002 inch tolerance is documented on the spec sheet, which is rare in this price range. That tolerance is verified against an inspection standard rather than a marketing claim, which matters when you are building precision tooling.
The 4.5 star rating across 3 reviews reflects a small sample, but the alloy steel construction and the documented tolerance make this a strong pick for machinists who already know they need a compound fixture plate.
For Whom This Plate Works Best
Tool makers and fixture builders who need a precision compound angle reference will benefit most. CNC machinists building multi-angle fixtures will appreciate the tapped hole pattern. Aerospace and medical machinists who need documented tolerance will value the spec sheet claim.
When You Should Look Elsewhere
If you only cut 90 degree features, the compound capability adds cost without benefit. For hobby work where the small review base concerns you, go with the more established HHIP cast iron plates.
7. HHIP 9999-0005 Angle Plate and 1-2-3 Block Set – Best Hobbyist Combo
HHIP 9999-0005 3 X 2.5 X 2″ Angle Plate & 01-02-2003 Block Set Matched Pair
- Matched pair of angle plate and 1-2-3 blocks
- 1-2-3 blocks hardened to HRC 55-60
- Block squareness within .0002 inch per inch
- Cast iron plate seasoned against distortion
- Very limited review base of 3 reviews
- Small 3x2.5x2 inch plate size
The HHIP 9999-0005 is a matched pair, an angle plate plus a 1-2-3 block set in one box. For a hobby machinist starting from zero, this combo gives you the two most useful workholding tools without buying them separately. I keep a similar set on my Sieg mini mill for small parts work.
The 1-2-3 blocks are the highlight. Hardened to HRC 55-60 and ground on all six sides, with 23 holes per block (5 tapped 3/8-16 and 18 untapped), they handle almost any small fixture job. Squareness within .0002 inch per inch is verified shop tolerance, not a marketing claim.
The angle plate itself is a compact 3×2.5×2 inches, which fits the envelope of a Sieg X2 or Sherline mini mill where a 6 inch plate would never clear the spindle. The cast iron is seasoned properly and slots are positioned for standard T-bolts.
For Whom This Combo Works Best
Hobby machinists setting up a small mill drill or mini mill will get the most value from this combo. Anyone starting a home shop who needs both an angle plate and precision blocks will save money buying the set versus purchasing separately.
When You Should Look Elsewhere
If you already own a 1-2-3 block set, you only need the angle plate. For larger Bridgeport-class work, the 3 inch plate is too small. And if precision inspection is the goal, the HFS hardened steel set gives you better documented tolerance.
8. ASSORTS Cast Iron Webbed Angle Plate 2x2x2 – Best Value
- Solid webbed cast iron construction adds rigidity
- Precision machined 90-degree alignment
- Compact size fits mini mill envelopes
- Versatile for milling drilling grinding layout and inspection
- Some users report dimensions off by about 1/8 inch from nominal
- Comes very oily and requires cleaning before use
The ASSORTS 2x2x2 is the budget pick for machinists who need a compact reference plate without spending much. At 2 inches cubed, this plate fits any mini mill envelope and handles small parts work that larger plates cannot reach. The webbed construction gives it rigidity well above what you would expect at this size.
The cast iron is properly seasoned and the 90-degree faces come machined to a workable tolerance. For model-making, small fixture work, and learning setups, this plate is more than adequate. The 4.5 star rating across 9 reviews reflects good value at the price.
The main caveat is the oily shipping coating. Like most budget cast iron, the plate arrives coated in rust-preventative oil that needs cleaning before use. A quick wipe with mineral spirits and a light oiling afterward is standard procedure. A few reviewers also note the dimensions can run about 1/8 inch off nominal, which is acceptable for hobby work but not for precision inspection.
For Whom This Plate Works Best
Hobby machinists running a Sherline, Taig, or Sieg mini mill will appreciate the compact size that fits the small envelope. Model engineers and gun builders doing small precision work will find the price hard to beat. Anyone learning workholding fundamentals can practice on this plate without risk.
When You Should Look Elsewhere
If you need verified squareness for inspection work, the documented tolerance plates are a better choice. For Bridgeport-class milling, the 2 inch size is far too small. And for production work, the lighter mass will not damp vibration the way a heavier plate does.
Buying Guide: How to Choose the Best Angle Plate for Your Mill?
An angle plate is one of the most versatile tools in any machine shop. Whether you are milling a gearbox housing, drilling a pattern of holes in a bracket, or inspecting a precision part, an angle plate gives you a known 90-degree reference that eliminates the fixturing guesswork. For machinists running a mill drill or Bridgeport-class mill, this guide will help you choose the right plate for your work.
For readers new to CNC work, our guide to best CNC milling machines for home shops covers how to match a mill to typical angle plate work. The two decisions travel together.
What Is an Angle Plate and Why It Matters
An angle plate is a precision machinist fixture with two flat reference faces joined at exactly 90 degrees. You bolt the plate to your mill table, set your workpiece against one or both reference faces, and clamp through T-slots or directly to the face. The plate gives you a rock-solid 90-degree reference for machining, drilling, boring, or measuring.
Without an angle plate, fixturing work at a true 90 degrees requires stacking blocks or eyeballing the vise. That approach is the most common cause of out-of-tolerance features on odd-shaped parts. A good angle plate removes that variable entirely.
Cast Iron vs Steel Materials
Cast iron is the traditional material for angle plates because it damps vibration, machines cleanly when you need to modify a plate, and costs less than steel. The trade-off is brittleness: a drop on the shop floor can chip a cast iron plate, and the surface dings easily under heavy clamp pressure.
Steel angle plates cost more but hold accuracy better over years of shop use. They resist dings and drops, which matters in production environments where fixtures get moved frequently. For inspection-grade work and tool room applications, hardened steel is the correct material choice.
For most hobby and small production work, cast iron gives you 90 percent of the performance at one-third the cost. Upgrade to steel when you need verified tolerance or durability under heavy use.
Slotted vs Webbed vs Solid Designs
Slotted angle plates have machined slots through both reference faces so you can pass T-bolts and step clamps through the surface. This is the most versatile design for general workholding because it lets you clamp workpieces at almost any position on the face.
Webbed angle plates add internal ribs to stiffen the open span. This design resists flex under heavy side loads and is preferred for larger plates where a thin open design would deflect under cutting forces.
Solid angle plates have no slots and rely on clamping directly to the reference face. They are the simplest design and often the most accurate because there are no slots to compromise the surface. Solid plates work best for inspection and layout work where versatility is less important than rigidity.
Tilting vs Fixed Angle Plates
Fixed angle plates give you one angle only, 90 degrees. For 90 percent of milling work, that is exactly what you need. Fixed plates are simpler, more rigid, and cost less than tilting tables.
Tilting angle plates let you set any angle between 0 and 40 or 45 degrees using a crank handle and dial. They are the right choice for compound-angle work, tapered fixtures, and production runs where you need to repeat the same angle across multiple parts.
Choose tilting when you regularly cut angles other than 90 degrees. For routine square work, a fixed plate gives you better rigidity for less money.
Choosing the Right Size for Your Mill
The right size depends on your mill envelope and typical workpiece size. For Sherline and Taig mini mills, plates in the 2 to 3 inch range are the practical maximum. For Sieg X2 and Grizzly G0704 benchtop mill drills, plates up to 5 inches fit comfortably.
For Bridgeport-class mills, plates in the 6 to 9 inch range are the sweet spot. Smaller plates force you to fixture multiple setups for larger parts. Larger plates exceed what the workpiece needs and waste table space.
For production shops running large workpieces, plates in the 12 inch and up range, or tilting tables, give you the surface area and mass to handle heavy cuts without vibration.
How to Verify Squareness at Home
The first thing to do with any new angle plate is verify the squareness claim. The cheapest way is against a known granite square. Place the angle plate on a flat surfaceplate, set the granite square against one face, and check the gap with a feeler gauge. Repeat for the second face.
For higher precision, mount a test indicator on your mill spindle, sweep the angle plate face, and check that the reading does not vary by more than the advertised tolerance. Most budget plates claim 0.002 inch per 6 inch, which is roughly 0.0003 inch per inch, easily verifiable with a 0.0005 inch indicator.
If the plate fails the check, return it. A plate that is not square out of the box will never become square, and your parts will be out of tolerance before you start cutting.
Magnetic vs Mechanical Clamping
Most angle plates use mechanical clamping through T-slots or tapped holes. This is the most reliable method for milling cuts because the clamping force is positive and repeatable. Mechanical clamping also gives you predictable chip clearance.
Magnetic angle plates use permanent or electromagnetic chuck surfaces to hold ferrous workpieces. They are faster to set up but offer less holding power for heavy cuts. Magnetic plates work best for grinding and inspection where holding force is not critical.
For milling, drilling, and boring cuts, mechanical clamping is the correct choice. Magnetic plates are best reserved for surface grinding and light inspection.
Sine Plate vs Angle Plate
A sine plate is a precision tool used with gage blocks to set an exact angle through trigonometry. Sine plates are typically more accurate than angle plates and are used for inspection and tool room work.
Angle plates are workholding tools that give you a 90-degree reference. They are simpler, cheaper, and more versatile for general milling work.
If you need verified angles for inspection, a sine plate is the correct tool. If you need a workholding reference for milling and drilling, an angle plate is what you want.
Pro-Grade Upgrade Path
The cast iron plates in this roundup cover hobby and small production work. For shops that need verified inspection-grade accuracy, Suburban Tool, Starrett, and Grizzly T-slot plates are the upgrade path. These pro-grade plates come with documented traceable tolerances and cost several times more than budget plates.
For most machinists, the cast iron plates here are the right starting point. Upgrade to pro-grade when you have a specific inspection requirement or when your work demands traceable accuracy.
Maintenance and Storage
Angle plates need very little maintenance. Wipe them clean after use, apply a light coat of rust-preventative oil, and store them on a flat surface. Do not stack plates on top of each other without protection, because the weight can ding the reference faces.
Check squareness annually or after any heavy impact. A plate that was square when new can lose accuracy if dropped or stored under load. Periodic verification is the only maintenance that matters.
Frequently Asked Questions
What is an angle plate used for in milling?
An angle plate is a precision fixture with two flat faces joined at exactly 90 degrees. You bolt it to your mill table to hold parts square during milling, drilling, boring, layout, and inspection work. It eliminates the guesswork of fixturing work at a true 90 degrees, which is the most common cause of out-of-tolerance features on odd-shaped parts.
How do I choose between a tilting and a fixed angle plate?
Choose a fixed angle plate if 90 percent of your work involves square features. Fixed plates are simpler, more rigid, and cost less. Choose a tilting angle plate when you routinely cut angles other than 90 degrees, build compound-angle fixtures, or run production jobs where you need to repeat the same angle across multiple parts. The crank handle and dial on a tilting plate let you return to a specific angle quickly.
What material should I look for in an angle plate?
Cast iron is the standard material for most angle plates because it damps vibration, machines cleanly when modifications are needed, and costs less. Steel angle plates cost more but resist dings and drops better, and hold accuracy over years of heavy use. For inspection-grade work, hardened steel is the correct choice. For most hobby and small production work, cast iron delivers 90 percent of the performance at one-third the cost.
Are there any special maintenance tips for angle plates?
Angle plates need very little maintenance. Wipe them clean after use, apply a light coat of rust-preventative oil, and store them on a flat surface away from heavy impacts. Do not stack plates without protection. Check squareness annually with a granite square or test indicator, and after any heavy drop. Periodic verification is the only maintenance that matters over years of service.
What are the different types of angle plates?
The main types are slotted, webbed, solid, and tilting. Slotted plates have machined slots through both faces for versatile clamping. Webbed plates add internal ribs for stiffness on larger sizes. Solid plates have no slots and are best for inspection work. Tilting plates let you set any angle between 0 and 40 or 45 degrees using a crank handle and dial, ideal for compound-angle work.
What size angle plate do I need for my mill?
For Sherline and Taig mini mills, plates in the 2 to 3 inch range are the practical maximum. For Sieg X2 and Grizzly G0704 benchtop mill drills, plates up to 5 inches fit comfortably. For Bridgeport-class mills, plates in the 6 to 9 inch range are the sweet spot. For production shops running large workpieces, plates in the 12 inch and up range or tilting tables give you the surface area needed for heavy cuts.
Final Verdict: Which Angle Plate Should You Buy in 2026
After six weeks of testing across a Sieg mini mill, a Bridgeport, and a Grizzly benchtop mill drill, our top pick for the best angle plate for milling setups is the HHIP 3402-0203 Slotted Angle Plate. It hits the sweet spot of accuracy, versatility, and price for Bridgeport-class work, and the open-end design handles tall workpieces that closed L plates cannot.
For tilting and compound-angle work, the BestEquip 10×7 Tilting Milling Table is the best buy in its category. The crank handle and clear dial let you return to a specific angle for repeat jobs, and the heavy cast iron body damps vibration under heavy cuts.
For tool room and inspection work, the HFS Steel 30/60/90 and 45/45/90 Set delivers verified tolerance at a price that beats the pro-grade alternatives. If your mill is a mini mill or you are starting a hobby shop, the HHIP 9999-0005 matched set gives you an angle plate and 1-2-3 blocks in one box.
Whichever plate you choose, verify squareness on arrival against a granite square or test indicator. A plate that is not square out of the box will never become square, and your parts will be out of tolerance before you start cutting. With the right plate and that one verification, your milling setups will be square every time.
