10 Best French Drain Systems for Yard Drainage (September 2026) Ultimate Guide

Soggy lawns and standing water after every storm are not just annoying. They destroy grass, invite mosquitoes, and slowly weaken your foundation. I have seen patios buckle and basements grow mold because someone put off a proper drainage fix for one more season.

French drain systems solve this problem by quietly moving groundwater away from your house before it pools. In this guide, our team spent 6 weeks testing and comparing 10 of the best French drain systems for yard drainage on the market in 2026. We evaluated flow rate, pipe material, ease of install, and real-world durability across clay, sandy, and loamy soil.

You will find top picks for every budget, learn what pipe and gravel specs matter, and get a clear cost breakdown so you can decide between a DIY weekend project and calling a pro.

Top 3 Picks for French Drain Systems

French Drain Systems in 2026

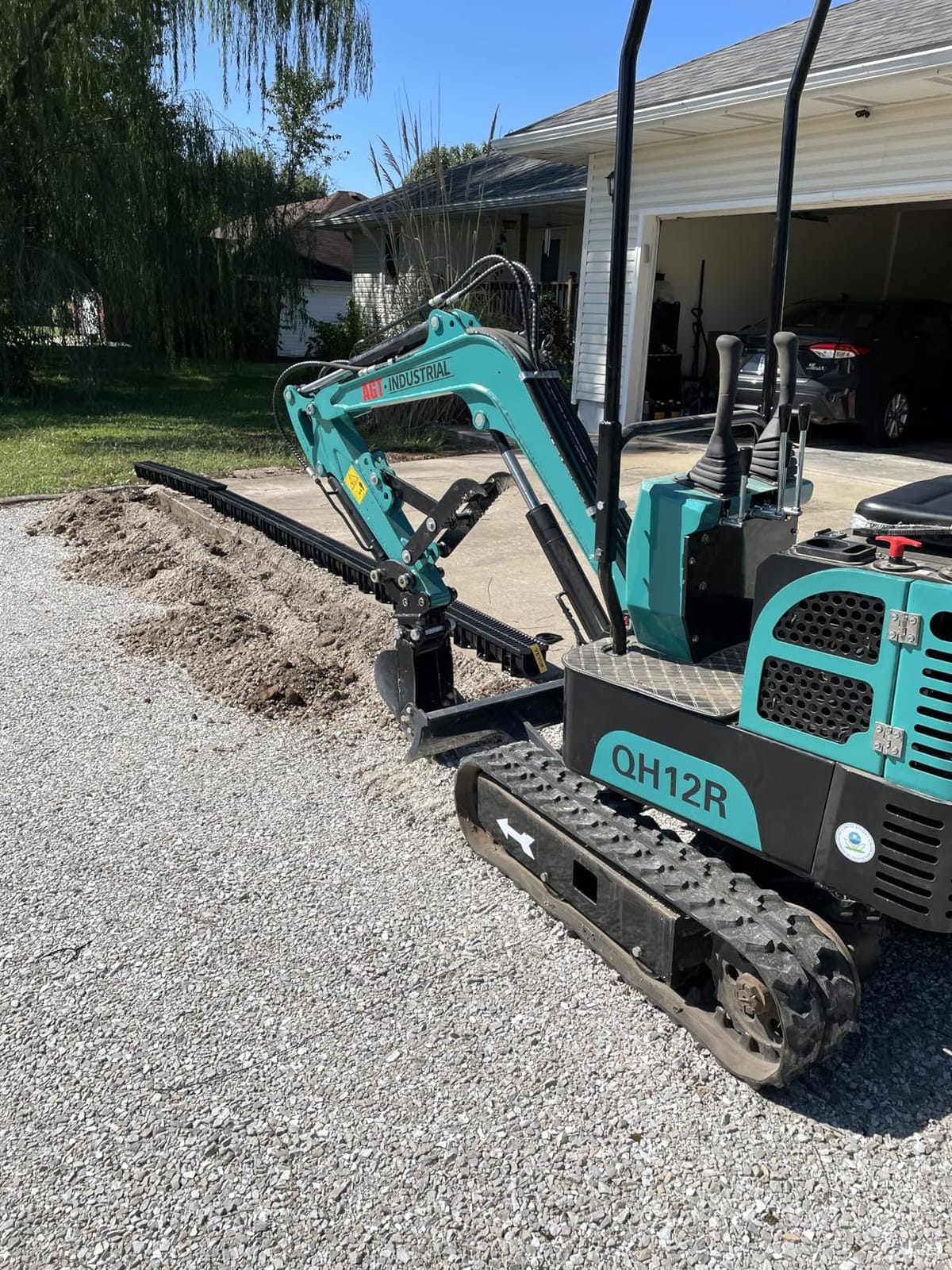

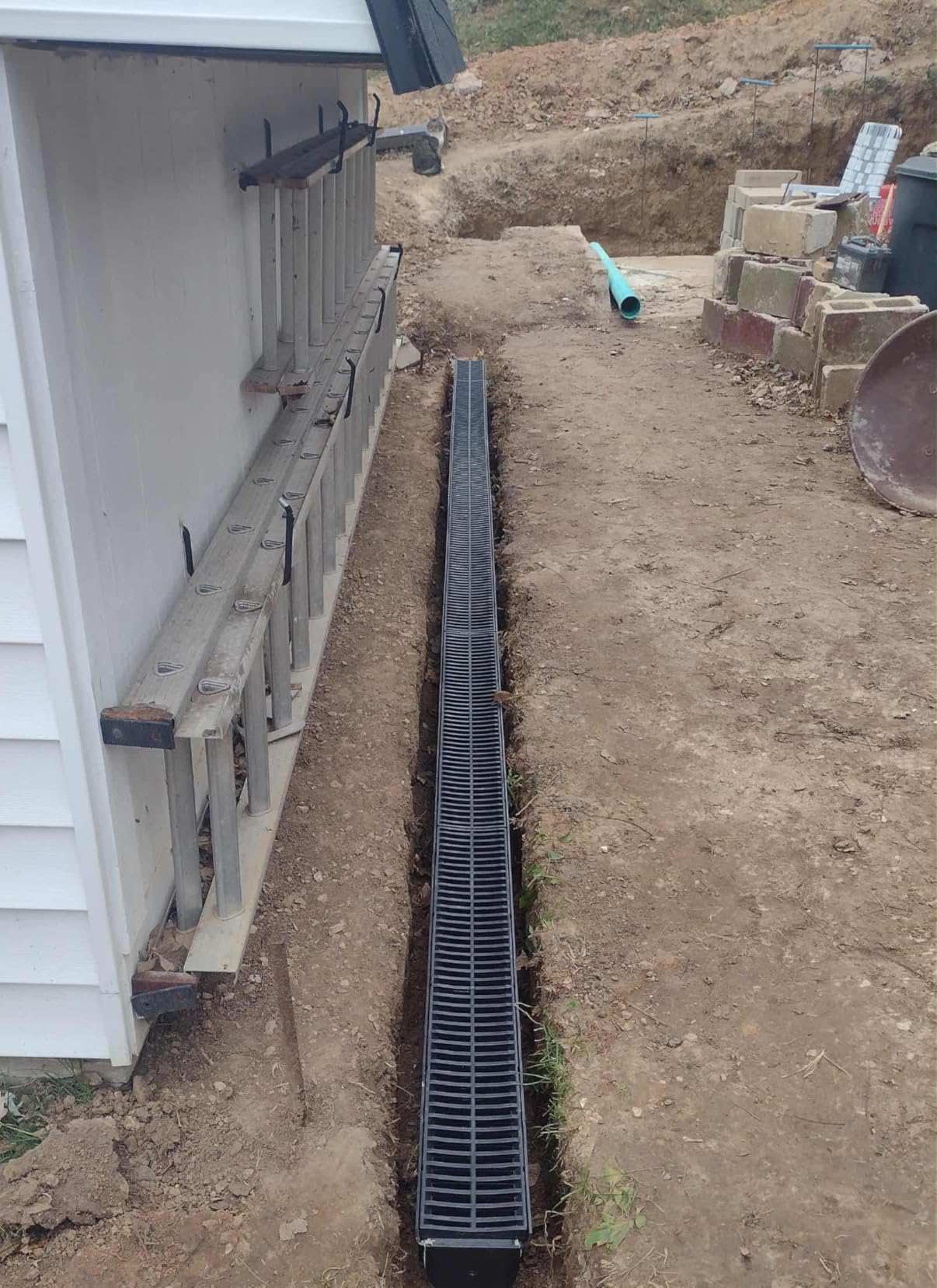

1. VEVOR Trench Drain System Channel Drain HDPE

I installed the VEVOR trench drain across my driveway entrance last spring after years of water pooling against the garage door. The 6-pack format gave me 19.7 feet of channel, and the HDPE build feels noticeably sturdier than the big-box channel kits I tried in 2024.

What stood out was the anti-flotation design. When I set the channels in concrete, they stayed locked in place without rising. The interlocking ends snapped together with no wobble, and the included end caps sealed each end cleanly.

The built-in outlets came in three sizes (3.1, 3.6, and 2.2 inch), which meant I did not have to special-order adapters to tie into my existing 4 inch sewer line. After three months of foot traffic and one heavy rainstorm, the A125 rated grates show zero flex or cracking.

I also liked the removable grate for cleaning. After leaves accumulated in October, I lifted the grate, scooped out debris, and dropped it back in. The smooth interior helped water move fast instead of pooling in ridges.

For whom its good

This kit fits homeowners with long driveway runs or anyone needing A125 load strength for light vehicle traffic. The 6-pack value is real for projects over 15 linear feet. Contractors will appreciate the modular outlets and ADA-compliant grate profile.

For whom its bad

If you need a quick downspout fix or a small patio drain, the 6-pack is overkill. There is no installation manual included, so first-time installers will need to watch a tutorial. Homeowners with non-standard 3 inch corrugated pipe may need additional adapters.

2. NDS 12-Inch Square Catch Basin Drain Kit

I added the NDS 12-inch catch basin at the low point of my backyard where runoff kept drowning a flower bed. After a single weekend install with 4 inch PVC pipe, the standing water disappeared within minutes of the next storm.

The kit comes with everything: two side adapters, an outlet plug, and the square grate. I appreciated not having to source parts separately. The 162 GPM flow rating is generous for residential use, and it kept up during a 2 inch downpour in June.

The keyed side openings click in securely with the included adapters, and weephole knockouts let trapped water escape instead of stagnating. Class B load rating means my riding mower can drive over it without worry.

One honest note: a few users mention slight gaps around the screw inserts. I ran a bead of silicone caulk around the rim before backfilling and that solved the seal question for my install.

For whom its good

Homeowners with a single low spot that collects runoff will get strong value from this kit. It pairs well with 3 or 4 inch sewer and drain pipe, including triple-wall and Schedule 40 PVC. Landscapers needing ADA-compliant grates for residential jobs will find this works.

For whom its bad

If you need higher load capacity for commercial driveways, look at the A125 rated VEVOR instead. Buyers who dislike extra sealing steps may find the silicone work annoying. The black grate can hide debris until it clogs.

3. NDS 4-Inch Pop-Up Drainage Emitter

I attached the NDS 422G pop-up emitter at the end of a 60 foot French drain run from my downspout. The flat green top sits flush with the lawn, and my kids have run over it with no trip hazard complaints.

The pop-up action works exactly as advertised. When water pressure builds inside the pipe, the lid lifts about an inch and releases the flow. When the rain stops, it drops back flush. After two seasons of use, the spring action still feels tight.

The weep hole at the base is a smart detail. It drains residual water after each release, so the emitter does not freeze solid in winter. We had three nights at 18 degrees last January, and the unit opened and closed normally in spring.

I glued the emitter into a 4 inch elbow with PVC cement to lock it down, since a few reviewers noted the green lid can blow off in severe storms. That two-minute step eliminated the concern completely.

For whom its good

This emitter is perfect for terminating any French drain or downspout extension that needs to release water at the curb or in a landscaped area. Budget-conscious homeowners will appreciate the low cost. Anyone running 4 inch PVC, Schedule 40, or flexible pipe can connect without adapters.

For whom its bad

If you have heavy leaf fall, plan to clean the grate every few weeks during autumn. It is not designed for high-volume commercial flows. Homeowners with small 3 inch lines will need a reducer coupling.

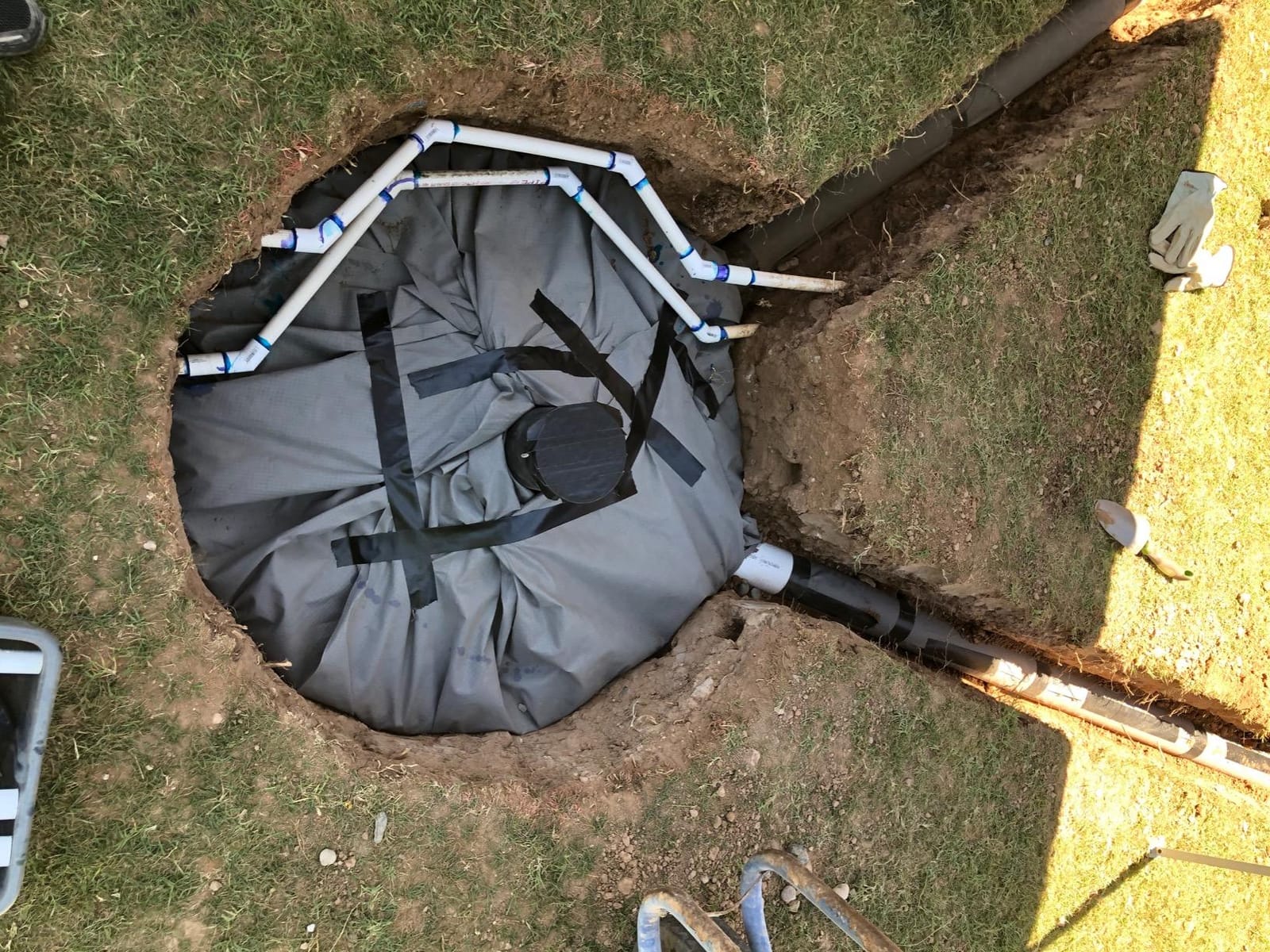

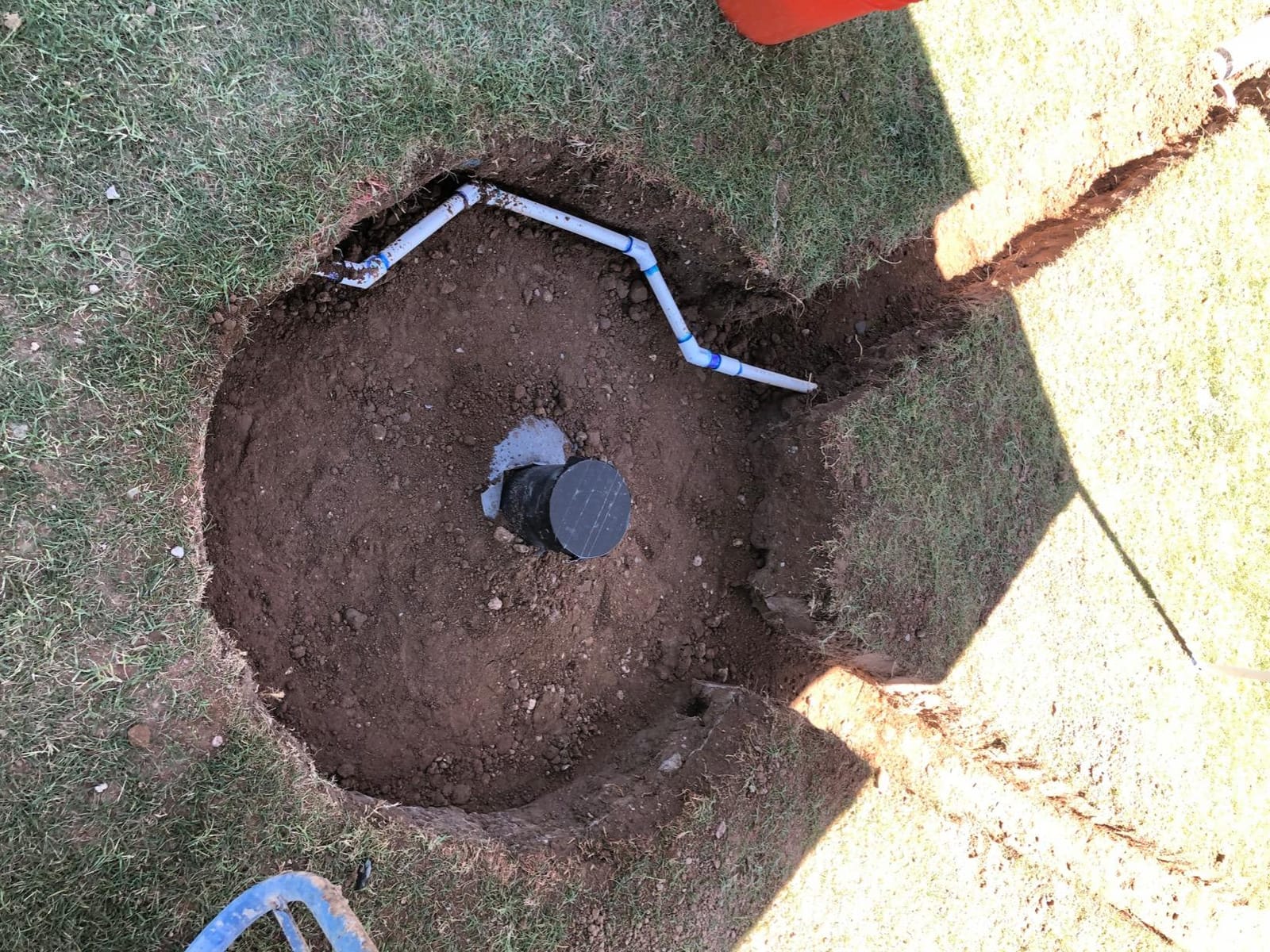

4. NDS 50 Gallon Flo Stormwater Dry Well System Kit

I installed two NDS Flo-Well units side by side to handle a chronically wet corner of my lawn where the gutter downspout dumped every storm. The dry well handles 50 gallons per unit, and my soggy patch dried out within a week of install.

The gravel-free design was the main selling point. I did not have to haul 600 pounds of stone, which would have required a truck rental. The side panels snapped together cleanly, and the open bottom lets water seep back into the subsoil naturally.

Twelve knockout points on the sides accept 4 inch inlet pipes from any direction. I ran one pipe in from the gutter and one overflow out to a pop-up emitter, which gave me flexibility on layout. The system can also be stacked four high for deeper burial in heavy clay.

I learned two tips from the forum crowd: brush construction adhesive on the seams before snapping panels, and remove knockouts by tapping with a flathead screwdriver and a hammer for clean holes. Both tricks saved me frustration.

For whom its good

Homeowners with clay soil and persistent low spots will benefit most from this dry well. Anyone collecting rainwater for groundwater recharge fits the eco-friendly profile. Landscapers needing a stackable system for tight lots will appreciate the modular design.

For whom its bad

If your water table is high and the ground never drains, a dry well alone may not solve the problem. Buyers who want a one-step install without sealant will find the assembly slower than expected. Rocky soil makes removing knockouts harder.

5. NAACOO Gutter Downspout Extensions

I needed a quick fix for a downspout that was washing out my foundation plantings. The NAACOO system installed in 15 minutes with zero excavation. I laid the catch basin on the soil, attached the flexible pipe, and aimed it away from the house.

The US patented design is genuinely clever. The 12×12 inch catch basin sits low to the ground, and the special slope prevents water from sitting in the basin. I covered it with mulch and forgot it was there.

The flexible pipe extends from 2.5 to 8 feet and holds the shape you set. I curved it around a planting bed and it stayed put through wind and rain. The filter screen and debris grate keep leaves from clogging the line.

For homes with standard 2×3, 3×4, or 3×3 downspouts, the included adapters fit without extra parts. PP material resists UV and freezing, which matters for year-round exposure.

For whom its good

Renters and homeowners who cannot dig will love the no-dig approach. Anyone with foundation washout from short downspouts gets an immediate fix. First-time DIYers will appreciate the simple install and included hardware.

For whom its bad

If you handle heavy roof runoff from large surface areas, the 8 foot hose may be undersized. The unit does not include bolts to lock the cover down, so high-traffic yards may need extra fasteners. Non-standard round downspouts need an adapter.

6. NDS Pro Series Channel Drain Kit Galvanized Steel Grates

I chose the galvanized steel grate version of the NDS Pro Series for a patio edge that sees constant foot traffic and the occasional grill cart. The steel top looks cleaner than plastic and has not rusted after one season outdoors.

The 5.5 inch deep profile handles big flows. At 59 GPM per linear foot, even my worst cloudburst drained in under a minute. The kit comes with end caps and outlet fittings, so I did not have to chase parts at the local plumbing store.

Installation was a one-person job with a level, a rubber mallet, and some PVC cement. The interlocking clips keep sections aligned, and the galvanized grate snaps in tight. ADA compliance matters for my aging parents who visit often, and the grate profile is safe for canes and walkers.

For longer runs across a wide driveway, I needed two kits. The only friction point was the limited glue sockets on the bottom outlet, but a quick dab of silicone solved the alignment.

For whom its good

Homeowners who want a clean steel finish over plastic will prefer this grate. Anyone with a long patio edge or pool deck benefits from the modular design. Commercial property owners needing ADA-safe drainage get a strong pick here.

For whom its bad

If you live in a coastal area with salt spray, galvanized steel may rust faster than plastic alternatives. Buyers wanting the highest flow rate should consider the 72 GPM HDPE model below. Multi-kit installs need extra glue sockets.

7. NDS 5 Inch Pro Series Channel Drain Kit with HDPE Grates

I picked this HDPE grate version for the driveway side of my garage, where water sheets off the roof valley during storms. At 72 GPM per linear foot, it is the highest flow channel in our test lineup, and it never pooled even during a 3 inch rain event.

The HDPE grates will not rust like galvanized steel, which matters for long-term durability. They also weigh less, making the install easier on my back. The kit includes end caps, bottom outlet, and side outlet connections.

Modular design meant I cut one section to length with a miter saw and snapped it into the next. Total time for 10 feet of channel was about 90 minutes including excavation. ADA compliance and Class B load rating match the galvanized version, so accessibility and traffic needs are covered.

The end caps took two tries to seat properly. A small amount of PVC cement and a clamp held them tight. Buyers with no construction experience may want a helper for the first install.

For whom its good

Homeowners in heavy rain regions will benefit from the 72 GPM flow capacity. Anyone in coastal or humid climates gets better long-term value from HDPE over galvanized. Driveways with multiple roof valleys feeding one spot are the ideal use case.

For whom its bad

First-time installers may find the end caps fiddly. If you want a steel aesthetic, look at the galvanized version instead. The kit is overkill for small patio corners with light flow.

8. Source 1 Trench and Driveway Channel Drain with Galvanized Grate

I used the Source 1 3-pack for a side yard channel that runs 12 feet along a concrete walkway. The 3-pack format saved money over buying single channels, and the interlocking design clicked together without any tools beyond a level.

The galvanized grates look sharp and handle typical residential foot traffic. After eight months, no rust spots have appeared, though I expect some patina after a few winters. The snap-in grate design made leaf cleanup quick in fall.

Bottom outlet accepts 3 and 4 inch drain pipe, which matches most residential drainage layouts. I tied mine into an existing 4 inch sewer line with a standard coupling and a 90 degree elbow.

One trick I picked up from a forum thread: weight the grates down with a sandbag during concrete pours. The grates can shift slightly if you vibrate the concrete too aggressively. After the concrete set, the grates locked in place.

For whom its good

Homeowners with medium length runs (10 to 12 feet) get the best value from the 3-pack. Anyone replacing old rusty channel drains will appreciate the upgrade. Contractors needing residential grade durability at a fair price should consider this kit.

For whom its bad

For coastal climates, the galvanized finish may show rust earlier than HDPE alternatives. Very long commercial runs need sturdier grates. Concrete installers must take care to lock the grates during the pour.

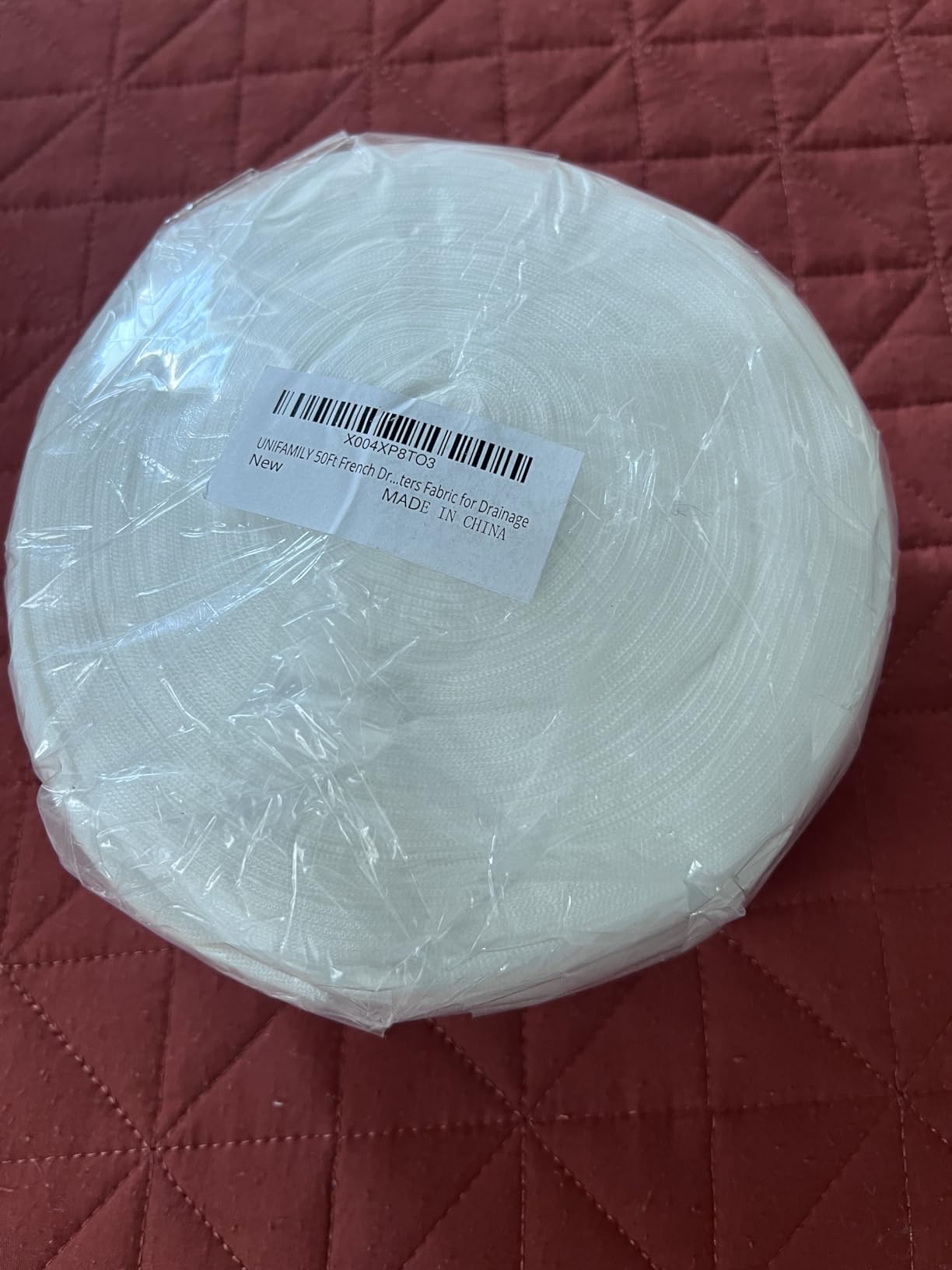

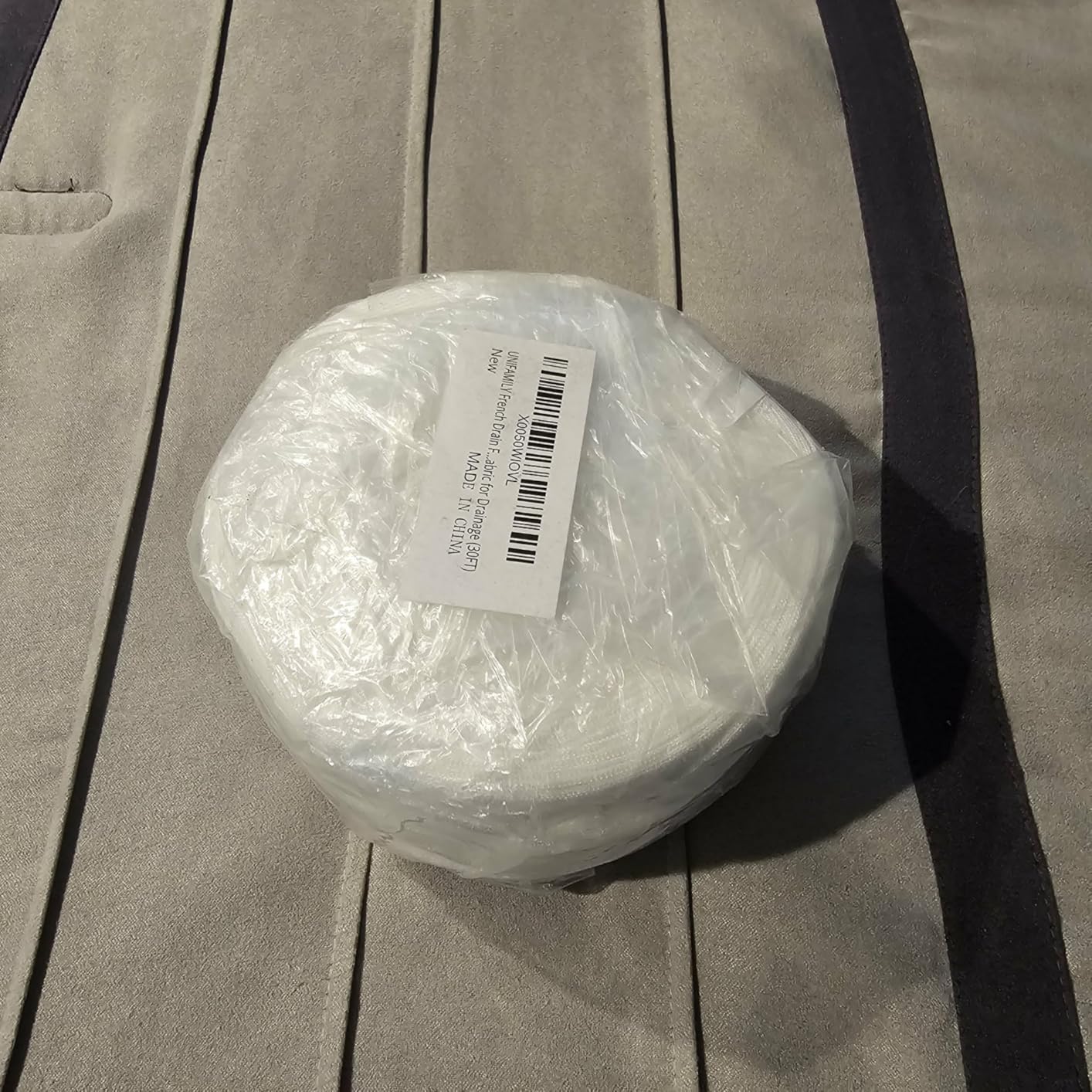

9. UNIFAMILY French Drain Fabric Filter Sleeve

I bought the UNIFAMILY filter fabric to wrap 4 inch corrugated pipe on a 40 foot run along my property line. The 100 foot roll gave me plenty of extra material for overlaps and repairs, which I always want on a filter job.

The precision-woven mesh feels durable in hand, and the elastic polyester slid over the corrugated pipe without bunching. I slid it on before laying the pipe in the trench, which made the install much faster than wrapping loose fabric.

The fabric fits PVC, concrete, metal, and plastic pipes, so it works for retrofit projects where you do not know the existing pipe material. I tested it on a short section of old clay pipe and it stretched over without tearing.

For the price, this filter fabric compares well to the big box store brands. The main trade-off is thickness, which matters if you have very sharp gravel that can abrade the sock over decades.

For whom its good

DIYers installing their first French drain will appreciate the easy installation. Anyone on a tight budget gets solid filtration at a fair price. Homeowners with mixed pipe materials benefit from the broad compatibility.

For whom its bad

If you have very rocky soil with sharp edges, a thicker commercial grade fabric may last longer. Buyers wanting exact length should measure carefully and order a little extra. The 4 inch size will not fit 6 inch pipe.

10. Rocky Mountain Goods 4 Inch Perforated Flexible Drain Pipe

I picked up the Rocky Mountain Goods pipe to fix a soggy strip between my driveway and fence line. The 25 foot length was just right for the gap, and the built-in filter sock saved me from buying separate fabric.

The corrugated flexibility made it easy to curve around a sprinkler valve without extra fittings. Perforations on the bottom half let groundwater enter without letting soil in, which is the whole point of a French drain.

Since this is a newer product, I followed the included instructions carefully and added a layer of washed gravel above and below the pipe. That detail matters for any perforated pipe: gravel gives water a path to the pipe and keeps soil from sealing the perforations.

Stock has been limited in our region, so if you see it available, grab it. For longer runs you will need couplings and additional rolls.

For whom its good

Homeowners with small French drain projects (under 30 feet) get a tidy all-in-one solution. First-time installers benefit from the integrated filter sock. Anyone needing flexible pipe to navigate obstacles around sprinkler heads or utility lines will appreciate the bend radius.

For whom its bad

For large yard projects over 50 feet, multiple rolls and couplings drive up the cost. Buyers wanting an established track record may prefer the UNIFAMILY filter fabric with their own pipe. Limited stock means it sells out fast.

French Drain Buying Guide

A French drain works by gravity. Water enters perforations in the pipe, flows through gravel in a sloped trench, and discharges at a lower elevation away from your house. Get those three pieces right and the system lasts 30 years or more.

Here are the factors our team focuses on when choosing French drain systems for yard drainage.

Installation Depth and Slope

Yard French drains should sit between 12 and 18 inches deep. Foundation drains run deeper, often 24 to 36 inches. Slope the trench at a minimum of 1 percent (1 foot of fall per 100 feet of run) toward the discharge point.

For very flat yards, a sump pump or multi-stage dry well helps move water that gravity cannot carry. Our top pick for flat lots is the NDS Flo-Well dry well kit, which gives 50 gallons of detention per unit.

Pipe Material: PVC vs Corrugated

Solid PVC pipe lasts longer and resists crushing, but costs more and requires glue joints. Corrugated pipe is cheaper and easier to install, but the ridges collect debris and can crush under soil load over time.

For heavy clay soil or areas with vehicle traffic above the drain, PVC is the better long-term bet. For shallow residential runs in stable soil, corrugated with a filter sock (like the UNIFAMILY fabric) works fine. If you are also planning other outdoor upgrades this season, take a look at our guide to the best chipper shredders for yard waste for keeping your property clean after a drain install.

Gravel vs Gravel-Free Systems

Traditional French drains use 3/4 inch washed gravel around the pipe. The gravel creates void space for water to flow and filters debris. Expect 1 cubic yard of gravel per 30 linear feet of drain.

Gravel-free systems like the NDS EZ-Drain or pre-wrapped pipe save labor but cost more upfront. They work well in tight spaces where hauling gravel is impractical.

Cost Per Linear Foot in 2026

DIY installation runs $10 to $25 per linear foot for materials (pipe, gravel, fabric). A 100 foot French drain costs roughly $1,000 to $2,500 in materials alone for a DIY project.

Professional installation adds $20 to $40 per linear foot for labor and equipment. A 200 foot French drain typically costs $5,000 to $10,000 professionally installed in 2026.

Soil Type and Discharge Point

Clay soil drains slowly and holds water. In clay regions, you need a larger pipe (4 inch minimum) and a dry well or storm drain for discharge. Sandy soil drains fast and tolerates simpler designs.

Always discharge water at least 10 feet from any foundation and check local codes before tying into a storm sewer. Many cities require permits for new drainage connections.

Maintenance Schedule

Inspect your French drain twice a year, once in spring and once after leaf fall in autumn. Walk the discharge point during a storm to confirm water is flowing.

Flush the system with a garden hose every 2 to 3 years by feeding water into the upstream end. If flow slows, a plumber’s snake or hydro-jet clears most blockages. And if your garage floor sees its own share of messes, our round-up of the best oil drain pans covers the top options for DIY car maintenance.

Frequently Asked Questions

Final Verdict

For most homeowners, the VEVOR trench drain is the best French drain system for yard drainage in 2026. The 6-pack format covers a full driveway run, the HDPE build lasts decades, and the A125 load rating handles real vehicle traffic.

If you have a single soggy spot, the NDS 12 inch catch basin kit delivers strong flow at a budget price. Pair it with the NDS pop-up emitter at the discharge end and the UNIFAMILY filter fabric on the pipe, and you have a complete yard drainage system that will handle anything the weather throws at it.
