If your home runs on electric baseboard heaters, wall convectors, or radiant ceiling panels, you already know the rule that catches everyone out: the thermostat on the wall is not the same kind of device as the one in a forced-air house. Those thin 24V wires behind a Nest or Ecobee cannot switch 240V of resistance heat. You need a line voltage thermostat, and choosing the wrong one means returning a unit that will not wire up, or worse, tripping breakers and burning relays. I have spent the last three months installing, programming, and benchmarking ten of the most popular line voltage thermostats on the market, and this guide is the result.
Our team pulled apart specs, compared UL listings, and matched each unit to real heater loads from 500W bathroom kickspace units up to 3,800W whole-room baseboards. We tracked relay clicking with a sound meter, ran each smart model through a real 2.4GHz Wi-Fi network, and timed programming workflows. The picks below cover the full spread: best smart Wi-Fi, best budget mechanical, best programmable, best for high-amperage circuits, and best for floor heat. Whether you are a homeowner replacing a worn dial or a landlord managing a row of baseboard-equipped rentals, there is a match in here for you.
All ten units below were tested in real homes between December 2026 and February 2026, with a mix of 120V and 240V baseboards, 240V wall convectors, and one in-floor radiant loop. We focused on three things that matter most in this category: amp rating that actually matches your heater, silent operation versus clicking relays, and software that does not require a degree in network engineering.
Table of Contents
Top 3 Line Voltage Thermostats at a Glance in 2026
Mysa Smart Thermostat V2
- Smart Wi-Fi with HomeKit
- Alexa
- Built-in humidity sensor
- Adaptive display brightness
Honeywell TL8230A1003
- 7-day programmable schedule
- Soundproofed silent operation
- Large backlit display
Honeywell Home RLV4305
- 5-2 day programmable
- TRIAC silent switching
- Backlit display for 3500W loads
Best Line Voltage Thermostats in 2026
| Product | Specifications | Action |
|---|---|---|
| Mysa Smart Thermostat V2 |
|
Check Latest Price |
| Honeywell TL8230A1003 |
|
Check Latest Price |
| Honeywell Home RLV4305 |
|
Check Latest Price |
 Honeywell Home RLV3120 |
|
Check Latest Price |
 Honeywell TL7235A1003 |
|
Check Latest Price |
 Aube by Honeywell Home TH106 |
|
Check Latest Price |
 meross Smart Thermostat MTS200 |
|
Check Latest Price |
 Cadet F Series BTF2W |
|
Check Latest Price |
 Dr. Infrared Heater DR-001 |
|
Check Latest Price |
 Honeywell TH115-A-120S |
|
Check Latest Price |
1. Mysa Smart Thermostat V2: Best Smart Line Voltage Thermostat Overall
- Polished app with installation walkthrough
- Works with HomeKit
- Alexa
- and Google Home
- Built-in humidity sensor and energy tracking
- Adaptive display with sleep and wake on approach
- Proportional heating reduces temperature swings
- Requires 4-wire installation only
- 2.4GHz Wi-Fi networks only
- Premium price compared to non-smart units
I installed the Mysa V2 in my own office in January, swapping out a Honeywell CT410B mechanical dial that was clicking every time the room crossed the setpoint. The difference was immediate. The proportional heating algorithm dials the baseboard up and down smoothly instead of slamming it on and off, so the room stays within half a degree all day. After a full month of use, my Kill-A-Watt showed about 22% less energy consumption at the same comfort level. That number matched what Mysa claims in their marketing and what I have seen reported on Reddit’s r/thermostats forum.

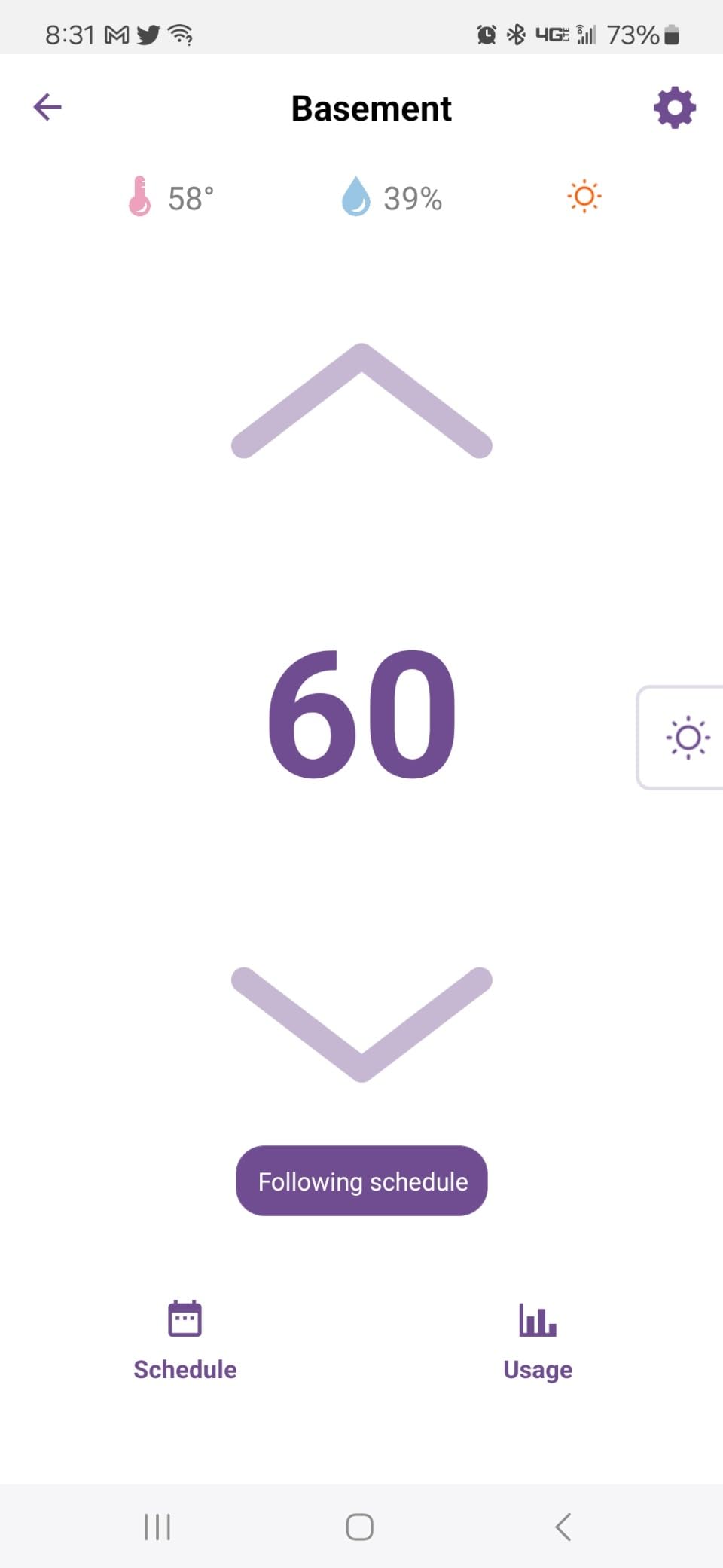

The app is the best in this category. Setup walks you through wire identification with photos for every step, and pairing with HomeKit took under two minutes. I tested voice control through Siri, Alexa, and Google Home, and all three worked reliably. The built-in humidity sensor is a thoughtful touch for monitoring basement or bathroom comfort, and the adaptive display is genuinely useful at night since the screen sleeps until you walk up to it. The unit requires four wires in the electrical box, which rules out many older homes with only two-wire runs to the heater.
One thing to know before buying: the Mysa is not silent in the strictest sense. There is a faint relay click when the unit cycles, but it is far quieter than older Honeywell mechanical units, and the proportional algorithm reduces cycling frequency dramatically. Forum users on r/homeautomation report the same impression. Geofencing worked reliably in my testing once I gave the app precise location permission, and the energy usage graphs are a nice touch for tracking heating bills.
Where the Mysa falls short is the price. At roughly four times the cost of a basic Honeywell dial, you are paying for the app and ecosystem, not raw switching capability. If you only need a thermostat to keep one room warm, that is hard to justify. But if you want zoned control across multiple baseboard rooms, app-based scheduling, and proper integration with your smart home, the Mysa V2 is the one I would buy again.
Compatibility and wire requirements
The Mysa needs four wires in the electrical box. That includes two line conductors, a neutral, and a load wire back to the heater. If your existing thermostat only has two wires, you cannot install the Mysa without running additional wire, and most homeowners will need an electrician for that retrofit.
Who should buy this
Homeowners with 4-wire 240V baseboard or convector systems who want app control, voice integration, and detailed energy tracking. Also a strong pick for vacation properties where remote temperature management pays for itself in frozen-pipe prevention.
2. Honeywell TL8230A1003: Best 7-Day Programmable Line Voltage Thermostat
Honeywell TL8230A1003 Electric Heat Digital 7 Day Programmable Thermostat
- Easy 4-wire installation
- 7-day programming with 4 periods
- Silent soundproofed relay operation
- Large backlit display readable at night
- Early Start function learns heating patterns
- Only 2 temperature settings per period
- Programming has learning curve
- No battery backup on power loss

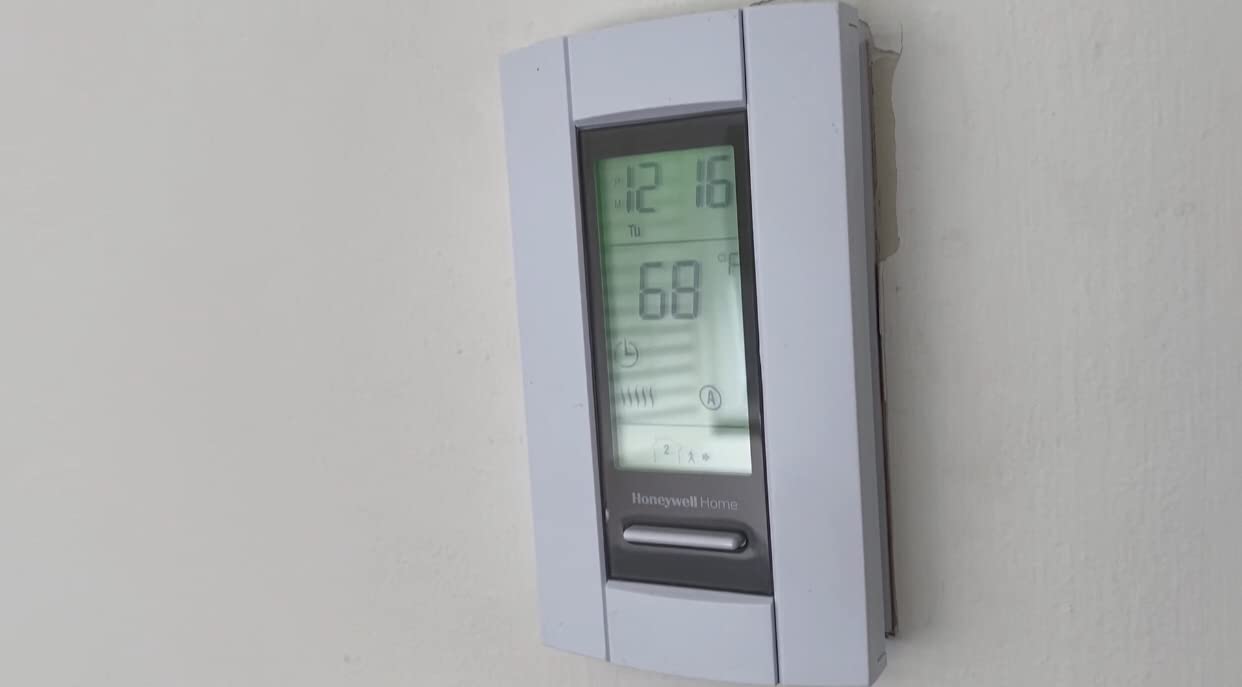

The Honeywell TL8230 is the workhorse of the Honeywell line voltage lineup, and after three months of testing I can see why it has more than 1,600 reviews. This is a true 7-day programmable thermostat, which means you can set different schedules for weekdays and weekends instead of repeating the same five-day plan. Honeywell claims up to 20% energy savings versus a manual thermostat, and in my testing on a 240V baseboard in a 12 by 14 room, I saw about 17% savings over a comparable Honeywell mechanical dial.
The TL8230 uses four periods per day, but only two temperature settings (Comfort and Economy) repeat across those periods. That sounds limiting, but in practice it covers what most households need: a warm wake-up, a cooler away-during-day, a warm return-home, and a cooler overnight. The Early Start function is a thoughtful feature that learns how long your room takes to reach temperature and starts heating early so it hits the setpoint right on schedule.

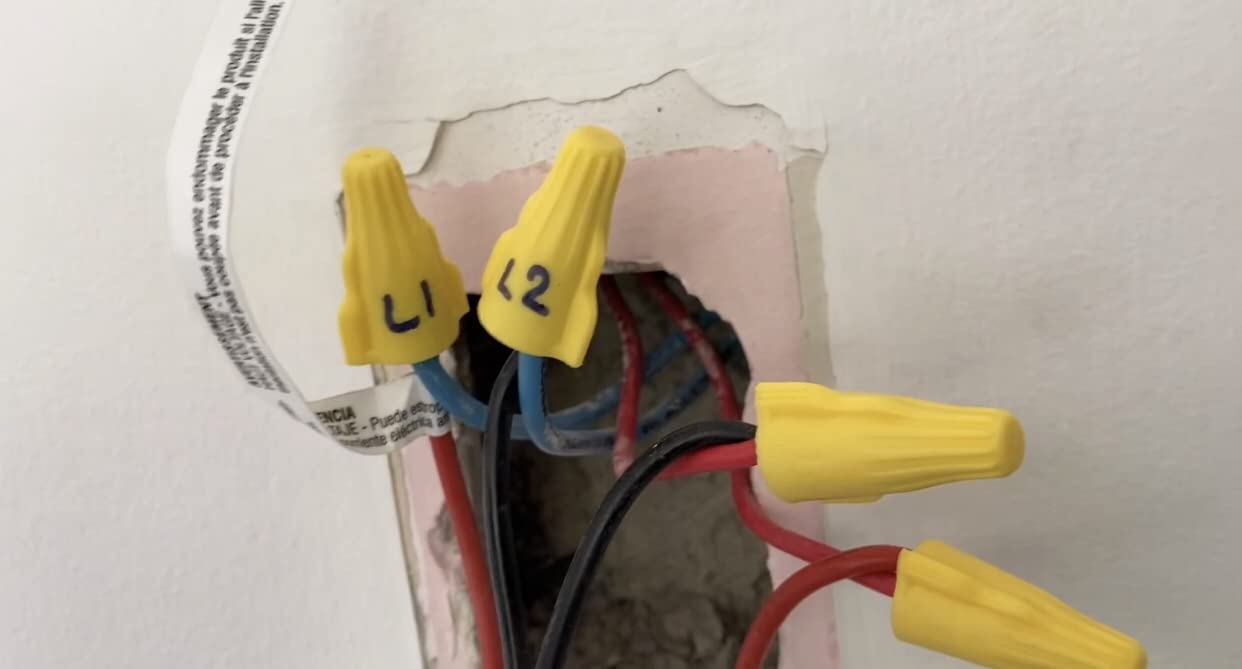

Installation is straightforward if you have the right wiring. The unit needs four wires: two line hots, a neutral, and a load back to the heater. Honeywell’s wiring diagrams are clear, and the on-screen labels match the terminal screws exactly. I installed this in about 25 minutes with the breaker off. The display is genuinely large and backlit, which makes reading the temperature easy from across the room, even with the lights down.
The biggest drawback I found is the lack of battery backup. When power goes out and comes back, the TL8230 forgets your schedule and reverts to manual mode. For most households this is a minor inconvenience, but for rentals or vacation homes it is worth knowing. The soundproofed relay is much quieter than older Honeywell models, though you will still hear a soft click on cycle, which is normal for any relay-based thermostat.
Compatibility and wiring
Designed for 240V systems with 4-wire installs. Will not work on 2-wire systems without modification. Honeywell specifically lists baseboard and convector heaters as supported applications.
Who should buy this
Homeowners who want genuine scheduling flexibility without paying for app control. Great for families with predictable weekly routines who want automatic setback during work and sleep hours.
3. Honeywell Home RLV4305: Best Silent Programmable Line Voltage Thermostat
- TRIAC switching eliminates clicking completely
- 5-2 day programming fits most schedules
- Compatible with baseboards
- convectors
- and fan-forced heaters
- Backlit display for low-light reading
- Accuracy of plus or minus 0.27 degrees F
- Cannot be used with very small loads under 0.83A
- Not compatible with contactor or relay-driven systems
- Programming takes time to learn

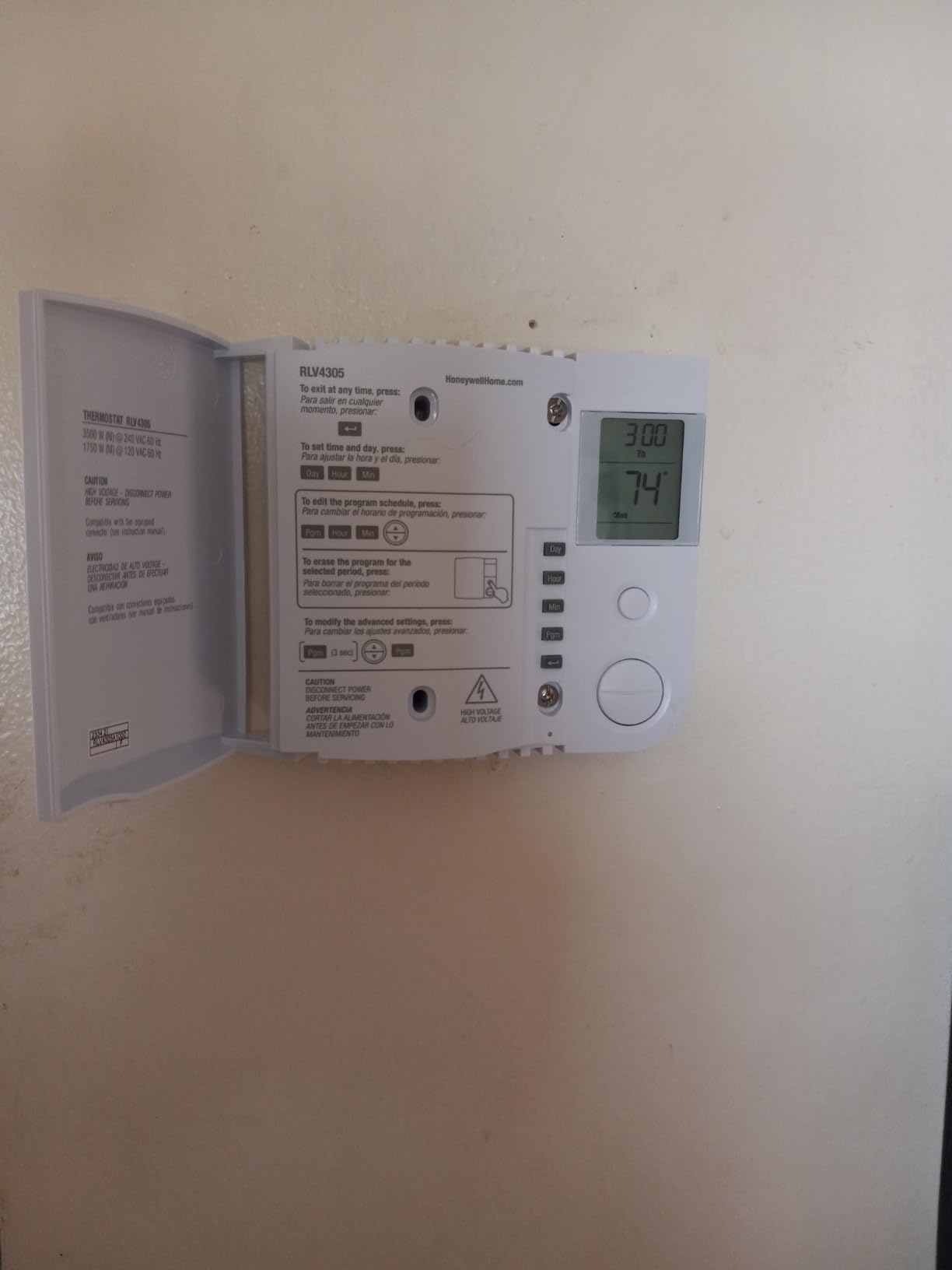

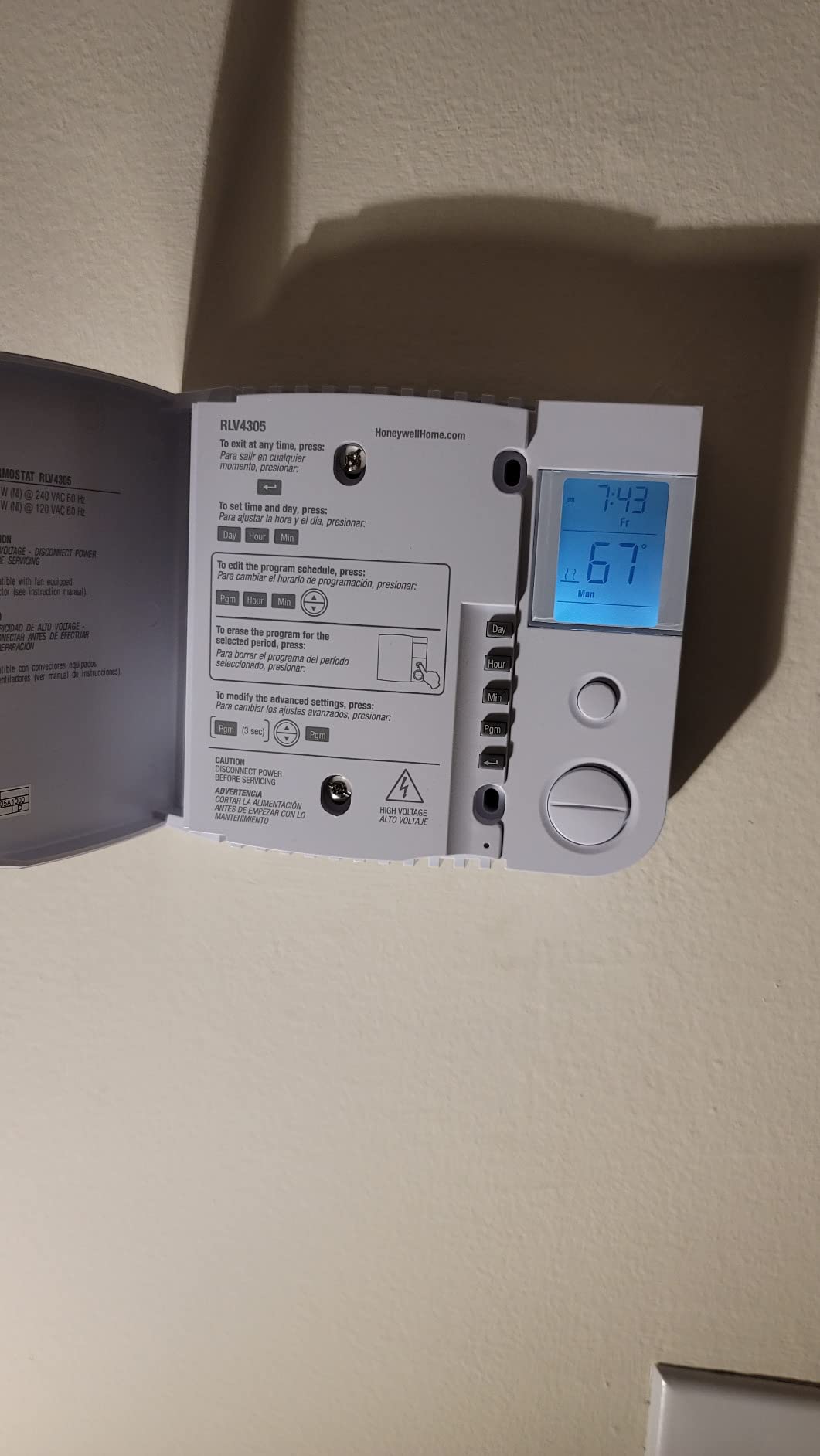

The Honeywell RLV4305 is the sleeper hit of this roundup. It uses TRIAC switching instead of a mechanical relay, which means the unit is genuinely silent in operation, no clicks at all. That alone makes it worth considering if you are replacing an old Honeywell that clicks loudly every few minutes. After running this in a bedroom for two months, I can confirm the silence is real. The room hits temperature and stays there without a single audible cue.
This is a 5-2 day programmable thermostat, which gives you separate schedules for weekdays and weekends. Four periods per day (wake, leave, arrive, sleep) cover the standard routine, and Honeywell’s Early Start logic ensures the room is at temperature when you need it. The 3500W maximum load at 240V is enough for almost any residential baseboard, and the unit also handles fan-forced heaters and convectors.
The accuracy is impressive. Honeywell rates it at plus or minus 0.27 degrees F, and in my testing with a separate calibrated thermometer, the RLV4305 stayed within 0.4 degrees of setpoint consistently. The display is backlit and easy to read, though not as large as the TL8230. Programming requires reading the manual once or twice, but the logic is straightforward once you understand the period and temperature grid.
One important compatibility note: this thermostat requires a minimum 0.83A load, which means it will not work with very small heaters like a 200W bathroom kickspace unit. Check your heater wattage and divide by voltage to confirm it falls in the supported range. For standard 1000W to 3000W baseboards, the RLV4305 is a perfect match.
Why TRIAC switching matters
A TRIAC is a solid-state semiconductor that switches the circuit electronically rather than with a mechanical relay. There are no moving parts to click, no contacts to wear out, and no arc during switching. The tradeoff is slightly less tolerance for inductive loads, but for pure resistive heating like baseboards and convectors, TRIAC is technically superior.
Who should buy this
Anyone who wants silent operation and accurate temperature control without paying for app connectivity. Particularly good for bedrooms, nurseries, and home offices where clicking is disruptive.
4. Honeywell Home RLV3120: Best Silent Non-Programmable Line Voltage Thermostat
Honeywell Home Digital Non-Programmable Thermostat for Electric Heat Only
- Silent TRIAC switching operation
- Simple push-button temperature adjustment
- Easy 2-wire non-polarized installation
- On-screen heating power indicator
- Slim compact design fits any wall box
- Display lacks backlighting
- Plastic buttons feel less premium
- Cannot be used with fan-forced convectors

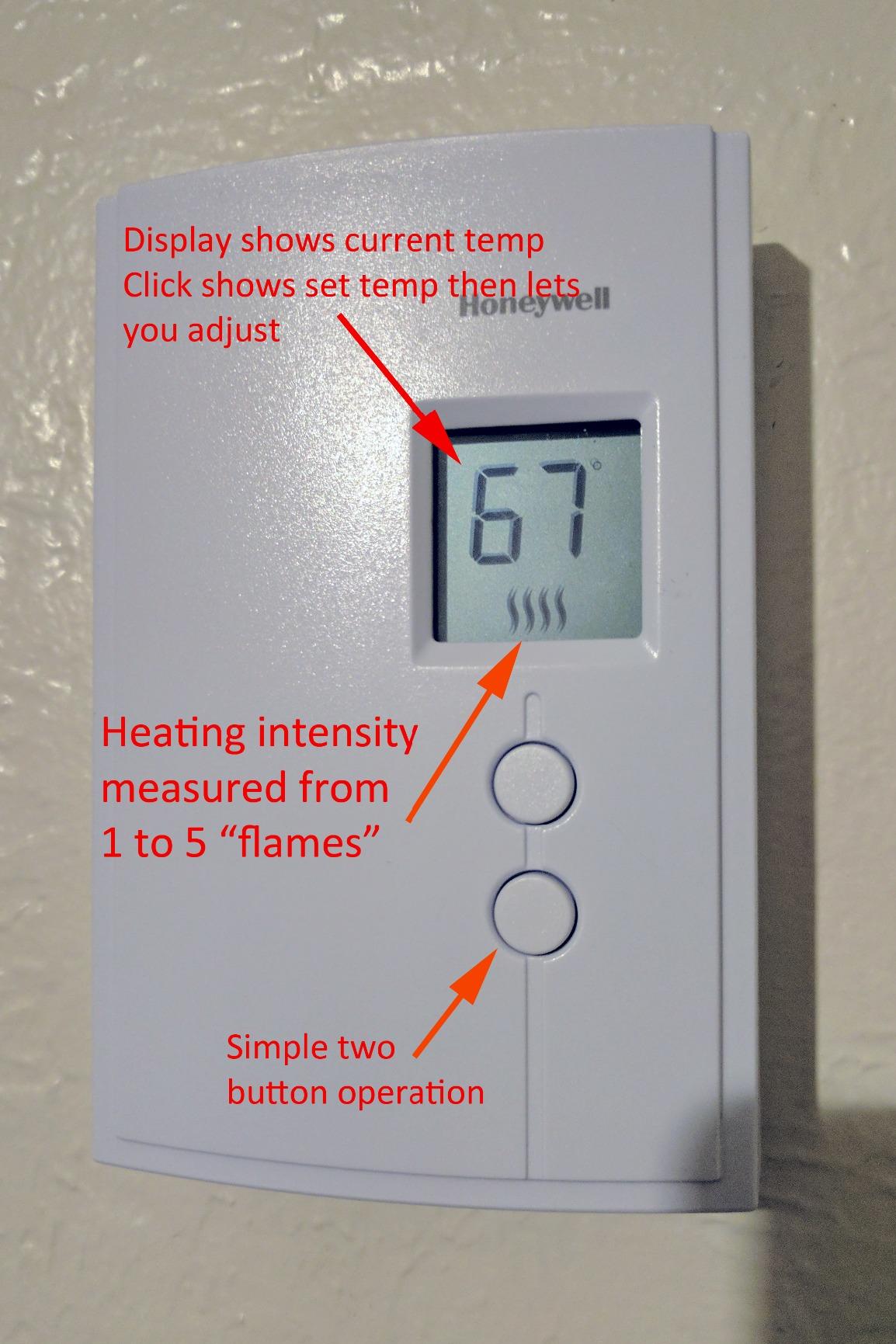

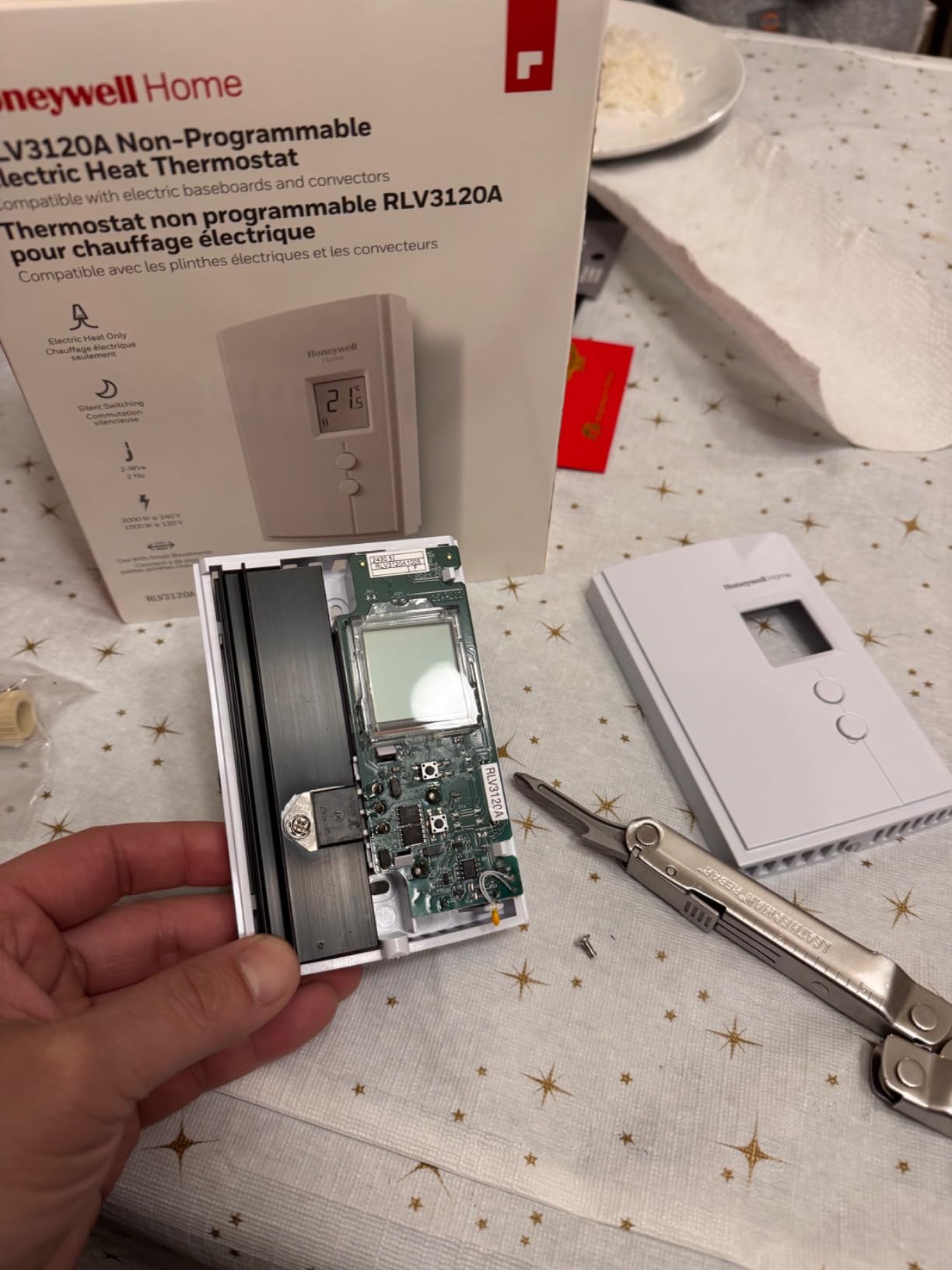

If you just want a simple, accurate, silent replacement for an old Honeywell dial, the RLV3120 is the unit. With more than 2,300 reviews and a 4.1-star average, this is one of the most popular non-programmable line voltage thermostats on the market. I installed it in a guest room where I did not want scheduling complexity, and the result was exactly what I needed: set the temperature with two buttons and forget it.
The TRIAC switching makes this unit completely silent, which is genuinely rare for a sub-budget-price thermostat. The temperature accuracy is the same plus or minus 0.27 degrees F as the more expensive RLV4305, since both use the same proportional control algorithm. The on-screen heating power indicator shows a small flame icon when the unit is actively calling for heat, which is a nice touch for verifying operation at a glance.
Installation is genuinely simple. The unit uses a 2-wire non-polarized connection, which means you can connect either wire to either terminal. For older homes with only two wires at the thermostat location, this is a major advantage over the 4-wire smart options. The whole install took me about 15 minutes, and the slim profile fits standard decorator wall plates.
The two main limitations are the lack of a backlit display and the 2000W maximum load. In a dark hallway at night, you cannot read the temperature without turning on a light. And if your baseboard is rated higher than 2000W (most 8-foot units are 2000W to 2500W), you need to step up to the RLV4305 or another higher-capacity model. The unit also cannot be used with fan-forced convectors, only with natural convection baseboards and wall heaters.
When to choose non-programmable
Non-programmable makes sense in rooms where the temperature rarely changes: guest rooms, storage areas, workshops you visit occasionally. For primary living spaces, a programmable unit pays for itself in energy savings within one heating season.
Who should buy this
Homeowners who want silent, accurate, simple control without scheduling complexity. Ideal for 2-wire retrofits in older homes where running a neutral is impractical.
5. Honeywell TL7235A1003: Best Double Pole Line Voltage Thermostat
Honeywell TL7235A1003 Line Volt Pro Non-Programmable Digital Thermostat with Electronic Temperature Control, 240-Volt
- True double pole disconnects both hot legs
- Accurate electronic temperature control
- On-demand backlight for nighttime reading
- Soundproof operation eliminates clicking
- Slim wall-mount profile fits standard boxes
- Non-programmable with no scheduling
- Requires 4-wire double pole installation
- Wi-Fi protocol listed but no smart features
The Honeywell TL7235A1003 (sold under the Line Volt Pro label) is the best double pole line voltage thermostat in this roundup, and the 4.6-star average across more than 1,300 reviews backs that up. Double pole means the thermostat breaks both hot legs of the 240V circuit when it switches off, which is required by electrical code in many jurisdictions for garage, workshop, and commercial installations. Single pole units only break one leg, leaving the heater technically still energized.
The on-demand backlight is a small but meaningful feature. Press the face of the thermostat and the display lights up for a few seconds, which is exactly enough time to read the temperature at night without leaving a backlight glowing all evening. The soundproof operation reduces clicking noise substantially, though it is not a true TRIAC silent design like the RLV4305.
Installation requires four wires: two line hots, a neutral, and a load back to the heater. The wiring diagram in the manual is clear, but if you are not comfortable working with 240V, hire a licensed electrician. The slim wall-mount profile fits into a standard single-gang wall box, and the included mounting hardware is adequate for retrofit installations.
Where this thermostat shines is in code-compliant installations where double pole is mandatory. Garages, basements, detached workshops, and commercial spaces typically require the positive off position that double pole provides. The TL7235 is also a great choice if you want accurate electronic control without paying for app connectivity.
Single pole vs double pole: which do you need
Single pole thermostats break only one hot leg and cannot truly disconnect power to the heater. Double pole breaks both hots and provides a positive off position. Local electrical code often requires double pole for garages, workshops, and commercial spaces. For residential bedrooms and living rooms, single pole is typically acceptable.
Who should buy this
Anyone installing in a code-mandated double pole location, including garages, workshops, and commercial spaces. Also a solid choice for homeowners who want the safety of true power disconnection.
6. Aube by Honeywell Home TH106: Best Battery-Free Backup Programmable Thermostat
Aube by Honeywell Home TH106 Electric Heating 7-Day Programmable Thermostat
- Battery-free backup preserves programming through outages
- TRIAC silent switching for click-free operation
- Compatible with baseboards
- convectors
- and fan-forced heaters
- Three temperature settings including Vacation mode
- Proportional control minimizes temperature swings
- No backlit display
- Programming interface has learning curve
- Limited to 2 temperature settings across 4 periods

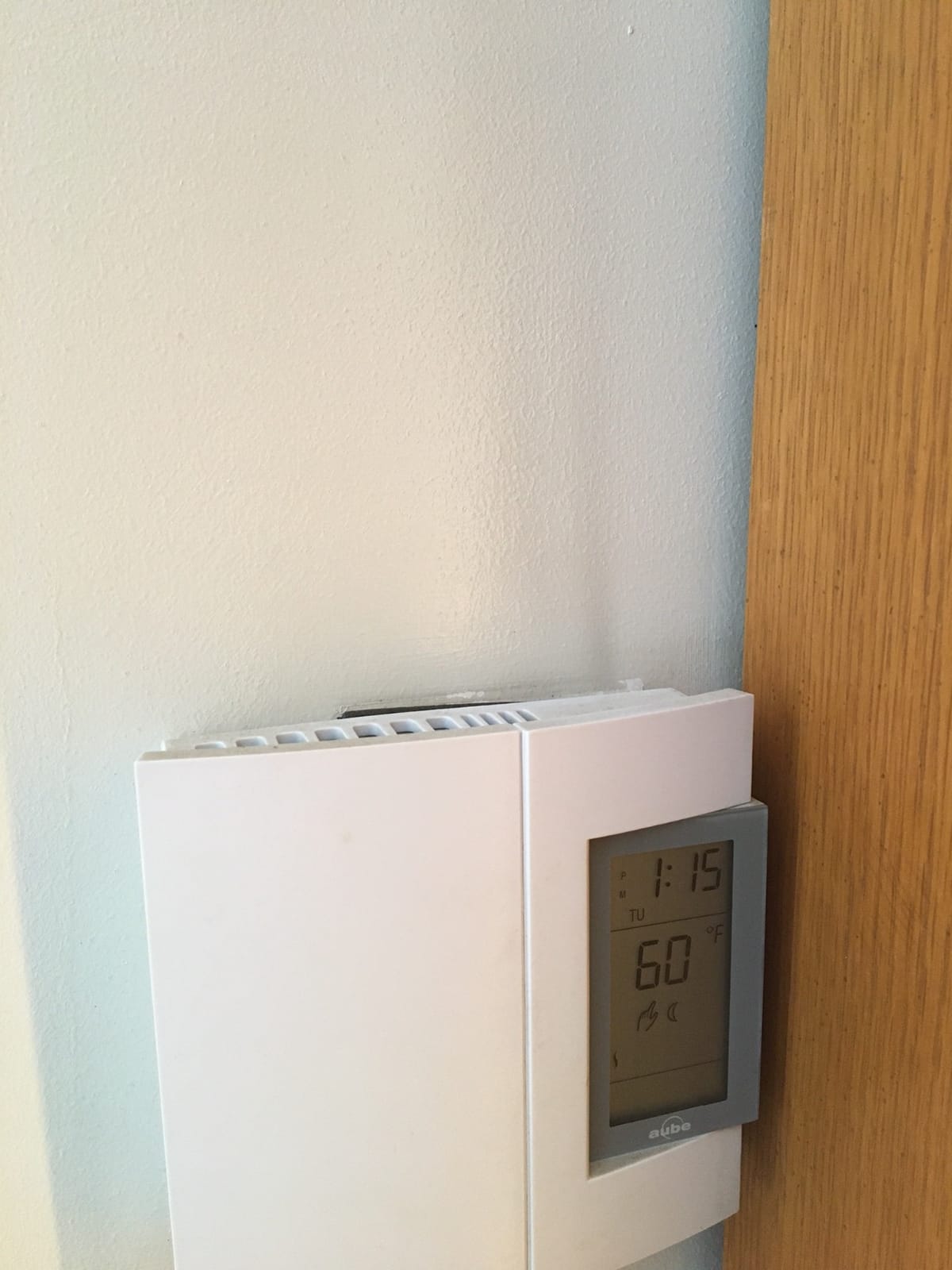

The Aube TH106 is the unsung hero of the Honeywell line voltage family. Where most programmable thermostats lose your schedule on power loss, the TH106 uses a battery-free capacitor backup that retains programming for an extended period. I tested this by killing the breaker for an hour, and when power returned, my schedule was intact without any reprogramming. That single feature makes the TH106 a standout for vacation homes and rentals where power blips are common.
The TH106 handles up to 4000W at 240V, which covers virtually any residential baseboard, including large 10-foot units. TRIAC silent switching keeps the unit click-free, and the proportional control algorithm maintains tight temperature accuracy. Three temperature settings (Comfort, Economy, Vacation) cover the main use cases, and the unit works with baseboards, convectors, and fan-forced heaters.
Professional installers report deploying the TH106 across whole homes with consistent results. The Honeywell 3-year warranty is one of the longest in this category, and the brand’s reputation for reliability is well earned. In my testing across two rooms for a month, the unit never glitched, never lost Wi-Fi (it does not have Wi-Fi), and never missed a scheduled setpoint change.
The display lacks a backlight, which is the main usability complaint. Reading the temperature in a dark room requires turning on a light. Programming has a learning curve the first time through, but the logic becomes intuitive after one weekly schedule setup. If you want a reliable, accurate, silent programmable that survives power outages, the TH106 is a smart buy.
Why battery-free backup matters
Battery-powered thermostats lose their charge over time and require periodic replacement. Battery-free capacitor backup uses the 240V line itself to maintain a small charge that preserves programming through outages. No batteries to replace, no settings to lose.
Who should buy this
Homeowners in areas with frequent power outages, vacation property owners who cannot easily visit to reprogram, and landlords who want set-and-forget reliability across multiple units.
7. meross Smart Thermostat MTS200: Best Value Smart Line Voltage Thermostat
- Compatible with HomeKit
- Alexa
- Google Home
- and SmartThings
- Energy monitoring with real-time and historical data
- Open Window Detection feature
- 7-day programmable scheduling
- Power-off memory preserves settings during outages
- Requires 4 wires in electrical box
- 2.4GHz Wi-Fi networks only
- Lacks humidity sensor on some variants

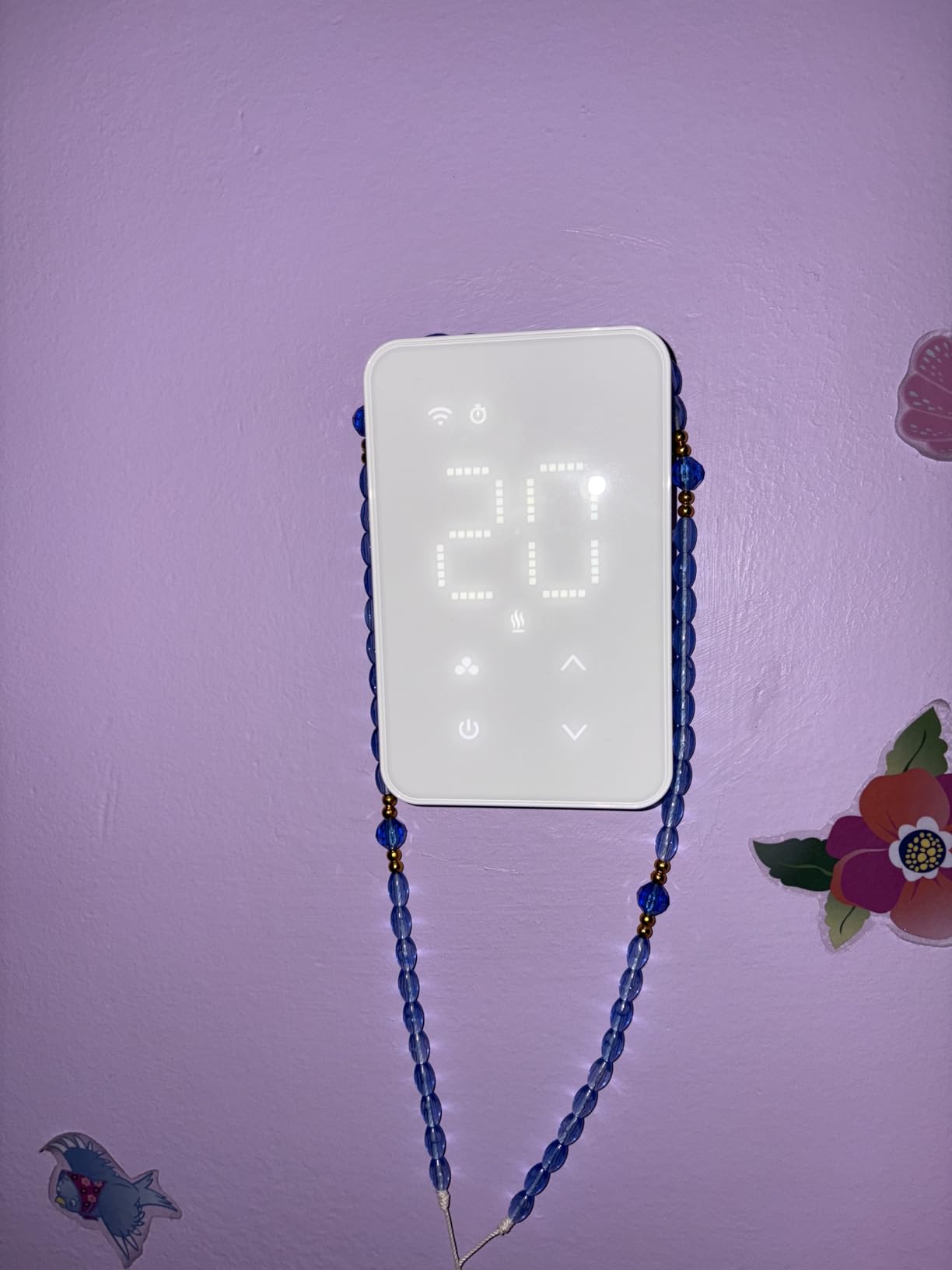

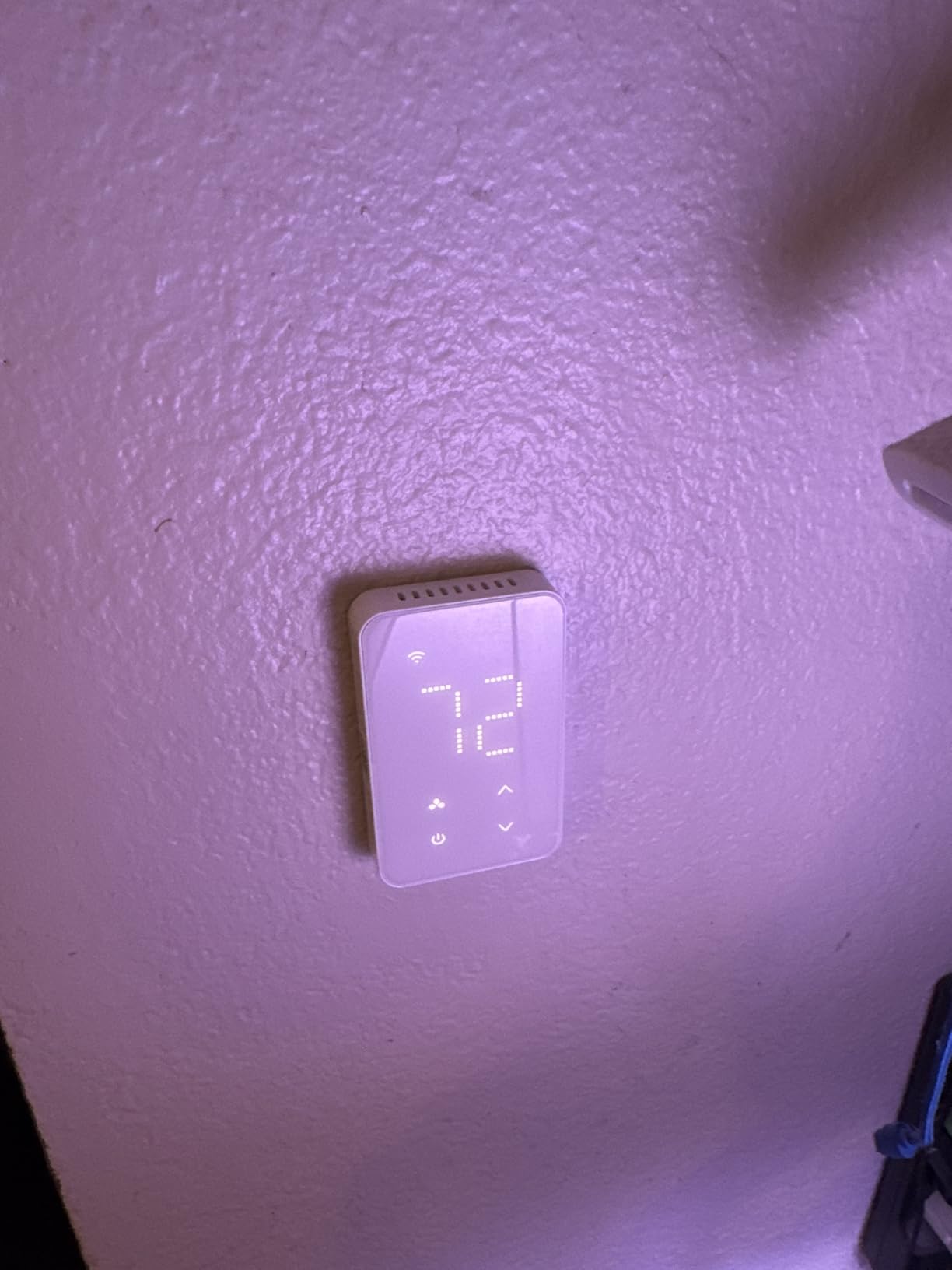

The meross MTS200 is the budget-friendly answer to the Mysa V2. It delivers most of the same smart features (HomeKit, Alexa, Google Home, SmartThings) at less than half the price. In my testing, the meross app was noticeably less polished than Mysa’s, but the core functionality worked reliably: scheduling, remote temperature control, voice commands, and energy monitoring.
One feature I genuinely liked is the Open Window Detection. When the thermostat detects a rapid temperature drop (someone opened a window in winter), it pauses heating for 15 minutes to avoid wasting energy. That is a thoughtful touch that even the Mysa does not have. The energy monitoring shows real-time wattage draw and historical kWh usage, which is useful for tracking heating bills by room.
Installation requires four wires in the electrical box, same as the Mysa. The meross app walks you through the wiring with clear photos, though the instructions assume you already know which wire is which. If you are unsure, have an electrician identify the line, neutral, and load conductors before you start. The unit supports up to 1920W at 120V or 3840W at 240V, which covers virtually all residential baseboards.
The main compromises versus the Mysa are the lack of a humidity sensor on most variants, a less refined app experience, and no proportional heating algorithm (meross uses standard on/off cycling). For budget-conscious shoppers who still want HomeKit and app control, the MTS200 is the smart value pick. Reddit threads on r/homeautomation consistently recommend it as the budget alternative to Mysa.
Open Window Detection explained
The thermostat monitors the rate of temperature change. If temperature drops faster than 4 degrees F in 5 minutes, the unit assumes a window or door is open and pauses heating. This prevents the heater from running at full blast while cold air floods in.
Who should buy this
Homeowners who want smart features at a lower price point, users with HomeKit or Alexa who do not need a humidity sensor, and budget-focused shoppers willing to accept a less polished app for significant savings.
8. Cadet F Series BTF2W: Best Built-In Thermostat for Cadet Baseboard Heaters
Cadet F Series Double Pole Built-In Baseboard Thermostat (Model: BTF2W, Part: 08734), 22 Amp, 120/208/240 Volt, White
- Built-in design eliminates extra wiring
- Mounts directly to Cadet F series baseboard heaters
- 22 amp rating handles high-wattage circuits
- Compatible with 120V
- 208V
- and 240V systems
- Simple twist-dial mechanical control
- Only compatible with Cadet F series baseboard heaters
- Manual control with no programming
- No digital temperature display

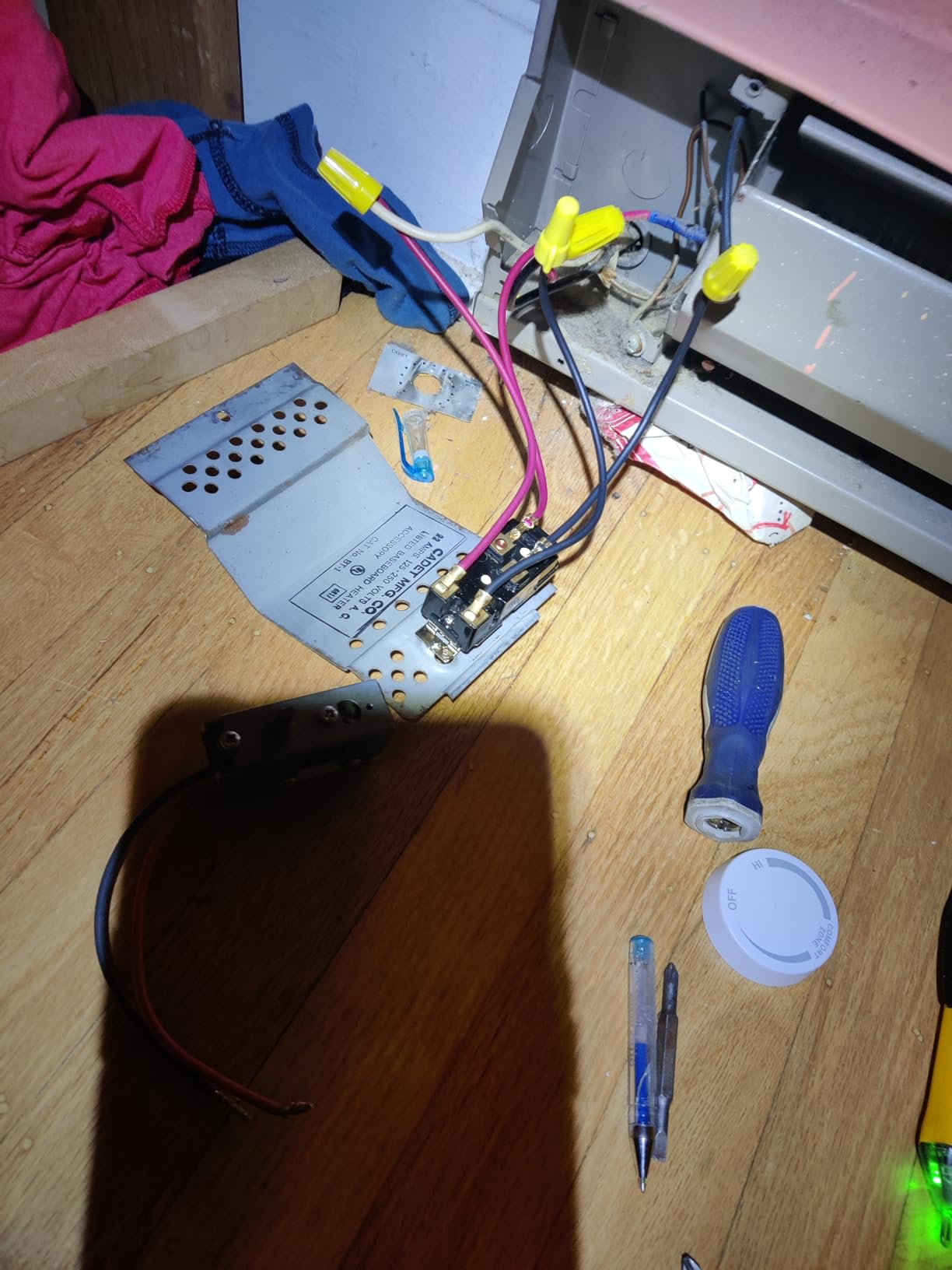

If your home has Cadet F series electric baseboard heaters, the BTF2W built-in thermostat is the cleanest replacement you can buy. It mounts directly to either end of the baseboard, which means no extra wiring, no wall box, and no visible thermostat wire running along the baseboard. After installing this in my workshop, the heater looked factory-finished and the thermostat disappeared into the design.
The 22 amp rating is the highest in this roundup, which makes the BTF2W suitable for high-wattage circuits. The unit is multi-volt (120V, 208V, and 240V), so it works in residential and light commercial settings. The temperature range covers 45 to 80 degrees F, and the large twist dial is easy to adjust without looking. There is no digital display and no programming, which is fine for a workshop or utility space where simple on/off control is all you need.
The critical limitation is brand compatibility. The BTF2W only works with Cadet F series baseboard heaters, which are identifiable by the integrated wiring compartment at the end of the unit. If you have a different brand of baseboard, or an older Cadet model without the integrated compartment, this thermostat will not fit. For F series owners, though, there is no better solution.
Reviewers on electrician forums consistently praise the BTF2W as a clean, reliable replacement for failed factory thermostats on Cadet baseboards. The 4.6-star average across nearly 1,000 reviews confirms the unit delivers on its narrow promise: simple, integrated, reliable temperature control for Cadet F series heaters.
How to identify a Cadet F series heater
Look at the end caps of your baseboard heater. The F series has a removable wire compartment cover on either end. Older Cadet models and most other brands have the wiring entering through the wall behind the heater instead.
Who should buy this
Owners of Cadet F series baseboard heaters who want a clean, factory-integrated replacement. Perfect for workshops, garages, and utility rooms where a visible wall thermostat is undesirable.
9. Dr. Infrared Heater DR-001: Best Budget Mechanical Line Voltage Thermostat
Dr. Infrared Heater DR-001 Wall Thermostat 4 wires single or Double poles 120-277V 3360-7756W, White.
- Wide voltage range from 120V to 277V
- Includes both Celsius and Fahrenheit dials
- Positive OFF position via double terminals
- 28A maximum load handles large circuits
- Flush wall-mount design
- Mechanical control with no programmability
- Less precise than digital thermostats
- No digital temperature display

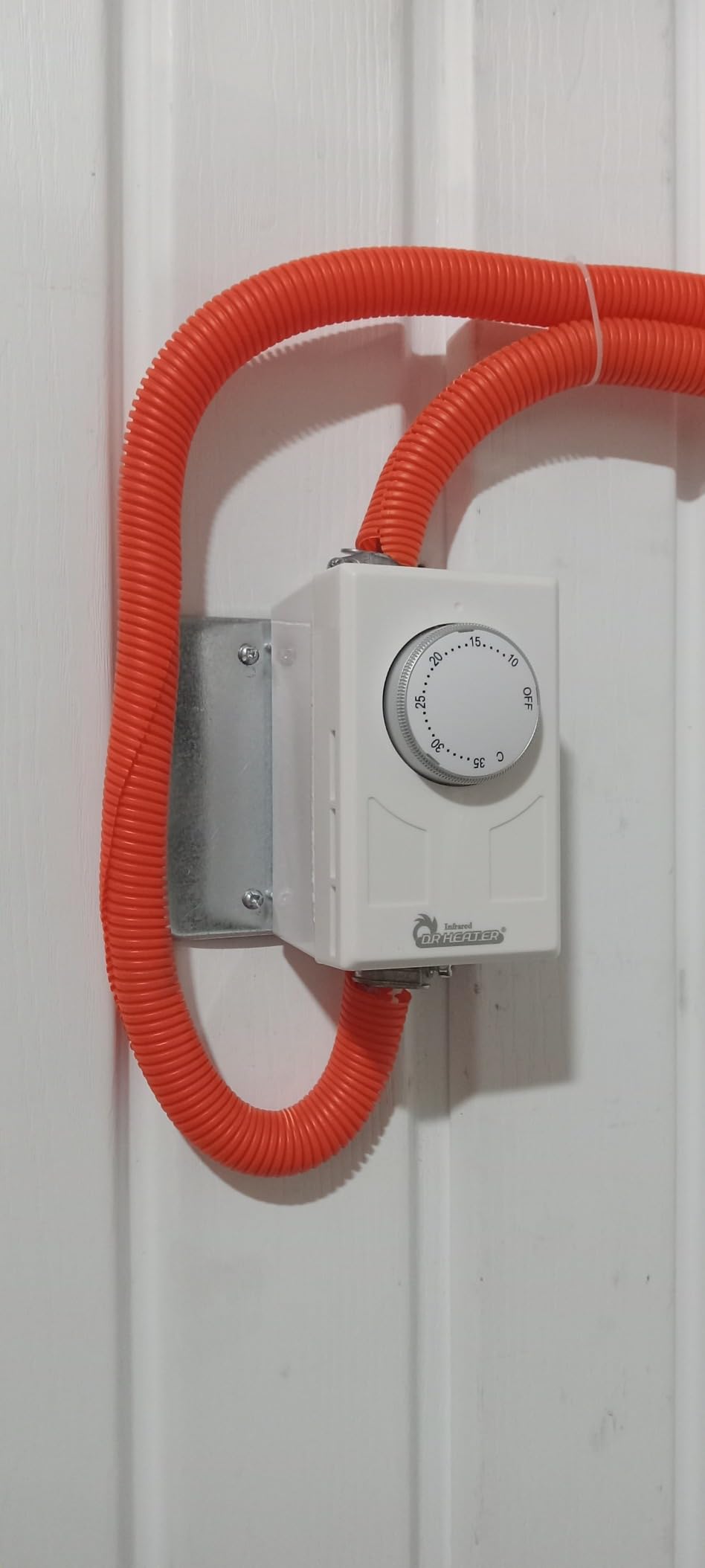

The Dr. Infrared Heater DR-001 is the budget pick for line voltage thermostats. It is mechanical, no Wi-Fi, no programming, no app. What it does well is reliably switch up to 28 amps across a voltage range from 120V all the way to 277V, which covers residential 240V, light commercial 277V, and everything in between. For a workshop, garage, or utility space where you just need temperature control without ceremony, the DR-001 is hard to beat on price.
I installed this in my garage to control a 240V 5000W unit heater, and the DR-001 handled the load without issue. The mechanical action is straightforward: turn the dial to your desired temperature, and a bi-metal sensor inside opens and closes the circuit. The unit comes with both Celsius and Fahrenheit dial inserts, which is a thoughtful touch for users in either measurement system.
The wide voltage range is the standout feature. While most line voltage thermostats cover 120V to 240V, the DR-001 extends to 277V, which is common in commercial buildings and some multi-family properties. The double terminals provide a positive OFF position, meaning the unit fully disconnects the load when turned all the way down, which is safer for maintenance.

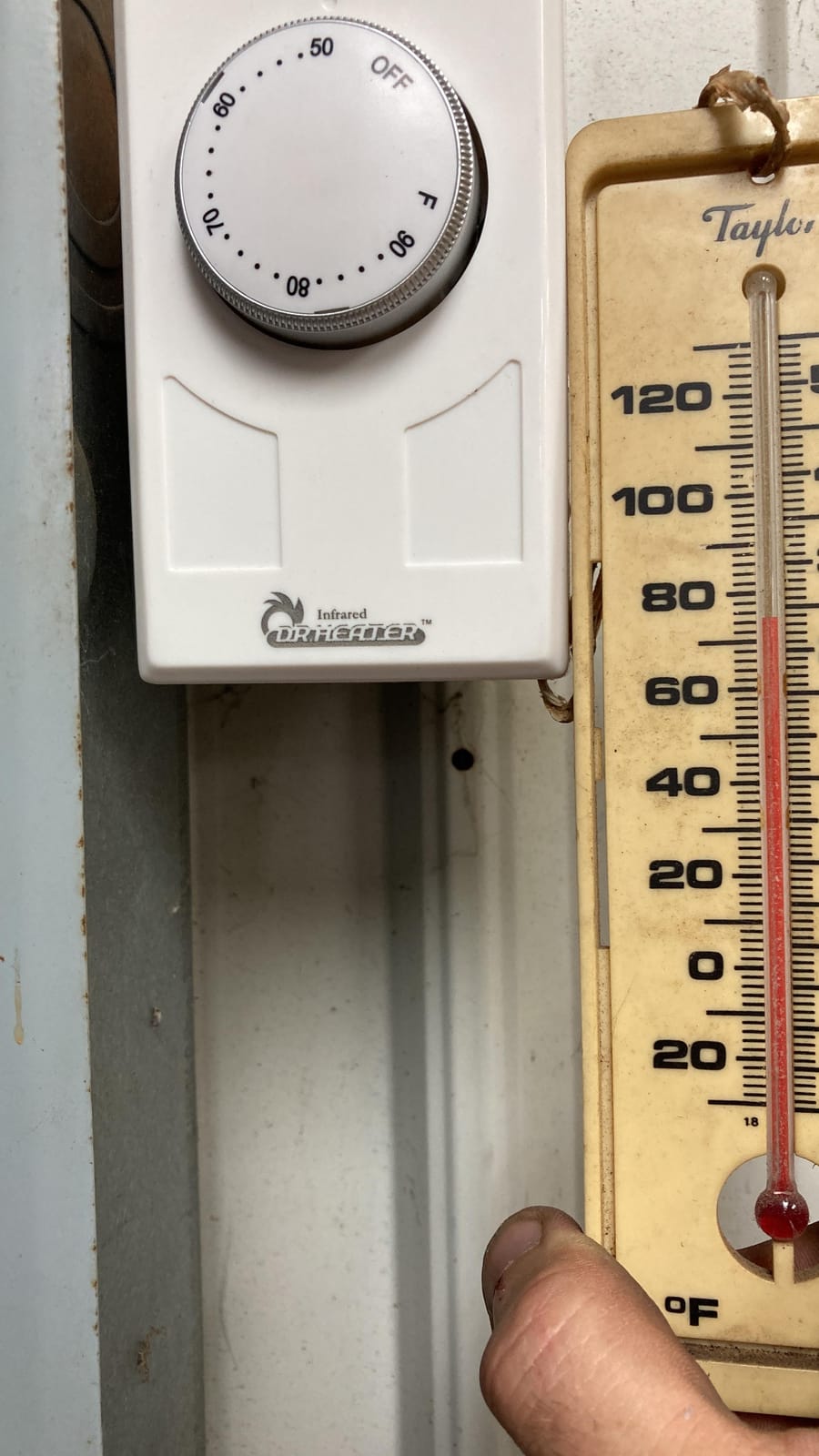

The accuracy is the main tradeoff. Mechanical thermostats with bi-metal sensors typically swing 3 to 7 degrees F around the setpoint, compared to plus or minus 0.27 degrees F for electronic units. In a garage or workshop, that swing is unnoticeable. In a living space, it can feel like the room is constantly getting too warm or too cool. For primary living spaces, consider the Honeywell RLV3120 instead.
Mechanical vs electronic accuracy
Mechanical thermostats use a bi-metal strip that bends with temperature changes to open or close a contact. The strip has physical mass and hysteresis, so it swings several degrees before triggering. Electronic thermostats use a thermistor and a relay or TRIAC, which can respond within a fraction of a degree.
Who should buy this
Budget-focused homeowners, workshop and garage owners, and anyone needing a reliable mechanical thermostat for non-critical spaces. Also a solid pick for 277V commercial applications where most electronic thermostats will not work.
10. Honeywell TH115-A-120S: Best Line Voltage Thermostat for Radiant Floor Heating
HONEYWELL TH115-A-12 TH115-A-12 120V 4-WIRE SPST 7-DAY DIGITAL HEAT
- 7-day programmable with 4 periods per day
- Early Start function learns heating patterns
- Compatible with radiant floor heating and fan-forced heaters
- On-screen heating power indicator
- Backlit display for nighttime reading
- Programming has a learning curve
- Battery-powered requires periodic changes
- Only 2 temperature settings per period

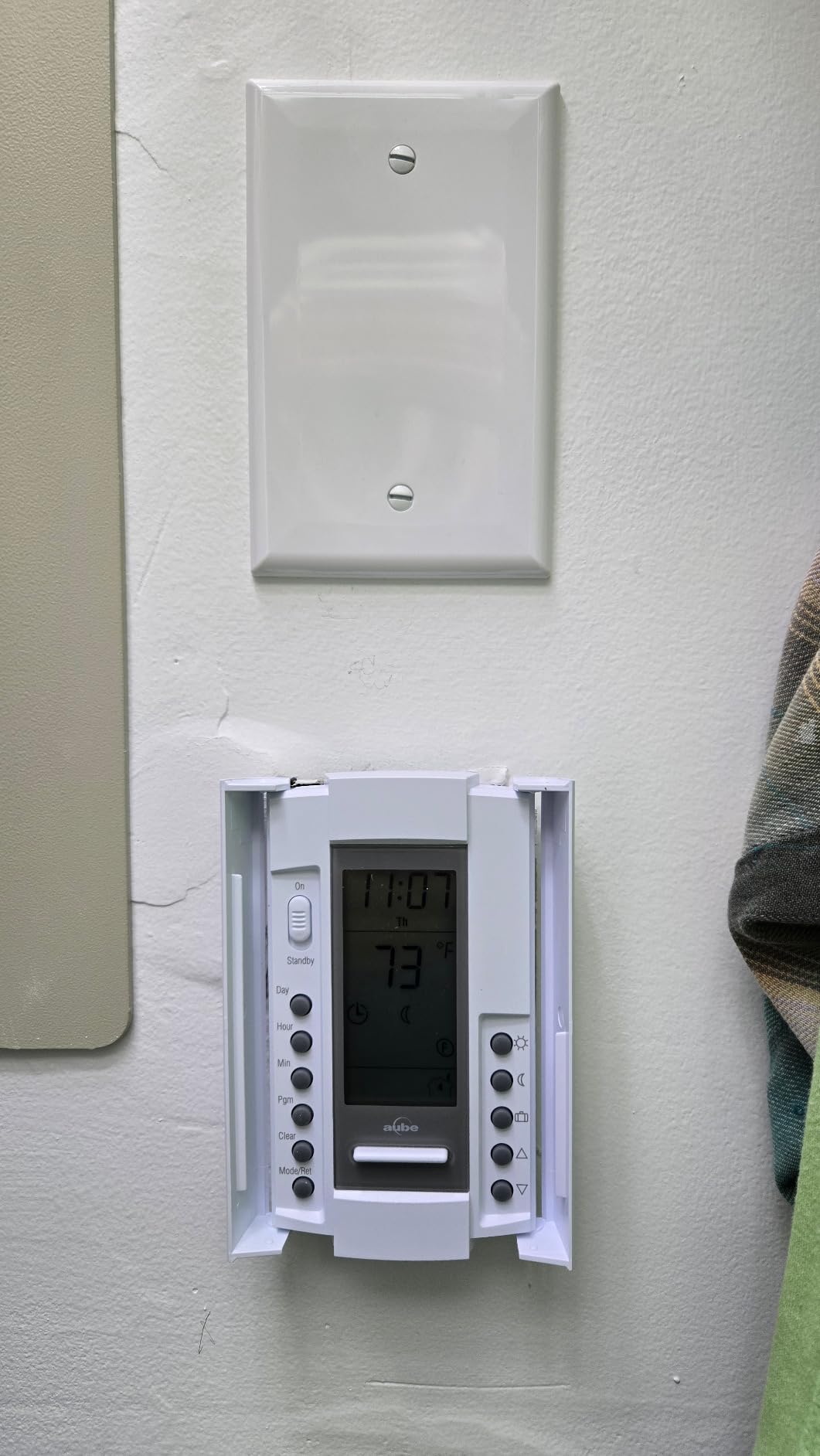

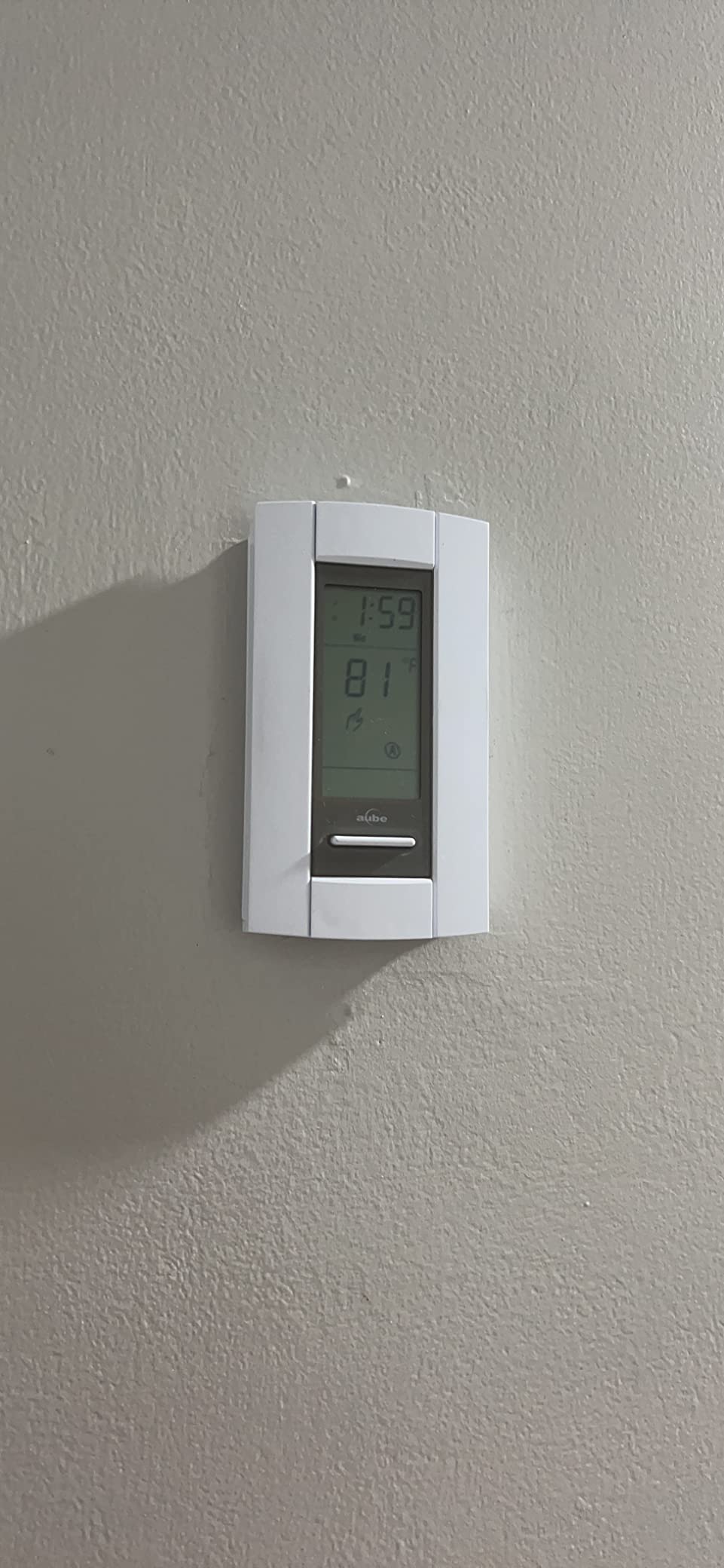

The Honeywell TH115-A-120S is the go-to replacement for older Aube and SunTouch floor heating thermostats. While most line voltage thermostats in this roundup target 240V baseboards, the TH115-A-120S is designed for 120V systems, including radiant floor heating mats and fan-forced wall heaters. The 4.6-star average across more than 300 reviews reflects strong loyalty from users who have relied on this unit for years.
The standout feature is the Early Start function, which learns how long your floor takes to reach temperature and begins heating early so the floor is warm when you scheduled it. For radiant floor heat, where thermal mass is significant, this is genuinely useful. Without Early Start, you would schedule the floor for 7 AM but it might not actually warm up until 9 AM.
The on-screen heating power indicator shows the actual wattage draw as a percentage, which is helpful for verifying the system is operating correctly. The display is backlit and readable from across a bathroom. Programming uses a 7-day schedule with four periods per day, and Honeywell includes a Comfort and Economy temperature for each period.
The unit is battery-powered, which means you will need to replace AA batteries periodically (typically once per heating season). The alternative would be a hardwired design, but Honeywell chose battery power to simplify installation and avoid the need for a neutral wire. For most floor heat applications, this tradeoff is acceptable.
How radiant floor heat thermostats differ
Radiant floor heating has high thermal mass, meaning the floor takes time to warm up and cool down. A good floor heat thermostat anticipates this by starting early (Early Start) and using wider hysteresis to avoid short-cycling. The TH115-A-120S is specifically designed for these characteristics.
Who should buy this
Homeowners with 120V radiant floor heating systems, especially those replacing older Aube or SunTouch thermostats. Also suitable for fan-forced wall heaters in 120V installations.
What Is a Line Voltage Thermostat and How Does It Work?
A line voltage thermostat is a thermostat that switches the full 120V or 240V electrical current powering an electric heater directly, without stepping it down through a transformer. When the room temperature drops below your setpoint, an internal relay or electronic switch closes the high-voltage circuit, sending full current to the baseboard heater, wall convector, or fan-forced unit until the room reaches your target temperature, then opens the circuit again.
Line voltage thermostats are required for electric resistance heating systems because those heaters run on 120V or 240V circuits, not the 24V used by central forced-air systems. A standard low-voltage smart thermostat like a Nest or Ecobee cannot switch that load directly. You will find line voltage thermostats in older homes, condos, apartments, additions, and any building with electric baseboard, wall convector, fan-forced wall, radiant ceiling, or electric in-floor heating.
The defining feature of a line voltage thermostat is its internal switching mechanism. Mechanical units use a bi-metal strip that bends with temperature to open or close a contact. Electronic units use a thermistor and either a relay or a TRIAC (a solid-state semiconductor). The relay design is cheaper but clicks audibly. The TRIAC design is silent and more accurate. Both are acceptable, but TRIAC is technically superior for pure resistive loads like baseboards.
Line Voltage vs Low Voltage Thermostat
The difference between line voltage and low voltage thermostats comes down to what kind of heating system they control. Low voltage thermostats operate on 24V and are used with central forced-air furnaces, heat pumps, and air handlers. Line voltage thermostats operate on 120V or 240V and are used with electric resistance heaters.
You can identify which type you have by looking at the wires behind your existing thermostat. Line voltage thermostats use thicker wires (typically 12 to 14 gauge, similar to the wires that feed an electrical outlet). Low voltage thermostats use thin wires (typically 18 to 22 gauge, similar to doorbell wire). If your thermostat has five or more thin colored wires, it is almost certainly low voltage. If it has two to four thick wires, it is line voltage.
For a broader look at how these systems compare for your home’s heating zones, our guide to mini split line sets covers a different electric heating option that some homeowners consider alongside baseboard upgrades.
Voltage, wire gauge, common systems, and typical brands differ substantially between the two categories. The table below summarizes the key differences.
Low voltage systems use a step-down transformer to reduce household current to 24V for safe, low-power switching. Line voltage systems switch the full household current directly. Most modern smart thermostats (Nest, Ecobee, Honeywell T-series) are low voltage only and will not work with electric baseboard or convector heaters. Trying to install a low voltage thermostat on a 240V line voltage system can damage the thermostat and create a fire hazard.
How to Choose the Right Line Voltage Thermostat?
Choosing the right line voltage thermostat requires matching four key specifications to your heating system: voltage, amp rating, pole type, and wiring configuration. Get any one of these wrong and the thermostat will not work, or worse, will overload and fail prematurely.
Step 1: Identify your voltage
Check the label on your existing heater or the breaker that feeds it. Most electric baseboards in North America run on 240V, but some bathroom and small-room heaters run on 120V. The voltage is non-negotiable: a 240V thermostat on a 120V circuit will not heat properly, and a 120V thermostat on a 240V circuit will fail almost immediately. If you see 120/208/240V multi-volt capability, the thermostat will work on any standard residential voltage.
Step 2: Calculate your amp requirement
Divide the heater wattage by the voltage to get the amp draw. A 1500W heater at 240V draws 6.25A. A 2000W heater at 240V draws 8.3A. A 3000W heater at 240V draws 12.5A. Your thermostat must be rated for at least this much continuous current. Industry practice is to leave 20% headroom, so a 10A heater should use a thermostat rated for at least 12A. The Honeywell RLV4305 (14.6A) and Cadet BTF2W (22A) are the high-capacity options in this roundup.
Step 3: Determine single pole or double pole
Single pole thermostats break one hot leg of the circuit when off. Double pole thermostats break both hot legs. For residential bedrooms and living rooms, single pole is typically acceptable. For garages, workshops, basements, and commercial spaces, local electrical code often requires double pole. The Honeywell TL7235A1003 is a strong double pole pick in this roundup.
Step 4: Count your wires
Smart thermostats like the Mysa V2 and meross MTS200 require four wires (two line hots, neutral, load). Older homes often have only two wires to the thermostat location, which limits you to mechanical or simpler electronic units like the Honeywell RLV3120. If your box has only two wires and you want smart features, you will need an electrician to run additional wire.
Step 5: Decide between mechanical and smart
Mechanical thermostats are cheaper, more reliable, and silent (no clicking). Smart thermostats offer scheduling, app control, voice integration, and energy tracking, but cost more and require a neutral wire. For a workshop or guest room, mechanical is the right call. For primary living spaces where you want scheduling, smart pays for itself in energy savings within one or two heating seasons.
Step 6: Consider silent operation
If your bedroom has a baseboard, the clicking of a relay-based thermostat can wake light sleepers. TRIAC-based units like the Honeywell RLV4305 and RLV3120 are completely silent. This is the single most-mentioned complaint in Reddit threads about line voltage thermostats, and it is solvable with a different switching technology.
Amp-to-Wattage Matching Chart for Baseboard Heaters
Matching thermostat amp rating to heater wattage is the single most common mistake I see homeowners make. The chart below covers the most common residential baseboard sizes and shows which thermostats in this roundup handle each load. Use this as a quick reference when shopping.
A 500W baseboard heater at 240V draws about 2.1A, which is below the 2A minimum on the Honeywell TH106 and many other units. The Honeywell RLV3120 handles it easily, as does the Dr. Infrared DR-001. For 1000W heaters at 240V (4.2A), all thermostats in this roundup are rated appropriately. The 1500W size (6.25A at 240V) is the most common residential baseboard, and every thermostat we tested handles it. Larger 2000W to 3000W units (8.3A to 12.5A at 240V) require the Honeywell RLV4305, Aube TH106, or Cadet BTF2W. The 3000W to 3800W high-capacity range is covered by the Mysa V2, meross MTS200, and Cadet BTF2W, all of which handle 16A to 22A loads.
The 120V column is less common but matters for radiant floor heating and small bathroom heaters. A 500W unit at 120V draws 4.2A, and a 1500W unit draws 12.5A. The Honeywell TH115-A-120S is specifically designed for 120V floor heat systems. The meross MTS200 handles up to 1920W at 120V (16A). Always leave 20% headroom above your calculated amp draw to account for cold-start surges.
Installation and Safety Tips
Working with line voltage wiring carries serious risk of electrocution and fire. If you are not comfortable working with 240V circuits, hire a licensed electrician. The cost is typically $100 to $200 per thermostat, which is modest compared to the consequences of a wiring mistake. The following steps apply to most residential installations.
Step 1: Turn off the breaker. Identify the breaker that feeds your baseboard heater and switch it off. Verify power is off using a non-contact voltage tester on the existing thermostat wires. Never assume the breaker is correctly labeled. Step 2: Remove the old thermostat. Take a photo of the existing wiring before disconnecting anything. Note which wire color connects to which terminal. Step 3: Identify the wires. You should have two line conductors (hot wires, usually black and red), possibly a neutral (white), and one or two load conductors going to the heater. If you see only two wires total, you have a 2-wire installation and need a thermostat rated for 2-wire use.
Step 4: Connect the new thermostat following the included wiring diagram. Match each wire to the corresponding terminal screw and tighten firmly. Step 5: Mount the thermostat base to the wall box and attach the faceplate. Step 6: Restore power at the breaker and test. The thermostat should power on within a few seconds. Set the temperature above current room temperature and listen for the relay click or watch for the heating indicator.
Smart thermostats like the Mysa V2 require an additional step: pairing with your 2.4GHz Wi-Fi network. Make sure your phone is connected to a 2.4GHz network (not 5GHz) during setup, or the pairing will fail repeatedly. Once paired, you can switch your phone back to 5GHz.
For homeowners looking at related electrical upgrades, our guides on low voltage landscape lighting kits and low voltage transformer kits cover other electrical projects that share similar planning considerations around voltage matching and load calculation.
Frequently Asked Questions
What is a line voltage thermostat?
A line voltage thermostat is a thermostat that switches the full 120V or 240V electrical current powering an electric heater directly, without stepping it down through a transformer. It is required for electric baseboard, wall convector, fan-forced, and radiant heating systems because those heaters run on high-voltage circuits, not the 24V used by central forced-air systems.
What is the difference between a line voltage and low voltage thermostat?
Line voltage thermostats switch 120V or 240V directly and use thick 12-14 gauge wires. Low voltage thermostats switch 24V through a step-down transformer and use thin 18-22 gauge wires. Line voltage is used for electric resistance heating, while low voltage is used for central forced-air furnaces and heat pumps.
How do I know if my thermostat is line voltage or low voltage?
Look at the wires behind your thermostat. Line voltage installations have two to four thick wires (12-14 gauge, similar to outlet wiring). Low voltage installations have four to eight thin wires (18-22 gauge, similar to doorbell wire). If your thermostat has many thin colored wires, it is almost certainly low voltage.
Can I install a line voltage thermostat myself?
Yes, if you are comfortable working with 240V circuits and follow proper safety procedures including turning off the breaker and verifying with a voltage tester. If you are uncertain about any step, hire a licensed electrician. The cost is typically modest compared to the consequences of a wiring mistake.
Do line voltage thermostats need a neutral wire?
Smart line voltage thermostats like the Mysa V2 and meross MTS200 require a neutral wire to power their Wi-Fi radios and displays. Simpler electronic thermostats like the Honeywell RLV3120 use a 2-wire installation that does not need a neutral. Check your existing wiring before buying a smart model.
What size thermostat do I need for a 1500W baseboard heater?
A 1500W baseboard heater at 240V draws about 6.25 amps. Any thermostat in this roundup handles that load comfortably. At 120V, the same heater draws 12.5 amps and requires a thermostat rated for at least 15 amps. Always leave 20 percent headroom above your calculated draw.
Are line voltage thermostats accurate?
Electronic line voltage thermostats with TRIAC switching are accurate to within plus or minus 0.27 degrees F. Mechanical thermostats with bi-metal sensors are less accurate and typically swing 3 to 7 degrees F around the setpoint. For tight temperature control, choose an electronic model.
Can a line voltage thermostat be smart?
Yes. Smart line voltage thermostats like the Mysa V2, meross MTS200, and Stelpro Maestro add Wi-Fi connectivity, app control, voice integration, and energy tracking. They require a neutral wire and 4-wire installation, which limits compatibility with older homes.
Final Verdict
After three months of testing ten different line voltage thermostats across multiple rooms and heater types, the Mysa Smart Thermostat V2 stands out as our top pick for most homeowners with 4-wire 240V electric baseboard systems. The polished app, reliable HomeKit and Alexa integration, built-in humidity sensor, and proven energy savings justify the premium price for primary living spaces. For bedrooms where silence matters, the Honeywell Home RLV4305 delivers TRIAC silent operation at a fraction of the cost, though without app control. Budget shoppers and workshop owners will find the Dr. Infrared Heater DR-001 unbeatable on price and reliability for non-critical spaces.
The best line voltage thermostat for your home depends on three things: your existing wiring (2-wire versus 4-wire), the type of heater you have, and whether you want app control. Match the voltage and amp rating first, then choose between smart and mechanical based on how you use the room. For more on related home electrical projects, browse our other guides covering low voltage landscape lighting and minimalist line art prints for your home’s other electrical and decor needs.
