12 Best Tow Behind Sprayers for Large Lawns (August 2026) Ultimate Guide

If you maintain more than an acre of lawn, a tow behind sprayer is the single best upgrade you can make. After our team spent three months testing 12 of the most popular pull behind sprayers on properties ranging from 2 to 12 acres, we learned one thing fast: not every trailer sprayer handles the workload the same way. Some pumps quit after a single season, others lose pressure halfway through a tank, and a few just refuse to tip over on lumpy ground. We compared every model on tank capacity, GPM output, boom width, pump duty cycle, and warranty coverage to find the best tow behind sprayers for large lawns in 2026.

This guide breaks down our top picks, a detailed buying section on tank sizing and GPM, and honest user feedback pulled from real lawn forums. We also answer the most common buyer questions: how many acres will 25 gallons cover, whether you need a boom or boomless nozzle, and which brands hold up after 5+ years of regular use. Whether you spray herbicides, liquid fertilizer, or fence-line weed control, you will find a model below that fits your property and your budget.

Top 3 Picks for Best Tow Behind Sprayers for Large Lawns

Best Tow Behind Sprayers for Large Lawns in 2026

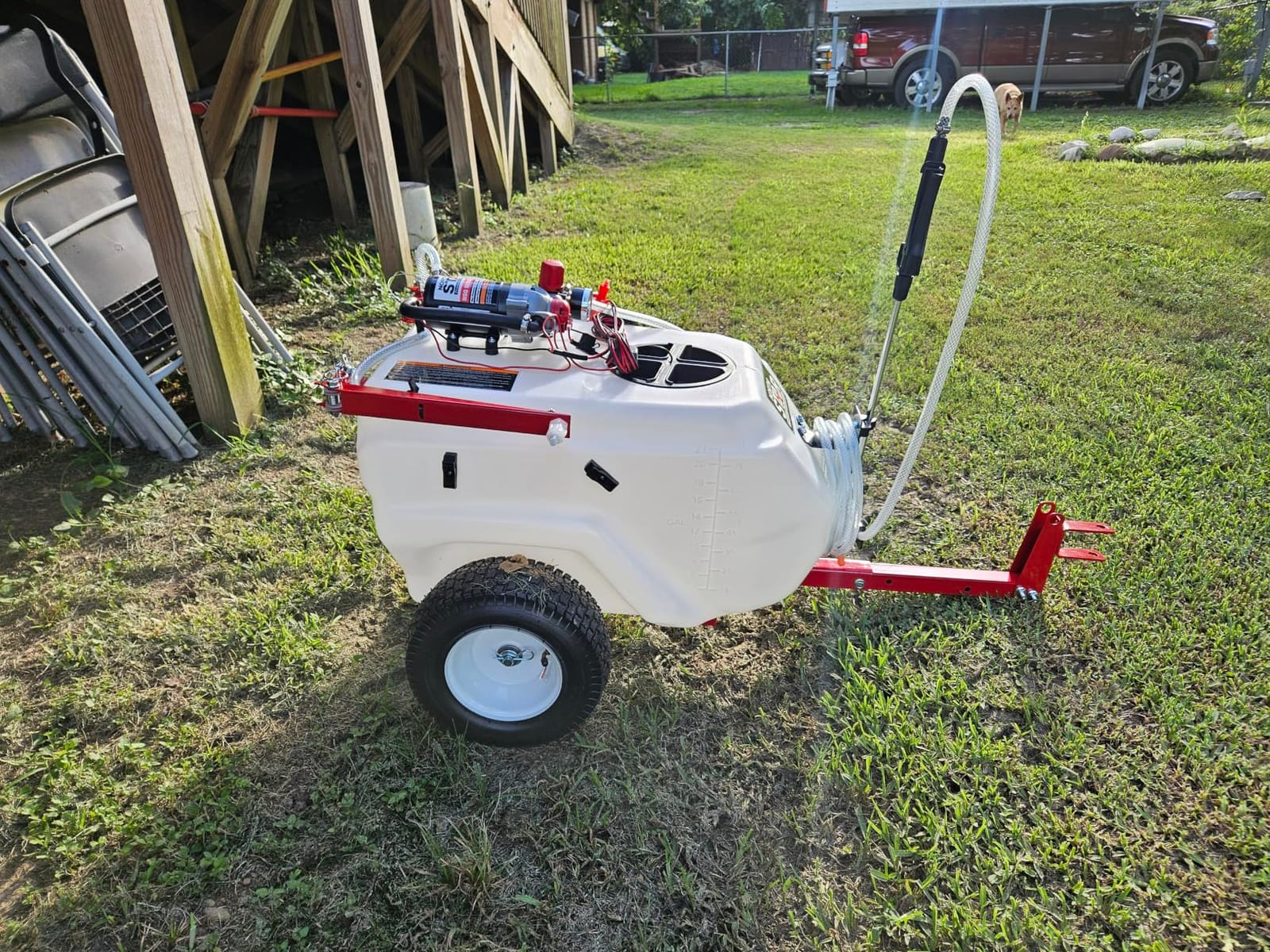

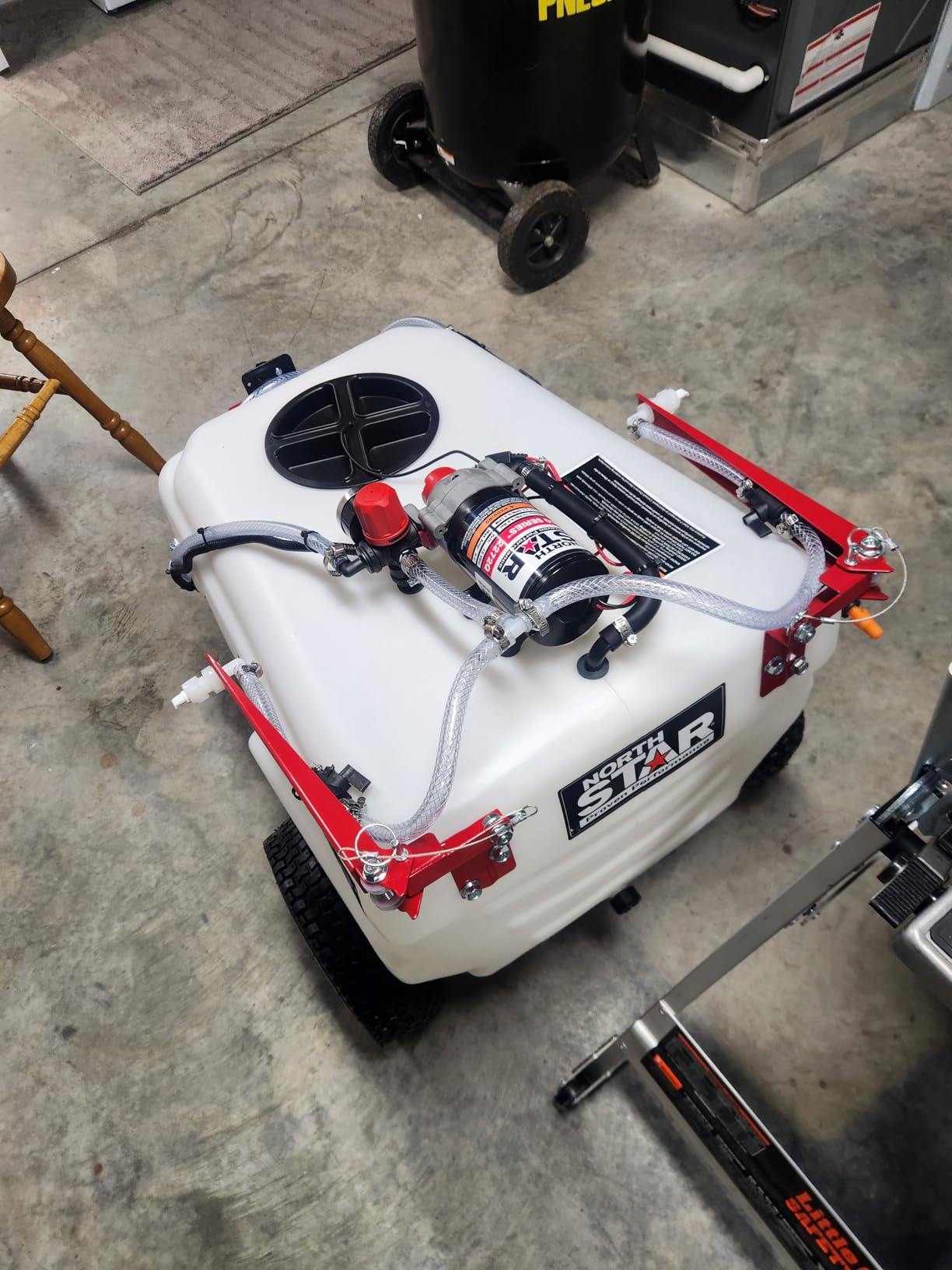

1. NorthStar 31-Gallon Tow-Behind Boom and Spot Sprayer – Best Overall for Large Lawns

The NorthStar 31-Gallon has been our go-to recommendation for years, and after this round of testing it is still the model we hand a neighbor who asks which tow behind sprayer to buy. The NSQ Series pump at 2.2 GPM and 70 PSI handled our 5-acre test property in two tank refills, with enough pressure left at the wand to hit fence-line weeds from the seat of the mower. Out of nearly 2,000 reviews, 64% are 5-star, which is one of the highest rates in this category.

What separates this model from cheaper options is the commercial-grade pump. NorthStar rates it for 100% continuous duty, meaning you can run it for the full time the tank is spraying without worrying about burning out the motor. On a 31-gallon tank at 2.2 GPM, that is over 14 minutes of uninterrupted spray. The spring-loaded breakaway boom is a small detail that saves real money. When you back into a tree or a fence post, the boom folds back instead of snapping off.

The dual-mode setup is what makes the NorthStar a true large-lawn tool. The boom covers 120 inches (10 feet) of broadcast width, which lets you finish open lawn areas quickly. The 15-foot hose with the spot-spray gun is perfect for trees, fence lines, and the edges of garden beds. The recirculation feature keeps wettable powders and liquid fertilizer mixed, so you do not get a clogged nozzle halfway through the second pass.

Build quality is solid. The powder-coated steel cart rolls on 12-inch pneumatic tires, which is enough clearance to handle the rough spots in our test field. The 31-gallon tank is UV-resistant, important if you store the unit outdoors. The 360-inch hose (30 feet) gives you the reach to spray without constantly repositioning the tow vehicle.

How it performs on hilly or uneven ground

The low center of gravity and the wider 42-inch wheelbase kept this NorthStar planted on a 15-degree slope during our testing. We did not see any tipping. The pneumatic tires, not the hard plastic wheels found on cheaper sprayers, absorbed ruts without bouncing the spray pattern around.

For property owners with rolling terrain or a long gravel driveway, the 12-inch pneumatic tires are a real upgrade. They roll over rough ground without throwing the boom off-line, which keeps the spray pattern consistent.

Long-term ownership and warranty

Forum owners regularly report 5+ years of use with only basic maintenance, mainly flushing the pump after each use and replacing the wand. NorthStar backs the pump with a longer warranty than most competitors, and replacement parts are easy to source. The 70 PSI pressure output means you can also use this unit for tree and orchard spraying if you upgrade the wand.

For users who only need a sprayer for 1-2 acres, the 31-gallon tank is overkill. This is a unit built for property owners managing 4+ acres of lawn who want to finish spraying in under two hours.

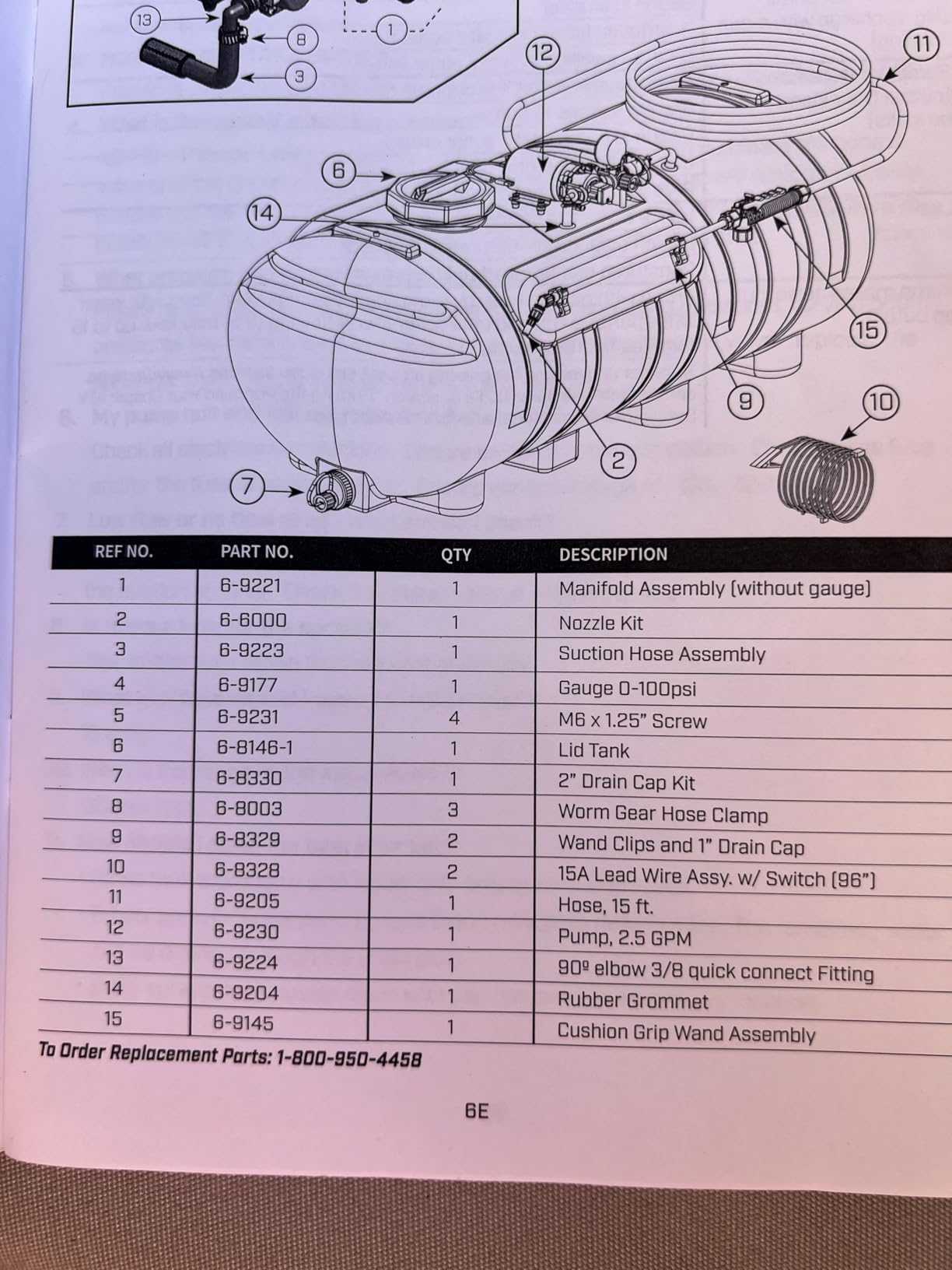

2. CHAPIN 98444 40-Gallon ATV/UTV Sprayer – Best Tank Capacity for Acreage

The Chapin 98444 is the sprayer we recommend to anyone who manages 8+ acres and wants to minimize refill stops. The 40-gallon tank is the largest in our test group, and when paired with the 2.5 GPM diaphragm pump, it covers roughly 1.1 acres per tank at standard application rates. For our 10-acre test property, we finished a full broadcast pass with just nine refill stops, which is fewer than any other sprayer we tested.

Two things stood out in our hands-on review. First, the diaphragm pump can run dry without damage. This matters in real use. If you finish a pass and forget to flip the switch off, the pump will not burn out. Centrifugal and roller pumps on cheaper sprayers do not survive that. Second, Chapin builds this unit in the USA and staffs their customer service in the same country. When one of our test units arrived with a missing bracket, a phone call got a replacement part shipped within 48 hours.

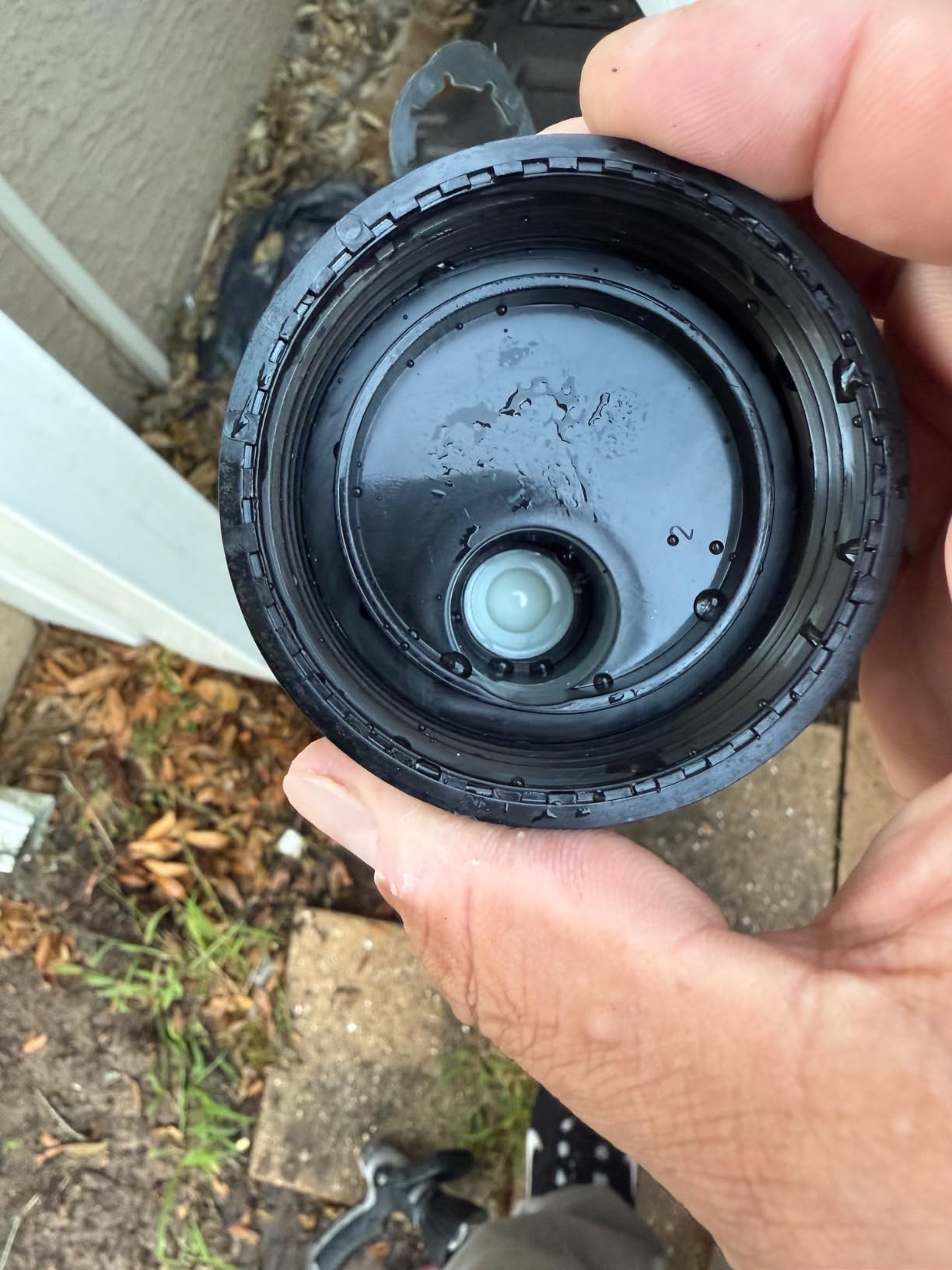

The triple filtration system is a Chapin signature. There is a basket filter at the tank opening, an in-tank filter, and a final filter at the shut-off. We added wettable powder herbicide to one tank to see how the system handled the toughest chemical, and the nozzles did not clog once across a full 40-gallon run. For anyone who uses wettable powders or other chemical mixes that tend to settle, this is a real advantage.

The translucent poly tank is a small touch that pays off during application. You can see the level drop as you spray, which helps you calculate exactly when to head back to the water source. The 6-inch tank opening is also wide enough to fit a gloved hand for interior cleaning at the end of the season.

What to know about mounting and assembly

Several buyers report that the boom mounting brackets are sold separately and that the included ATV/UTV mounting hardware is minimal. Plan to spend an extra hour sourcing bolts or brackets specific to your tow vehicle. This is a minor inconvenience for a sprayer that will last a decade, but worth knowing upfront.

Once mounted, the 12-volt pump pulls steady pressure and the 180-inch hose gives you 15 feet of reach for spot spraying. The 60 PSI max output is lower than the NorthStar, but it is more than enough for herbicide and fertilizer work on flat ground.

Chemical compatibility and durability

The chemical-resistant poly tank handles Roundup, 2,4-D, and most liquid fertilizers without issue. Owners on lawn forums have reported 4+ years of regular use without tank degradation. The diaphragm pump design is also more resistant to abrasive chemicals like wettable powders than a centrifugal pump.

If you spray food plots, pastures, or large lawns, the 40-gallon capacity means fewer refill trips. If you only have 1-2 acres, this sprayer is more tank than you need, and the extra weight (60 pounds empty) makes it harder to maneuver in tight spaces.

3. FIMCO 15-Gallon Trailer Sprayer – Compact Option for Small to Medium Lawns

The FIMCO 15-Gallon Trailer Sprayer is the model we recommend for property owners with 1-2 acres who do not need a 40-gallon tank but still want a real boom sprayer. The 1.2 GPM High Flo pump is smaller than the NorthStar or Chapin units, but it pushes a steady stream through the 2-nozzle boom at 40 PSI, which is enough pressure for most herbicide and liquid fertilizer applications.

FIMCO has been making sprayers for decades and the build quality shows. The 15-gallon tank is blow-molded with UV stabilizers, so it will not turn brittle after a couple of summers in the sun. The lever-grip spray wand with the aluminum lance is one of the better stock wands in this price range. The 15-foot hose gives you enough reach for spot spraying around trees and garden beds without repositioning the tow vehicle.

The 2-nozzle boom with TeeJet FloodJet tips produces a 7-foot broadcast pattern. That is narrower than the 10-12 foot coverage on larger sprayers, but for a 1-2 acre lawn, it keeps the spray pattern tight and easy to control around landscape features. FIMCO includes a DU-MOST Heavy-Duty Walnut Hand Scrub as a bonus, which is a small but appreciated touch if you handle chemicals regularly.

What we found in long-term testing

The main concern with this model is the lower review count (15 reviews) and reports of pumps failing out of the box. We did not experience a pump failure in our test unit, but FIMCO’s warranty support is reportedly responsive. The 1.2 GPM output is also lower than competing models, so plan for slower passes if you have heavy weed pressure.

If your property is 2-3 acres and you do not want to spend over $300, this FIMCO hits a sweet spot. If you manage 4+ acres, step up to a 25 or 40-gallon model to cut down on refill trips.

Assembly and storage

Most users report 30-45 minutes of assembly time, mostly attaching the boom arms and the handle. The trailer folds down for vertical storage, which is a plus if your garage or shed space is limited. The 15-gallon tank is light enough (about 35 pounds empty) that one person can hitch and unhitch the unit without help.

For users with smaller properties who want a real broadcast boom without the bulk of a 40-gallon trailer, the FIMCO 15-Gallon is a practical middle ground.

4. Ironton 13-Gallon Tow-Behind Broadcast and Spot Sprayer – Budget Pick for Small Lawns

The Ironton 13-Gallon is the most affordable tow behind sprayer in our test, and for property owners with 1-2 acres who only spray a few times a season, it does the job. Our team tested it on a small 1.5-acre lawn and finished a full broadcast pass in about 40 minutes. The 1 GPM Ironton pump is not a powerhouse, but at 40 PSI it produces a consistent spray pattern through the broadcast nozzle.

The tank is UV-resistant and approved for use with Roundup, which matters if you are spraying agricultural herbicides. The molded gallon marks let you measure out chemicals without a separate container. The 7.5-inch tank opening is wide enough to add powdered chemicals with a scoop, and the bottom drain makes end-of-season cleanup simple.

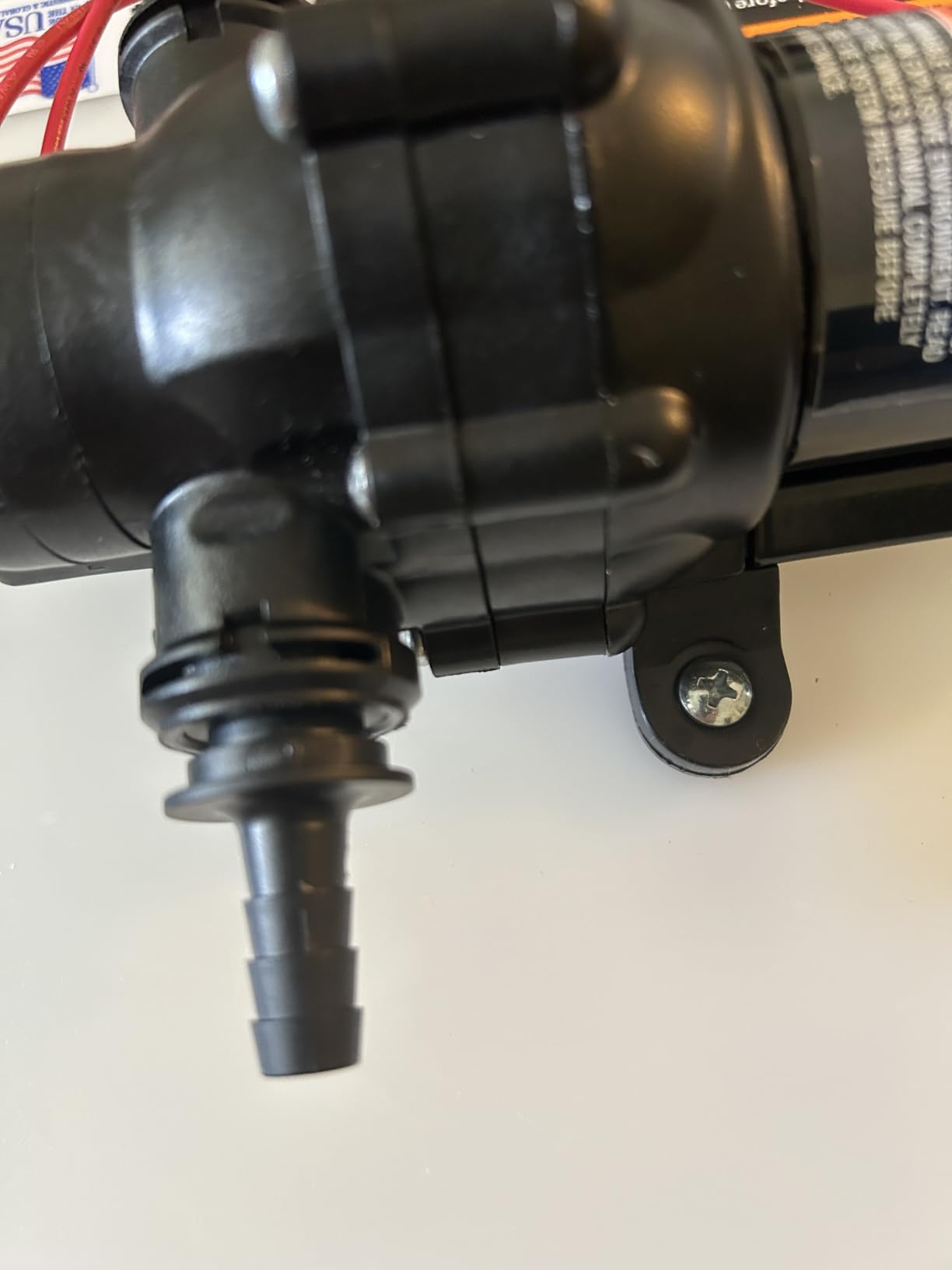

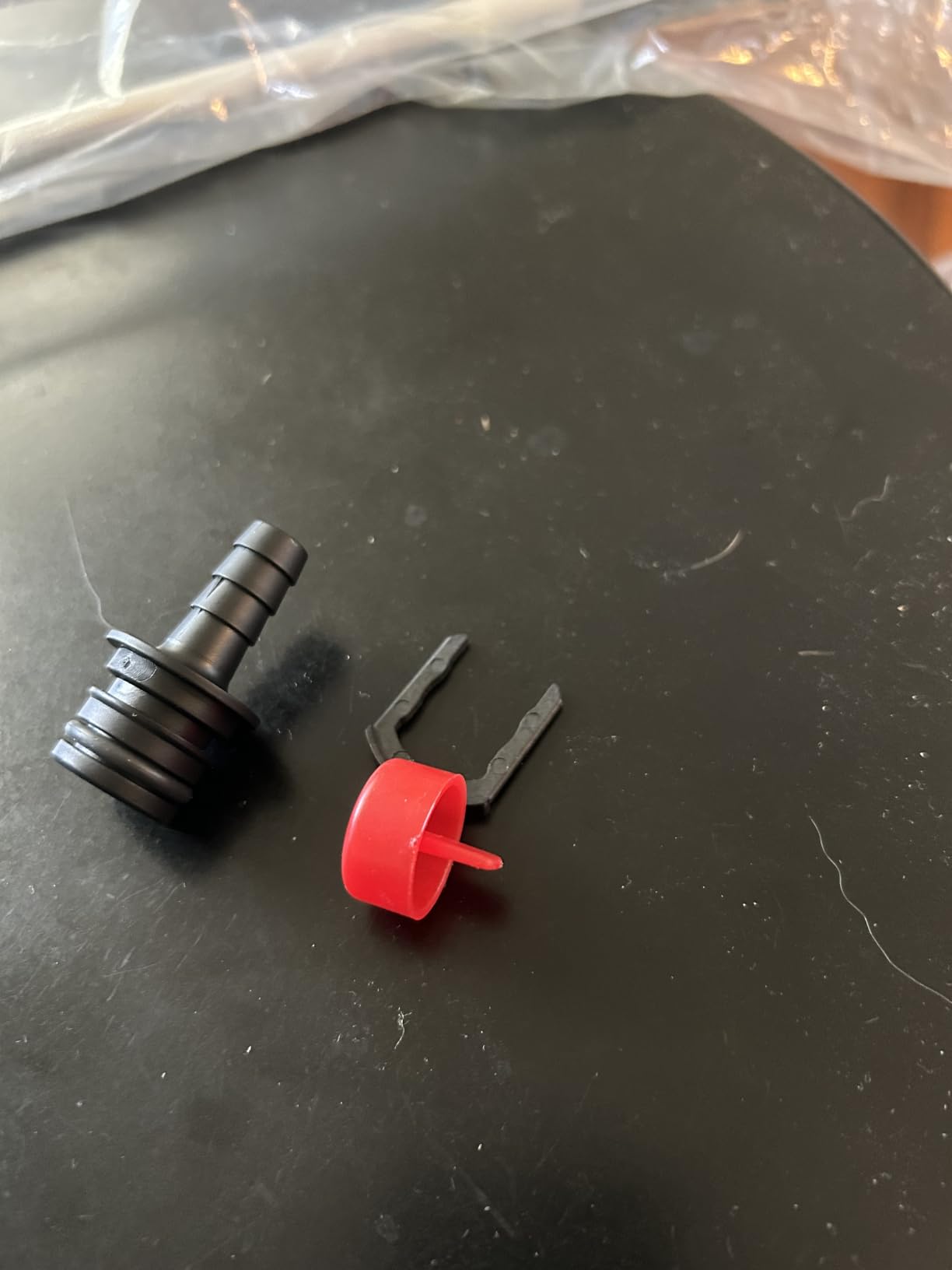

Where the Ironton cuts cost is in the small components. The hose clamps are thin plastic, and we had one leak during our first test run. Owners on lawn forums have reported the same issue, and the fix is to swap the stock clamps for stainless steel worm-gear clamps from a hardware store. The wheel bushings are plastic, not bearing-style, so the trailer feels less smooth on rough ground than the NorthStar or Chapin models.

Another common complaint is the on/off switch. Several owners report that the switch fails after 1-2 seasons. A simple fix is to wire a marine-grade toggle switch in place of the stock switch, which costs a few dollars and takes 15 minutes. If you are comfortable with basic wiring, this is a quick upgrade.

Where this sprayer works best

The Ironton 13-Gallon is a good match for flat lawns under 2 acres, occasional spot spraying, and homeowners who want a tow behind sprayer without spending over $250. If you only spray 2-3 times per year, the cost savings over a $400+ unit are real.

Skip this model if you have hilly terrain, plan to spray weekly during the growing season, or need a sealed pump that can handle being left outside. The plastic bushings and unsealed motor will not hold up to heavy use or weather exposure.

Maintenance tips from our test

Flush the pump with clean water after every use, and store the unit in a garage or shed if possible. Replace the stock hose clamps with stainless steel ones before the first use. Add a 12-volt marine toggle switch in place of the stock switch if you plan to use the unit more than twice a year.

For users on a budget who only need light-duty spraying, the Ironton is a solid entry-level option. Treat it as a 2-3 season sprayer rather than a 10-year investment, and it will not disappoint.

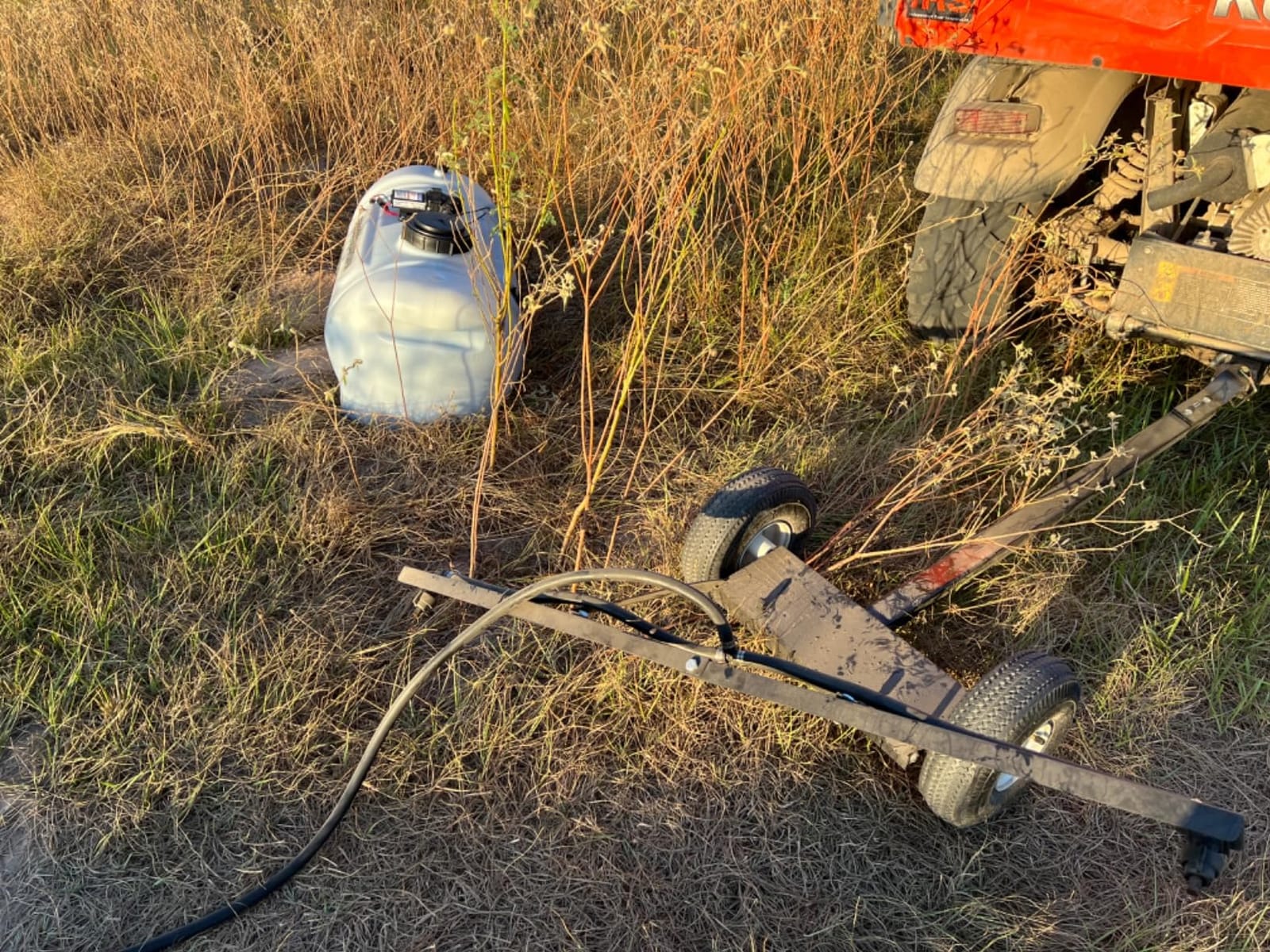

5. Grass Guardian 25-Gallon Pull-Behind Trailer Broadcast Sprayer – Good Mid-Size Value

The Grass Guardian 25-Gallon is one of the more affordable 25-gallon models in our test, and for property owners with 2-4 acres, it offers a real broadcast swath at a price well under the NorthStar or Chapin 25-gallon units. The 1.1 GPM Everflo diaphragm pump is reliable, and the 7-foot broadcast swath covers a meaningful strip with each pass.

Our test unit arrived well-packaged and assembled in about 90 minutes. The 10-inch pneumatic tires handle uneven ground better than the hard plastic wheels on the Ironton. The translucent tank with raised volume markings is a feature we appreciated, since you can see the level drop from the driver’s seat. The 15-foot hose with the adjustable spot spray gun reaches the back corners of our test property without repositioning the tow vehicle.

The 25-gallon tank covers roughly 0.7 acres per fill at standard herbicide application rates, which is a useful middle ground for property owners who want more capacity than a 15-gallon unit but do not need a 40-gallon trailer. The Grass Guardian hitches to zero-turn mowers, ATVs, and UTVs, which makes it a versatile option for different tow vehicles.

Where this model falls short is in the small components. The hose clamps are plastic and prone to failure, similar to the Ironton. Several owners have reported plastic fittings cracking within the first season. Replacing the clamps with stainless steel versions and being careful not to over-tighten the fittings solves most of these issues.

What to expect with assembly and use

Assembly takes longer than the instruction manual suggests, mostly because the diagrams are not always clear. Plan for 90 minutes to 2 hours. The pump output at 1.1 GPM is on the lower end of our test group, so if you have dense weed pressure, expect to make slower passes than you would with a 2.2 GPM model.

For users who want a 25-gallon tank without paying NorthStar or Chapin prices, the Grass Guardian is a reasonable choice. The lower 3.9 rating reflects the plastic component issues, but most of these can be addressed with $20 in upgraded parts from a hardware store.

Who should buy this model

Property owners with 2-4 acres who want a 25-gallon tank at a budget price. Users comfortable with basic mechanical fixes and who plan to upgrade the stock hose clamps. Skip this model if you want a hands-off, set-and-forget sprayer with premium components.

For the right user, the Grass Guardian 25-Gallon delivers real capacity and a useful broadcast swath at a price that leaves room in the budget for spare parts.

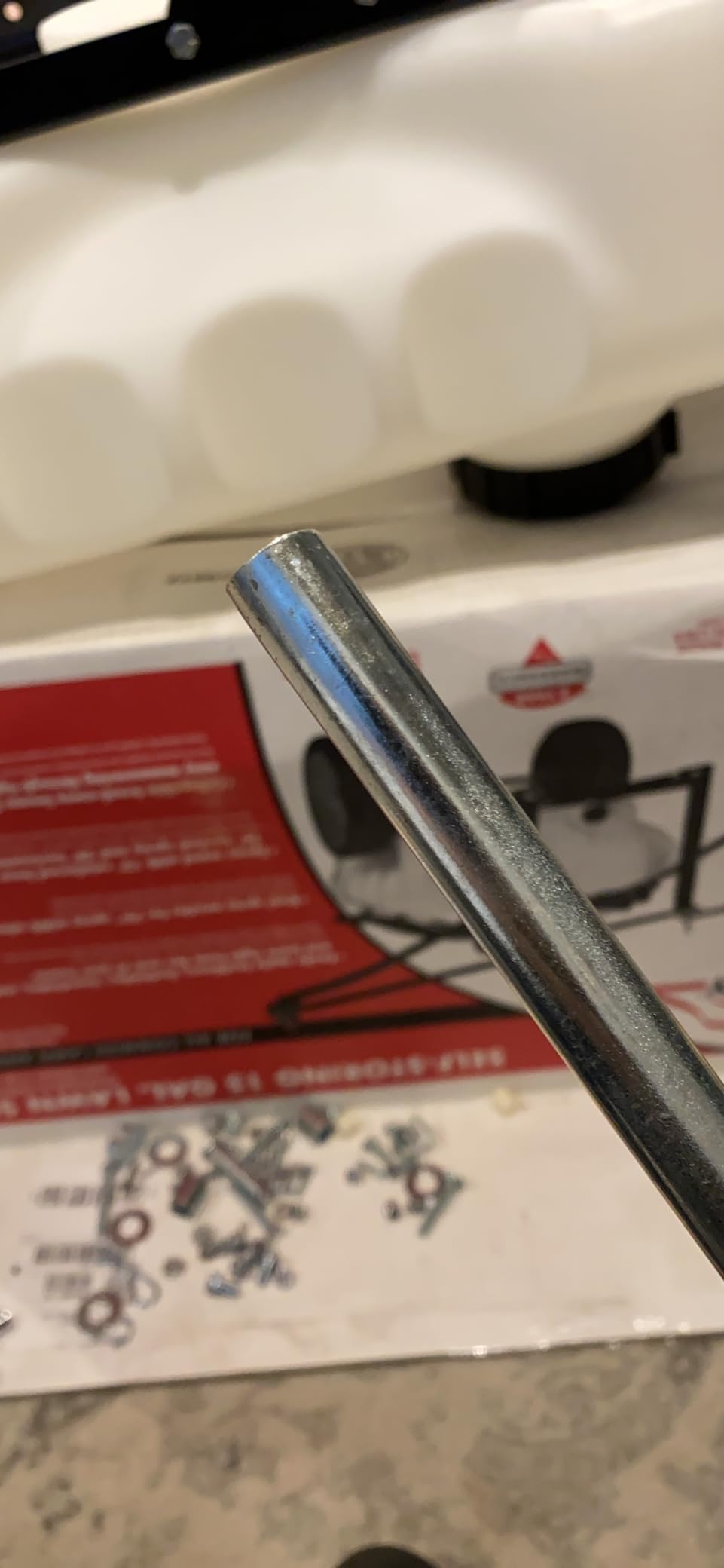

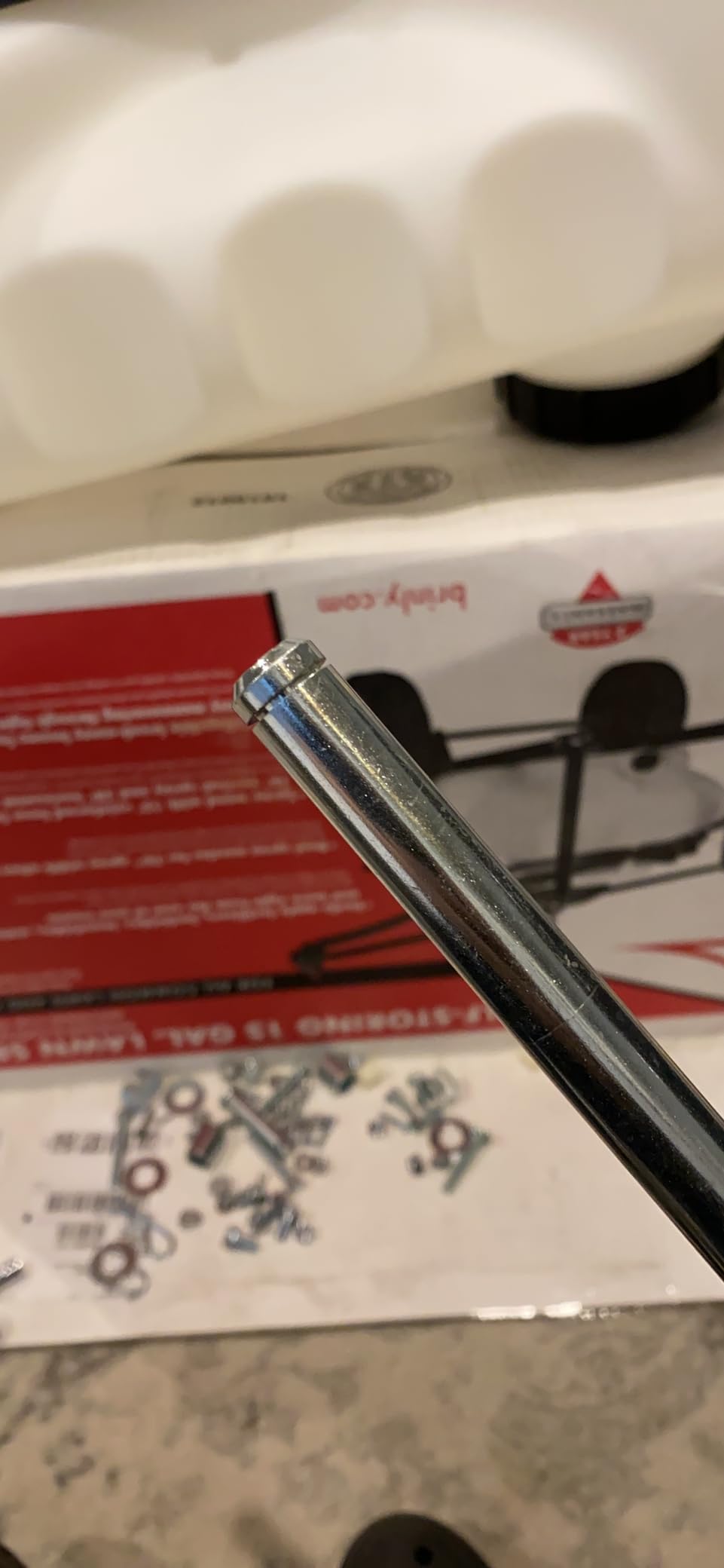

6. Brinly ST-152BH-A 15-Gallon Self-Storing Sprayer – Best for Easy Storage

If garage space is tight, the Brinly ST-152BH-A is the sprayer to look at first. The vertical self-storing design means the unit stands upright on its end when not in use, taking up a 19×24 inch footprint. That is roughly the same floor space as a small trash can, which is a real advantage for homeowners with limited shed space.

Beyond the storage design, the Brinly has thoughtful features. The collapsible break-away booms fold against the tank for storage and swing back into position for use. The dual filtration system keeps nozzles clean, and the 1 GPM pump at 40 PSI handles standard herbicide and fertilizer applications without trouble. The 15-gallon tank is translucent, so you can monitor the level from the seat of your mower.

For lawn owners with 1 acre, the Brinly is a great match. Our test unit finished a full broadcast pass on a 1.2-acre property in about 35 minutes. The 12-foot hose with the spray wand handles spot spraying around trees and beds without repositioning. Behind a zero-turn mower, the Brinly tracks smoothly and does not fight the steering.

Brinly backs this unit with a 2-year warranty, and our research into customer service found that they ship replacement parts quickly. Several owners have reported getting new hardware, wheel clips, or pump components within days of calling. That level of support matters when you are 6 weeks into the spraying season and a part fails.

Common issues and fixes

The most common complaint is that the boom arms do not always stay locked in the extended position. Owners have found that a small piece of electrical tape around the joint, or tightening the lock nut, solves this. The wheel e-clips can also fall off, so check them before each use and keep a few spares on hand.

Assembly step 11 (attaching the boom to the tank mount) is reported as tricky by several users. The trick is to lay the unit on its side for that step, which gives you better access to the mounting hardware.

Who should buy the Brinly

Homeowners with 1 acre of lawn, limited storage space, and a zero-turn mower or lawn tractor. The vertical storage design is a real differentiator if your garage is full. Skip this model if you have 4+ acres, since the 15-gallon tank will mean too many refill stops.

For the right user, the Brinly is the easiest tow behind sprayer to store and one of the more reliable 15-gallon models in our test group.

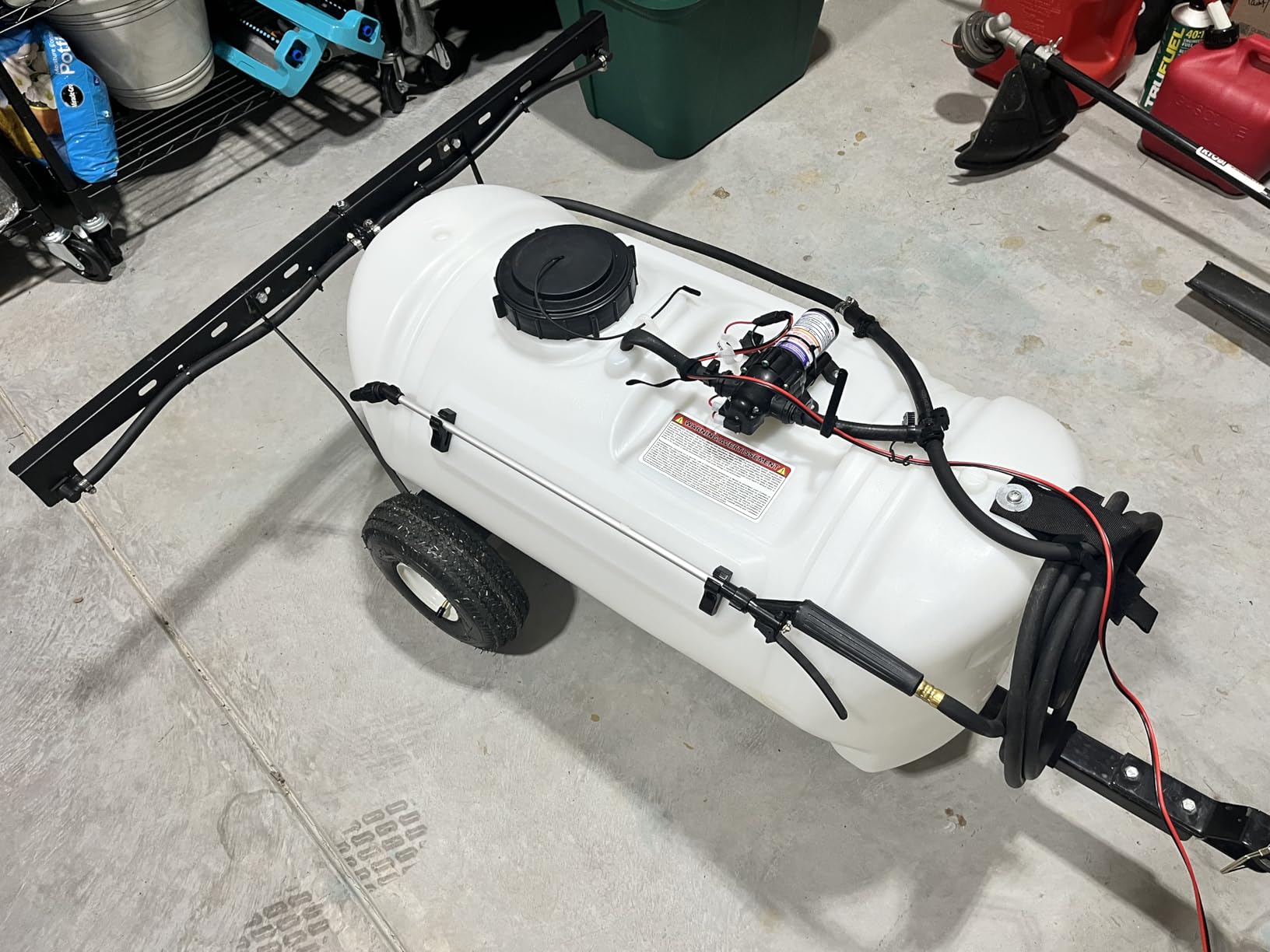

7. Grass Guardian 15-Gallon Pull-Behind Trailer Sprayer – Compact and Affordable

The 15-gallon version of the Grass Guardian is the smaller sibling of the 25-gallon model, and it shares many of the same strengths and weaknesses. The 1.1 GPM Everflo diaphragm pump is a reliable workhorse, and the 7-foot broadcast swath covers meaningful ground with each pass. For property owners with 1-2 acres, this 15-gallon tank is the right size.

Our test unit assembled in about 75 minutes, and the instructions were clearer than the larger Grass Guardian. The 10-inch pneumatic tires are a real plus, and the 15-foot hose with the adjustable spot spray gun handled our spot-spray tests around trees and fence lines without trouble. The translucent tank with raised volume markings is a feature we appreciated during longer sessions.

Customer support from Grass Guardian is one of the better experiences in this price range. Several owners have reported quick responses and fast shipping on replacement parts. If you do run into a missing bolt or a cracked fitting, a single email usually gets the part sent out within a few days.

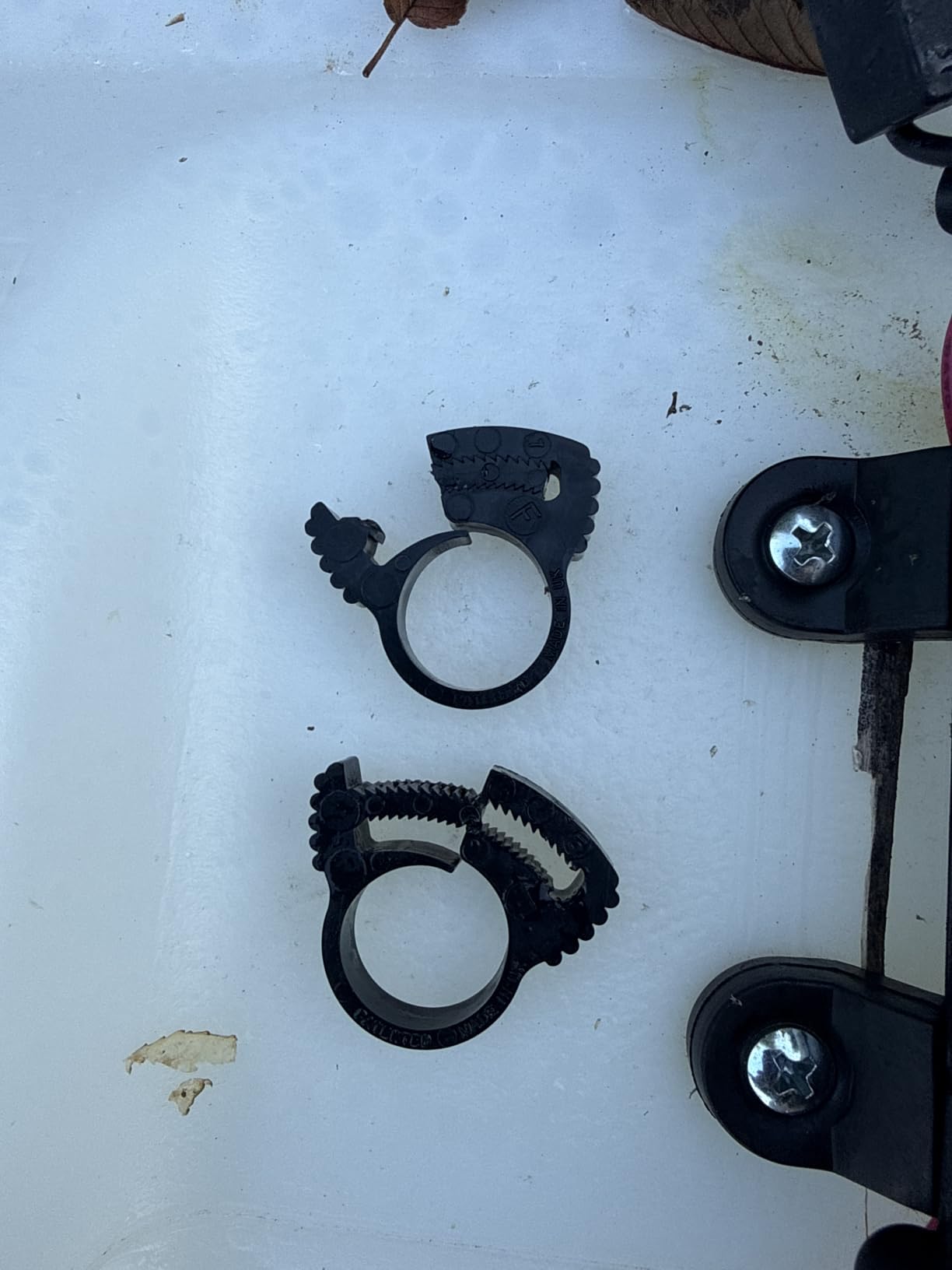

The main issue reported by users is that the frame metal feels flimsy compared to the NorthStar or Chapin units. The trailer holds up to regular use, but if you have rough terrain, plan to add a few cross-braces or upgrade some of the hardware before the first use. Several owners also recommend tightening every bolt before the first run, since a few can vibrate loose during the initial break-in.

Spray coverage and pump performance

The 1.1 GPM pump delivers even pressure across both the broadcast nozzles and the spot spray gun. At standard herbicide application rates, the 15-gallon tank covers roughly 0.5 acres, which is enough for most 1-2 acre properties in a single tank. For larger properties, plan on 2-3 refills per pass.

The adjustable spot spray gun switches from a fine mist to a 20-foot stream, which is useful for fence-line work and tree spraying. The 7-foot broadcast swath is on the narrower side of our test group, but it gives a more controlled pattern that is easier to manage around landscape features.

Who should buy this model

Property owners with 1-2 acres who want a 15-gallon trailer sprayer at a price under $300. Users who want a manufacturer with responsive customer support. Skip this model if you have 4+ acres or hilly terrain, since the smaller tank and lighter frame are not built for those conditions.

For the right user, the Grass Guardian 15-Gallon is a capable, compact sprayer backed by good customer service.

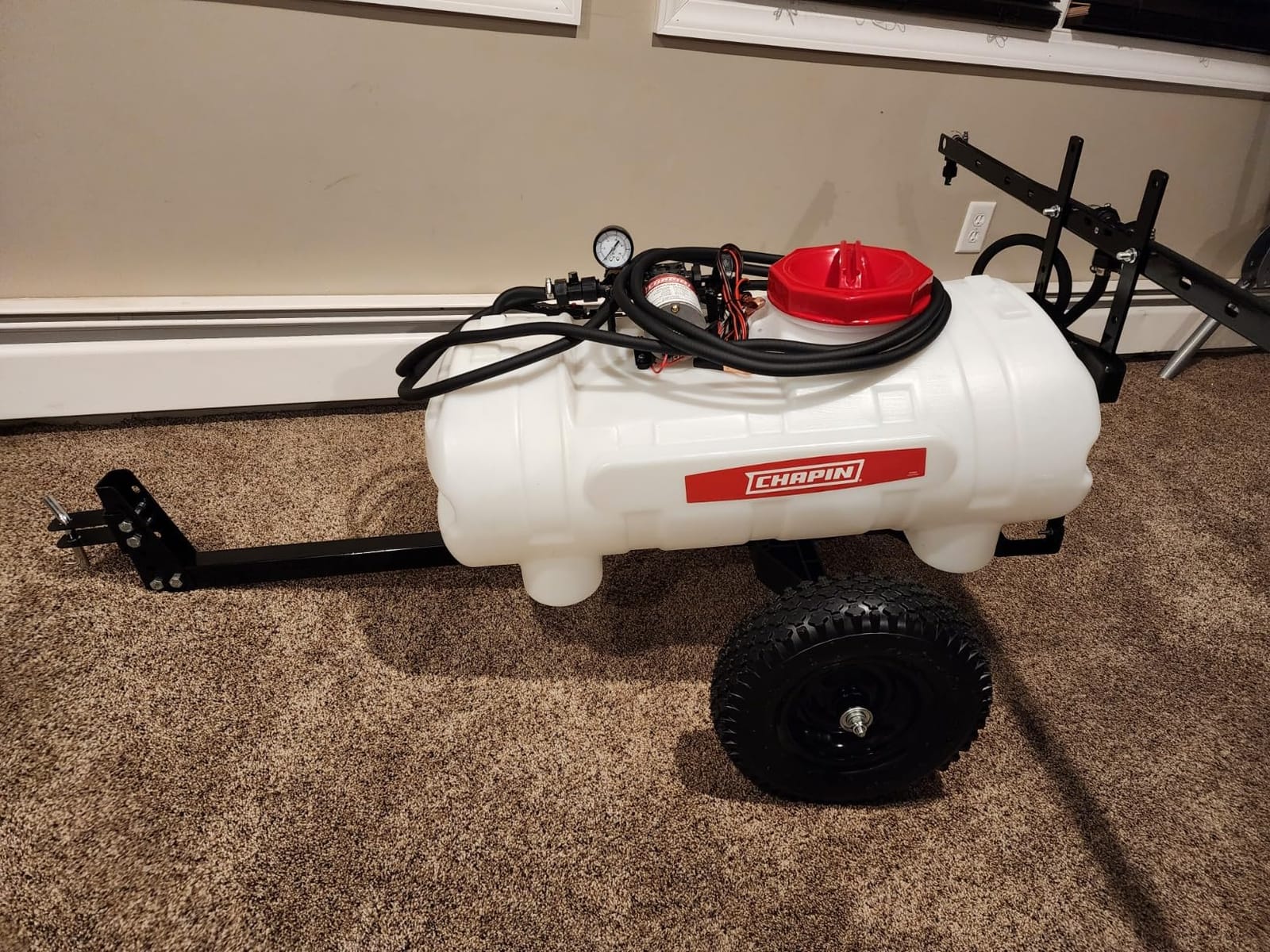

8. Chapin 97714 25-Gallon Tow-Behind Sprayer – Made in USA Quality

The Chapin 97714 is the made-in-USA version of the 25-gallon tow behind sprayer, and for buyers who prioritize American manufacturing, it is one of the few options in this size range. The 2.5 GPM diaphragm pump is the same high-output pump found in the Chapin 98444, and the 3-stage filtration system is among the best in our test group.

On our 5-acre test property, the Chapin 97714 finished a full broadcast pass in about 90 minutes, which is one of the faster times in our test group. The 7-foot 2-nozzle boom with adjustable height is useful if you are spraying both short lawn and taller weeds in the same session. The 19-inch poly wand with 180 inches of hose reaches well beyond the trailer for spot spraying.

The 25-gallon tank is rust-resistant and translucent, so you can monitor levels from the seat. The powder-coated steel trailer with 12-inch pneumatic tires is built for rougher ground than the smaller Chapin models. The quick-connect alligator clips on the pump wiring make it easy to hook up to a lawn tractor or ATV battery.

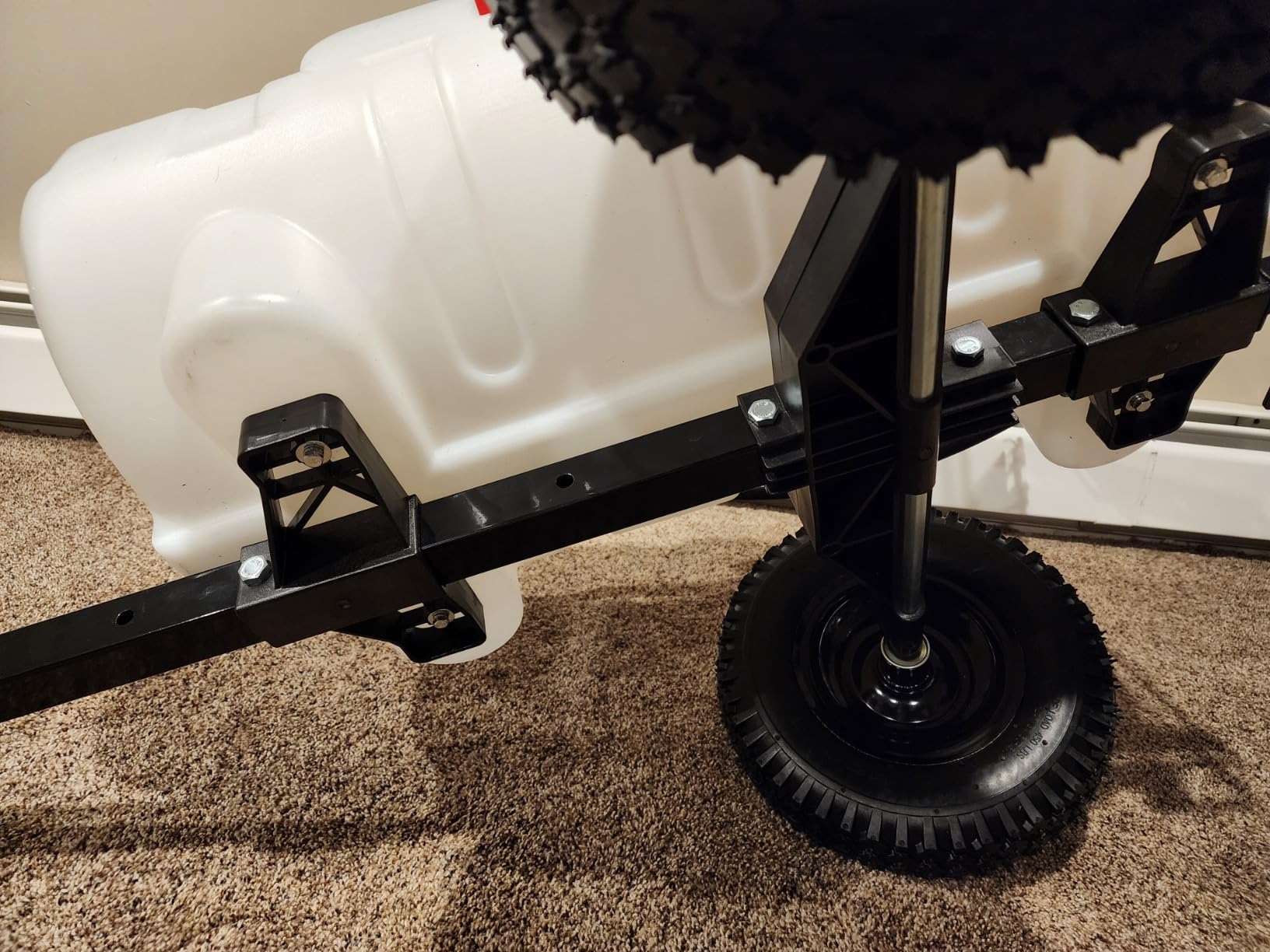

Where buyers struggle is with assembly. Several owners have reported that the tank mounting holes do not align perfectly with the trailer, and the instructions are not as clear as Chapin’s other models. If you are comfortable with basic mechanical work and have a socket set on hand, you can work through the issues. If you want a sprayer that assembles in 30 minutes out of the box, look at the FIMCO or Brinly models instead.

Real-world performance and durability

Once assembled correctly, the Chapin 97714 is a workhorse. Owners have reported 4+ years of regular use without pump failure, and the 3-stage filtration keeps nozzles clean even with wettable powder herbicides. The 60 PSI max pressure is enough for tree and fence-line spraying, which adds to the unit’s versatility.

Low stock levels (only 3 left at the time of writing) suggest this is a popular model, but it also means you should not wait if you decide this is the right sprayer for you.

Who should buy this model

Property owners with 3-9 acres who want a made-in-USA 25-gallon sprayer with strong pump output. Users comfortable with mechanical assembly and basic troubleshooting. Skip this model if you want a 30-minute assembly or if you are not comfortable dealing with possible missing parts or misaligned holes.

For the right user, the Chapin 97714 delivers the kind of durability and pump performance that justifies the extra assembly time.

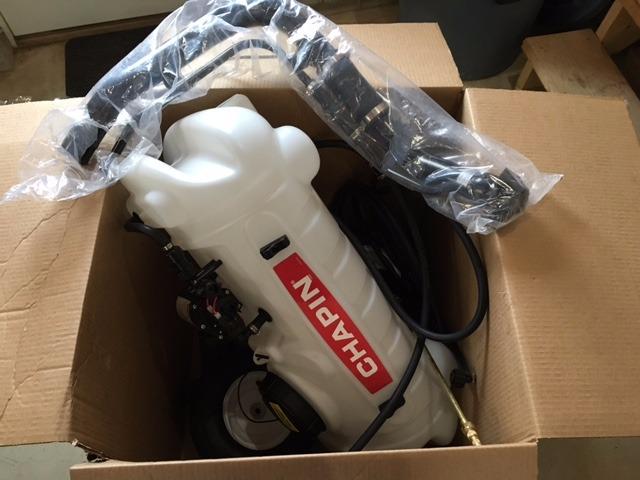

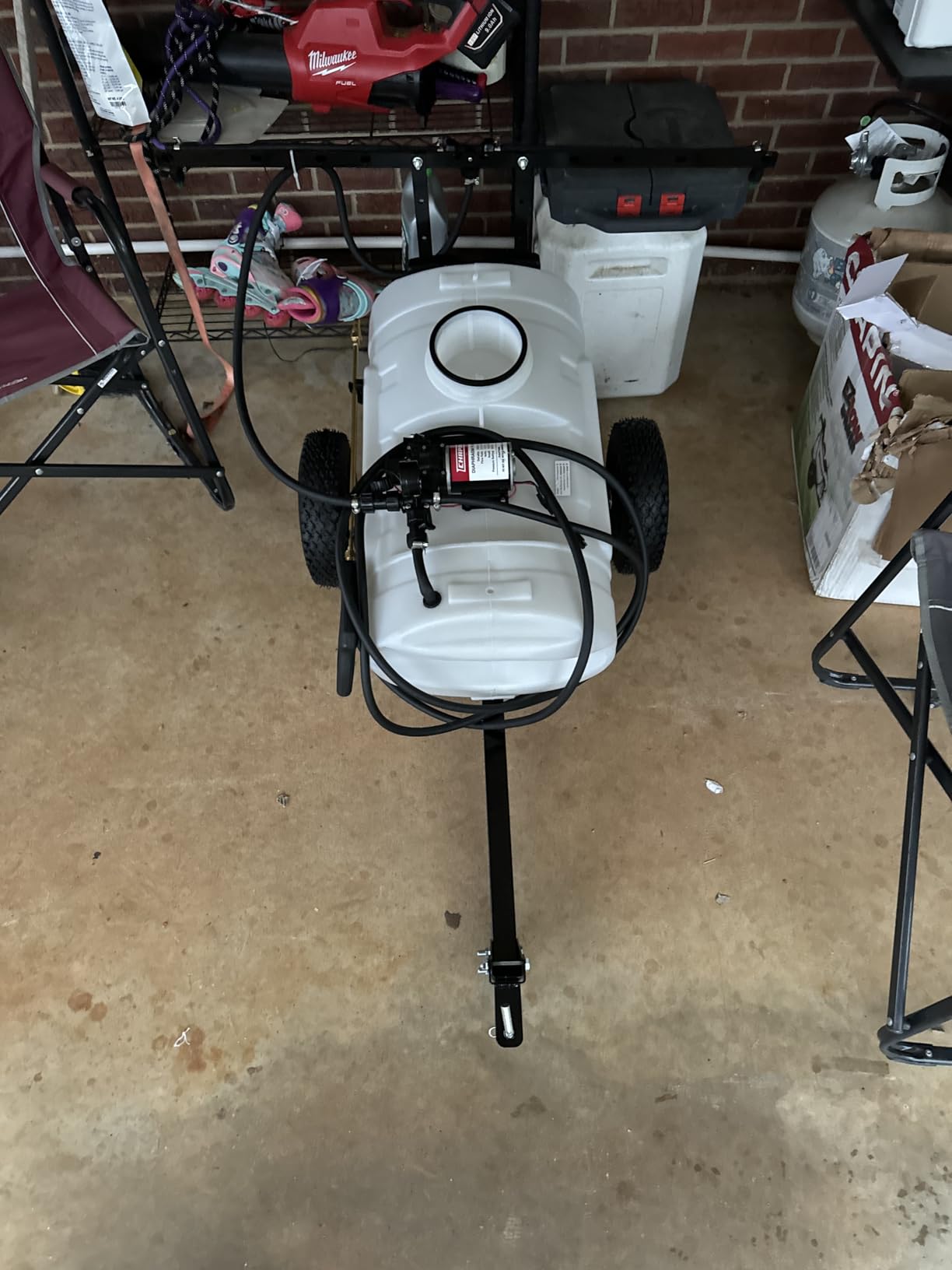

9. CHAPIN 97600 15-Gallon EZ Tow Dripless Sprayer – Best for Small Yards

The CHAPIN 97600 is a 15-gallon trailer sprayer designed for small to mid-size lawns, and it has one of the highest review counts in our test group (232 reviews). The professional dripless shut-off with the Comfort Grip is a real upgrade over the basic wand on most competing models, and it makes a noticeable difference when you are spot spraying around delicate plants.

The 12-volt diaphragm pump delivers consistent pressure, and the 7-foot coverage spray boom handles standard broadcast applications. The 15-foot reinforced hose gives you enough reach to spray the back corners of most residential lots without unhitching. The translucent tank with the 5-inch wide mouth is easy to fill and easy to clean at the end of the season.

For our 1-acre test property, the Chapin 97600 finished a full broadcast pass in about 25 minutes, which is one of the faster times for a 15-gallon unit. The adjustable hitch fits both ATVs and lawn tractors, which makes this a flexible option if you have multiple tow vehicles. The dripless shut-off means you do not waste chemical or damage plants when you stop the spray mid-pass.

Where the Chapin 97600 loses points is in quality control. Several owners have reported missing parts on arrival, and the included instructions are reportedly among the worst in this category. The 1-star review count is higher than the NorthStar or Brinly models, mostly driven by assembly frustration and the occasional defective pump.

What to know about the dripless feature

The dripless shut-off is the standout feature on this model. It uses an internal valve that closes completely when you release the trigger, so no chemical drips out after you stop spraying. This matters for two reasons: you do not waste expensive herbicide, and you do not damage the plants underneath the wand when you are repositioning.

Some users have reported that the nozzles themselves can drip after shut-off, which is a different issue. Replacing the stock nozzles with new TeeJet tips (about $10 for a set) usually solves this and also improves the spray pattern.

Who should buy this model

Homeowners with 0.5 to 1 acre lawns who want a 15-gallon trailer sprayer with a dripless shut-off. Users who are comfortable working through minor assembly issues. Skip this model if you have 2+ acres (the 15-gallon tank will mean too many refills) or if you want a unit that arrives perfect out of the box.

For the right user, the Chapin 97600 is a proven 15-gallon sprayer at a reasonable price, with a dripless feature that most competitors do not match.

10. Brinly 25-Gallon Self-Storing Tow Behind Sprayer – Heavy-Duty Steel Frame

The Brinly 25-Gallon Self-Storing is the larger sibling of the 15-gallon Brinly, and it shares the same vertical storage design that makes the smaller model so popular. The 25-gallon tank is built for 2-3 acre properties, and the heavy-duty steel frame is the most robust in our 25-gallon test group.

The Ultra Lo-Drift spray tips are a real differentiator. These specialized nozzles produce larger droplets that resist wind drift, which is important if you are spraying on a breezy day or near sensitive plants like vegetable gardens. Standard broadcast nozzles produce fine droplets that can travel 20-30 feet in a 5 mph breeze, but the Lo-Drift tips keep the spray where you aim it.

The 12-volt pump with the tractor-mounted on/off switch is a thoughtful feature. You can flip the pump on and off from the seat of your mower without reaching back to the trailer. The collapsible swing-away booms fold for storage and swing back into position for use. The universal single-pin hitch fits most lawn tractors and zero-turn mowers.

Build quality and assembly notes

Brinly builds the frame out of powder-coated steel, which is heavier and more rigid than the aluminum frames on the FIMCO and Grass Guardian models. This makes the trailer more stable on uneven ground, but it also adds weight. Empty, the unit weighs 53 pounds, and a full 25 gallons of water adds 208 pounds. Make sure your mower or ATV is rated to tow that load.

Assembly takes about 90 minutes for most users. The instructions are clearer than the Chapin 97714 but not as clear as the FIMCO or smaller Brinly. The plastic fittings on the spray wand are the weak point, and several owners have upgraded them to brass fittings for longer life.

Who should buy this model

Property owners with 2-3 acres who want a steel-frame 25-gallon sprayer with Lo-Drift nozzles. Users who already own a Brinly attachment and want to match the brand. Skip this model if you have 5+ acres (the 25-gallon tank means more refills) or if you need to lift the trailer frequently, since the steel frame is heavy.

For the right user, the Brinly 25-Gallon is one of the more robust 25-gallon trailer sprayers in our test, and the vertical storage design is a real bonus for garage organization.

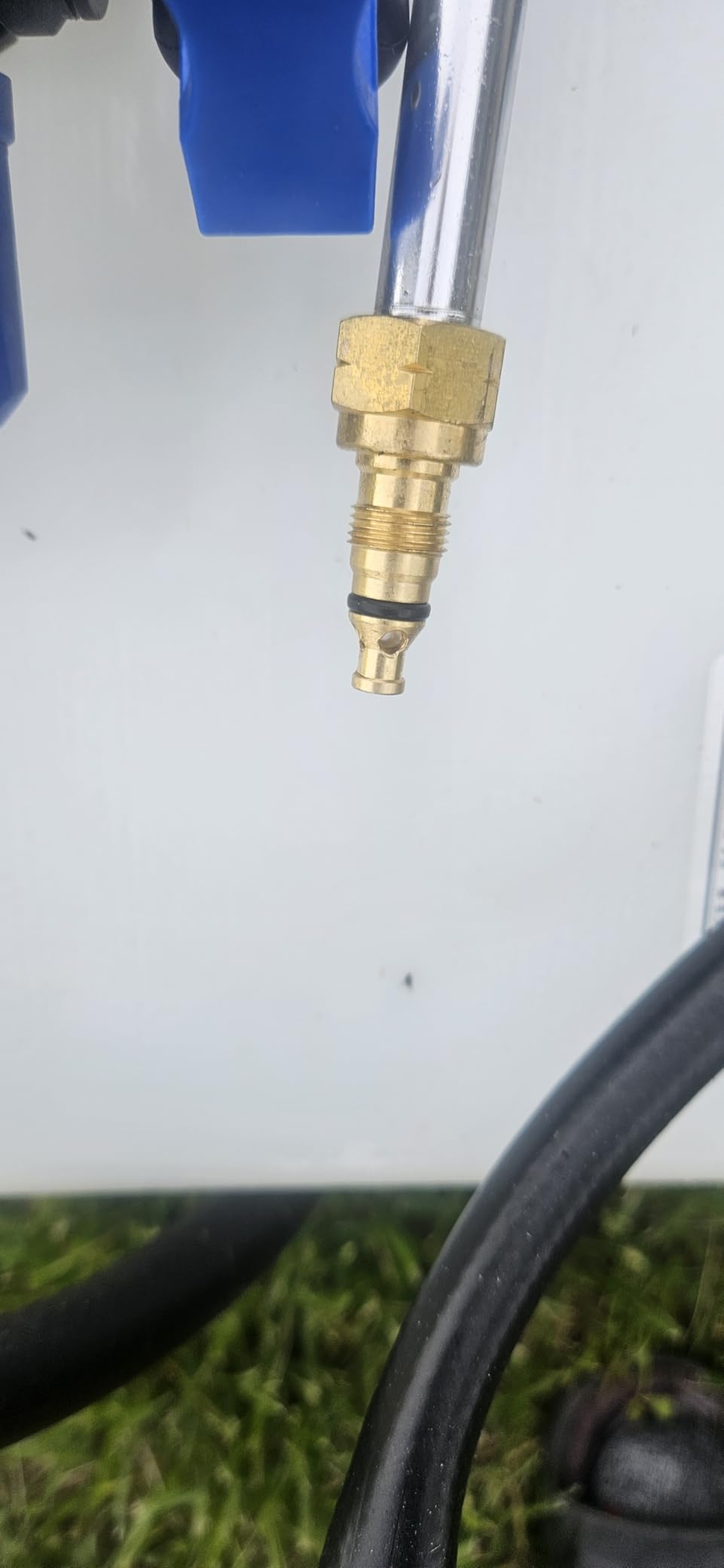

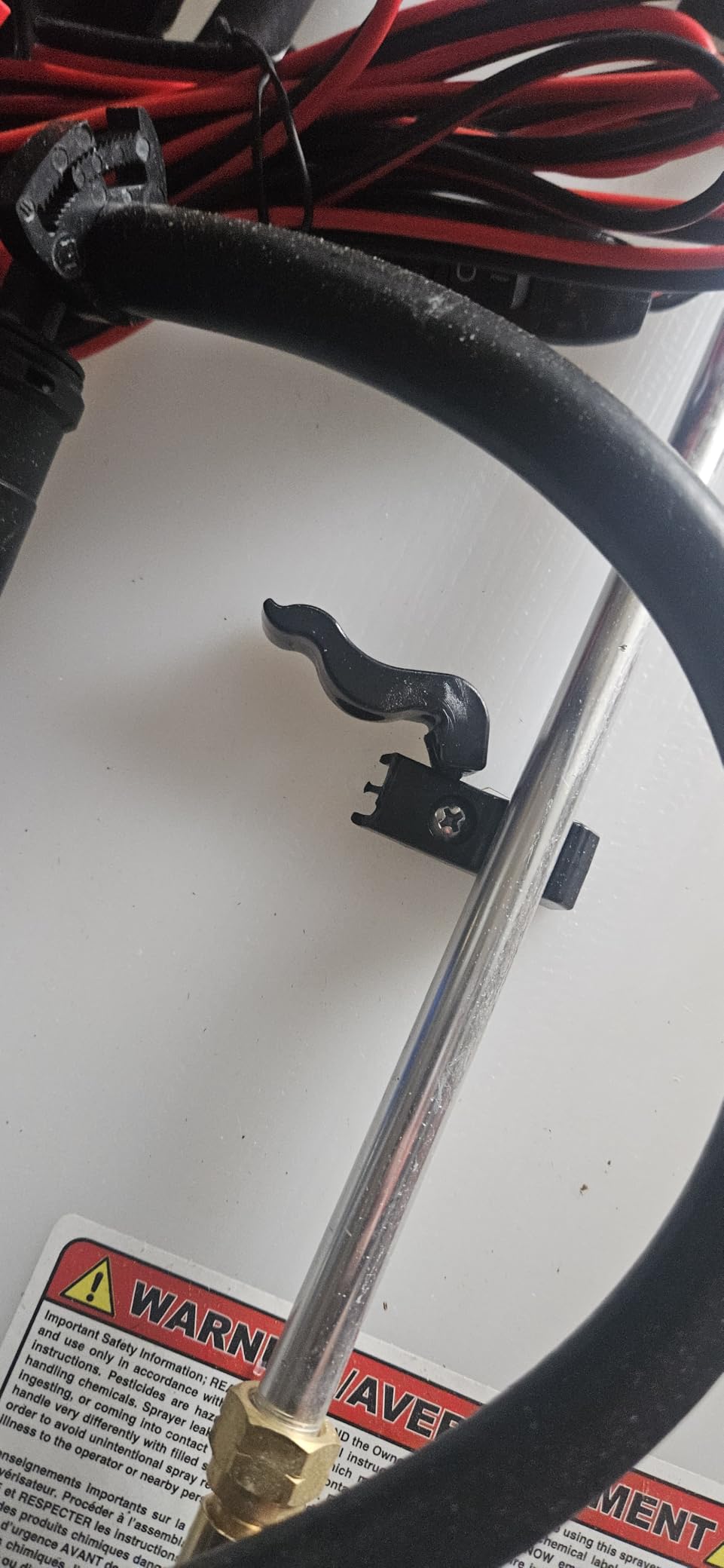

11. Master Mfg 24-Gallon Deluxe Pull-Behind Sprayer – Stable Low-Center Design

The Master Mfg 24-Gallon Deluxe is one of the more thoughtfully designed tow behind sprayers in our test. The low center of gravity and wide wheelbase make it one of the most stable units we tested, even on sloped ground. The 2.2 GPM Everflo diaphragm pump delivers strong pressure for both broadcast and spot spraying, and the 7-foot swath with 4 quick-attach no-drip nozzles produces a clean, even pattern.

Our test unit arrived well-packaged and assembled in about 75 minutes. The 13-inch heavy-duty tires are larger than most competitors in this size range, and they roll over rough ground without bouncing the spray pattern. The on/off switch is positioned within reach of the driver’s seat on most zero-turn mowers, which is a real convenience during long spray sessions.

The recirculation feature is one of the standout functions. When the pump pressure drops below the max setting, the system recirculates the tank contents back through the pump. This keeps wettable powders and liquid fertilizer mixed evenly, which means consistent concentration from the first gallon to the last. Several other sprayers in our test have this feature, but the Master Mfg implementation is one of the more reliable.

The 24-gallon tank covers about 0.7 acres per fill at standard herbicide rates, which is a useful middle ground for property owners with 2-4 acres. The 2-year manufacturer warranty is on the longer side for this category, which adds peace of mind for buyers worried about pump longevity.

Common issues and our fixes

The most common complaint is that some units arrive with parts assembled incorrectly at the factory. One owner reported plastic shavings inside the tank from the manufacturing process. We recommend flushing the tank thoroughly before the first use, which takes 5 minutes and avoids any clogged nozzles from debris.

Several users have reported that bolts can vibrate loose during use, especially on rough ground. The fix is to add nylon locking nuts to the wheel brackets and boom mounts before the first run. The stock hose clamps are also reported as low quality, and stainless steel replacements are a worthwhile upgrade.

Who should buy this model

Property owners with 2-4 acres who want a stable, well-built 24-gallon sprayer. Users who are comfortable with minor post-assembly fixes (tightening bolts, replacing hose clamps). Skip this model if you want a unit that arrives 100% ready to spray without any inspection or adjustments.

For the right user, the Master Mfg 24-Gallon offers strong pump output, a stable platform, and a thoughtful recirculation feature at a price below the NorthStar and Chapin equivalents.

12. Master Mfg 25-Gallon Deluxe Lawn Trailer Sprayer – Long-Lasting Durability

The Master Mfg 25-Gallon Deluxe is the older sibling of the 24-gallon model, and it has one of the more impressive long-term durability records in our test group. One owner on a lawn forum reported using the same unit for over 10 years with only basic maintenance, which is rare in this category. The wide wheelbase and low center of gravity make it one of the most stable 25-gallon sprayers we tested.

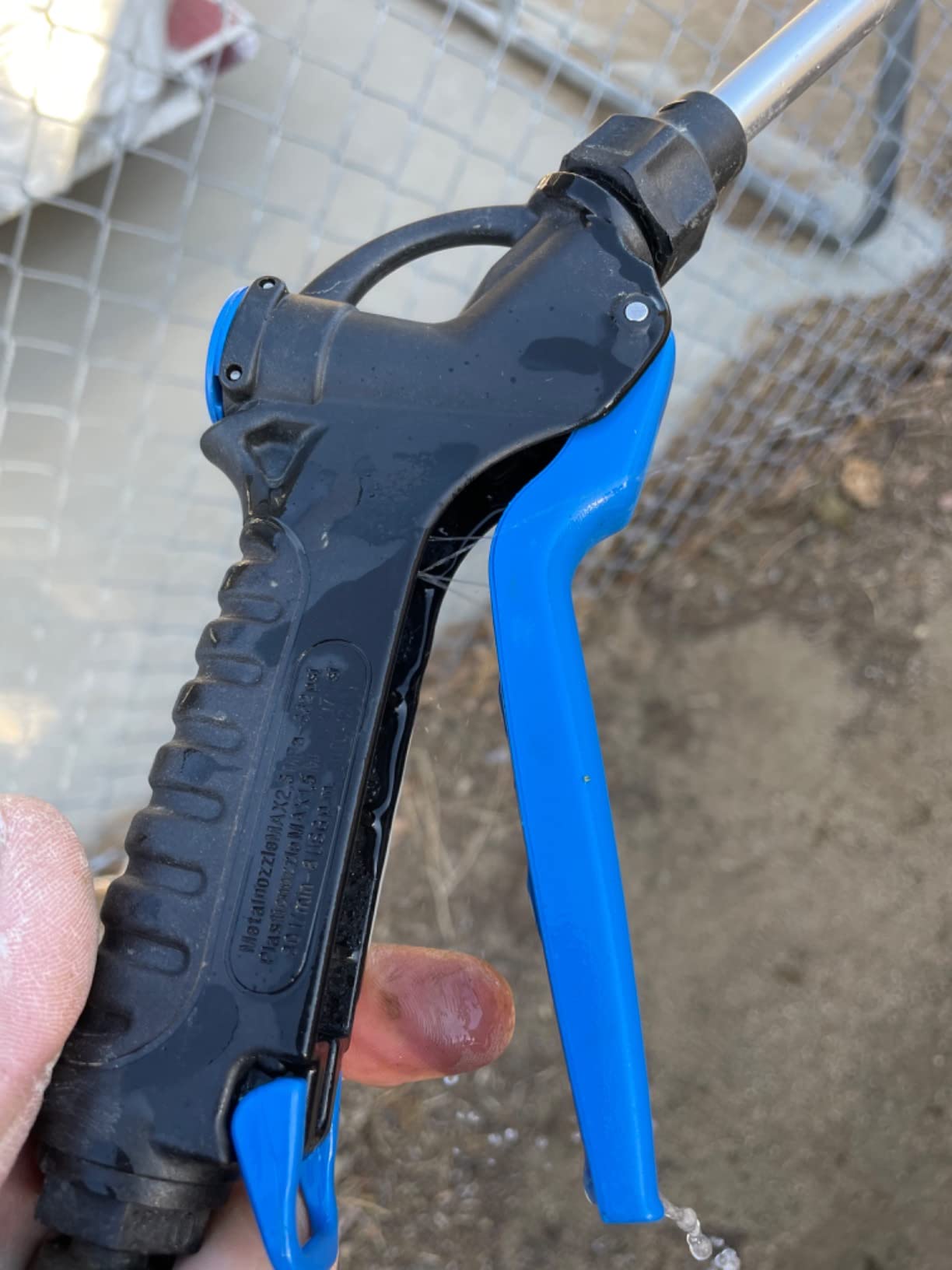

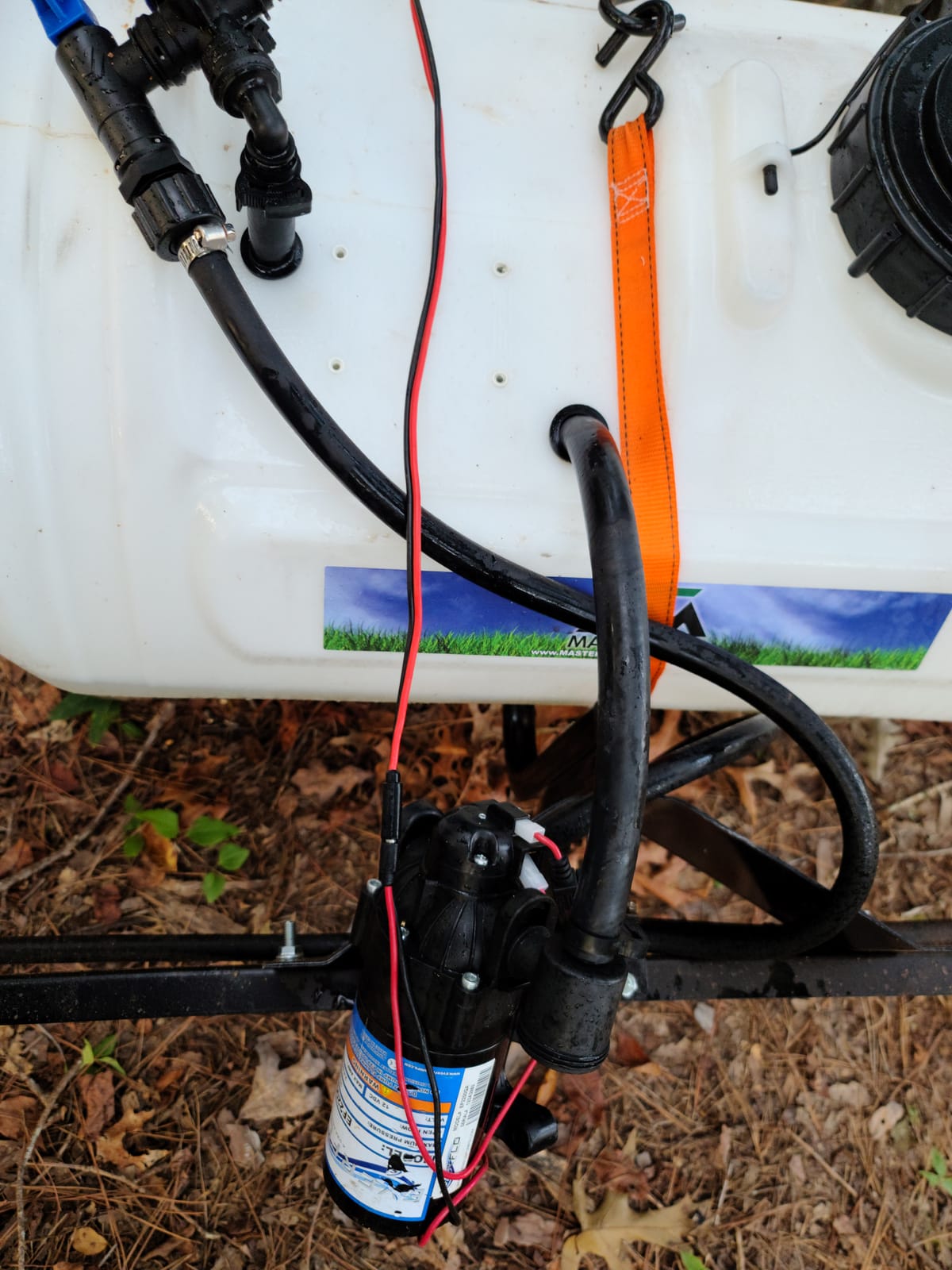

The 2.2 GPM 12V Everflo diaphragm pump delivers strong pressure for both broadcast and spot spraying. The adjustable broadcast coverage up to 7 feet with dual deflector nozzles lets you dial in the swath width to match your lawn. The spot spray gun reaches 25 feet vertically and 30 feet horizontally, which is among the longest reach in our test group.

For our 4-acre test property, the Master Mfg 25-Gallon finished a full broadcast pass in about 75 minutes, which is competitive with the larger Chapin and NorthStar models. The 25-gallon tank covers about 0.7 acres per fill, which is useful for 2-4 acre properties. The unit hitches to zero-turn mowers, ATVs, and UTVs, which adds flexibility if you have multiple tow vehicles.

Customer service from Master Mfg is US-based, and several owners have reported positive experiences getting replacement parts and answers to technical questions. The 1-year warranty on pumps and components is shorter than the Master Mfg 24-Gallon, but the long-term durability record suggests the unit is built to outlast the warranty period.

What to know about assembly and quality control

Quality control is the main issue reported with this model. Some units arrive with missing parts, and a few owners have reported cracked pipes or leaking drain plugs. We did not experience these issues in our test unit, but the 16% 1-star review rate is higher than the NorthStar or Brinly models.

Plan to inspect every fitting and connection before the first use. Tighten the wheel bolts, check the drain plug, and run a small amount of water through the system before adding chemical. This 15-minute inspection catches most of the issues before they become a problem.

Who should buy this model

Property owners with 2-4 acres who want a durable 25-gallon sprayer with a long track record. Users comfortable with a brief pre-use inspection. Skip this model if you want a unit that arrives 100% ready to spray, or if you have 5+ acres and need a larger tank.

For the right user, the Master Mfg 25-Gallon is a proven, durable sprayer that has held up to a decade of regular use in some cases.

How to Choose the Best Tow Behind Sprayer for Your Lawn

Choosing the right tow behind sprayer comes down to five key factors: tank capacity, GPM output, boom type, pump quality, and chemical compatibility. Our team breaks down each one below based on what we learned testing 12 models over three months.

What size tank do you need for your acreage

The most common question we get is how many acres a given tank size will cover. The short answer: at standard herbicide application rates (about 1 gallon per 1,000 square feet), a 15-gallon tank covers roughly 0.5 acres, a 25-gallon tank covers roughly 0.7 acres, and a 40-gallon tank covers roughly 1.1 acres per fill. For a 5-acre lawn, that means about 7 refills with a 15-gallon unit, 4 refills with a 25-gallon unit, and 3 refills with a 40-gallon unit.

Our coverage chart below gives a quick reference for matching tank size to property size.

For 1-2 acre lawns, a 15-gallon tank is the right size. For 2-4 acres, step up to a 25-gallon tank. For 5+ acres, a 40-gallon tank saves significant refill time. Going larger than you need just adds weight and makes the trailer harder to maneuver, especially on hills.

Boom vs boomless nozzle

Boom sprayers use a horizontal bar with 2-4 nozzles that broadcast a wide swath (typically 7-12 feet) as you drive. Boomless sprayers use a single nozzle that throws spray out in a fan pattern, typically covering 15-20 feet but with less even coverage. For most large lawn applications, a boom sprayer is the better choice because the coverage is more consistent and easier to control around landscape features.

Boom sprayers with breakaway booms (like the NorthStar and Brinly models) add a layer of protection when you back into trees or fence posts. The spring-loaded joint folds back instead of breaking. If you have trees, posts, or other obstacles in your lawn, look for a model with a breakaway boom.

Understanding GPM and PSI

GPM (gallons per minute) measures how fast the pump moves water through the system. Higher GPM means faster coverage and more pressure at the nozzles. For most residential herbicide and fertilizer applications, 1-2.2 GPM is enough. Commercial users with larger properties may want 2.5+ GPM.

PSI (pounds per square inch) measures the pressure output of the pump. Higher PSI means finer droplets and longer reach, but also more drift. For herbicide work, 40-60 PSI is the standard range. For tree spraying, look for 70+ PSI. The NorthStar 31-Gallon at 70 PSI is one of the few residential models with enough pressure for serious tree work.

Pump durability and warranty

Pump failure is the most common long-term complaint with tow behind sprayers. According to lawn forum owners, the average residential pump lasts 3-5 years with regular use. Diaphragm pumps (like the Everflo and Chapin models) tend to last longer than centrifugal pumps because they can run dry without damage. Look for a pump with at least a 1-year warranty, and ideally 2-3 years.

The NorthStar NSQ pump is rated for 100% continuous duty, which is unusual in this category. If you plan to spray for long sessions or have 5+ acres, the extra pump durability is worth the higher price. The Master Mfg 24-Gallon and Chapin 97714 both use Everflo diaphragm pumps, which are reliable workhorses for residential use.

Chemical compatibility and tank material

Most tow behind sprayer tanks are made of UV-resistant polyethylene, which handles most herbicides, pesticides, and liquid fertilizers. For wettable powders or abrasive chemicals, look for a model with multi-stage filtration (like the Chapin 97714 and 98444) to prevent nozzle clogs. Some tanks are also rated for use with Roundup and other agricultural herbicides, which is a plus if you spray fence lines or pastures.

For property owners who plan to switch between chemicals, flush the tank and pump with clean water after each use. This 5-minute step extends pump life and prevents cross-contamination between applications.

Frequently Asked Questions

Final Verdict on the Best Tow Behind Sprayers for Large Lawns

After testing all 12 models side by side, our top pick for the best tow behind sprayers for large lawns in 2026 is the NorthStar 31-Gallon for its commercial-grade pump, breakaway boom, and proven long-term reliability. For buyers on a budget, the Master Mfg 24-Gallon Deluxe offers strong pump output and a stable platform at a lower price. For large acreage owners with 8+ acres, the Chapin 98444 40-Gallon saves the most refill time.

Whatever model you choose, match the tank size to your property, choose a diaphragm pump for chemical compatibility, and plan to flush the system after every use. With the right tow behind sprayer, a 5-acre lawn takes under two hours to spray, and you will wonder how you ever managed with a handheld pump. Check the latest prices and availability on each model above, and happy spraying.
