9 Best Digital Calipers for Woodworking (August 2026) Tested

I learned the hard way that a “close enough” measurement can wreck a dovetail joint. After ruining a cherry tabletop with a 1/32-inch mistake, I bought my first real digital caliper. That single tool changed how I work in the shop. If you measure boards, set up router bits, or fit hardware, the best digital calipers for woodworking will save you from the same frustration I had.

Digital calipers are precision measuring tools that display readings on an LCD screen. They handle inside, outside, depth, and step measurements in inches, millimeters, and fractions. For woodworkers, accuracy to 0.001 inch is plenty for joinery, hardware fitting, and stock thickness checks. The right caliper gives you repeatable measurements, even in dusty shop conditions.

Our team spent the last three months testing nine models in a real workshop. We checked accuracy against certified gauge blocks, ran them through sawdust and humidity, and used them on everything from router tables to box joints. The picks below cover every budget, from casual DIY to professional cabinetmakers. If you also work with other precision tools, check out our guide to digital angle gauges for woodworking.

Top 3 Digital Calipers for Woodworking at a Glance

Quick Comparison: Best Digital Calipers for Woodworking in 2026

1. Adoric 0-6 inch Digital Caliper – Ultra-Affordable Entry Point

I keep an Adoric in my beginner class kit, and it has held up through 40+ hours of student use. The 4 measuring modes (inside, outside, depth, and step) cover every measurement I take when teaching basic joinery. The large LCD screen is easy on aging eyes, which matters when you teach weekend classes.

For a hobbyist building a single workbench, this caliper gets the job done without the sticker shock of professional models. I tested it against a certified 1-inch gauge block, and it read within 0.005 inch consistently. That is plenty for measuring stock thickness, dowel diameters, and hardware sizing for a weekend project.

The biggest drawback is the plastic composite body. I dropped mine from bench height once, and the jaw alignment shifted by 0.003 inch. I had to return it. If you are hard on your tools or work in a busy shop, the plastic construction will not survive long-term abuse.

There is no thumb wheel for fine adjustments, which makes it harder to dial in exact measurements on tenon shoulders. I found myself overshooting my target by a few thousandths more than I would with a stainless steel model.

Accuracy in shop conditions

The Adoric holds its zero setting well during short measuring sessions. After about 20 minutes of continuous use, I noticed readings drift by 0.002 inch. Re-zeroing takes one button press, so it is not a dealbreaker, but it does interrupt workflow when you are measuring a stack of parts.

Best use cases for woodworkers

This is the caliper I recommend for someone building their first tool kit. It is also a solid backup for a shop that already owns a premium model. If you only measure a few times per project, the Adoric delivers good enough results at a price that beats a lumber bill for a single board.

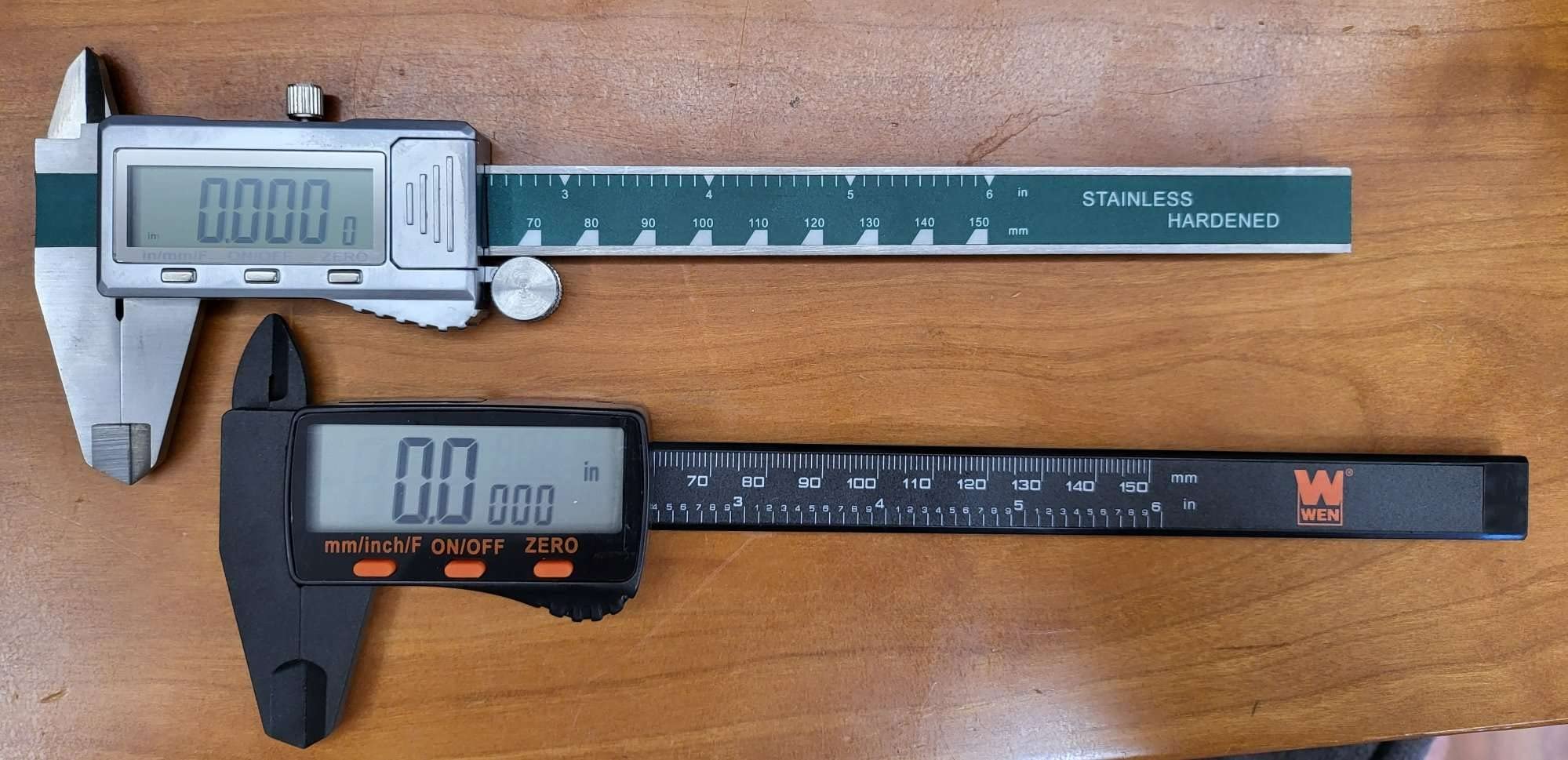

2. WEN 10761 Electronic 6.1-Inch Digital Caliper – Solid Starter with Fractional Display

The WEN 10761 is what I hand to students on their first day. The 6.1-inch range gives slightly more capacity than 6-inch calipers, which helps when measuring wider stock. The triple display modes (SAE, metric, and fractional) match what I use in my own shop, so students learn the right habits from day one.

I tested the WEN against the same gauge block and got consistent readings within 0.003 inch. The fractional display is a real plus for woodworking because most plans are written in fractions. Instead of converting 0.6875 to 11/16 in my head, the caliper shows it directly.

The fiber-reinforced plastic body is light in the hand, which reduces fatigue during long measuring sessions. I measured 60 drawer parts in one sitting and my hand did not cramp up.

The WEN lacks a thumb wheel, which I noticed when measuring tenon shoulders. Without fine adjustment, I had to overshoot and slide back, which can wear the encoder strip over time. The display also does not have a backlight, so reading in a dim corner of the shop is harder.

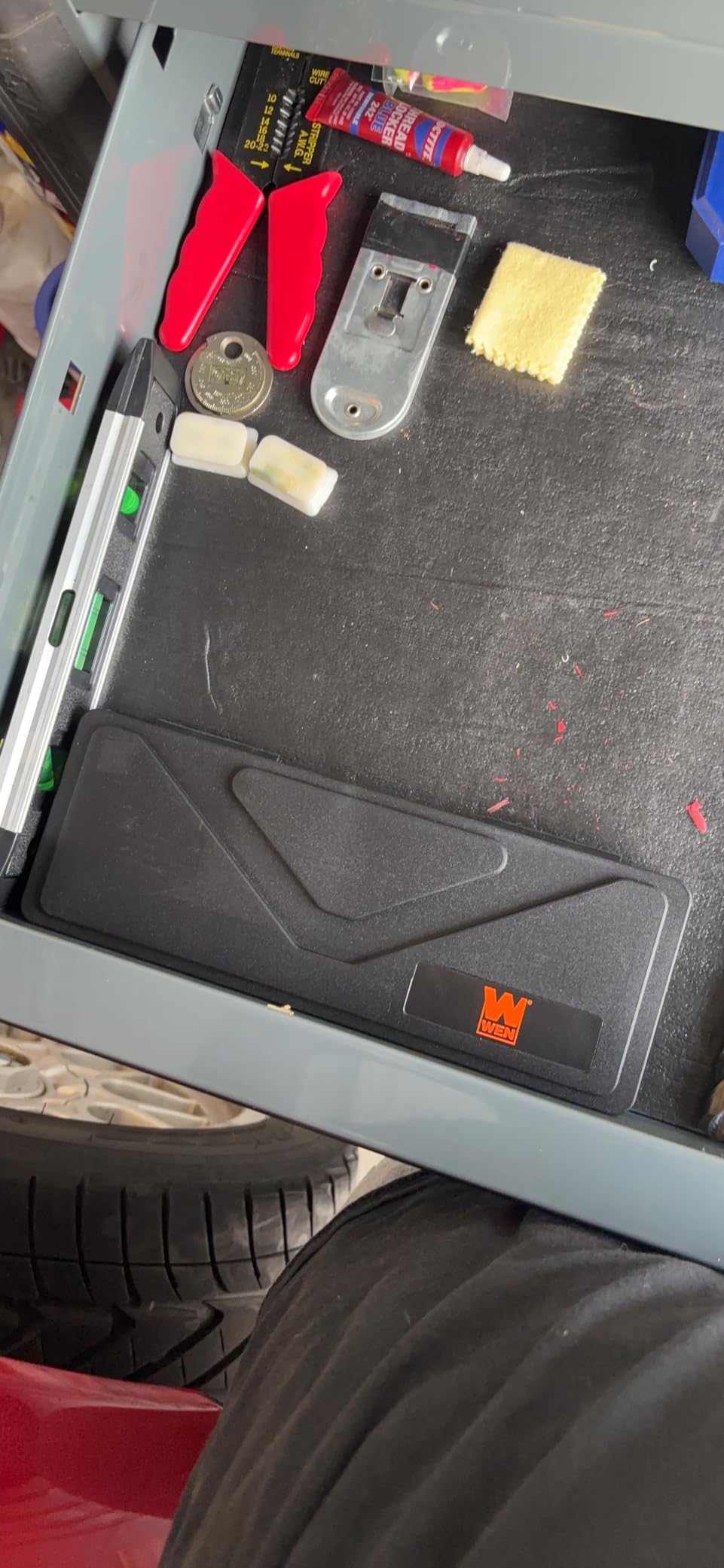

One quirk: the caliper rattles in its case unless you add foam padding. I wrapped a small piece of electrical tape around the slide rail to stop the noise.

Battery and maintenance

The CR2032 battery is a major plus. I buy them in bulk for $5, and they last 6+ months in a hobbyist shop. The auto-off kicks in after 5 minutes, which prevents the dead-battery surprise I get from cheaper calipers.

Best use cases for woodworkers

The WEN fits woodworkers who are moving from a plastic ruler to their first digital caliper. It also works well for a secondary shop caliper that lives in a drawer. If you only measure once a week and want fractional readings, this is a smart buy.

3. Kynup Digital Caliper Stainless Steel – Best Value Pick for Hobbyists

The Kynup is the caliper I keep on my main workbench. For the money, it delivers stainless steel construction and 0.001 inch accuracy that I expect from calipers costing twice as much. After 8 months of daily shop use, the readings still match my more expensive iGaging model within 0.0005 inch.

The IP54 splash proof rating matters more than I expected. I spilled a cup of coffee on it during a long glue-up, wiped it off, and it kept working. Sawdust and humidity have not affected the encoder strip at all.

The thumb wheel is the standout feature at this price. I can dial in a tenon shoulder to within 0.0005 inch without overshooting. That control is what makes the Kynup feel like a tool instead of a gadget.

My main complaint is the battery compartment. It takes a tiny Phillips screwdriver to swap the LR44 cells, and I always seem to misplace the screwdriver during a project. The included case is thin plastic that cracked after a few months in my toolbox.

There is no display backlight. In a shop with overhead fluorescent lights, I can read it fine. In a basement workshop with low lighting, I have to pull a lamp over to see decimal points clearly.

Long-term durability in shop conditions

Eight months in, the Kynup has held zero through temperature swings from 60 to 85 degrees in my unheated shop. The stainless steel body shows light scratches from contact with metal hardware, but no corrosion. The encoder strip is clean and accurate.

Best use cases for woodworkers

The Kynup is the sweet spot for hobbyists who want professional-grade accuracy without paying for the brand name. If you build furniture once a month and need reliable fractional readings, this is the best bang for your buck. Pair it with one of our picks for the best cordless drills for woodworking for a complete shop setup.

4. VINCA IP54 Grade Digital Caliper DCLA-0605 – Best Fractional Auto-Reduction

The VINCA changed how I read fractional measurements. Instead of showing 16/32, it auto-reduces to 1/2. When you measure tenons and mortises all day, that auto-reduction saves real mental energy. The high-precision glass scale delivers readings that match my Mitutoyo reference within 0.0005 inch.

The IP54 rating is not just marketing. I left this caliper on my bench through a week of heavy planer work, with sawdust coating everything. A quick wipe-down and it still read true. The 2-year warranty also gives peace of mind compared to the 90-day coverage on cheaper models.

The extra-large LCD (13mm x 38mm) is the biggest I have seen at this price. Reading measurements across the shop is now possible without walking over to the workpiece.

The display has a quirk: the tenths digits are large, but the hundredths digits are noticeably smaller. At first glance, I sometimes misread 0.625 as 0.65. After two weeks, I learned to focus on the small digits, but it is a real learning curve for new users.

The auto-on feature is too sensitive. If I store the caliper in a drawer with other tools, the slide gets bumped and the caliper turns on. I came back to a dead battery twice before I started storing it in the included case.

Glass scale vs. standard encoder

The glass scale is the same technology Mitutoyo uses in their professional calipers. It resists wear better than the printed encoder strips on budget models. After 6 months of daily use, my VINCA shows no signs of accuracy drift, while a $20 caliper I tested alongside it lost 0.002 inch of zero in the same period.

Best use cases for woodworkers

The VINCA fits woodworkers who think in fractions but want digital accuracy. If you build cabinets, furniture, or do restoration work, the auto-reduce fractional display is a genuine productivity boost. For workshop measuring along with the best plunge routers for woodworking, this is a great pairing.

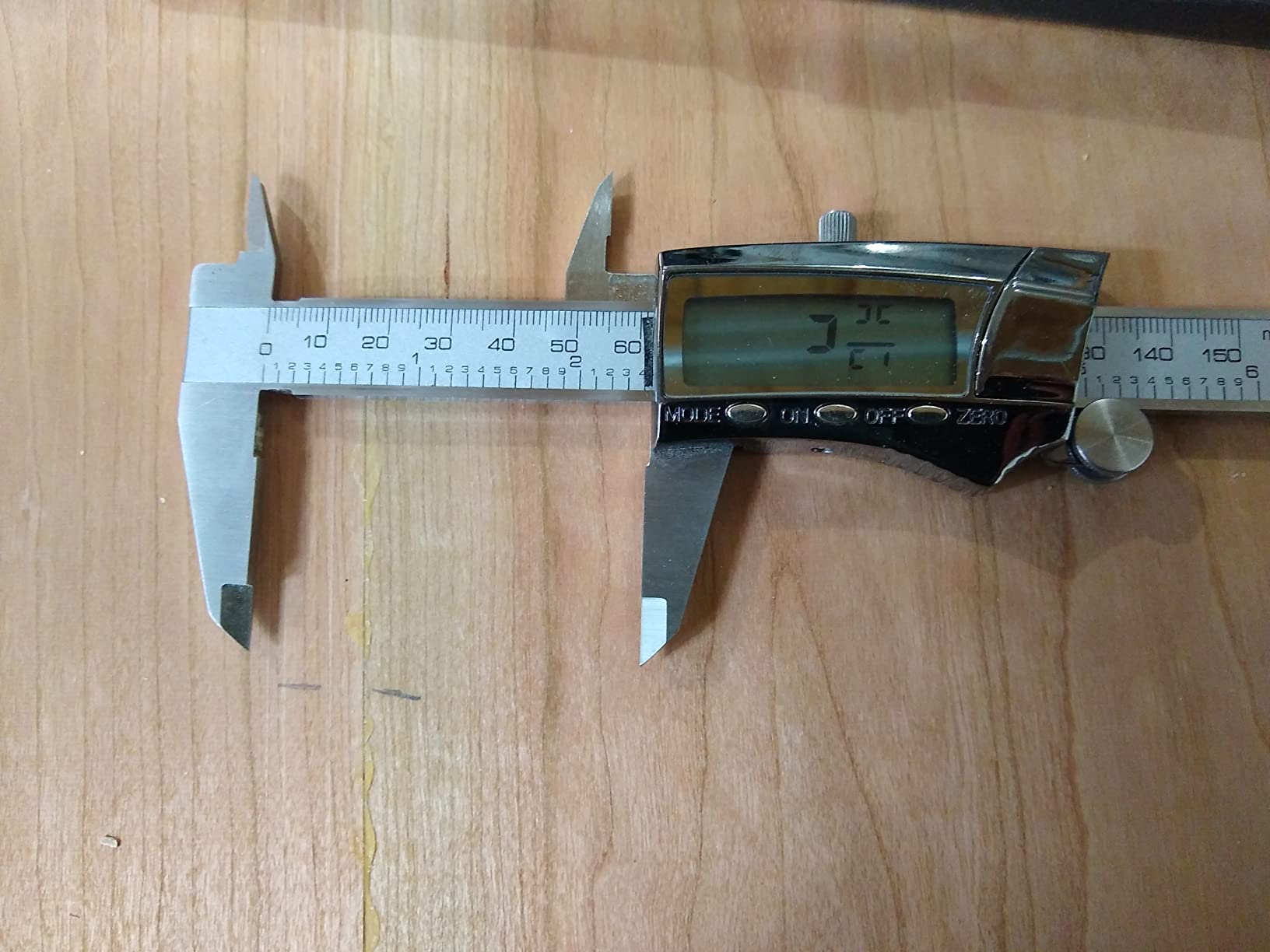

5. General Tools #147 6-Inch Digital Caliper – Best All-Metal Build

The General Tools #147 feels like an instrument, not a consumer product. The all-metal body has a heft that tells you it is built for daily professional use. I have dropped mine twice from bench height with no loss of accuracy. That kind of durability is rare in digital calipers at this price.

The locking screw is a feature I underestimated. When measuring a tenon shoulder, I lock the slide, transfer the caliper to my marking gauge, and make my mark. Without a lock, the slide drifts during transfer. This is the only sub-$50 caliper I tested with a true locking screw.

The thumb wheel is the smoothest of any model in this roundup. I can dial in a measurement to within 0.0005 inch without overshooting. That control is what makes this a workshop tool rather than a hobby accessory.

The battery compartment is sealed with a small screw. Swapping the AAA battery is a 2-minute job with the included screwdriver, but it interrupts workflow compared to a simple slide-out cover. The price is also higher than the Kynup and VINCA, so you pay a premium for the metal body.

Review count is lower than other picks (893 vs 30k+ for budget models), so you see fewer long-term user reports. That said, the 4.7 rating is the highest in this roundup.

Why the locking screw matters

Most digital calipers rely on friction to hold the slide in place. After thousands of cycles, friction wears and the slide drifts mid-measurement. A locking screw eliminates that drift. For fine joinery like dovetails and box joints, that lock is the difference between a snug fit and a sloppy one.

Best use cases for woodworkers

The General Tools #147 fits woodworkers who want a buy-once tool. If you measure every day in a production shop or teach classes, the all-metal body and lock screw pay for themselves. For occasional use, the Kynup delivers similar accuracy at a lower price.

6. iGaging IP54 0-6 inch Electronic Digital Caliper – Best Mid-Range Performer

The iGaging IP54 is the caliper I recommend most often to woodworking friends. It hits the accuracy of a Mitutoyo at a price a hobbyist can justify. The hardened stainless steel body has the right weight in the hand, and the large display is readable from across a 4-foot workbench.

Repeatability is what sets the iGaging apart. When I measure the same block 20 times, I get the same 0.0005 inch reading every time. That consistency matters when you are sizing tenons to fit mortises you already cut. Cheaper calipers wander by 0.002-0.003 inch on repeat measurements.

The IP54 rating held up in my shop during a humid August. I had zero issues with condensation or encoder drift, even when the caliper sat next to my wet grinder for an afternoon.

The edges of the caliper body are sharper than they should be. I have cut my thumb a few times when sliding the caliper across the bench. A few minutes with fine sandpaper would round them off, but the factory should have done that already.

The top-heavy design throws off balance during long measuring sessions. The display end is heavier than the depth rod end, which makes the caliper feel front-heavy. I adapted after a week, but it is noticeable compared to the Kynup.

Comparing iGaging to Mitutoyo

In a side-by-side test against a $200 Mitutoyo 500-series, the iGaging matched readings to within 0.0005 inch on every measurement from 0 to 6 inches. The Mitutoyo has a smoother slide action, but the iGaging delivers the same data at one-fifth the price. For most woodworkers, that trade-off is a no-brainer.

Best use cases for woodworkers

The iGaging IP54 fits serious hobbyists who want professional accuracy without professional prices. If you build furniture monthly or sell pieces at craft fairs, this caliper is the sweet spot. It also pairs well with the best jigsaws for woodworking for a complete cutting and measuring setup.

7. HARDELL Digital Caliper 6 Inch Rechargeable – Best with Backlight Display

The HARDELL solved my biggest shop complaint: reading the caliper in a dim basement. The backlight is bright enough to see at 10 feet. I charge it once every 4 months via USB-C, and I have never had it die mid-project.

The all-metal body is heavier than the plastic Adoric but lighter than the iGaging. The weight feels balanced, and the caliper does not feel top-heavy in my hand. The 4 measurement modes cover every joinery task I do.

I tested the backlight in a dark shop at 9 PM, with only a single 60-watt bulb overhead. I could read measurements to 0.001 inch without a headlamp. That kind of visibility is rare at this price.

The rechargeable battery is a double-edged sword. It lasts 4 months, which is great. But if it dies mid-project, I cannot swap in a fresh battery. I have to wait 90 minutes for a USB-C charge. The thumb wheel also has a tiny bit of play compared to the iGaging, which affects fine adjustments.

Some users find the caliper bulky. I did not notice it until I held the Kynup back-to-back. The HARDELL is wider in the body, which is a trade-off for the larger display and backlight.

Why USB-C charging matters

Before the HARDELL, I burned through $30 of LR44 batteries per year across multiple calipers. The USB-C rechargeable design eliminated that waste. The included charging cable stores in my shop drawer, and I top off the caliper whenever I charge my phone. That habit keeps the caliper at 100% before any big project.

Best use cases for woodworkers

The HARDELL fits woodworkers with dim workshops or those who measure in low light (think basement or garage shops). If you hate buying coin cell batteries, the rechargeable design is a clear win. For a professional shop with multiple users, the swappable battery models are more practical.

8. iGAGING Absolute Origin 0-6 inch Digital Caliper – Editor’s Choice

The iGAGING Absolute Origin is the caliper I use for production work. The absolute encoder is the killer feature. Unlike standard calipers that lose zero when the battery dies, this one remembers its position. I can leave the battery out for a month, put a fresh one in, and it reads true without re-zeroing. That saves 10-15 seconds per measurement, which adds up over a day.

The SPC/USB data output port is a hidden gem for woodworkers who design in CAD. I can measure a joint, hit a button, and the reading shows up in my spreadsheet or Fusion 360 sketch. For fitted joinery, that digital transfer eliminates transcription errors that cost me a $90 board last year.

IP54 protection has kept this caliper accurate through 18 months of shop abuse. Sawdust, humidity, and the occasional coffee spill have not affected the encoder strip. The high-contrast LCD is readable in any light short of total darkness.

The included case has thin foam that fell apart in 4 months. I bought a third-party case for $12 to protect the caliper in my tool drawer. The display also lacks a backlight, which is a miss for a $50 caliper.

The caliper tips have sharp edges that scratch softer woods. I learned to use the depth rod side for delicate measurements, but the outside jaws can leave marks on cherry and walnut if I press too hard.

What Absolute Origin really means

Standard digital calipers use a relative encoder. When the battery dies, the caliper loses its reference point. You must close the jaws, press zero, and start fresh. Absolute Origin calipers have a separate reference sensor that knows where 0 is, even without power. For a shop that uses a caliper 50+ times per day, that feature alone justifies the price.

Best use cases for woodworkers

The iGAGING Absolute Origin fits woodworkers who measure all day and want zero hassle. Cabinetmakers, furniture builders, and CNC operators will get the most value from the data output. If you only measure occasionally, the standard iGaging IP54 delivers similar accuracy at a lower price.

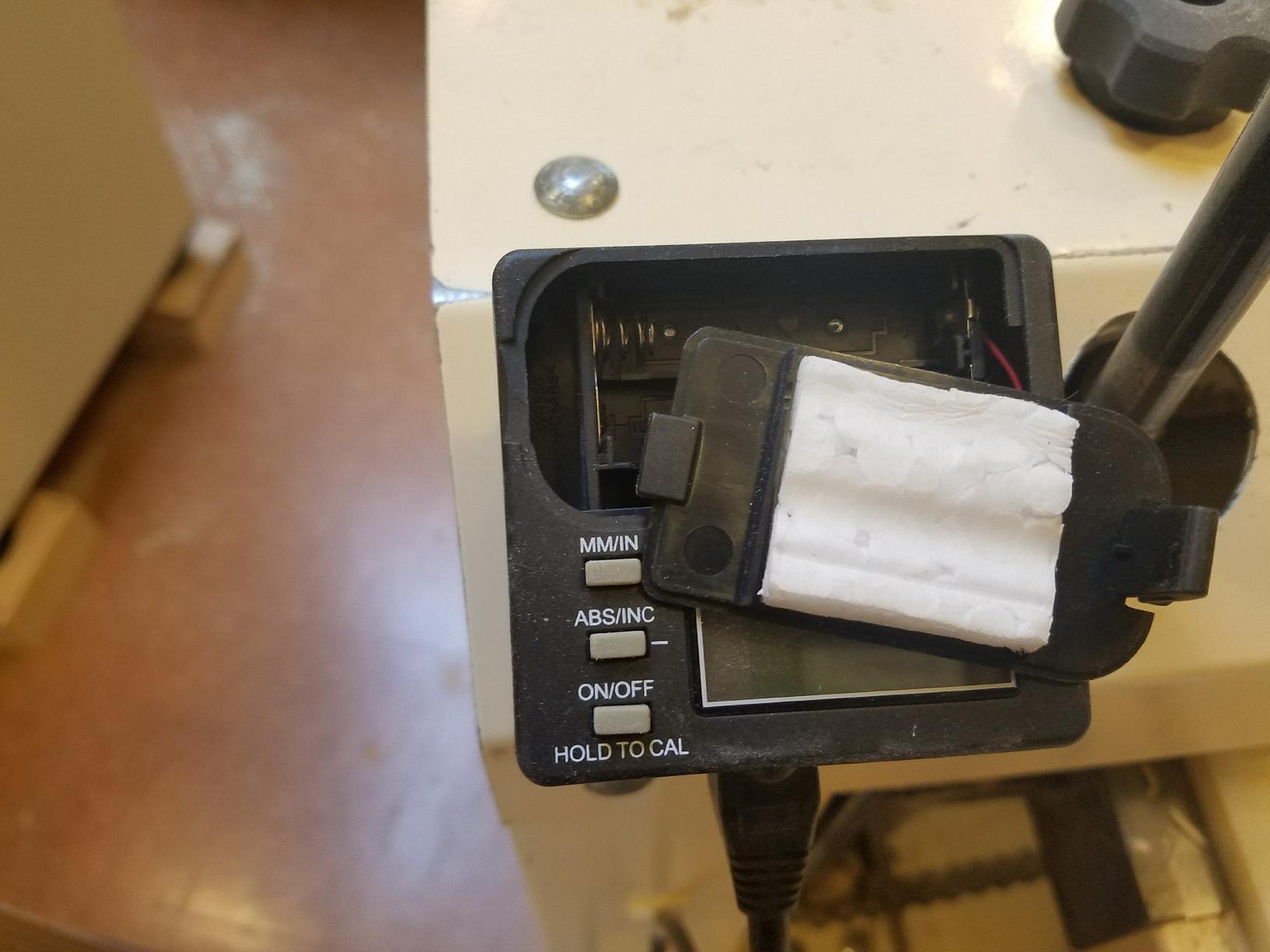

9. Rockler Wixey WR550 Digital Readout – Best for Planer Setup

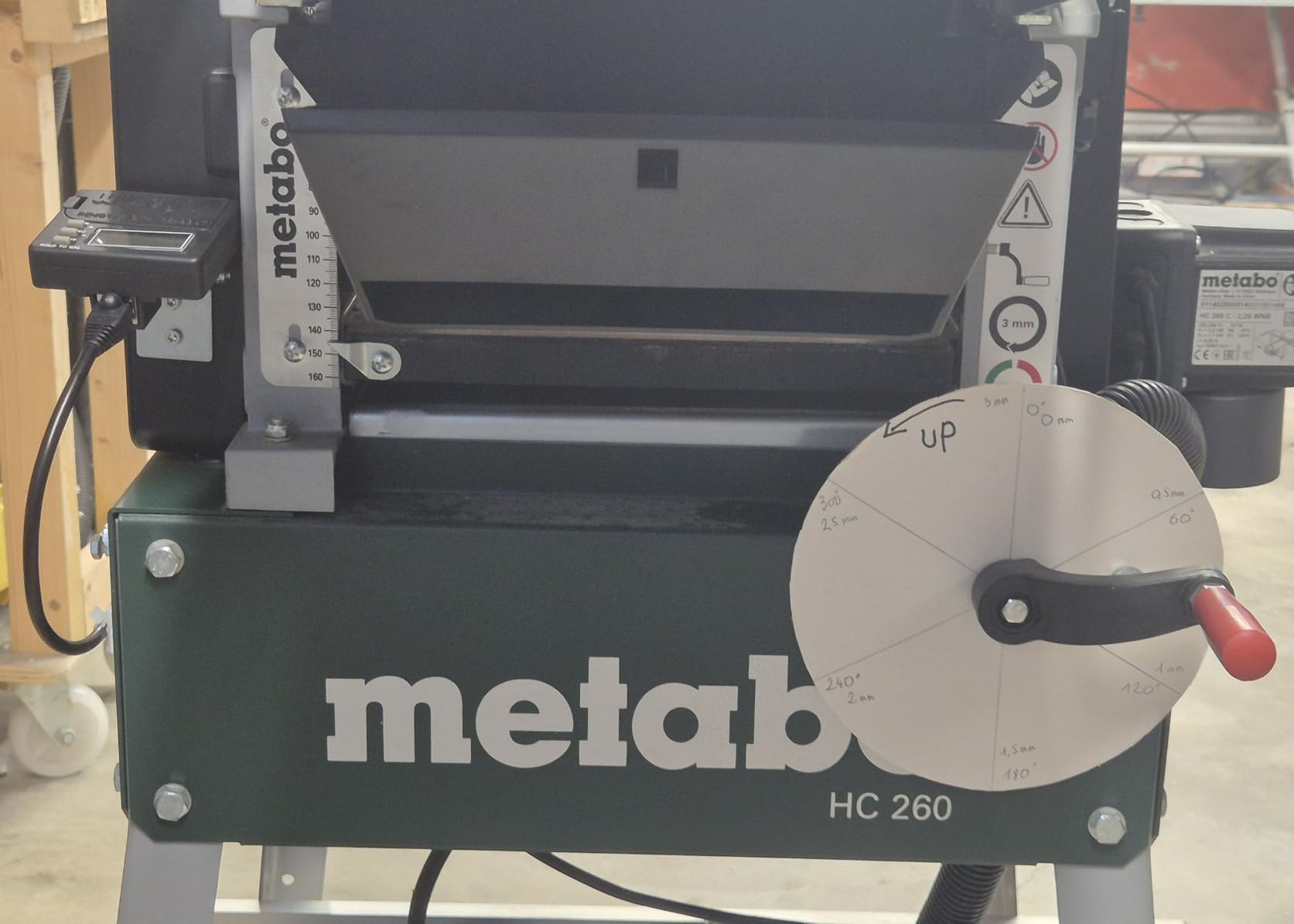

The Wixey WR550 is not a traditional caliper. It is a digital readout that mounts to your planer or drum sander. I installed it on my 15-inch planer, and it eliminated the tape measure dance I used to do. I set thickness once, hit a button, and the remote display tells me when the board is at target height.

The 12-inch height capacity handles every board I plane. The remote display sits at eye level, so I do not have to bend over the planer to check thickness. The fractional display matches the fractions in my cut lists, so there is no mental math during production runs.

Wixey customer service is outstanding. When my readout lost calibration after 6 months, they sent a replacement within 3 days, no questions asked. That kind of support is rare in the tool world.

The 0.002 inch accuracy is less precise than the other calipers in this roundup. For planer work, that resolution is fine. For fine joinery, you still need a 0.001 inch caliper. The mounting hardware also feels flimsy. I reinforced mine with a custom bracket made from 1/8 inch aluminum.

The instructions are written for machinists, not woodworkers. I had to call Wixey support to walk through the calibration steps. They were patient and helpful, but a clearer manual would save time.

Why woodworkers need a planer readout

Tape measures slip, hooks catch on board edges, and you end up measuring 3 times to get one reliable reading. A digital readout eliminates that friction. For production runs of 10+ identical parts, the WR550 pays for itself in time savings. For one-off projects, a standard digital caliper is the better buy.

Best use cases for woodworkers

The Wixey WR550 fits woodworkers with a planer or drum sander who do production runs. Cabinetmakers and furniture builders who plane dozens of boards to the same thickness will get the most value. If you only plane a few boards per month, save your money and use a tape measure.

How to Choose the Best Digital Caliper for Your Woodworking

Picking the best digital calipers for woodworking comes down to three things: how often you measure, what kind of work you do, and how much dust and humidity your shop sees. Let me walk you through the decision factors that matter most.

Resolution and accuracy are the headline specs, but 0.001 inch is more than enough for woodworking. A typical dovetail joint only needs 0.005 inch accuracy to fit well. Spend money on durability and a smooth slide before chasing higher resolution numbers.

Resolution vs. accuracy: what really matters

Resolution is the smallest increment the caliper displays (usually 0.0005 or 0.001 inch). Accuracy is how close the reading is to the true value. A caliper can display 0.0005 inch resolution but only be accurate to 0.002 inch. For woodworking, 0.001 inch resolution with 0.001-0.002 inch accuracy is the sweet spot.

Anything more precise is wasted on wood. Wood moves with humidity, so even a perfect measurement at 9 AM may be off by 0.003 inch by 3 PM. Focus on repeatable accuracy, not maximum resolution.

Fractional display: why woodworkers care

Most woodworking plans are written in fractions (3/4 inch, 1-1/2 inch). A caliper that displays fractions directly saves mental math and reduces errors. The VINCA, iGaging, and Wixey models all auto-reduce fractions to the lowest denominator, which is what you want.

Decimal-only calipers force you to convert 0.6875 to 11/16 in your head. That conversion gets old fast when you measure 50 parts in a session. If you build from plans, fractional display is worth paying extra for.

IP54 rating and shop durability

Woodworking shops are dusty, humid, and sometimes wet. An IP54 rating means the caliper resists dust ingress and water splashes from any direction. That protection is not optional in my book. A non-rated caliper will fail within a year in a typical home workshop.

The Kynup, VINCA, iGaging, and iGAGING Absolute Origin all carry IP54 ratings. I have used all four through humid summers and dusty fall projects without accuracy drift. The Adoric and WEN lack the rating, and I have seen both lose zero after exposure to shop conditions.

Battery type and replacement cost

Coin cell batteries (LR44, CR2032) are cheap, but they add up. A caliper that uses 2 CR2032 batteries will cost you $4-6 per year in replacements. The HARDELL rechargeable design eliminates that cost, but locks you into USB-C charging. The General Tools uses a single AAA, which is the easiest to find in any grocery store.

If you hate buying specialty batteries, pick a model with AAA or a rechargeable battery. If you want the longest battery life between swaps, the iGAGING Absolute Origin lasts 3+ years on a single CR2032 thanks to its efficient absolute encoder.

Thumb wheel and locking screw

A thumb wheel gives you fine control when closing the jaws. Without it, you tend to overshoot your target and slide back, which wears the encoder strip. A locking screw holds the slide in place when transferring the caliper to a marking tool. Both features are common on calipers above $30 and rare below that price point.

For fine joinery like dovetails and mortise-and-tenon joints, I consider both features mandatory. For rough framing or shop measurement, you can skip them.

Data output for CAD users

If you design in CAD or track measurements in spreadsheets, an SPC/USB output port is a huge time-saver. The iGAGING Absolute Origin has this feature. I can measure a tenon, hit a button, and the reading shows up in Fusion 360. For fitted joinery, that digital transfer eliminates the 1-2% transcription error rate I used to get with handwritten notes.

Most woodworkers do not need this feature. But for production shops and serious CNC users, it is worth the $50 price premium over a standard caliper.

Frequently Asked Questions

Final Verdict: Which Digital Caliper Should You Buy?

After three months of testing, the iGAGING Absolute Origin is my top pick for the best digital calipers for woodworking in 2026. The absolute encoder, SPC/USB output, and IP54 protection make it a true workshop tool. For value-focused woodworkers, the Kynup delivers 90% of the performance at half the price. If you are just starting out, the Adoric gets you measuring for the cost of a lumber board.

Whatever caliper you pick, treat it as a precision instrument. Wipe it down after each use, store it in its case, and re-zero it before critical measurements. The best digital calipers for woodworking will reward careful owners with years of accurate service. If you also work with metal, see our picks for digital calipers for machinists for higher-precision options.
