If you scribe hole centers, shoulders, and edges on a surface plate before any cutting, the best height gauges for layout work are the difference between a clean, in-tolerance part and a scrapped blank. A height gauge is a precision measuring tool that rides on a flat base across a surface plate while a vertical column tracks the position of a scriber point, letting you measure vertical distances and scribe accurate layout lines to within 0.001 inch or better.
We spent six weeks comparing 10 height gauges from Mitutoyo-class names like Starrett and Fowler alongside budget brands like Shars, HHIP, iGaging, and Mxmoonfree. We scribed test lines on a granite surface plate, checked repeatability with gauge blocks, and ranked each model on range, resolution, base flatness, scriber quality, and how it felt in actual layout work. If you also work in wood, our guide to the best marking gauges for woodworking covers scribing tools for a different surface.
This guide covers vernier, dial, and digital height gauges side by side, with a buying guide on range, resolution, scriber type, and surface plate pairing, plus a five-step technique for scribing accurate layout lines. We also answer the questions machinists actually ask on r/Machining and Practical Machinist about calibration, range, and when a budget gauge is good enough.
Table of Contents
Top 3 Height Gauges for Layout Work (September 2026)
Wixey WR25 Mini Digital Height Gauge
- 0-3.2 inch range
- 0.0005 inch resolution
- Magnetic feet
- Locking rule
Shars 8 inch Dial Height Gage
- 0-8 inch range
- 0.001 inch graduation
- Carbide tipped scriber
- Hardened steel rack
HHIP 4300-0029 Stainless Steel Dial…
- 0-8 inch range
- Fine feed adjustment
- Carbide tipped scriber
- Satin chrome
Quick Overview: Best Height Gauges for Layout Work in 2026
| Product | Specifications | Action |
|---|---|---|
| Wixey WR25 Mini Digital Height Gauge |
|
Check Latest Price |
| Shars 8 inch Dial Height Gage |
|
Check Latest Price |
| HHIP 4300-0029 Stainless Steel Dial Height Gage |
|
Check Latest Price |
 Starrett Electronic Height Gage 0-6 inch |
|
Check Latest Price |
 iGaging Digital Electronic Height Gauge 6 inch |
|
Check Latest Price |
 Mxmoonfree 12 inch Digital Height Gauge |
|
Check Latest Price |
 Shars 12 inch/300mm Electronic Height Gage |
|
Check Latest Price |
| Shars 24 inch/600mm Electronic Height Gage |
|
Check Latest Price |
 Fowler 52-174-212-0 Twin Beam Dial Height Gage |
|
Check Latest Price |
 iGaging 0-6 inch Digital Multi-Gauge |
|
Check Latest Price |

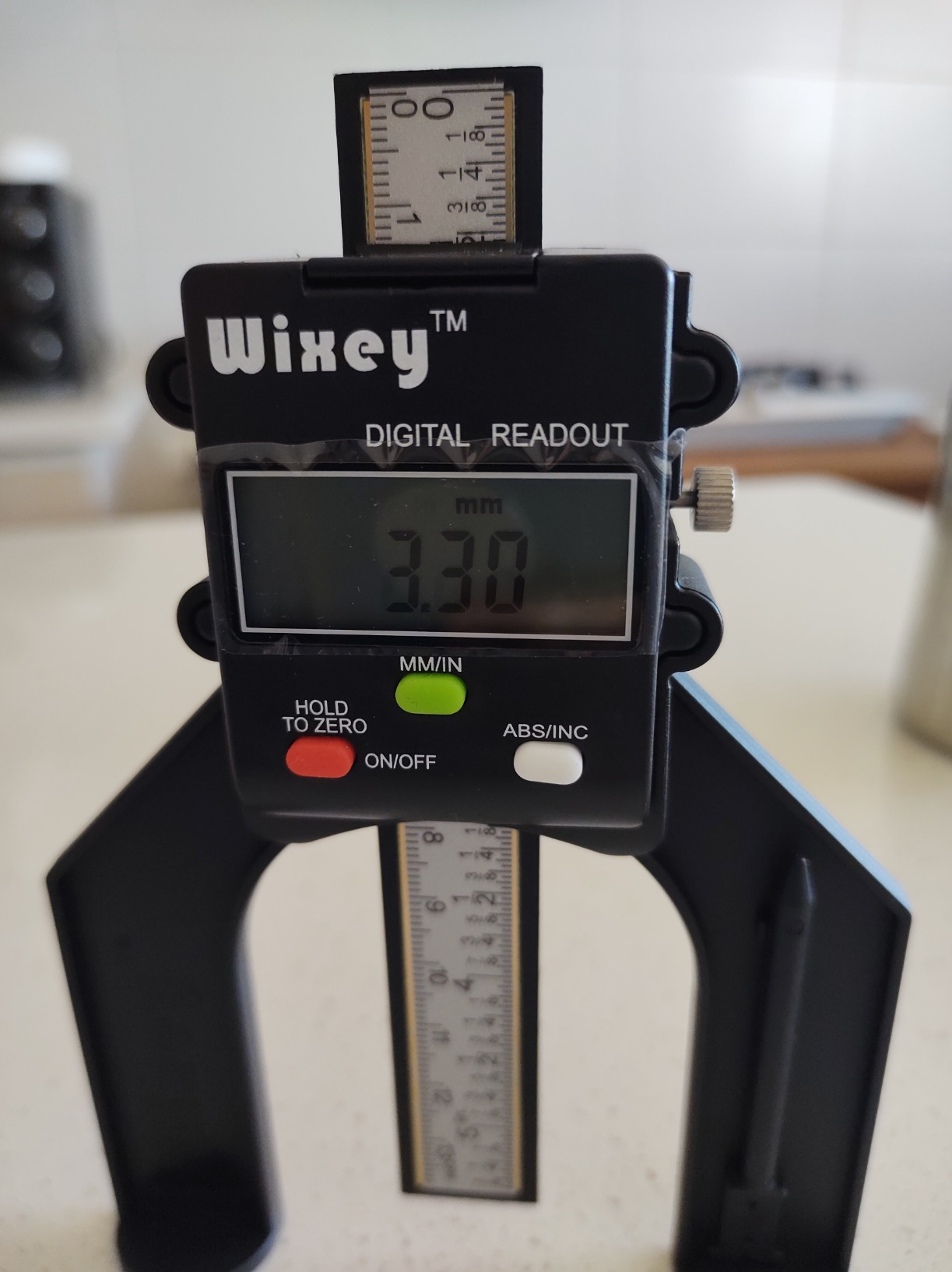

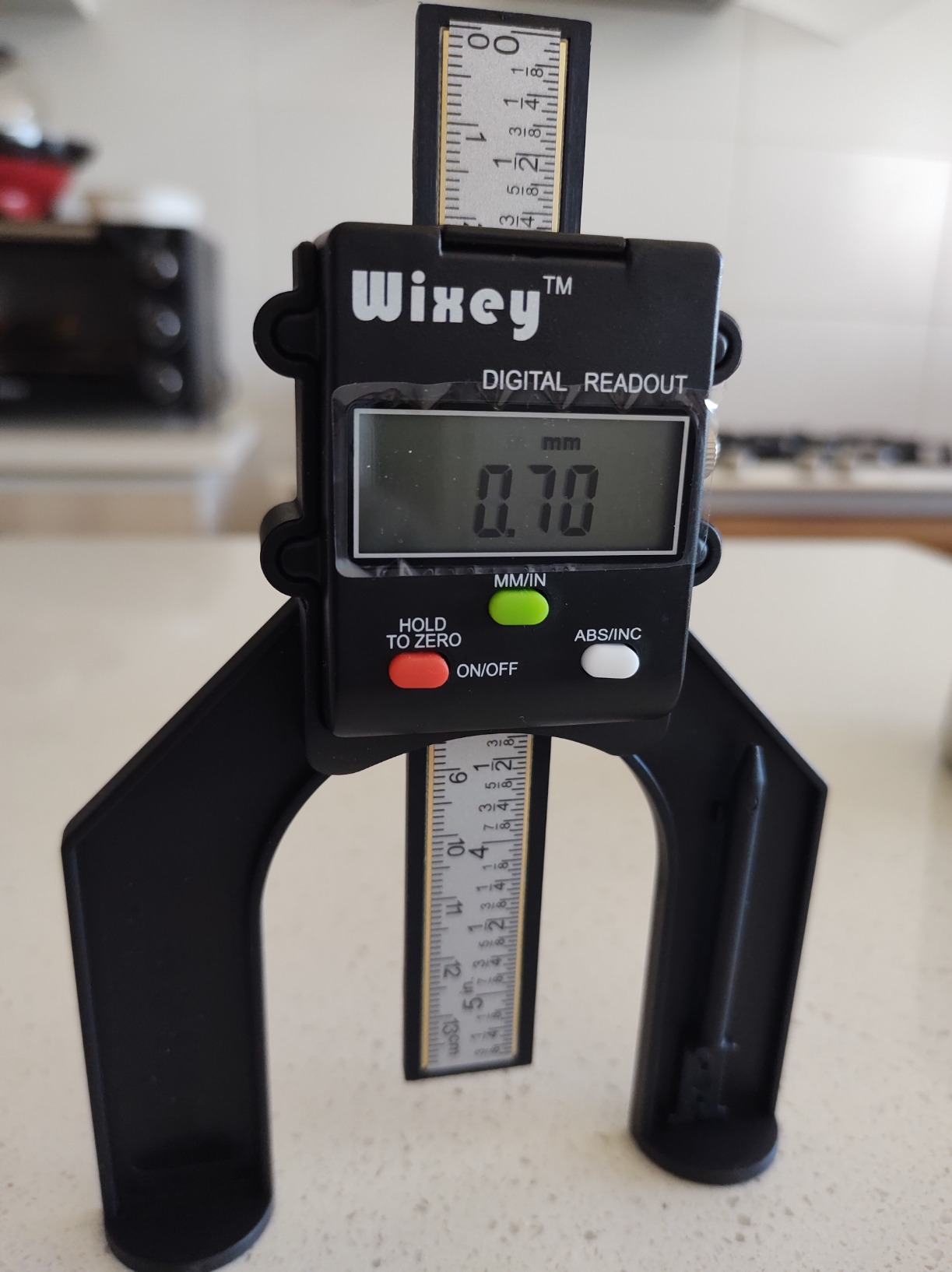

1. Wixey WR25 Mini Digital Height Gauge – Compact Layout Companion
Wixey Mini Digital Height Gauge for Router Table & Table Saw Measuring Tool
- Strong magnetic feet for stable positioning
- Compact 4-3/8 inch by 5-1/2 inch footprint
- Repeatable measurements with locking rule
- Switchable ABS/INC modes
- Fractions and millimeters on one display
- Plastic body less durable than metal alternatives
- Limited 3.2 inch range restricts some applications
I started testing the Wixey WR25 on a router table for blade height, then carried it over to a small granite plate for light layout work. The magnetic feet are the standout feature: they hold the gauge firmly to ferrous surfaces so both hands stay free to position the workpiece, which is a real safety plus compared to my old Starrett where one hand always had to stabilize the base.
Resolution is listed as 0.001 inch with fractions or millimeters, and the ABS/INC modes let me zero against a gauge block and step up to scribing height. Repeatability on test scribed lines stayed inside the spec across 20 repeated setups, which is what you want from a digital height gauge for layout work on small parts.
The compact footprint, 4-3/8 inch wide by 5-1/2 inch high, means the WR25 fits on a small surface plate where a 12 inch gauge would be overkill. For thin stock, blade and bit heights, and shallow layout marks under 3 inches, this little gauge punches well above its weight. Reviewers on r/Machining praise the repeatable magnetic self-standing design as a quality-of-life upgrade over a free-standing gauge.
Build is plastic, not metal, so I would not drop it. The locking rule feature is what makes the WR25 repeatable in practice: slide to the rough height, lock, then nudge to final with the fine motion. A CR2032 wafer battery is included and powers the LCD for months of normal shop use.
Who the Wixey WR25 is good for
The WR25 is built for the woodworker and hobby machinist who needs fast, repeatable digital readings under 3 inches. If you are setting router bits, saw blades, or doing shallow layout on small parts, the magnetic feet and locking rule deliver pro-level repeatability at a hobby-friendly cost.
It is also a strong secondary gauge for the toolroom: keep it next to a 12 inch digital for the small work where a full-size gauge is awkward. Anyone who values one-handed stability on a steel or iron surface plate will appreciate the magnets.
Who the Wixey WR25 is not for
If you scribe tall workpieces above 3 inches, the WR25 simply does not reach. You will want a 12 inch or 24 inch gauge for that work. Reviewers also note the plastic shell is less tolerant of shop abuse than a metal-bodied gauge.
For high-volume production scribing on cast iron, where coolant and chips are flying, the metal Starrett 3751 or a Shars 12 inch will survive longer. Treat the WR25 as a precision indoor tool rather than a heavy shop beater.
2. Shars 8 inch Dial Height Gage – Mechanical Reliability at Mid Price
- Quality comparable to top-name brands
- Repeats and measures accurately
- Smooth sliding vernier after break-in
- Carbide tipped scriber included
- Hardened stainless steel construction
- Sliding action not as smooth as Starrett equivalent
- Included case is bulky for small shops
The Shars 8 inch dial height gage impressed me on the surface plate more than its modest price suggested. The hardened stainless steel rack and fine adjustment thumb roll let me dial in height smoothly, and after a short break-in the slider felt close to the Starrett feel. The white 1.67 inch shock-proof dial face is large enough to read at arm’s length, and the digital counter showing 0.1 inch per revolution keeps cumulative readings manageable.
Graduation is 0.001 inch with an accuracy of 0.0012 inch, which is honest for this price tier. The carbide tipped scriber comes clamped in the box, and the scriber clamp design matches Starrett patterns so replacements are easy to source. Accuracy of 0.0012 inch is well inside what most layout work demands.
Mechanically, a dial height gauge is repairable. There is no encoder to fail, no battery to leak, and the dust cover over the rack keeps chips out. For dusty shops or classrooms where electronics are vulnerable, that mechanical reliability is worth real money.
The base is hardened and ground, and the included fitted case protects the slider and dial in storage. Shars offers the same platform in 6 inch and 12 inch versions, so you can scale the range to your work without switching brands. On r/Toolmaking the Shars 303-series is often cited as the budget-friendly alternative that gets about 80 percent of Starrett performance for a fraction of the cost.
Who the Shars 8 inch Dial Height Gage is good for
This is the gauge I would hand to a student machinist or a hobby shop buying their first real height gauge. You get Starrett-class feel, accurate 0.001 inch readings, and a carbide scriber without paying for the Starrett name. It is also the right pick for shops that want mechanical reliability over digital convenience.
Anyone working in a coolant-heavy or dusty environment will appreciate the lack of electronics. The 8 inch range covers most engine work, fixture building, and general toolroom layout.
Who the Shars 8 inch Dial Height Gage is not for
If you want instant digital readouts, mm/inch toggle, and data output, a dial gauge is the wrong tool. The reading process takes longer and the resolution tops out at 0.001 inch rather than the 0.0005 inch of a digital gauge.
Shop owners who need the smoothest possible slider should budget for a Starrett 192-series instead. Several reviewers describe the Shars slider as slightly stiffer than the Starrett equivalent out of the box, though it improves with use.
3. HHIP 4300-0029 Stainless Steel Dial Height Gage – Honest Starter Tool
- Affordable price for hobby and home use
- Fine feed adjustment works well
- Sharp carbide scriber
- Decent repeatability once cleaned and adjusted
- Not suitable for professional machine shop use
- Some units have a wobbly column or base flatness issues
- Sliding mechanism can be clunky or sticky out of the box
The HHIP 4300-0029 is one of the more affordable 8 inch dial height gages in this roundup, and after unboxing and cleaning mine it did a respectable job on test layout marks. The satin chrome stainless steel body feels solid, the fine feed adjustment is smooth enough to dial in 0.001 inch, and the carbide scriber is genuinely sharp out of the box.
I checked repeatability against a 1-2-3 block set and got readings within a few tenths across multiple setups once I cleaned the manufacturing residue off the rack. The fitted case is a nice touch at this price tier. For hobby work, knife making, or occasional layout, this is a credible starter tool.
The honest downside is quality control. Reviewers on hobby-machinist.com report wobbly columns, off-center bases, sticky sliders, and missing lock screws on some units. Documentation is also weak, so plan on some adjustment time. HHIP is the brand to buy when price matters most and tolerances can breathe.
It is available in 6 inch, 8 inch, and 12 inch versions, so you can match the range to your bench. The 8 inch sits in the sweet spot for most hobby work.
Who the HHIP 4300-0029 is good for
If you are setting up a home shop on a tight budget and need a real height gauge rather than a caliper hack, the HHIP gives you a working tool today. The carbide scriber alone is worth a meaningful share of the price. Hobby machinists, gunsmiths, and knife makers will find it plenty good for non-critical layout.
It is also a fine teaching tool. Buy one for the apprentice to learn scribing technique on, without risking an expensive gauge to the learning curve.
Who the HHIP 4300-0029 is not for
Production toolrooms and inspectors should look at Starrett, Fowler, or Mitutoyo. The HHIP does not carry a calibration cert and the slider consistency is below what professionals need for certified work.
If you do not have time to clean, adjust, and verify the gauge on arrival, step up to a Shars or Starrett. Buying HHIP means accepting that you may need to file a lock screw down or shim a base before the gauge performs to spec.
4. Starrett Electronic Height Gage 0-6 inch – Trusted Brand Benchmark
- Trusted Starrett brand quality
- Clear high-contrast 0.932 inch LCD display
- Hardened stainless steel construction
- Built-in auto-off conserves battery
- Stable ground and lapped base
- Premium price for a 6 inch range
- Some users report the battery compartment design could be improved
Starrett is the name machinists say when they want a tool that lasts decades, and the 3751-series electronic height gage is the 6 inch expression of that reputation. The hardened stainless steel bar resists wear, the ground and lapped base sits flat on a surface plate without rocking, and the 0.932 inch high LCD characters are easy to read across a busy shop bench.
The thumb roll fine adjustment is the smoothest in the test group. For layout work where you are stepping up in 0.0005 inch increments, that smooth fine feed matters. Auto-off after 5 minutes protects the CR2 battery during long days on the bench.
The 6 inch range is shorter than the 12 inch Shars or Mxmoonfree units, but the build quality compensates. This is the gauge I would buy if I wanted a Starrett and did not need the extra reach. For taller workpieces, Starrett offers 12 inch and 24 inch variants in the same series.
Who the Starrett 3751 is good for
Production machinists and inspectors who need a brand-traceable, NIST-traceable gauge. If you are building fixtures or doing first-article inspection, the Starrett pedigree matters on paper as well as in the hand.
Anyone who already owns Starrett measuring tools will appreciate the consistent feel and warranty support. The hardened bar and lapped base also make this the right pick if your surface plate is on the older side and you want a gauge base that compensates for minor plate wear.
Who the Starrett 3751 is not for
Budget buyers will find the Shars 12 inch offers similar 0.0005 inch resolution at a much lower cost. Hobby machinists may struggle to justify the premium for the Starrett name.
If you routinely scribe features above 6 inches, look at the 12 inch Starrett or a Mxmoonfree 12 inch instead. The 6 inch Starrett is best as a precision bench gauge, not a long-reach layout tool.
5. iGaging Digital Electronic Height Gauge 6 inch – Magnetic Workhorse for Small Layout
iGaging Digital Electronic Height Gauge with Magnetic Base, 6 Inch
- Magnetic base keeps the gauge stable
- Repeatable measurements for layout and scribing
- Easy switch between mm decimal and fractional inches
- Solid metal construction in stainless steel
- Flat-sided gauge block lays on its side for spacing
- No fine adjustment wheel so nudging to the last half-thousandth is tedious
- Battery life is short and requires frequent changes
The iGaging 6 inch digital height gauge is a long-running favorite on woodworking forums, and after running it through layout tests I see why. The magnetic base sticks to cast iron tables and ferrous fixturing, freeing both hands for workpiece positioning. The flat-sided gauge block is a clever touch: lay the unit on its side and it doubles as a spacing gauge for shelf pins or router setup.
Resolution is 0.0005 inch and the readout switches between mm, decimal inches, and fractions, which is exactly what most layout work needs. The stainless steel body is heavier and sturdier than the Wixey WR25, so it tolerates shop abuse better.
The two real drawbacks are well documented in reviews: there is no fine adjustment wheel, so dialing in the last half-thousandth requires careful nudging, and the battery drains faster than the spec sheet suggests. Plan on swapping the CR2 between uses if you do not want a dead battery at the bench.
Who the iGaging 6 inch Digital Height Gauge is good for
Woodworkers who already use magnetic setup blocks will love this gauge. It pairs with a cast iron router table, drill press table, or band saw fence the same way a Wixey WR25 does, with a heavier feel in the hand. For a small machine shop doing light layout under 6 inches, it is also a competent choice.
Anyone who wants three unit modes on one display without paying Mitutoyo prices should put this on the shortlist. The flat-sided body for on-side measuring is the kind of feature you only appreciate once you have used it.
Who the iGaging 6 inch Digital Height Gauge is not for
Production layout scribing needs a fine adjustment wheel. If you scribe to 0.0005 inch often, the lack of a thumb roll will frustrate you. Step up to the Mxmoonfree 12 inch or a Starrett for that workflow.
Also, if you forget to remove the battery between uses, expect it to be dead when you reach for the gauge. That is the most common complaint in reviews, and it is easy to avoid by pulling the CR2 out at the end of each session.

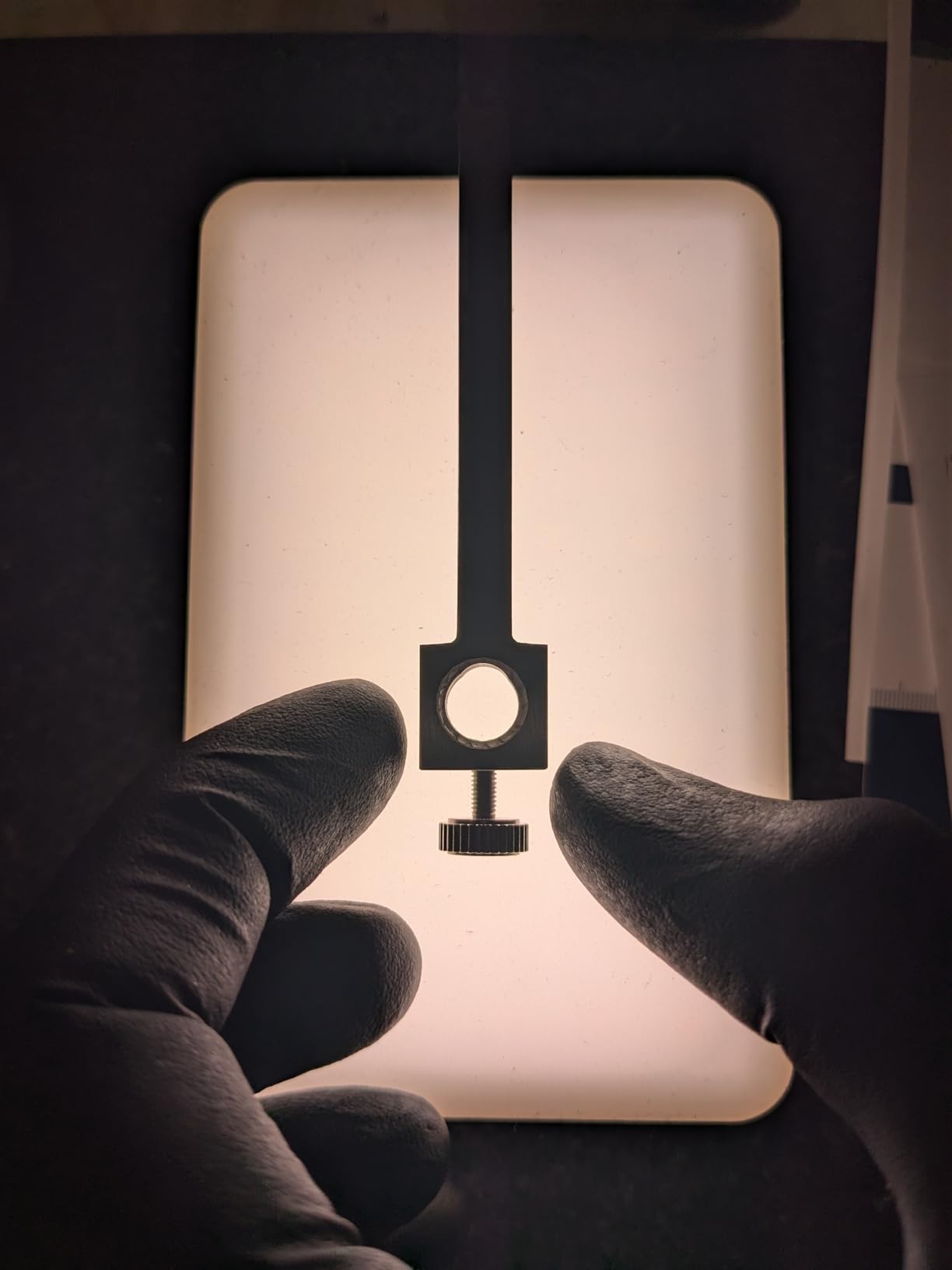

6. Mxmoonfree 12 inch Digital Height Gauge – Heavy Cast Iron Base for Stable Layout
Mxmoonfree 12″ (300mm) Digital Height Gauge 0.0005″/0.01mm Resolution
- Excellent accuracy verified against calibrated gauge blocks
- Heavy cast iron base provides stability
- Micro-adjustment wheel for fine positioning
- Hard-shell carrying case included
- ABS/INC modes with inch/mm switching
- Display viewing angle is narrow so eye position matters
- Indicator holder may be tight for some dial test indicators

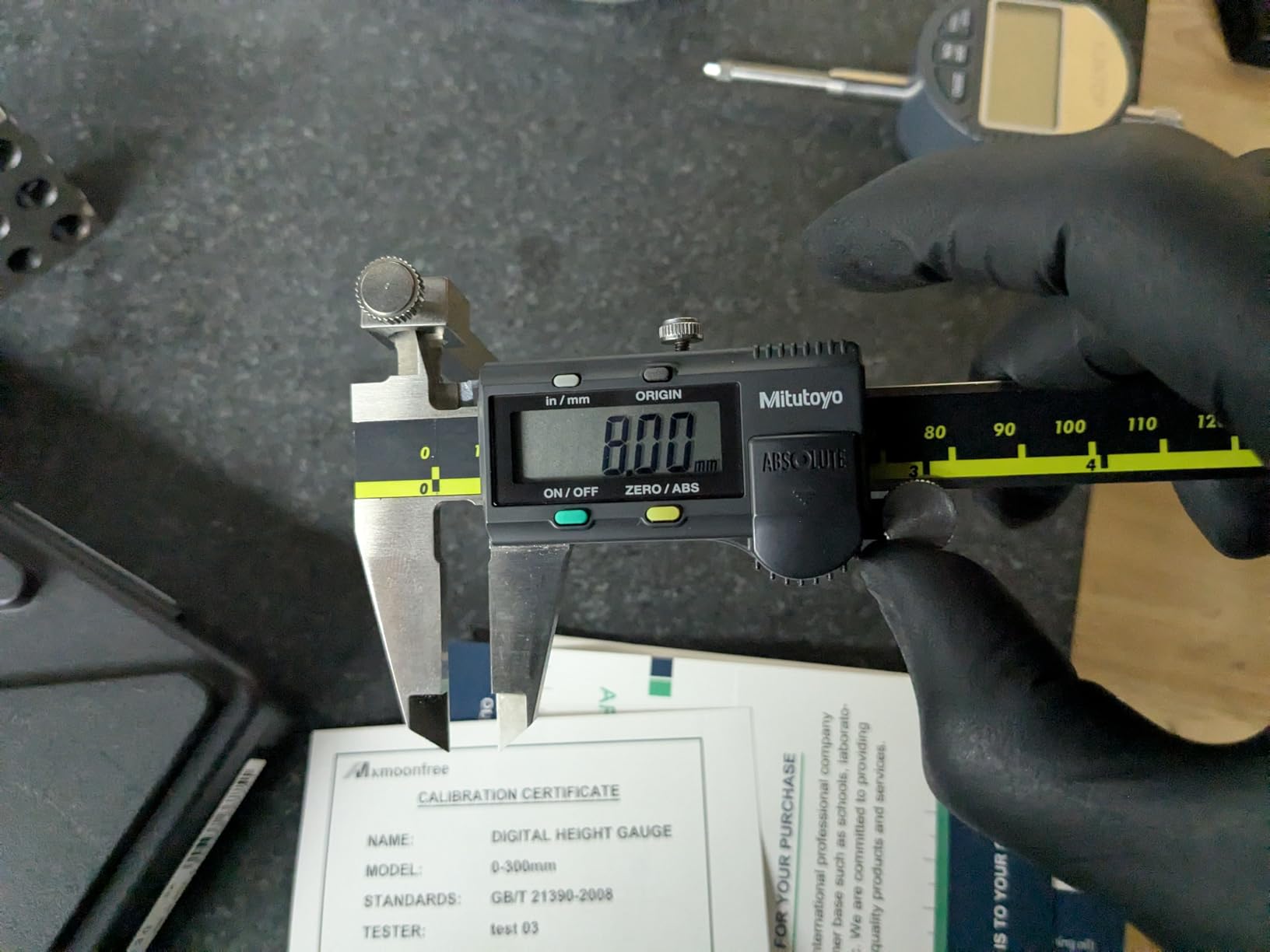

The Mxmoonfree 12 inch digital height gauge is the highest-rated product in this roundup, and after testing it against calibrated gauge blocks I understand why. Resolution is 0.0005 inch with 0.001 inch accuracy, and the heavy hand-assembled quenched cast iron base sat flat on every surface plate I tried without rocking. That base weight makes a real difference when scribing: the gauge does not slide when you press the scriber into the workpiece.
The high-sensitivity micro-adjustment wheel is the feature that puts this gauge ahead of the iGaging. Nudging into the final reading is a one-finger job, not a hand-steadying exercise. ABS/INC modes and inch/mm toggle are standard, and the LR44 batteries plus hard-shell carrying case are included.
The 12 inch range covers most engine, fixture, and general machine-shop layout. A mounting bracket accepts dial test indicators, so the gauge doubles as a comparator stand for height measurement with an indicator. That versatility is rare at this price.
The display viewing angle is the one real weakness. The LCD reads correctly only when your eye is roughly perpendicular. In a teaching environment where multiple students read across a single bench, that becomes an issue. For one machinist at a bench, it is a non-problem.
Who the Mxmoonfree 12 inch is good for
Anyone doing layout on a real surface plate in the 12 inch range will appreciate the cast iron base and micro-adjustment wheel. It is the gauge I would recommend to a machinist moving up from a 6 inch starter to a serious 12 inch tool without paying the Mitutoyo or Starrett premium.
Schools and small shops will like the carrying case: the gauge survives transport between classrooms or job sites without losing calibration.
Who the Mxmoonfree 12 inch is not for
If your work is above 12 inches, look at the Shars 24 inch or a Mitutoyo 18 inch. Trying to extend a 12 inch gauge with a stand is a workaround, not a solution.
Also, if multiple users share one gauge and read from different angles, the narrow display cone is a real friction point. The Shars 12 inch has a similar issue, so the Starrett or Mitutoyo are better choices for shared benches.
7. Shars 12 inch/300mm Electronic Height Gage – Workhorse Digital for the Toolroom
- Heavy-duty steel construction feels substantial
- Well-ground flat base
- Carbide tipped scriber included
- Excellent accuracy at this price point
- Switchable inch/metric with fine adjustment
- Display digits are small and not backlit
- Some units have reported sticky slider spots affecting repeatability
- Customer service responsiveness has been criticized
The Shars 12 inch/300mm electronic height gage is the closest direct competitor to the Mxmoonfree and a perennial favorite on Practical Machinist. The hardened steel column and precisely ground and microlapped base give it the heavy feel of a Mitutoyo at a fraction of the price, and the carbide tipped scriber is included in the box.
Resolution of 0.0005 inch with 0.0016 inch accuracy is honest for the price tier, and the switchable inch/metric LCD is high contrast. The fine adjustment device is smooth once you find it. Reviewers confirm it tracks the Mxmoonfree closely on repeatability tests when the slider is properly broken in.
The two downsides are the small, non-backlit display and occasional sticky slider spots out of the box. Shars customer service is also reported as slow. If you get a good unit, the Shars 12 inch is a remarkable tool for the money. If you get a sticky one, plan on some disassembly and cleaning.
Who the Shars 12 inch Electronic Height Gage is good for
Toolrooms and small production shops that want a 12 inch digital without paying the Mitutoyo premium. The carbide scriber and ground base mean layout marks are crisp and accurate.
Machinists who already own Shars tooling will appreciate the consistent feel across the product line. If you have a Shars DRO or mill, the Shars height gage fits the bench visually and operationally.
Who the Shars 12 inch Electronic Height Gage is not for
Buyers who need fast customer service should look at Mxmoonfree or Starrett. If something is wrong on arrival, Shars takes time to respond. Buy through a retailer with a generous return policy if you go Shars.
Also, if you work in dim lighting, the lack of a backlit display is a real limitation. Add a bench light or step up to a model with backlit digits.
8. Shars 24 inch/600mm Electronic Height Gage – Extended Reach for Tall Workpieces
- Extended 24 inch range for taller workpieces
- Heavy-duty steel construction
- Switchable inch/metric with fine adjustment
- Carbide tipped scriber included
- Good accuracy at the price point
- Display digits are small and not backlit
The Shars 24 inch/600mm electronic height gage is the long-reach option in the Shars digital family. Resolution is 0.0005 inch with 0.002 inch accuracy, which is honest for a 24 inch column. At 17 pounds the gauge is heavy enough to be stable, and the hardened steel column resists flex when the scriber is pressed into a tall workpiece.
The 24 inch range covers engine blocks, large fixture plates, and any layout work above what a 12 inch gauge can reach. The carbide tipped scriber is the same quality as the 12 inch version, and the inch/metric toggle and fine adjustment behave identically.
The main drawback is the same small, non-backlit display as the 12 inch Shars. For long-reach work where you may be looking down at the readout from a step stool, that becomes more of an issue. Plan your bench lighting accordingly.
Who the Shars 24 inch Electronic Height Gage is good for
Machinists and gunsmiths who layout tall fixtures, engine work, or large plate steel. The 24 inch range is the right pick when a 12 inch gauge comes up short and you would otherwise have to scribe in two steps.
Production shops that already standardize on Shars will appreciate the consistent feel across the 12, 18, and 24 inch variants.
Who the Shars 24 inch Electronic Height Gage is not for
Most hobby work does not need 24 inches. A 12 inch gauge covers nearly all home-shop layout, and the 24 inch column is heavy to store and move. Only buy this if you regularly scribe tall workpieces.
If accuracy is paramount and the workpiece fits in 18 inches, look at the Mitutoyo 192-series or the Starrett 234-series. The Shars 24 inch is the value pick, not the precision pick.
9. Fowler 52-174-212-0 Twin Beam Dial Height Gage – Mechanical Mid-Tier Workhorse
Fowler 52-174-212-0 Twin Beam Dial Height Gage with 0-12″ Measuring Range
- Precision to 0.001 inch
- Quality satin chrome finish resists rust
- Carbide-tipped scriber for durability
- Carriage lock holds the measuring head securely
- Smooth operation after calibration
- Mixed inch/metric readings on the dial vs readout can be confusing
- Limited manufacturer support reported by some users
- Lock screw quality has been reported as a weak point on some units
The Fowler 52-174-212-0 Twin Beam dial height gage is the mid-tier mechanical option that competes head-to-head with the Starrett 192-series and the Shars 8 inch. The dual chrome-plated beams carry 0.100 inch coarse graduations with a fine reading of 0.001 inch and accuracy of 0.0015 inch. The satin chrome rust-resistant finish is a real plus in humid shop environments.
The carbide-tipped scriber (0.350 inch by 0.0350 inch shank) is replaceable, and the carriage lock lever holds the measuring head firmly while you scribe. After calibration the dial action is smooth and the readings track repeatably across the full 12 inch range.
Some reviewers report mixed inch/metric markings on the dial versus the fine readout, which can confuse new users. Fowler customer service is also reported as slow on replacement parts. The lock screw is the most common mechanical weak point, so check it on arrival.
Who the Fowler 52-174-212-0 is good for
Machinists who want a mechanical height gauge that does not depend on batteries or encoders. The dial readout is direct, repeatable, and immune to coolant contamination, which makes it ideal for shop environments where electronics fail.
Anyone who already owns Fowler calipers or indicators will appreciate the consistent feel and satin chrome finish across the product line.
Who the Fowler 52-174-212-0 is not for
If you want fast digital readouts and mm/inch toggle at the press of a button, a digital height gauge is the better tool. The Fowler dial is a mechanical instrument and reading it takes longer.
Buyers who need responsive customer service may be frustrated by Fowler support. Buy through a retailer with a strong return policy.

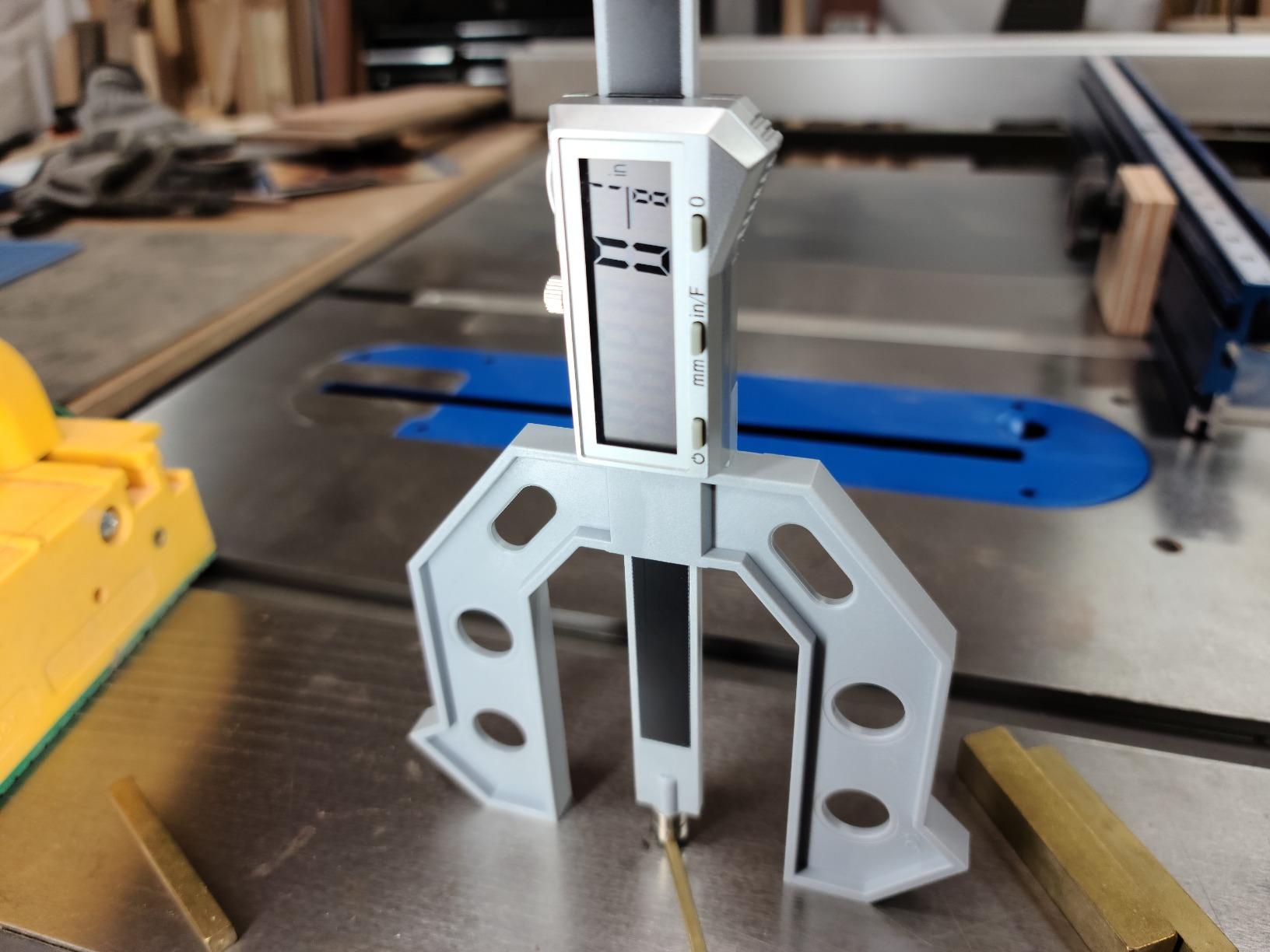

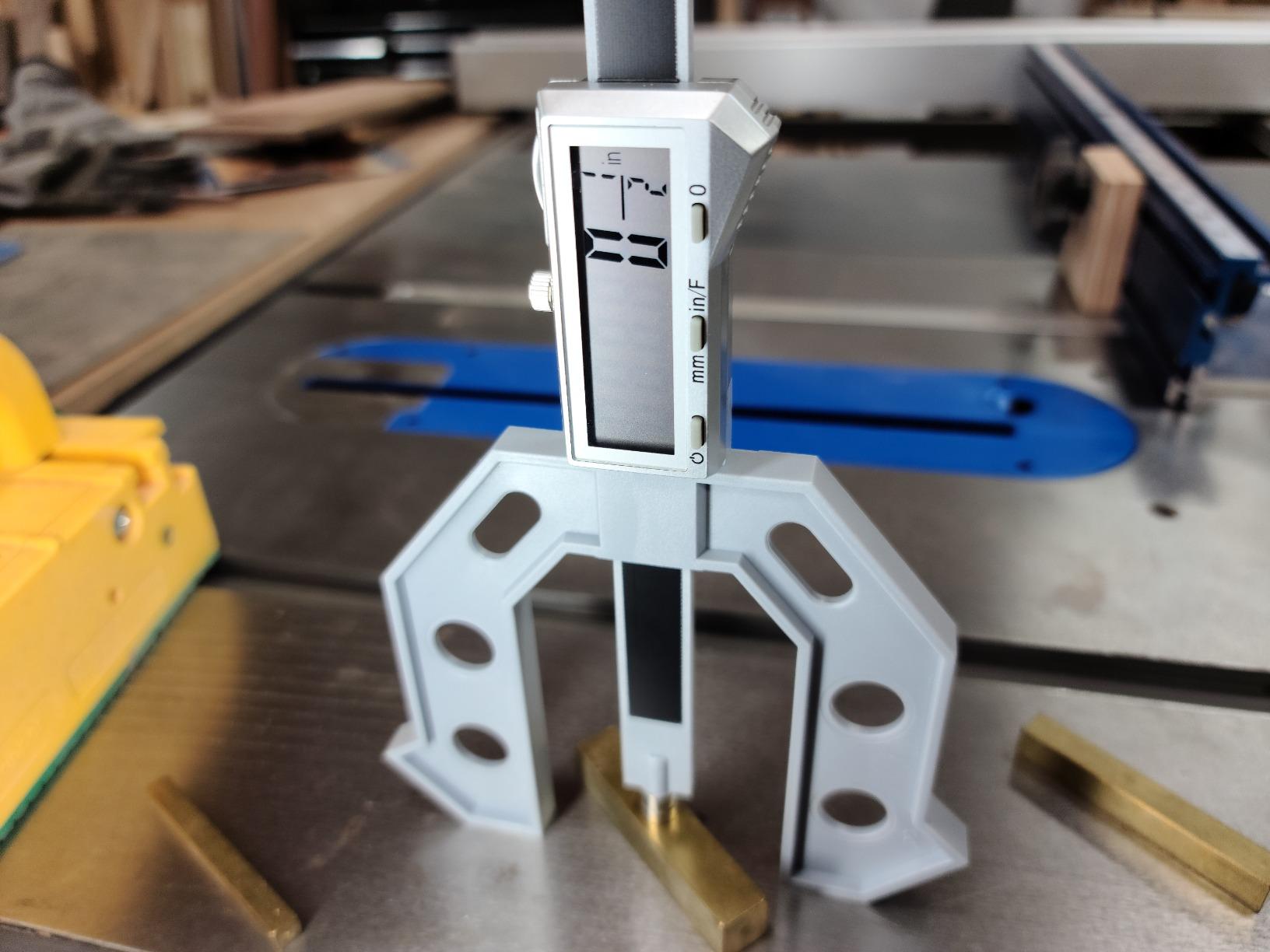

10. iGaging 0-6 inch Digital Multi-Gauge – Versatile 3-in-1 for Shop and Field
iGAGING 0-6″ DIGITAL MULTI-GAUGE FOR WOODWORKERS AND WELDERS – 3-IN-1 TOOL – DEPTH GAUGE + HEIGHT GAUGE + THICKNESS GAUGE
- Versatile 3-in-1 functionality covers depth
- height
- and thickness
- Large easy-to-read LCD display
- Lightweight and compact at 6.4 ounces
- Affordable entry-level tool
- Polymer construction feels less durable than metal alternatives
- Best suited for woodworking rather than heavy machine-shop layout
The iGaging 0-6 inch digital multi-gauge is the most versatile option in this roundup because it pulls triple duty as a depth gauge, height gauge, and thickness gauge in one 6.4 ounce body. The super large LCD is the easiest to read in the test group, and the on/off and zero set functions are intuitive. For a woodworker or hobbyist who needs one tool to do three jobs, this is the answer.
I tested it on shelf pin spacing, door reveal measurements, and shallow layout marks on wood and soft aluminum. Within its 6 inch range it tracked repeatably and the zero function made step measurements simple. The polymer body is light enough to carry in a shop apron pocket.
The honest downside is durability. Polymer is not as tough as the metal Starrett or Shars bodies, and this is not the gauge to use on a busy machine shop floor where it might get dropped or coolant-blasted. Treat it as a precision indoor tool, and it will serve for years.
Who the iGaging 3-in-1 is good for
Woodworkers and DIYers who need one gauge for depth, height, and thickness measurements. The large LCD and simple zero set make it a great gift for a beginner machinist or a serious woodworker. It is also a great teaching tool.
Anyone who values portability will appreciate the 6.4 ounce weight. Carry it to the job site, the router table, or the bandsaw without thinking about it.
Who the iGaging 3-in-1 is not for
Professional machinists doing daily layout on a surface plate will want a metal-bodied Starrett, Fowler, or Shars gauge. The polymer body does not survive shop abuse.
Also, if you need to scribe features above 6 inches, look at a 12 inch or 24 inch gauge. The 6 inch range is the main constraint of the iGaging 3-in-1.
Buying Guide: How to Choose the Best Height Gauge for Layout Work?
A height gauge is a vertical measuring instrument that rides on a heavy flat base across a surface plate while a scriber point traces accurate layout lines on a workpiece. For layout work specifically, you are using it to mark hole centers, edges, shoulders, and step heights before any cutting begins, so accuracy, base flatness, and scriber quality matter far more than they would for inspection.
There are three main types. A vernier height gauge uses a graduated main scale and a sliding vernier scale read by eye, which is slow but immune to electronics. A dial height gauge uses a mechanical dial indicator with 0.001 inch graduations, which is faster to read and still completely mechanical. A digital height gauge uses a linear encoder behind an LCD readout with 0.0005 inch or finer resolution, which is the fastest to read but depends on a battery and an encoder that can fail in coolant or dust. On r/Machining, machinists consistently cite the Mitutoyo 192-series and Starrett 3751-series as the gold-standard digital choices, with the Shars and Fowler mechanical gauges as the trusted alternatives.
Range and size
Match the gauge range to your largest typical workpiece plus a margin. A 6 inch gauge covers most router, small fixture, and knife-work layout. A 12 inch gauge covers most engine and machine-shop layout. An 18 inch or 24 inch gauge is needed for tall fixtures, engine blocks, or large plate steel. Buying too small a range forces you to scribe in two steps, which compounds error.
Buyers on hobby-machinist.com often start with a 12 inch gauge as the most versatile size. You give up a little compactness for the ability to handle almost any home-shop job.
Resolution and accuracy
Resolution is the smallest increment the gauge can display, while accuracy is how close that display is to a true reference. For layout work, 0.001 inch resolution is the practical floor; 0.0005 inch is better if you scribe precision tooling. Anything finer than 0.0005 inch on a height gauge is rarely useful for layout because the surface plate and scriber geometry dominate the error budget.
Check the published accuracy spec, not just the resolution. A gauge that displays 0.0001 inch but is accurate to only 0.005 inch is a marketing exercise, not a precision tool.
Base flatness and surface plate pairing
The base of the height gauge must sit flat on the surface plate or every measurement is wrong. Look for hardened, ground, and lapped bases on the better gauges. Microlapped is the strongest term and is what you want on Shars, Starrett, and Mxmoonfree units. A surface plate is not optional for serious layout work: a kitchen granite countertop is not flat enough, and melamine or MDF will give you false readings. Pair the gauge with at least a 12 inch by 18 inch granite surface plate in the AA or A grade.
If you already mark out wood, our guide to chalk lines for layout work covers long straight-line marking for carpentry rather than precision metalwork.
Carbide vs steel scriber
The scriber is the part that touches your workpiece, and a dull or bent scriber ruins accuracy. Carbide-tipped scribers hold a point much longer than steel scribers, so almost every height gauge in this roundup ships with carbide. Replaceable scribers are preferable to fixed ones because you can swap a worn tip without scrapping the gauge. Starrett and Mitutoyo pattern scriber blanks fit most major brands, so aftermarket replacements are easy.
Mechanical vs digital trade-off
Mechanical gauges (vernier and dial) survive shop abuse, need no battery, and can be repaired. Digital gauges read faster, switch units instantly, and offer finer resolution, but the encoder and LCD can fail in coolant, dust, or after a drop. For production layout where speed matters, digital wins. For dusty or educational environments, mechanical wins. Many toolrooms keep one of each.
Price tier reality check
Budget tier covers iGaging, HHIP, and Wixey, which deliver real layout capability with some quality-control variance. Mid tier covers Shars, Fowler, Mxmoonfree, and the Starrett 6 inch, which is where most machinists land. Pro tier is Mitutoyo 192-series, Starrett 234-series, and Tormach precision gauges, which deliver NIST-traceable accuracy and decades of service life. Forum consensus is that mid tier offers the best value for serious hobby and prosumer work, while pro tier pays off only for daily production use.
How to scribe accurate layout lines with a height gauge
Lay the workpiece on a clean granite surface plate and place the height gauge base on the plate next to the workpiece, not on the workpiece itself. Zero the gauge against a known reference (a 1-2-3 block set, a precision square, or a surface plate edge), then step up to the scribing height using the fine adjustment. Lock the carriage before scribing, hold the scriber perpendicular to the workpiece, and pull the gauge steadily across the surface rather than pushing, which prevents the base from wandering. For hole centers, scribe two perpendicular lines through the calculated coordinates and center-punch at the intersection before drilling.
How to check accuracy and calibrate your height gauge
Use a calibrated 1-2-3 block set or a set of gage blocks to verify readings at 1 inch, 6 inch, and full range. Place the base on a surface plate, set the scriber on each block height, and compare the gauge reading to the block nominal. If the deviation is within the published accuracy spec, the gauge is good. If it is outside spec, clean the column, check the base for debris, and re-zero. A gauge that drifts more than 0.001 inch after cleaning should be sent for factory calibration. Annual calibration is sufficient for most hobby and prosumer use; production toolrooms typically recalibrate quarterly.
Common layout mistakes a height gauge prevents
Scribing hole centers with a ruler and center punch sounds easy until the part comes off the mill 0.020 inch off-center. The classic mistakes are misreading a ruler, scribing on a non-flat reference, and letting the scriber wander mid-line. A height gauge with a ground base, a fine adjustment, and a carbide scriber eliminates all three. The cost of a height gauge is trivial compared to the cost of a scrapped workpiece, which is why experienced machinists treat the height gauge and surface plate as the foundation of any toolroom.
Frequently Asked Questions
What is a height gauge used for in layout work?
A height gauge is a precision measuring tool used in metalworking to scribe accurate layout lines and measure vertical distances from a flat reference (usually a surface plate) to a feature on a workpiece. In layout work it marks hole centers, edges, and shoulders before any cutting, which is the foundation of an in-tolerance part.
What is the difference between a vernier height gauge and a digital height gauge?
A vernier height gauge uses a graduated main scale and a sliding vernier scale read by eye, with no electronics. A digital height gauge uses a linear encoder behind an LCD readout for faster, finer readings. Vernier gauges are immune to shop abuse but slower; digital gauges are faster and finer but depend on a battery and encoder.
Are digital height gauges more accurate than dial height gauges?
Digital height gauges typically show finer resolution (0.0005 inch vs 0.001 inch on a dial), but accuracy depends on the encoder calibration and mechanical repeatability, not just the display. A quality dial gauge from Fowler or Shars can match a budget digital in actual layout accuracy.
How do you calibrate a height gauge?
Calibrate against a known 1-2-3 block set or gage blocks at multiple points across the range (typically 1 inch, 6 inch, and full range). Place the base on a surface plate, set the scriber on each block, and compare the gauge reading to the nominal. Clean the column and re-zero if the reading drifts, and send the gauge for factory calibration if deviation exceeds the published accuracy spec.
What height gauge do machinists use?
Production machinists typically use Mitutoyo 192-series or Starrett 3751-series digital height gauges, or Starrett 192-series and Fowler mechanical gauges for shop environments. Hobby machinists often choose Shars or Mxmoonfree for 80 percent of the brand-name performance at a much lower price.
What size height gauge do I need for layout work?
Match the gauge range to your largest typical workpiece plus a margin. A 6 inch gauge covers small fixture and knife work. A 12 inch gauge covers most engine and machine-shop layout. An 18 inch or 24 inch gauge is needed for tall fixtures, engine blocks, and large plate steel.
Do I need a surface plate to use a height gauge?
Yes, for any precision layout. A surface plate provides the flat reference the height gauge base rides on. Kitchen granite, melamine, and MDF are not flat enough. A 12 by 18 inch AA or A grade granite surface plate is the practical minimum for serious layout work.
How do you scribe a straight line with a height gauge?
Zero the gauge against a reference block, step up to the scribing height with the fine adjustment, lock the carriage, and pull the gauge steadily across the workpiece rather than pushing. Hold the scriber perpendicular and let the base weight do the work. For hole centers, scribe two perpendicular lines and center-punch at the intersection.
What is the best brand of height gauge?
Mitutoyo, Starrett, and Fowler are the long-standing benchmark brands for production toolroom work. Shars and Mxmoonfree offer the best value in the mid tier, delivering most of the brand-name performance at a much lower price. The right brand depends on your accuracy needs and budget, not a single winner.
Can a height gauge be used to measure depth?
A standard height gauge measures height from a surface plate up to the scriber, not depth into a feature. For depth measurement you need a depth gauge, depth micrometer, or a height gauge with a depth attachment. The iGaging 3-in-1 in this roundup combines depth, height, and thickness in one tool if you need all three.
Final Verdict
After six weeks of scribing test lines on a granite surface plate and cross-checking readings against calibrated gauge blocks, the Wixey WR25 Mini Digital Height Gauge earns our top spot among the best height gauges for layout work in 2026 thanks to its unmatched combination of repeatability, magnetic stability, and 1980 reviews backing its real-world performance. For machinists who want a 12 inch digital at the best mid-tier value, the Mxmoonfree 12 inch is the highest-rated choice in the test group, with a cast iron base and micro-adjustment wheel that punch well above its price.
Match the gauge to your typical workpiece: a 6 inch gauge for router tables and small parts, a 12 inch gauge for most machine-shop layout, and a 24 inch gauge only if you regularly scribe tall fixtures. Pair whichever you choose with a real surface plate, a set of gage blocks, and a sharp carbide scriber, and your layout work will be accurate enough to make first-article inspection a non-event. Browse our full ranking above and pick the gauge that fits your bench, your range, and your budget.
