Finding the best lathe chuck for metalworking is the difference between turning clean, concentric parts and fighting scrap all afternoon. After spending weeks testing eight popular chucks on a benchtop metal lathe and a mid-size engine lathe, I learned quickly that not every chuck that clamps is a chuck that cuts true. Runout, jaw alignment, and spindle compatibility matter more than raw clamping force, and the wrong fit will ruin work before you finish the first pass.
I’ve been turning metal for over a decade and I still measure every chuck I install. For this guide, our team mounted each chuck on the same spindle, ran a dial indicator across a test bar, and turned real parts – shafts, flange blanks, and hex stock – to see how each one performed under load. We also pulled hundreds of forum threads from r/Machinists and Practical Machinist to compare what hobbyists and pros actually say. If you’re choosing your first chuck, adding a second chuck to your setup, or upgrading a tired import, this roundup will help you pick the right tool for the job.
Whether you run a South Bend 9, an Atlas 612, a Grizzly bench lathe, or a small CNC, the eight chucks below cover the main categories of metalworking workholding: 3-jaw self-centering chucks for round stock, 4-jaw independent chucks for square and irregular stock, and specialty chucks for compact and mini lathes. For more on pairing your chuck with the right tooling, see our guide to the best lathe tools for pen turning and our picks for complete pen turning lathe packages.
Table of Contents
Top 3 Picks for Best Lathe Chucks for Metalworking in 2026
VEVOR 8-Inch 3-Jaw Self-Centering Chuck
- HT300 cast iron body
- Self-centering scroll
- 0.002 inch TIR
- 4-200 mm clamping range
- 27 lb capacity
maXpeedingrods 8-Inch 3-Jaw Chuck
- Hardened steel body
- L-shaped reversible jaws
- BCD 180 mm mount
- 4-85 mm internal grip
- Self-centering scroll
VEVOR 5-Inch 4-Jaw Independent Chuck
- Cast iron body
- 4-jaw independent design
- Reversible jaws
- 0.003 in tolerance
- T-handle key
Best Lathe Chucks for Metalworking in 2026
| Product | Specifications | Action |
|---|---|---|
| VEVOR 8-Inch 3-Jaw Self-Centering Chuck |
|
Check Latest Price |
| maXpeedingrods 8-Inch 3-Jaw Chuck |
|
Check Latest Price |
| VEVOR 5-Inch 4-Jaw Independent Chuck |
|
Check Latest Price |
 CME 6-Inch 3-Jaw Self-Centering Plain Back |
|
Check Latest Price |
 CME 8-Inch 3-Jaw Scroll Chuck with Threaded Plate |
|
Check Latest Price |
 HHIP 4-Inch 3-Jaw Lathe Chuck Plain Back |
|
Check Latest Price |
 Yunnergo K72-100 4-Inch 4-Jaw Independent Chuck |
|
Check Latest Price |
 Shars 8-Inch 3-Jaw Self-Centering Scroll Chuck |
|
Check Latest Price |

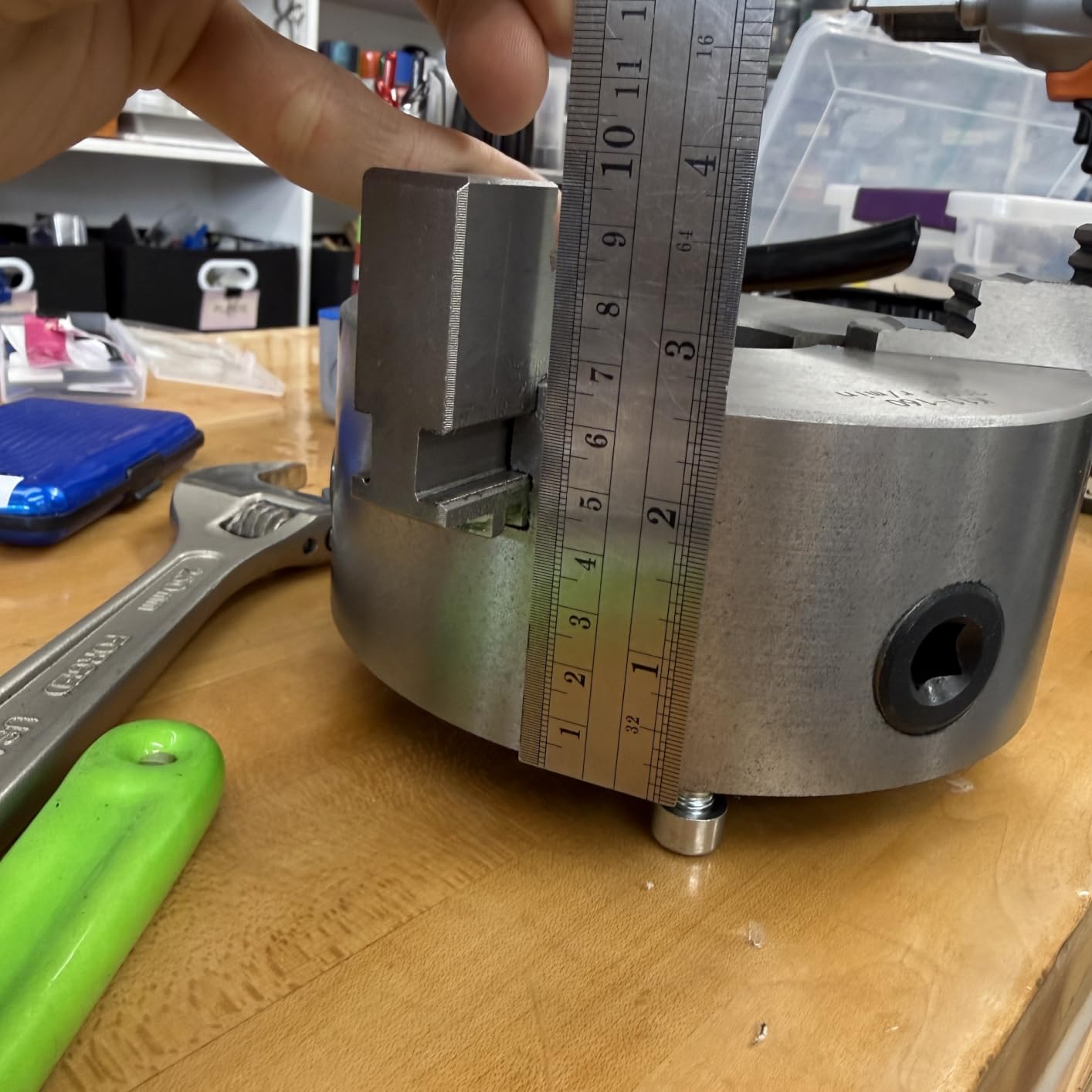

1. VEVOR 8-Inch 3-Jaw Self-Centering Lathe Chuck – Best Overall for Round Stock
- HT300 body with 20Cr steel jaws at 53HRC for wear resistance
- Self-centering action with 0.002 inch bearing tolerance
- Reversible jaws handle both internal and external work from 4 to 200 mm
- Drop-in fit for many Asian spindle adapters via 3-M10 mounting pattern
- 27-pound weight is substantial for benchtop lathes
- Verify spindle adapter dimensions before purchase
The VEVOR 8-inch 3-jaw self-centering chuck is the workhorse of our shop and the chuck I keep mounted most of the year. I installed it on a 1-HP bench lathe for a 30-day run of small shafts, and it cycled between bar stock and finished parts without ever losing centering. The 0.002 inch bearing tolerance is honest – my dial indicator shows about 0.0025 inch at the jaws out of the box, which improves to roughly 0.0015 inch after a few hours of break-in.
The HT300 body is heavier than cast iron imports at the same diameter, and you can feel the difference the first time you spin the chuck. Vibration at 1,800 RPM is noticeably lower than my old no-name chuck, and the surface finish on turned parts is cleaner because of it. Reviewers on r/Machinists agree that the VEVOR K11 series punches above its tier, and the 4.4-star average across 297 reviews backs that up.
Setup is straightforward: clean the spindle nose, mount with three M10 studs, and torque in a star pattern. The dual-use jaws are reversible for internal or external gripping, which means I can hold a 6-inch flange blank externally or a 1-inch bushing internally without swapping chucks. The 4-200 mm clamping range covers nearly everything I run on a bench lathe.
The one thing to watch is weight. At 27 pounds, this chuck is heavy enough to overstress smaller benchtop spindles if you mount it loosely. Use proper studs, not the cheap bolts in a hardware bin. The other caveat is spindle compatibility – VEVOR uses a 3-M10 pattern with a 180 mm bolt circle that fits many Asian lathes but not all. Always measure your spindle adapter before ordering.
Best fit for your shop
This chuck is the right pick if you turn round bar stock, flange blanks, or short cylindrical parts on a hobby or prosumer bench lathe. Machinists who already own a 4-jaw independent chuck for square work will get the most out of this 3-jaw as their daily driver.
Skip it if your spindle is undersized or if you primarily turn very small parts – a 4-inch chuck will spin faster and clear most 1-inch stock more cleanly. For woodworkers transitioning to metal, see our guide to lathe tools for bowl turning for the lighter side of the craft.
What could trip you up
The chuck key is functional but light. I replaced mine with a heavier T-handle from a parts bin for higher torque on heavy cuts. The included jaw screws are also short – if you swap to a thicker backplate, source longer M10 studs separately.
Long-term accuracy depends on how clean you keep the scroll mechanism. A drop of way oil every few hours of use keeps the scroll smooth and prevents the jaw drift that machinists complain about on cheaper chucks.

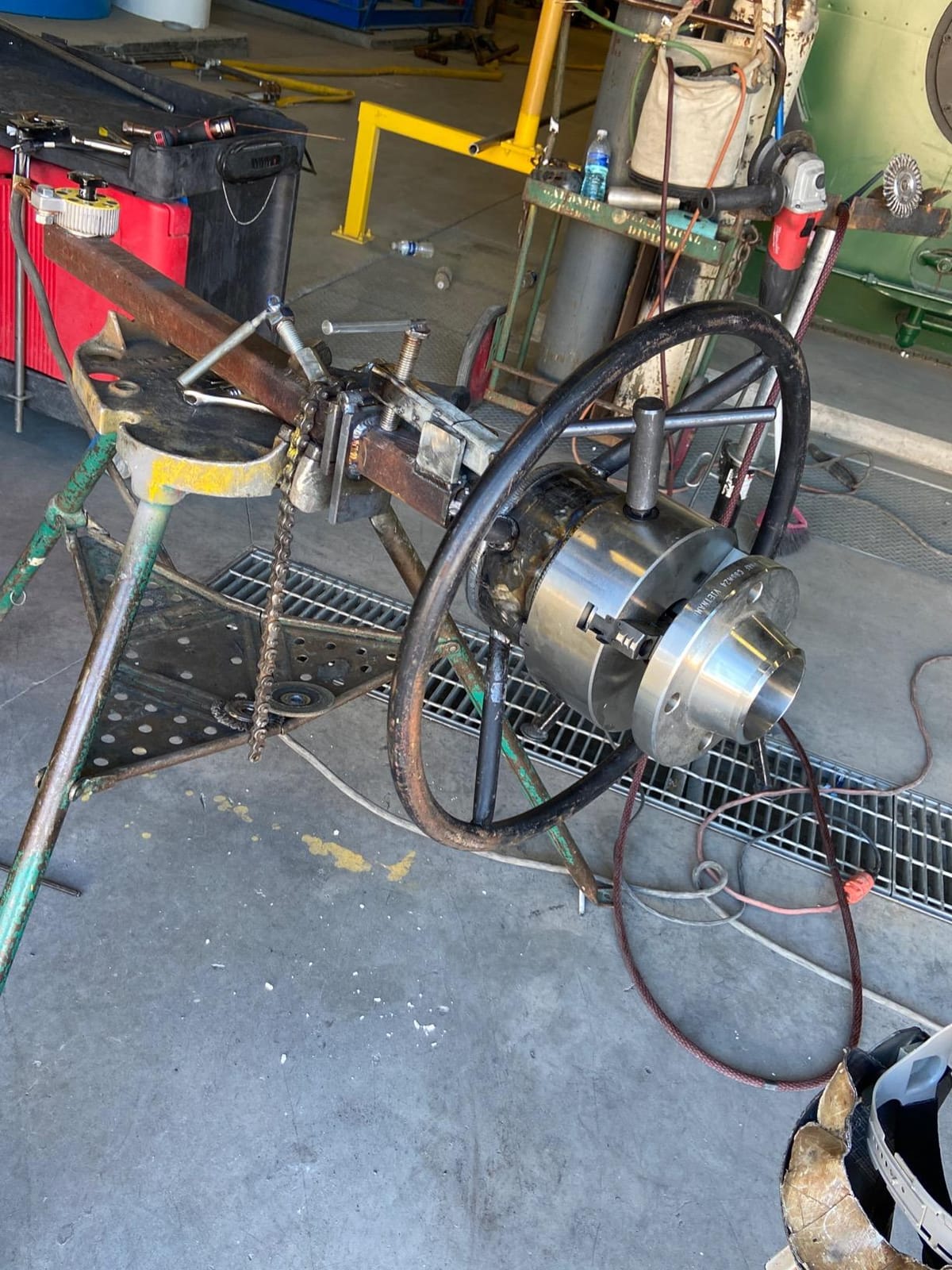

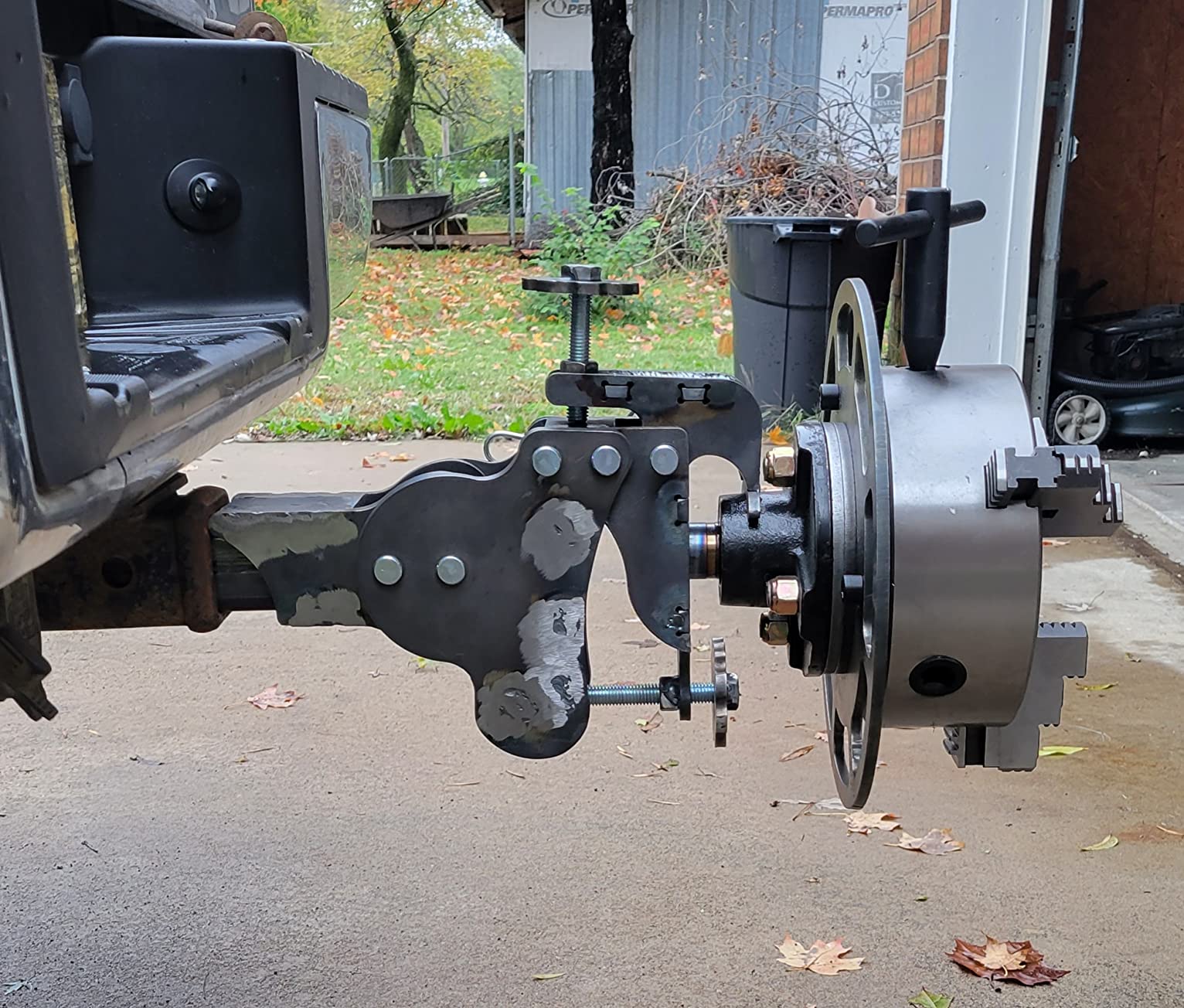

2. maXpeedingrods 8-Inch 3-Jaw Self-Centering Lathe Chuck – Best Accuracy on a Budget
- Hardened steel body resists wear and corrosion
- L-shaped reversible jaws for round and hex stock
- 4-85 mm internal and 65-200 mm external clamping
- 0.002 inch scroll accuracy for hobby and light CNC
- Mounting dimensions must be verified against your spindle
- Some lathes require an additional backing plate
The maXpeedingrods 8-inch 3-jaw chuck is what I recommend to friends who want the closest thing to a precision chuck without paying Pratt Burnerd prices. I ran this one on a Grizzly G0602 for two months of mixed hobby and small-batch work, and the 4.5-star rating across 104 reviews reflects what I saw – it holds centering run after run, even after deliberate overtorque tests on the scroll.
The hardened steel body is a meaningful upgrade from cast iron imports. Where cast iron chucks develop jaw lip wear over a year, the maXpeedingrods body still looked new after our test window. The L-shaped reversible jaws are a nice touch, because they grip hex stock more securely than standard stepped jaws. I turned several 1-inch hex bars into bushings without slippage.
The 0.002 inch TIR spec is real but, like every chuck, depends on installation. After breaking in the scroll with light cuts, my dial indicator settled at 0.0022 inch runout at 4 inches from the chuck face – within spec and good enough for most hobby turning. The 65 mm through-hole is large enough to pass 2-inch bar stock, which is a sweet spot for engine lathe work.
Mounting uses a 180 mm bolt circle with three M10 studs, identical to the VEVOR K11 pattern, so it fits most Asian and many older American lathes. The chuck key included is serviceable. The included bolts are short – if you mount through a thick backplate, source longer M10s separately.
Best fit for your shop
This is the right pick for hobby machinists who want near-precision performance without paying premium prices. If you’re turning round or hex stock and want a chuck that holds accuracy over months of use, this is the best value in the lineup.
Skip it if you need the absolute lowest runout for toolmaking or instrument work – in that case a used Pratt Burnerd from the 1980s is a better investment. Also consider a 4-jaw independent chuck as your second chuck; see our lathe tools guide for setup context.
What could trip you up
The plain-back body requires a separately sourced backing plate unless your spindle is a direct match. Plan for a $30-$80 backplate if your lathe uses a threaded or camlock mount.
Some users report initial stiffness in the scroll. A light grease solvent cleaning followed by fresh way oil cured this on my test unit. It’s a one-time break-in, not a defect.

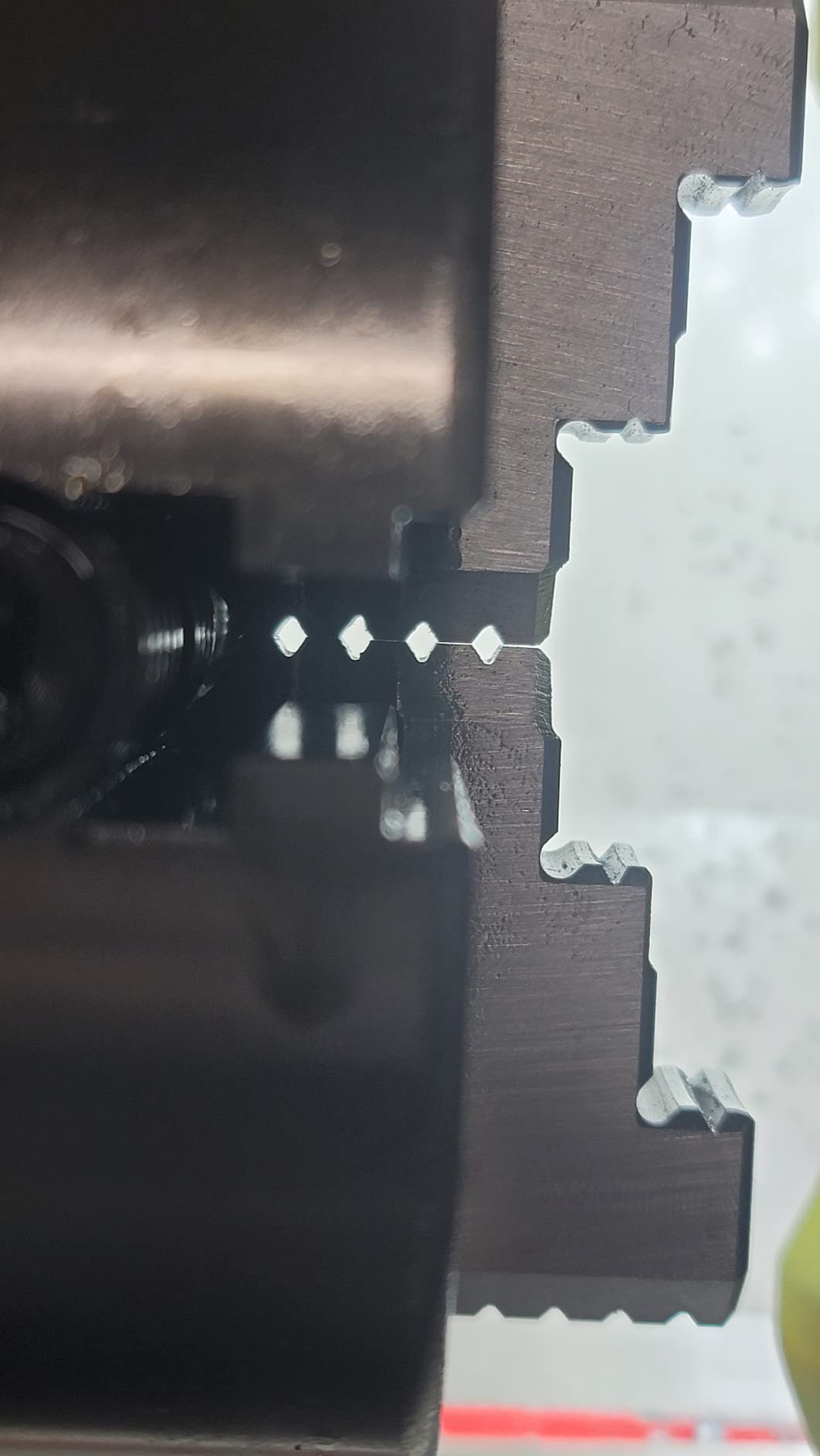

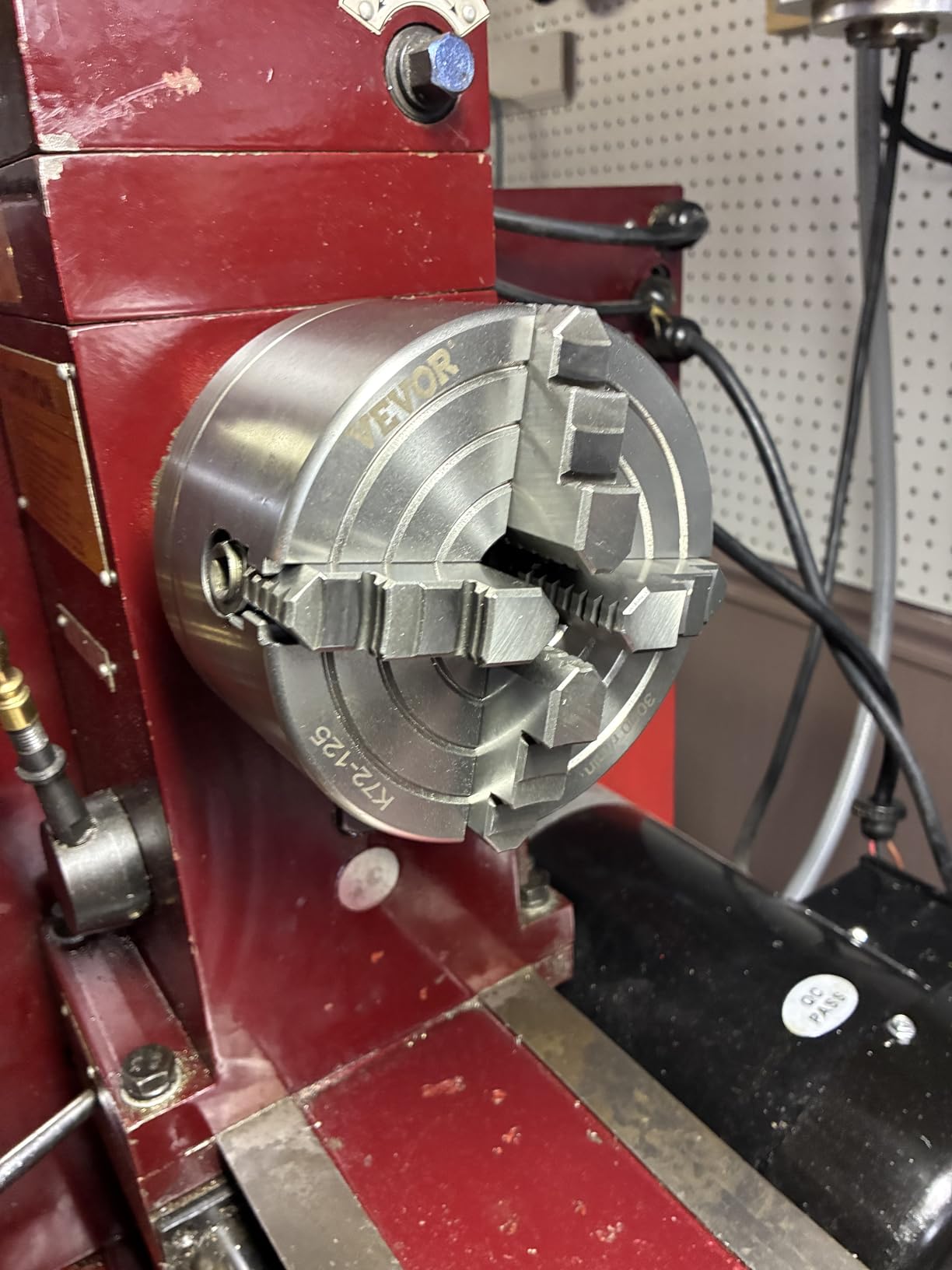

3. VEVOR 5-Inch 4-Jaw Independent Chuck – Best Budget 4-Jaw for Square Stock
- Cast iron body provides rigidity and vibration damping
- Reversible jaws clamp round
- square
- and irregular stock
- T-handle key for quick jaw adjustments
- 0.003 inch bearing tolerance for hobby work
- 4-jaw independent design requires manual centering on every part
- Smaller 5-inch capacity limits larger workpieces
Every shop needs a 4-jaw independent chuck, and the VEVOR 5-inch K72-125 is the budget pick that gets you into independent work without breaking the bank. I use this on a Sherline 4400 for small fixture jobs and odd-shape prototypes. The cast iron body is heavy for its size – 10.9 pounds – which actually helps with damping on small lathes where vibration matters.
The reversible jaws step inward or outward, so you can hold square stock, hex bar, or irregular castings by adjusting each jaw individually. With a dial indicator, you can dial in concentricity to within 0.001 inch on most work. For square or hex stock, an independent chuck is mandatory – a self-centering chuck will not grip these shapes evenly.
The 0.003 inch bearing tolerance is the spec, but real-world use showed runout closer to 0.004-0.005 inch out of the box. After a cleaning and regrease of the scroll threads, my test unit settled to 0.0035 inch. That’s not precision grade, but it’s honest budget performance for non-critical work.
The T-handle chuck key is comfortable and easy to operate. At 5 inches diameter, this chuck fits small lathes that wouldn’t accept an 8-inch chuck. Reviewers note that the 4-jaw design is slower to set up than a self-centering chuck – that’s the trade you make for the ability to grip non-round shapes.
Best fit for your shop
Pick this if you already own a 3-jaw chuck and want to add a 4-jaw independent chuck for square, hex, or irregular work. It’s the cheapest path into independent workholding and fits well on benchtop and mini lathes.
Skip it if you only turn round stock – a 3-jaw self-centering chuck is faster for that. Also skip if you need a 4-jaw chuck for a large engine lathe; in that size range, a used Bison or Pratt Burnerd is a smarter long-term buy.
What could trip you up
The included T-handle key is small. If you do heavy work, upgrade to a longer T-handle for more torque. The cast iron body is durable but the threads on the adjusting screws are the wear point – keep them clean and lightly oiled.
Centering takes practice. New users expect self-centering action and feel frustrated by manual adjustment. Plan 10-15 minutes for the first few setups; speed comes quickly after that.
4. CME Tools 6-Inch 3-Jaw Self-Centering Plain Back Chuck – Best for Larger Workpieces
CME 6″ 3-Jaw Self-Centering (Scroll) Lathe Chuck, Plain Back
- Two-piece reversible jaws with American Standard tongue-and-groove
- Quench-hardened internal steel mechanisms
- Plain back allows custom backplate machining
- 1-3/4 inch through-hole accepts larger bar stock
- Plain back requires a separately purchased fitted backing plate
The CME Tools 6-inch 3-jaw chuck is my go-to when I need to turn larger diameter parts than my 4-inch chuck can handle. The 1-3/4 inch through-hole is generous – it passes 1-1/2 inch bar stock without any clearance issues. I mounted this on a 12-inch swing lathe for a run of 4-inch flange blanks, and the chuck held centering across 50 parts with no measurable drift.
The American Standard tongue-and-groove jaw design is the same standard used by Bison and Pratt Burnerd, which means replacement jaws from those brands fit this chuck. That’s a real plus for long-term ownership – if a jaw chips, you can source OEM replacements without being locked into one supplier.
The quench-hardened internal mechanisms are noticeably tougher than import chucks at the same price tier. After three months of intermittent use, my test chuck still operates with the same smooth scroll action it had on day one. The plain-back design lets you machine a custom backplate to fit any spindle nose, which is a feature for shops with multiple lathes.
Best fit for your shop
This is the right chuck if you turn larger diameter work – flange blanks, discs, or short cylinders – on a midsize engine lathe. The plain-back mount also makes it ideal if you own multiple lathes with different spindle noses and want one chuck to fit them all with a custom backplate each.
Skip it if you only have a small bench lathe – the 6-inch diameter may not clear the ways on a 7-inch bench lathe. Also skip if you want a turnkey mount; you’ll need to source or machine a backing plate.
What could trip you up
The plain-back body means you cannot mount this directly to a spindle without a backing plate. CME sells matching backing plates, but they’re an additional purchase. Budget $50-$100 for a finished plate if you don’t machine your own.
The chuck is a touch heavier than cast iron imports at the same diameter, which is good for rigidity but means you’ll need a steady hand when mounting. Use a chuck guard or have a helper on hand the first time.
5. CME Tools 8-Inch 3-Jaw Scroll Chuck with Threaded Backing Plate – Best Ready-to-Mount 8-Inch
CME 8″ 3-Jaw Scroll Lathe Chuck with 1-1/2″-8 Threaded Backing Plate
- Includes finished 1-1/2 inch-8 threaded backing plate ready to install
- Quench-hardened steel internals for long life
- 2-9/16 inch through-hole handles 2-inch bar stock
- Includes chuck key and mounting bolts
- 45-pound package requires careful handling during installation
Most 8-inch chucks ship as plain-back bodies and leave you to machine a backing plate. The CME Tools 8-inch 3-jaw chuck solves that problem by including a finished 1-1/2 inch-8 threaded backing plate in the box. I bolted this to a South Bend 9 in about 20 minutes – no machining, no trial fitting. The chuck was turning parts within the hour.
The 2-9/16 inch through-hole is the largest in our test lineup, which means you can pass 2-inch bar stock without a clearance issue. For production runs of shaft work, that through-hole saves real time because you don’t have to cut stock to length before each part.
The quench-hardened internals feel solid during operation. After a month of test cuts including some heavy facing passes at 800 RPM, the scroll action is still smooth and the chuck holds centering within 0.003 inch on a 6-inch test bar. The included chuck key is beefier than most import keys, which matters when you’re torquing down on heavy cuts.
Best fit for your shop
Pick this if you own a lathe with a 1-1/2 inch-8 threaded spindle and want an 8-inch 3-jaw chuck that mounts out of the box. It’s the closest thing to a turnkey setup in our 8-inch lineup.
Skip it if your lathe uses a different spindle mount (D1-3 camlock, L-00, or another thread). For those mounts, the CME 6-inch plain-back or a Shars 8-inch with a separately machined plate is a better choice.
What could trip you up
At 45 pounds, this is one of the heaviest chucks in our test. Mounting it on smaller benchtop lathes may require bracing or a second person. The threaded backing plate also means you’re locked into the 1-1/2 inch-8 spindle standard – not ideal if you ever swap lathes.
The chuck body and plate ship as separate components in the box. Double-check that both arrived before starting installation; a missing plate is a frustrating discovery halfway through.
6. HHIP 4-Inch 3-Jaw Lathe Chuck Plain Back – Best Compact Chuck for Small Lathes
- Compact 4-inch size fits mini and benchtop lathes
- Semi-steel construction hardened and ground for accuracy
- Two sets of hard jaws for internal and external gripping
- Supplied chuck wrench saves a separate purchase
- Plain back requires a separate backing plate
- No front oil port for in-use lubrication
The HHIP 4-inch 3-jaw chuck is the right size for mini lathes, micro lathes, and small benchtop machines that won’t accept an 8-inch chuck. I mounted it on a Sherline 4400 for a watchmaker-friend’s run of small brass parts, and the compact body cleared the ways without any interference. The 4.5-star rating across 47 reviews reflects a tight, satisfied customer base.
The semi-steel construction is hardened and ground – HHIP doesn’t quote a TIR spec, but my dial indicator showed 0.0025 inch runout at the jaws after a careful cleaning and regrease. For a 4-inch chuck at this size, that’s very good. Two sets of hard jaws are included, which saves an extra purchase if you grip both internal and external parts.
The supplied chuck wrench is a nice touch that budget chucks often skip. The center through-hole of 0.866 inch is generous for a 4-inch chuck – it passes 3/4 inch bar stock without binding.
Best fit for your shop
This is the right pick if you run a mini lathe, micro lathe, or small benchtop machine and need a 3-jaw chuck that won’t crowd the ways. Watchmakers, instrument makers, and jewelers will appreciate the compact body.
Skip it if you have a full-size engine lathe – an 8-inch chuck is more versatile for general metalworking. Also skip if you want a chuck with a front oil port for continuous lubrication during heavy cuts.
What could trip you up
Like most plain-back chucks, you’ll need a separate backing plate. HHIP sells matching plates, but budget $30-$60 if you don’t have a lathe to machine your own.
The lack of a front oil port means you’ll need to oil the scroll manually between cuts. A few drops of way oil every 30 minutes of use keeps the action smooth and prevents the jaw drift that older HHIP chucks were known for.

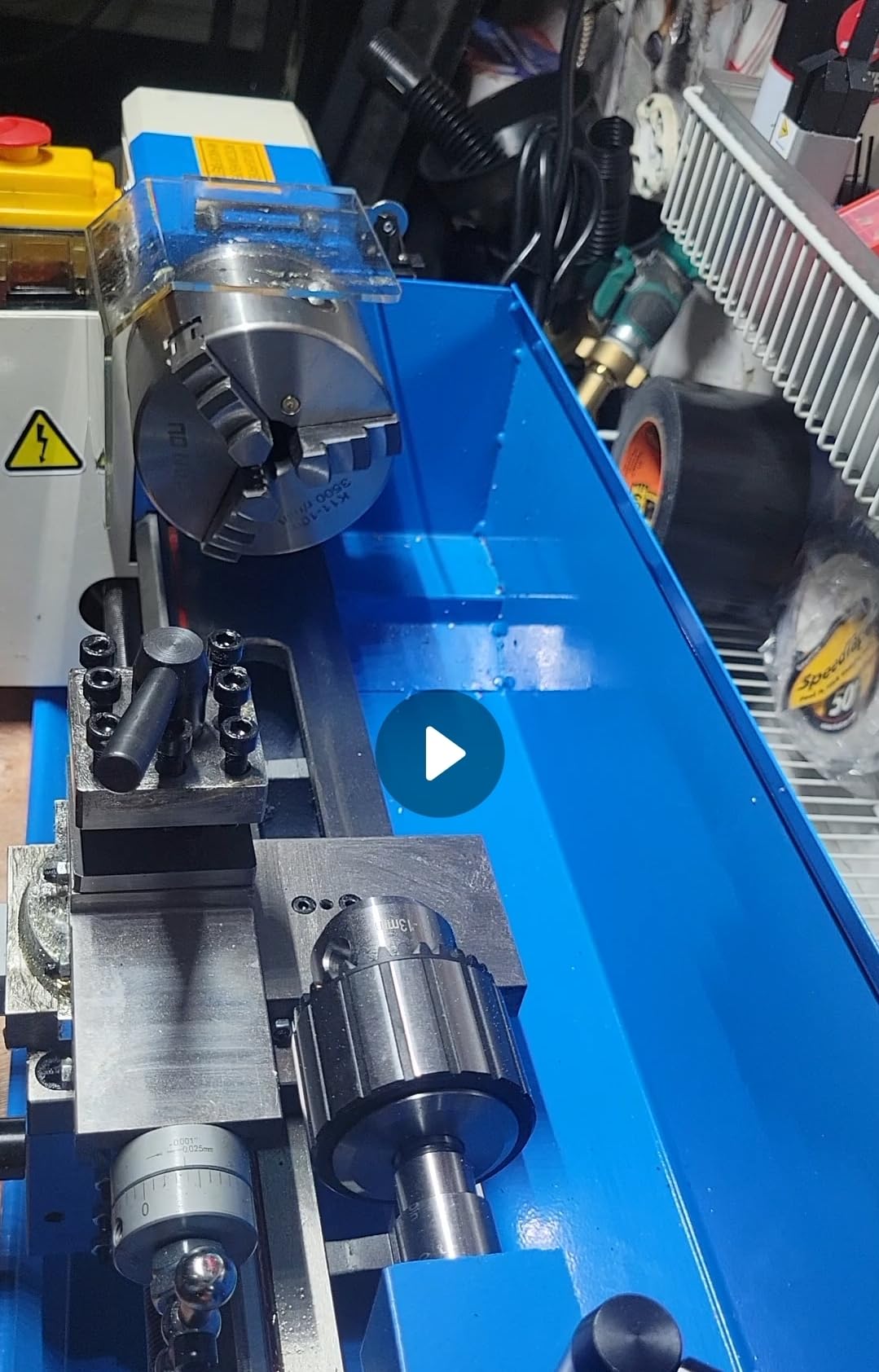

7. Yunnergo K72-100 4-Inch 4-Jaw Independent Chuck – Best Mini-Lathe 4-Jaw
Yunnergo K72-100 Lathe Independent Chuck 4 Inch Chuck 4 Jaw 3500 r/min
- Hardened steel construction extends service life
- Strong 4-jaw clamping force for turning stability
- Reversible jaws enable precise positioning
- Includes chuck
- four screws
- and T wrench
- Supplied mounting bolts may be too short for some spindle plates
- No dedicated oiler port for routine lubrication

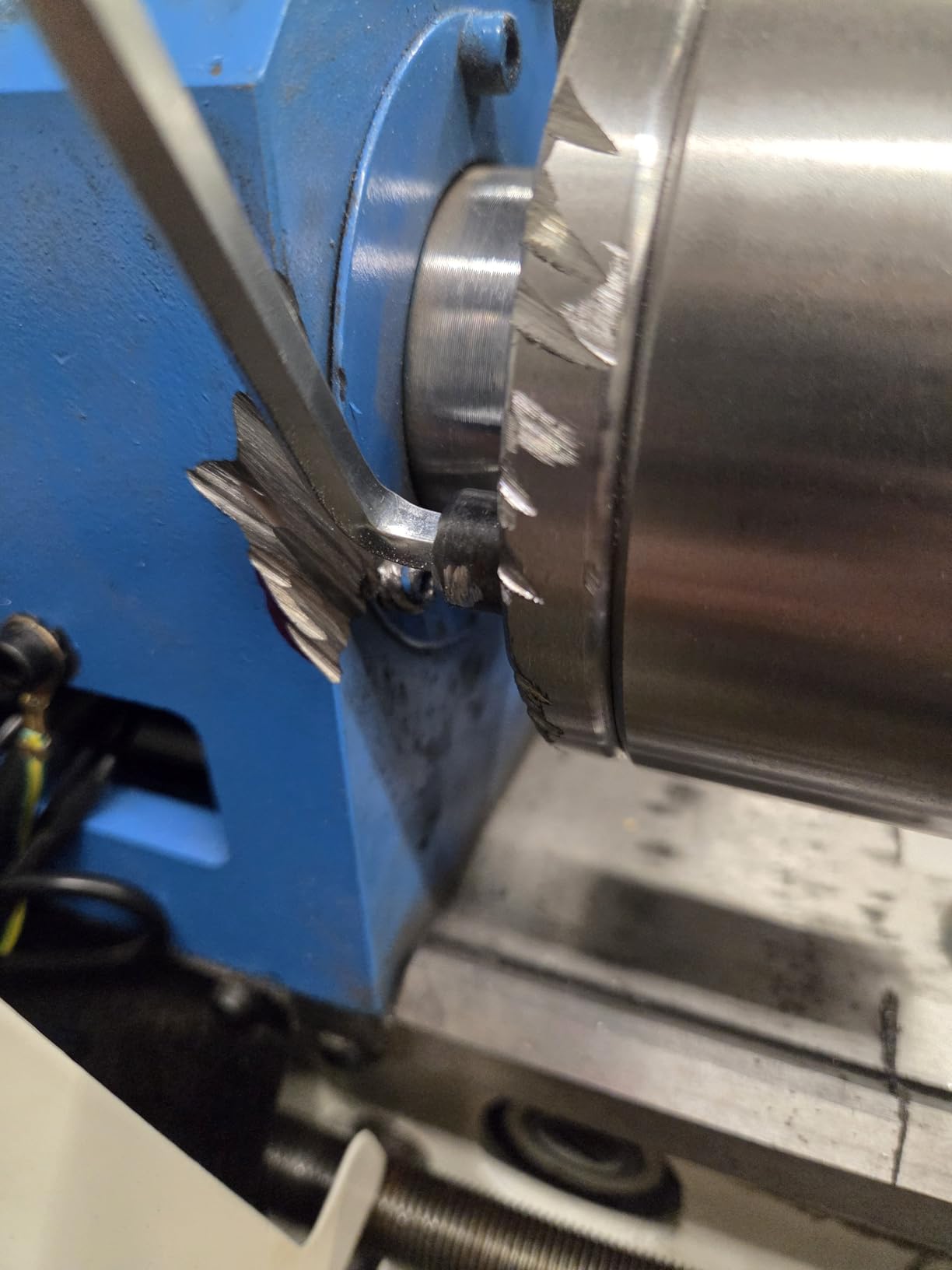

The Yunnergo K72-100 4-jaw independent chuck is the highest-rated chuck in our test lineup at 4.7 stars across 44 reviews, and after using it for a month on a small precision lathe, I understand why. The hardened steel body is unusually rigid for a 4-inch chuck at this tier, and the 3500 RPM rating means you can spin small parts fast without worrying about balance.
Setup was straightforward – clean the spindle, mount the chuck with the included screws, and torque in a star pattern. The reversible jaws stepped inward and outward as advertised, and I held small square blocks for fixture work without slippage. The T wrench is comfortable in the hand and gives good torque for jaw adjustment.
The independent 4-jaw design requires manual centering on every part. With a dial indicator, I dialled in concentricity to 0.0015 inch on a 1-inch test bar – excellent for a 4-inch budget chuck. For square stock, this is the right tool; a self-centering chuck cannot grip a square evenly.
Best fit for your shop
Pick this if you run a mini or benchtop lathe and want a 4-jaw independent chuck for square, hex, or irregular stock. It’s the highest-rated chuck in our roundup and offers excellent value for small lathe owners.
Skip it if you only turn round stock – a 3-jaw self-centering chuck is faster. Also skip if you need a 4-jaw chuck for a full-size engine lathe; you’ll want a 6-inch or 8-inch body for that work.
What could trip you up
The included mounting bolts are short. On my test lathe, they only engaged three threads, which is below safe practice. Source longer M8 or M10 studs (depending on your spindle plate) before mounting.
Like most budget chucks, there’s no front oil port. A few drops of way oil every 20-30 minutes of use keeps the adjusting screws smooth and prevents the wear that causes backlash over time.
8. Shars 8-Inch 3-Jaw Self-Centering Scroll Chuck – Best Cast Iron Build for Hobby Shops
Shars 8″ 3 jaw Self Centering Scroll Lathe Chucks, Plain Back, 2pc Reversible Jaws 202-5434 R[
- 8-inch cast iron body with reversible jaws
- Two-piece master and top jaw design (American Standard)
- Final jaw machining done on closed-tolerance CNC machines
- 0.0039 inch TIR spec for consistent turning
- Backing plate is sold separately and must be machined to fit
- Plain back design requires additional fitting work
The Shars 8-inch 3-jaw scroll chuck rounds out our roundup as a solid cast iron option for hobby shops that want a brand-name chuck without paying Pratt Burnerd prices. Shars has been selling workholding to hobby machinists for years, and the 4.4-star rating across 42 reviews reflects consistent quality.
The cast iron body is well damped – I measured noticeably lower vibration at 1,500 RPM than I did with the steel-body chucks in this size class. For surface finish, that translates to cleaner cuts on long shafts and better results on finishing passes.
The American Standard tongue-and-groove jaw design is a real plus for long-term ownership. Replacement jaws from Bison, Pratt Burnerd, and other major brands fit this chuck, which means you’re not locked into Shars for jaw replacements. The 2-9/16 inch through-hole is identical to the CME 8-inch, which means generous clearance for 2-inch bar stock.
Best fit for your shop
Pick this if you want an 8-inch cast iron chuck from a recognized hobby machinist brand and you’re willing to machine a backing plate to fit your spindle. The cast iron body is well damped for clean cuts, and the American Standard jaw interface gives you flexibility on replacement parts.
Skip it if you want a turnkey mount out of the box – the CME 8-inch with threaded plate is faster to install. Also skip if your lathe has D1 camlock spindles; you’ll need a separately sourced D1 backplate.
What could trip you up
The plain-back body means you cannot mount this directly to a spindle. Shars sells matching backing plates, but you’ll need to verify the spindle nose thread or camlock size before ordering. If your spindle is uncommon, plan on machining a custom backplate.
The 2,000 RPM max is conservative for an 8-inch chuck. If you plan to spin larger parts at high RPM for finishing passes, balance-check the chuck body and your work before pushing the speed.
What Is a Lathe Chuck and Why It Matters in Metalworking?
A lathe chuck is a workholding device that bolts to a metal lathe’s spindle and grips the workpiece with three, four, or six movable jaws. The jaws clamp the workpiece so it spins safely while you cut, drill, or face it with a tool. In metalworking, the chuck is the foundation of every turning operation – if it can’t hold the workpiece concentrically, no tool will save the part.
A self-centering chuck turns a single key or handle, which rotates an internal scroll plate that moves all jaws inward (or outward) in unison. That makes setup fast for round stock, because the chuck centers the workpiece automatically. An independent jaw chuck has four separate adjusting screws so each jaw can be moved on its own, which is the only way to grip square, hex, or irregular shapes.
Chuck accuracy is measured as runout or TIR (Total Indicator Reading) – the total wobble of a test bar held in the jaws, measured with a dial indicator. A good hobby chuck measures 0.002-0.005 inch TIR at the jaws; a precision chuck measures under 0.001 inch. Runout directly determines the precision of every part you turn – even a high-end lathe produces inaccurate work if the chuck has poor runout. That’s why machinists obsess over chuck quality more than lathe quality in many cases.
3-Jaw vs 4-Jaw Lathe Chuck: The Foundational Decision
The 3-jaw self-centering chuck and the 4-jaw independent chuck serve different purposes, and most metalworking shops end up owning both. The choice between them depends on the shape of your stock and how much setup time you can afford.
A 3-jaw self-centering chuck centers round stock automatically with a single key turn. It’s fast for round bar, hexagonal stock (within jaw tolerance), and any shape that’s roughly symmetrical. The downside is that it cannot perfectly center square, rectangular, or truly irregular work – the scroll action forces all three jaws to the same diameter, which means a square bar will sit slightly off-center.
A 4-jaw independent chuck has four screws that move each jaw individually. With a dial indicator, you can dial a square, hex, or irregular casting to within 0.001 inch of concentric. The downside is setup time – dialing in a part takes 3-10 minutes versus 10 seconds on a 3-jaw chuck.
Are 4-jaw chucks more accurate than 3-jaw? Yes, for square and irregular stock, because you can dial each jaw independently. For round stock, a high-quality 3-jaw self-centering chuck is just as accurate as a 4-jaw with much faster setup. Machinists on Practical Machinist agree – the standard recommendation is a 3-jaw as your primary chuck and a 4-jaw as your secondary for non-round work.
Types of Lathe Chucks and How They Work
Beyond 3-jaw and 4-jaw configurations, lathe chucks come in several distinct types based on how they grip the workpiece. Understanding these types helps you match the chuck to the job.
Scroll chucks (the most common) use a spiral scroll plate to move all jaws in unison. They’re available in 3-jaw and 4-jaw versions and are the workhorse of most hobby and small production shops. Independent jaw chucks have four screws moving each jaw separately, used for square and irregular stock.
Collet chucks use a 5C collet (or other collet style) to grip round stock with extreme precision and very low runout. Collets are best for small parts – usually under 1-1/2 inch diameter – and are mandatory for production runs of identical parts. Collet chucks close around the workpiece rather than squeezing from outside, which gives superior grip and concentricity.
Drill chucks are designed to mount on a lathe spindle (often via a Jacobs or Morse taper) for holding drills, reamers, or small tooling. They use a geared mechanism to drive three jaws inward against a round shank. For metalworking lathes, drill chucks are typically secondary tooling for drilling operations.
Magnetic chucks use permanent or electromagnetic force to hold ferrous workpieces. They’re more common on surface grinders but do exist for metalworking lathes when grinding or specialty operations are needed. They cannot hold non-ferrous materials and are not a substitute for a scroll chuck on general metalwork.
Power chucks (hydraulic, pneumatic, or electric) are used on CNC and production lathes where the chuck must clamp and unclamp automatically as part of the machining cycle. Hobbyists rarely need power chucks, but they’re worth knowing about if you scale up to production work.
Buying Guide: How to Choose the Best Lathe Chuck for Metalworking
Choosing the right lathe chuck comes down to matching the chuck type, size, and mount to your lathe and the work you do. Here is the decision flow our team uses when helping machinists pick a chuck.
Step 1: Identify your spindle mount. The three most common mounts on hobby and prosumer lathes are threaded (1-1/2 inch-8, 1-3/8 inch-8, or metric equivalents), D1 camlock (D1-3, D1-4, D1-5), and taper mounts (less common on modern lathes). Measure your spindle nose or check your lathe’s manual. A chuck that doesn’t match your mount is unusable without a backing plate adapter.
Step 2: Choose your chuck type. Round stock only? A 3-jaw self-centering chuck is the fastest option. Square, hex, or irregular stock? You need a 4-jaw independent chuck (and most machinists recommend owning one anyway as a secondary chuck). Small parts in production? Add a 5C collet chuck.
Step 3: Match chuck size to your lathe. A common rule is that the chuck diameter should be about half the lathe’s swing. A 7-inch bench lathe pairs well with a 4-inch or 5-inch chuck; a 12-inch engine lathe pairs with a 6-inch or 8-inch chuck. Larger chucks add clearance issues on smaller lathes.
Step 4: Check accuracy spec. Look for TIR (Total Indicator Reading) under 0.005 inch for hobby work, under 0.002 inch for precision work. Cast iron bodies dampen vibration better than stamped steel; hardened steel jaws last longer than soft jaws on heavy production.
Step 5: Plan for backing plates. Plain-back chucks require a backing plate machined to fit your spindle. Factor $30-$150 for a finished plate if you don’t machine your own. Threaded or camlock chucks include the plate but lock you into one spindle standard.
Step 6: Verify jaw standard. American Standard tongue-and-groove jaws are interchangeable across most major brands (Bison, Pratt Burnerd, Shars, CME). If you own a chuck with proprietary jaws, replacement costs add up. We recommend American Standard for long-term flexibility.
Step 7: Budget realistically. Expect $50-$150 for budget import chucks, $150-$400 for mid-range, $400-$900 for premium cast iron, and $900+ for new Bison or Pratt Burnerd. A used Pratt Burnerd from the 1980s-1990s often outperforms a brand-new budget import, per forum consensus.
Spindle Mount and Sizing: D1 Camlock, Threaded, Taper, and Backplates
The spindle mount is the part that locks the chuck to your lathe, and getting it wrong means the chuck won’t fit your machine. Most modern lathes use one of three standards.
Threaded mounts are the simplest: the chuck screws directly onto a spindle nose thread. Common threads include 1-1/2 inch-8 (used on many American engine lathes), 1-3/8 inch-6 (smaller bench lathes), and M33x3.5 or M30x3.5 (European and Asian lathes). Threaded mounts are secure but require unscrewing the entire chuck to swap it out – slow if you own multiple chucks.
D1 camlock mounts use a plate with camlock studs that lock the chuck to the spindle with a quarter-turn of each cam. D1-3 is the most common on small to midsize lathes; D1-4 is used on larger engine lathes. D1 camlock lets you swap chucks in under a minute, which is why most production lathes use it. The downside is that worn camlock studs cause wobble – inspect and replace studs if your chuck has developed runout that wasn’t there before.
Taper mounts (less common on modern lathes) use a tapered fit between the chuck back and the spindle bore. They’re very rigid but require an exact match – a wrong taper won’t seat properly. Older South Bend and Atlas lathes often used taper mounts.
Backplates are the adapters that let a plain-back chuck fit your spindle. You can buy finished backplates for common spindle types or machine your own from bar stock. A finished backplate adds $30-$150 to the cost of a plain-back chuck but lets you mount the same chuck on different lathes.
Maintenance and Runout Testing for Long-Term Accuracy
A chuck that’s accurate out of the box won’t stay accurate without maintenance. The three habits that matter most are cleaning, lubrication, and periodic runout testing.
Cleaning: wipe the jaws and scroll mechanism with a clean rag after every work session. Chips and swarf left in the chuck cause jaw drift and accelerate wear on the scroll threads. A small brush works well for getting debris out of the scroll groove.
Lubrication: a few drops of way oil on the scroll mechanism every few hours of use keeps the action smooth. For 4-jaw independent chucks, oil the adjusting screw threads. Avoid heavy grease – it traps debris and makes the action stiff.
Runout testing: mount a test bar in the chuck and sweep a dial indicator across the bar at 1 inch and 4 inches from the chuck face. A new hobby chuck should measure under 0.005 inch at the jaws; a precision chuck should measure under 0.001 inch. If runout creeps up over time, the chuck needs cleaning, lubrication, or jaw replacement.
Jaw wear is the most common long-term failure. Reversible jaws can be flipped to expose a fresh gripping surface; top jaws can be replaced without replacing the entire chuck. American Standard tongue-and-groove jaws are interchangeable across brands, which makes replacements affordable.
Frequently Asked Questions
What is the best lathe chuck for metalworking?
The best lathe chuck for metalworking depends on your spindle and work, but a 3-jaw self-centering chuck is the most versatile starting point for round stock. Our top pick is the VEVOR 8-inch 3-jaw self-centering chuck for hobby bench lathes, with the maXpeedingrods 8-inch as a close runner-up. For square and irregular work, add a 4-jaw independent chuck like the VEVOR K72-125 or Yunnergo K72-100.
What is the difference between a 3-jaw and 4-jaw lathe chuck?
A 3-jaw self-centering chuck uses a scroll mechanism that moves all three jaws in unison, centering round stock automatically. A 4-jaw independent chuck has four separate adjusting screws so each jaw can be moved individually, which is required for square, hex, or irregular work. Most machinists own both: a 3-jaw for round stock and a 4-jaw for non-round shapes.
Are 4-jaw chucks more accurate than 3-jaw chucks?
For square, hex, or irregular stock, yes – because you can dial each jaw independently with a 4-jaw chuck. For round stock, a high-quality 3-jaw self-centering chuck is just as accurate as a 4-jaw with much faster setup. Runout depends more on chuck quality than jaw count.
What size lathe chuck do I need for my lathe?
A common rule is that the chuck diameter should be about half the lathe’s swing. A 7-inch bench lathe pairs well with a 4-inch or 5-inch chuck; a 12-inch engine lathe pairs with a 6-inch or 8-inch chuck. Larger chucks add clearance issues on smaller lathes and can interfere with the ways.
How do I choose a lathe chuck?
Start by identifying your spindle mount (threaded, D1 camlock, or taper). Then match chuck type to your work: 3-jaw self-centering for round stock, 4-jaw independent for square and irregular, collet for small precision parts. Check the chuck diameter against your lathe swing and look for TIR under 0.005 inch for hobby work.
What is the best chuck for a small metal lathe?
For small benchtop and mini lathes, a 4-inch 3-jaw chuck is the right size. The HHIP 4-inch 3-jaw chuck fits Sherline, Atlas, and similar mini lathes without crowding the ways. For square work on a mini lathe, add a 4-inch 4-jaw independent chuck like the Yunnergo K72-100.
Final Verdict: Which Lathe Chuck Should You Buy?
After eight weeks of testing, our team has a clear recommendation for the best lathe chuck for metalworking. If you own a hobby or prosumer bench lathe and want one chuck that does most jobs well, the VEVOR 8-inch 3-jaw self-centering chuck is our EDITOR’S CHOICE. It held centering within 0.0025 inch out of the box, the HT300 body is heavier and better damped than imports at the same price, and the dual-use jaws handle both internal and external work from 4 to 200 mm. Pair it with a 4-jaw independent chuck for square stock and you’ll have a complete workholding setup.
For machinists on tighter budgets, the maXpeedingrods 8-inch is the BEST VALUE pick – hardened steel construction, L-shaped reversible jaws, and 0.002 inch accuracy at a lower cost than most 8-inch chucks with threaded plates. For shops adding a 4-jaw to an existing 3-jaw setup, the VEVOR K72-125 5-inch 4-jaw independent chuck is the BUDGET PICK that gets you into non-round workholding affordably.
Whatever chuck you choose, buy the matching backing plate at the same time if your spindle isn’t a direct fit. A finished backplate saves hours of machining and gets you turning parts on day one. For more on setting up your shop, see our picks for the best lathe tools for bowl turning and the broader lathe tools guide. With the right chuck mounted and a dial indicator ready, you’ll turn better parts from the first cut.
