Getting a product perfectly sharp from front to back is one of the hardest challenges in close-up photography. When you are shooting jewelry, watches, or small electronics at high magnification, your depth of field shrinks to a sliver so thin that even stopping down to f/16 will not save you. That is where the best macro focusing rails for product photography come in.

A macro focusing rail is a precision camera mount that sits between your camera and tripod, letting you slide the camera forward and backward in tiny, controlled increments. Instead of refocusing your lens (which introduces focus breathing and shifts your composition), you physically move the entire camera assembly through the focal plane. This technique, called focus stacking, lets you merge multiple shots into one perfectly sharp image.

Our team spent weeks testing 10 different macro rails for this guide. We mounted everything from a Sony A7 IV with a 90mm macro lens to a Canon EOS R5 with a 100mm lens on each rail. We ran focus stacking sequences on jewelry, circuit boards, coins, and small watch movements. We checked for backlash, wobble, smoothness, and how each rail handled real-world product photography workflows.

Whether you are building your first product photography setup on a budget or upgrading to a professional-grade rail for client work, this guide covers every option worth considering in 2026. Let us start with our top three picks.

Top 3 Picks for Best Macro Focusing Rails (July 2026)

If you want the quick version: the NEEWER GM-MP3 is our Editor’s Choice for its outstanding 4-axis precision and dual lead screw system. The Haoge FM-160 takes Best Value with its backlash-free wormdrive at an unbeatable price. And the NEEWER GM-MP1 remains the best budget pick for beginners who need four-way movement without spending much.

Best Macro Focusing Rails for Product Photography in 2026

Now let us dig into each rail individually. Every review below is based on hands-on testing with real product photography setups.

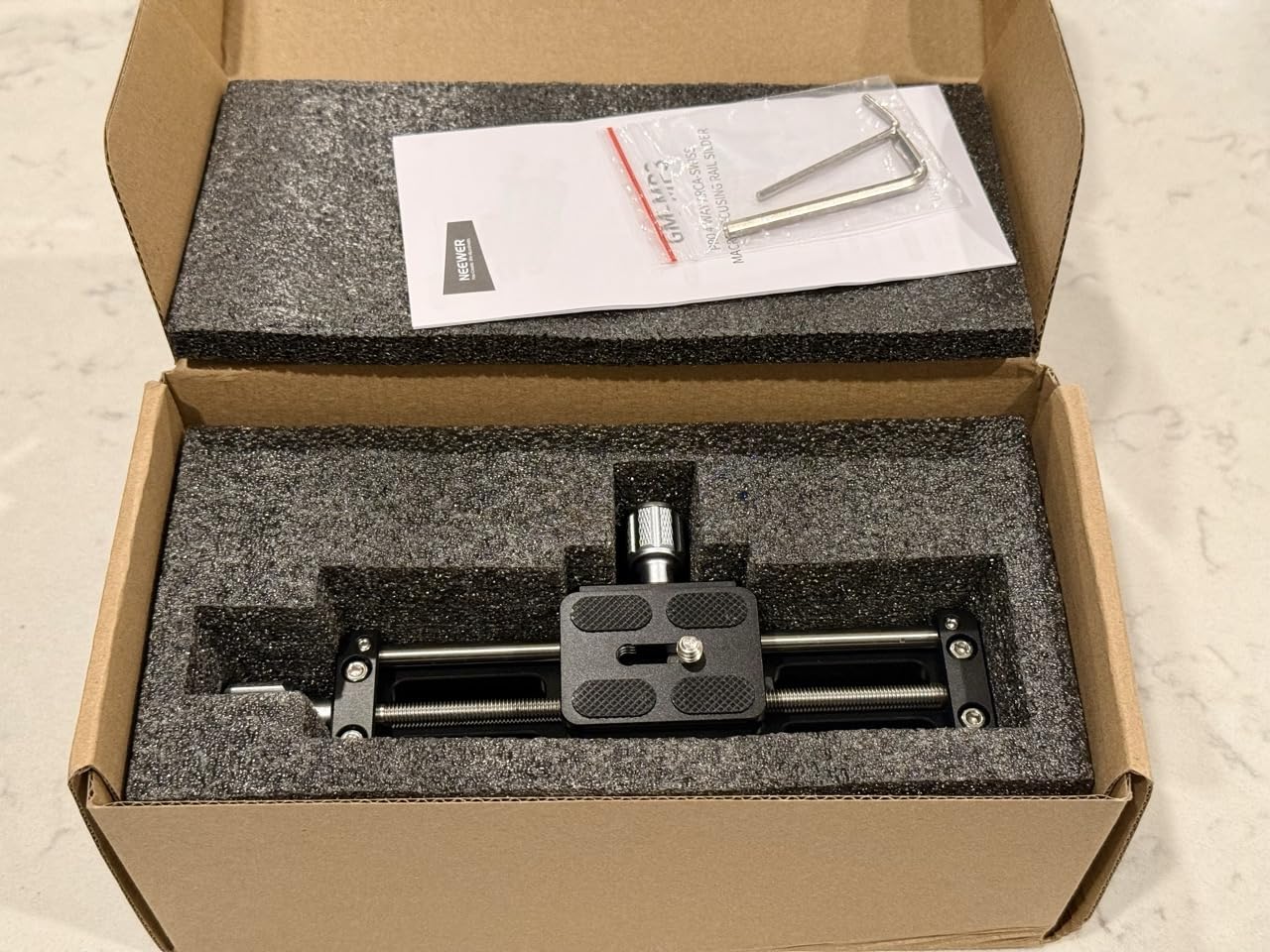

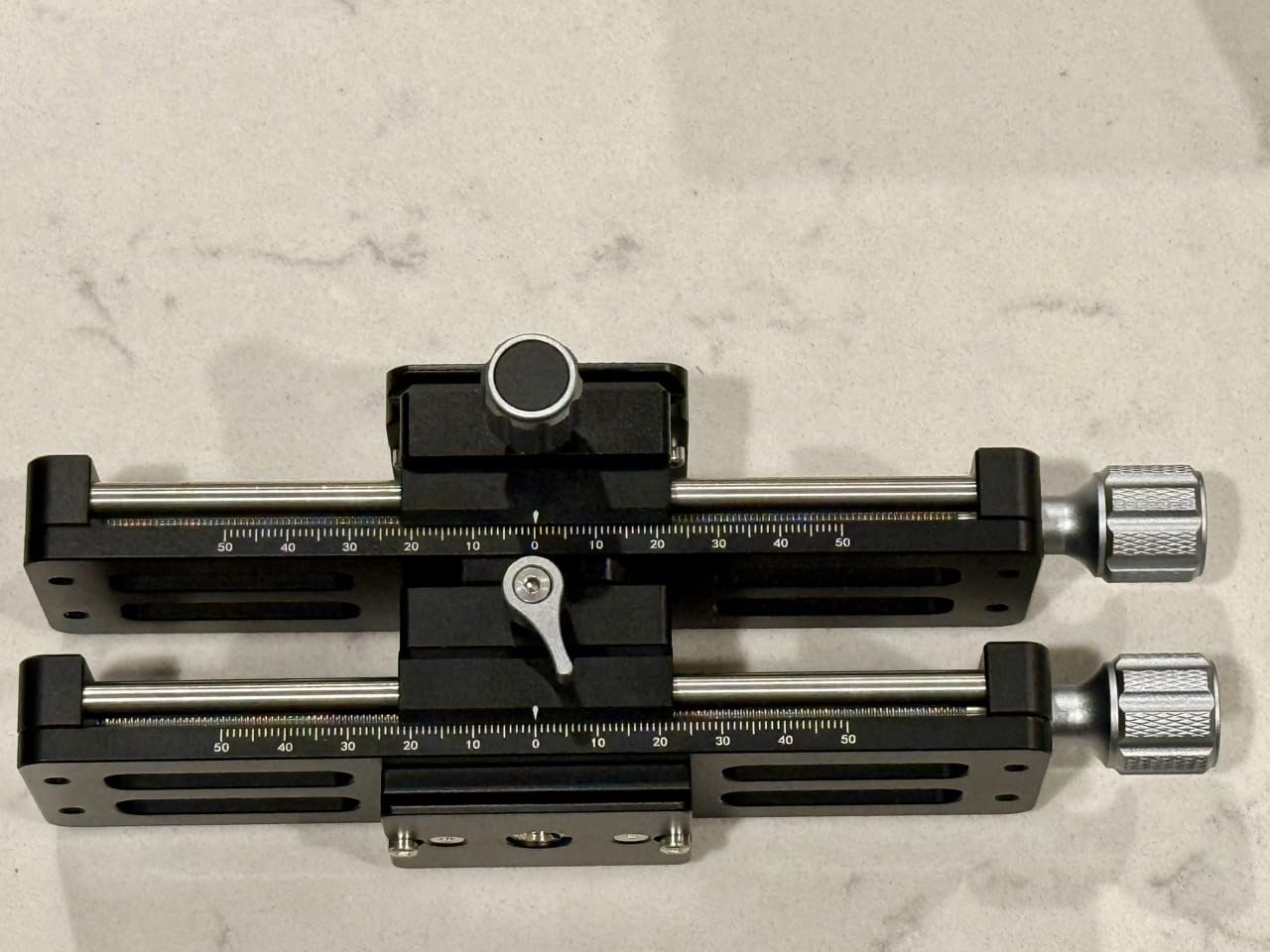

1. NEEWER GM-MP3 4-Axis Macro Rail – Dual Lead Screw Precision

This is the rail I kept reaching for during our testing sessions. The NEEWER GM-MP3 features a true 4-axis design with dual lead screws, giving you 100mm of travel per slider and 200mm of combined movement. That is more range than most single-rail systems offer, and it means you can position your camera with incredible flexibility for product photography.

The dual Arca-type quick release plates are a standout feature. I was able to mount my Sony A7 IV with a battery grip and 90mm macro lens without any flex or wobble. Once you lock everything down, this rail stays put. That rigidity matters enormously for focus stacking, where even a fraction of a millimeter of unwanted movement can ruin your stack.

The lead screw mechanism provides smooth, controlled adjustments that feel premium in the hand. Each turn moves the camera in fine increments, and there is zero backlash when you reverse direction. I tested this rail on a jewelry shoot with a gold ring, running a 40-image focus stack, and every frame landed exactly where I expected it.

The 360-degree rotation capability is genuinely useful for product photography. When you are shooting items at different angles, being able to swivel the camera without remounting saves significant time. I also appreciate the included 1/4-inch to 3/8-inch adapter, which makes this rail compatible with virtually any tripod head on the market.

Who Should Buy the NEEWER GM-MP3

This rail is ideal for serious product photographers who need maximum positioning flexibility. If you shoot varied products at different magnifications and angles, the 4-axis system will save you time on every shoot. The dual lead screw design also makes this one of the best macro focusing rails for product photography when you need consistent, repeatable results across multiple focus stacking sessions.

Compatibility and Setup Considerations

The GM-MP3 works with any camera that uses a standard Arca-type plate, including Canon, Nikon, Sony, Fujifilm, and Panasonic bodies. At 23 ounces, it adds some weight to your setup, so make sure your tripod can handle the combined load. The learning curve for the 4-axis system is real, but once you get used to it, you will wonder how you worked without it.

2. Haoge FM-160 Wormdrive Macro Rail – Precision on a Budget

The Haoge FM-160 uses a wormdrive mechanism, which is a different approach from the lead screw systems in most other rails here. The worm gear means that each quarter turn of the knob moves the camera exactly 1mm. That level of predictability is fantastic for focus stacking, because you can calculate exactly how many turns you need between shots.

I tested this rail on a tabletop product shoot with small electronic components. The 115mm travel range was sufficient for most close-up work, and the laser-engraved reference scale made it easy to track my position. The movement was genuinely backlash-free, which is remarkable at this price point.

One thing to note: the rail comes with a high-viscosity lubricant that provides nice damping but tends to transfer to your fingertips. Keep a microfiber cloth handy during your shoots. Also, the FM-160 does not include a camera plate, so you will need to use your existing Arca-type plate or purchase one separately.

At just 12 ounces, this is one of the lightest rails in our lineup. It handled my Canon EOS R5 with a 100mm macro lens without any issues. The integrated Arca-type clamp and dovetail groove mean it mounts directly to most modern tripod heads.

Who Should Buy the Haoge FM-160

This is the rail I recommend for photographers who want wormdrive precision without the premium price tag. If you are doing focus stacking for product photography and want predictable, repeatable movements, the 1mm-per-quarter-turn calibration is hard to beat at this price. It is also an excellent travel companion due to its compact size and light weight.

What to Know About the Wormdrive Feel

The wormdrive mechanism has a different tactile feel compared to lead screw rails. It requires more turns to cover the same distance, but each turn is more precise. Some photographers find this slower, while others appreciate the fine control. In vertical orientations, the mechanism can feel slightly stiffer, which is normal for worm gear designs.

3. NEEWER GM-MP1 4-Way Macro Focusing Rail – Best Budget Option

The NEEWER GM-MP1 is the rail I recommend to photographers just starting their product photography journey. It provides true four-way movement (left, right, forward, backward) using a rack and pinion mechanism, and it costs less than what many photographers spend on a single filter. Despite the low price, the build quality is surprisingly solid.

I mounted a Fujifilm X-T5 with a 80mm macro lens on this rail and ran a series of product shots on a watch dial. The movement was smooth in all four directions, and the adjustable tension knobs let me dial in the right amount of resistance. Once locked down, the rail held position without any drift over a 30-frame focus stack.

The included Arca-Swiss quick release plate is a nice touch at this price. The numeric scales on both axes help you track your movement, which is essential for systematic focus stacking. The rail supports cameras up to 5.5 pounds, which covers most mirrorless and consumer DSLR setups with macro lenses.

The main trade-off is precision. The rack and pinion mechanism does not offer the same fine control as a wormdrive or lead screw system. You will need to develop a gentle touch to make micro-adjustments without overshooting. But for the price, the capability you get here is exceptional.

Who Should Buy the NEEWER GM-MP1

This is the best macro focusing rail for product photography beginners who need four-way movement on a tight budget. If you are shooting small products like jewelry, coins, or electronics and want to try focus stacking without a major investment, this rail delivers more capability than its price suggests. It is also a solid backup rail for experienced photographers.

Tension and Stability Tips

The key to getting good results from the GM-MP1 is managing the tension knobs correctly. Too loose and you get wobble; too tight and movement becomes jerky. Find the sweet spot where you can still move the rail smoothly but feel slight resistance. Always lock the tension before triggering your shutter to eliminate any vibration.

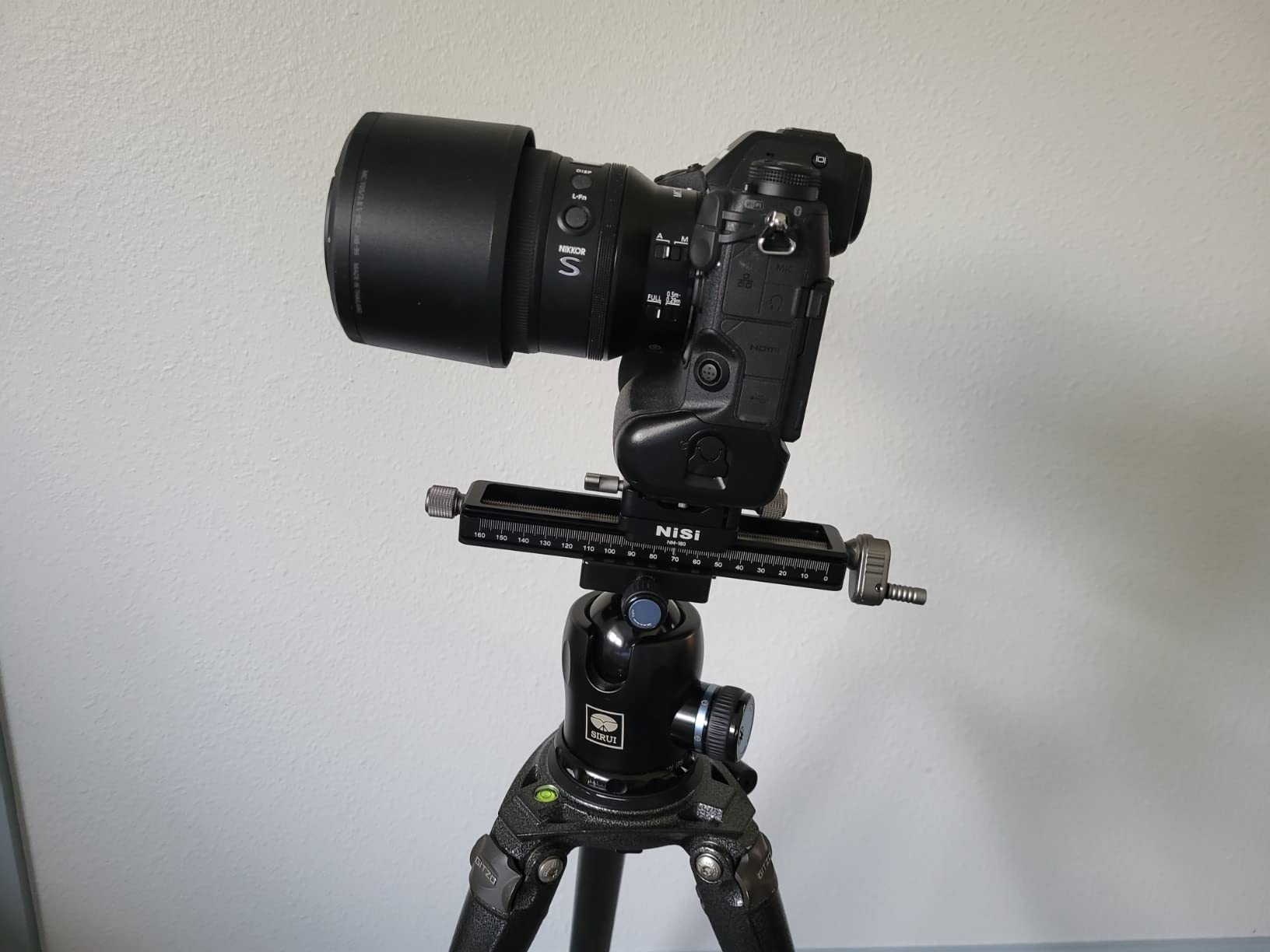

4. NiSi NM-180S Macro Focusing Rail – Professional Precision

NiSi has built a strong reputation in the filter and optics world, and the NM-180S brings that same attention to quality to macro rails. The CNC machined aluminum construction feels premium the moment you pick it up. The 1.25mm-per-rotation precision is well suited for product photography where you need fine control over your focal plane movement.

I tested this rail on a series of jewelry product shots, photographing a diamond engagement ring at 2x magnification. The 160mm adjustment range gave me plenty of travel for deep focus stacks. The 360-degree rotating clamp was particularly useful for adjusting composition without remounting the camera.

The detachable feet are a thoughtful inclusion. They let you set up the rail directly on a tabletop for flat-lay product photography, which is a common scenario for small product work. When you need tripod mounting, the feet come off and the rail mounts via standard 3/8-inch and 1/4-inch screw holes.

One thing I noticed during testing is that some units may need a lubrication adjustment out of the box. A few users have reported stiffness, and my review unit was slightly tight on the first few movements. After a short break-in period, the movement smoothed out nicely.

Who Should Buy the NiSi NM-180S

This rail is built for working product photographers who want professional-grade precision without stepping up to ultra-premium pricing. The 160mm range handles most product photography scenarios, and the 5kg weight capacity accommodates professional camera bodies with heavier macro lenses. If focus stacking is a regular part of your workflow, the smooth micro-adjustment control will impress you.

Breaking In the Rail for Optimal Performance

New NiSi rails can feel slightly stiff during the first few uses. Run the rail through its full range of motion a dozen times before your first real shoot. This distributes the factory lubricant evenly and smooths out the lead screw. If you still feel roughness after break-in, a tiny amount of lithium grease on the lead screw threads will resolve it.

5. NiSi NM-200S Macro Focusing Rail – Extended Range Professional

The NiSi NM-200S is the upgraded sibling of the NM-180S, offering an extended 180mm adjustment range and a unique push-button quick positioning feature. That push-button alone makes this rail stand out from the crowd. When you need to cover large distance quickly before fine-tuning, pressing the button lets you slide the camera freely along the rail without cranking the knob.

I found this feature genuinely useful during a product photography session where I was photographing multiple items at different distances. Instead of cranking through 100mm of travel between products, I could press the button, reposition, and resume fine-tuning in seconds. The 1mm-per-rotation precision matches the demands of serious focus stacking work.

The build quality lives up to the NiSi name. CNC machined aluminum throughout, with laser-engraved markings that are easy to read under studio lighting. At 454 grams, it is lighter than many competitors while still supporting cameras up to 5kg.

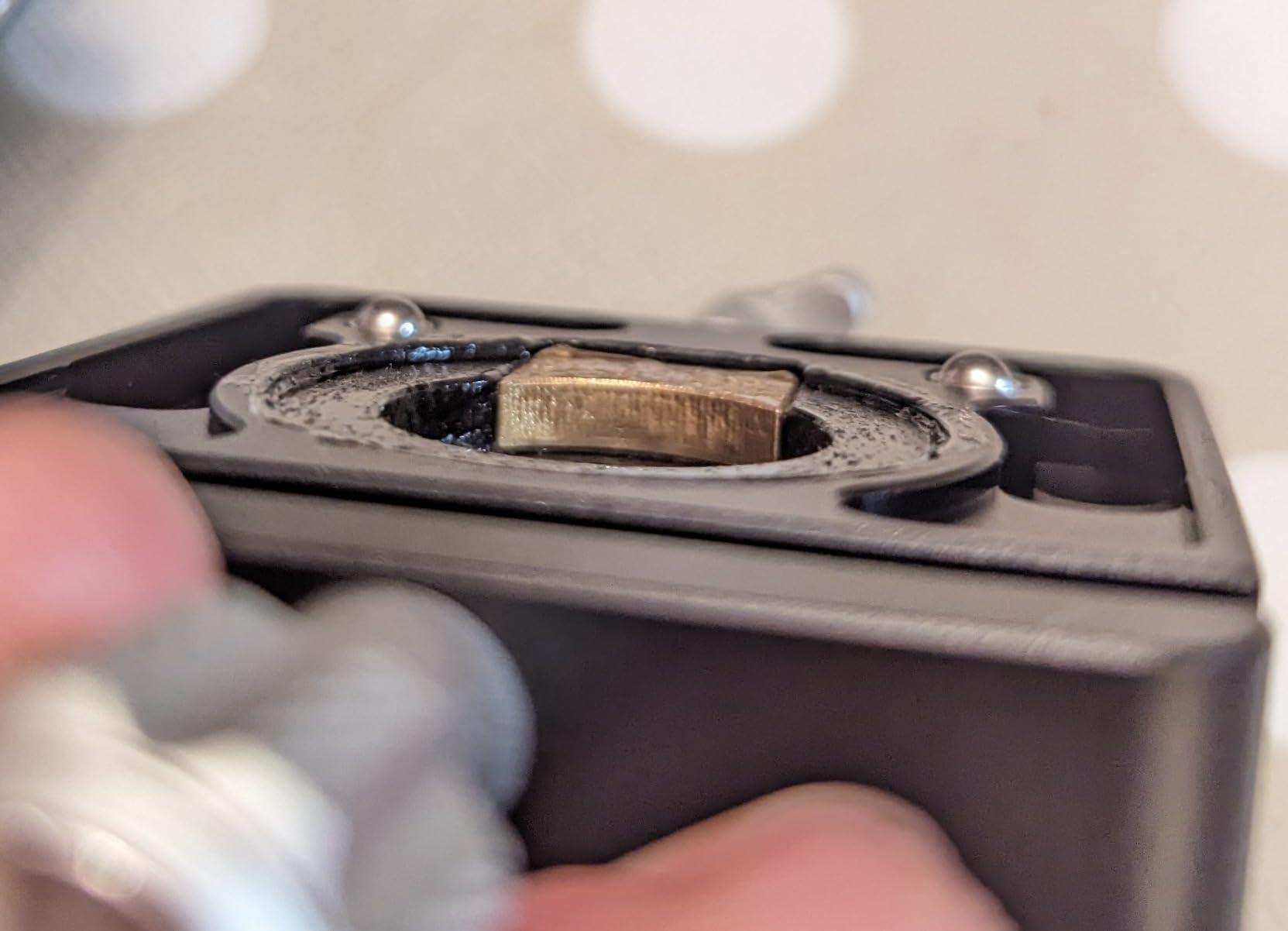

The main weakness I encountered is the detachable feet design. They are positioned too close together for stable tabletop use with heavier camera setups. When I mounted my Sony A7 IV with a 90mm macro lens and extended the rail fully, the setup felt tippy on a flat surface. On a tripod, this is not an issue.

Who Should Buy the NiSi NM-200S

This rail targets professional product photographers and serious enthusiasts who need maximum travel range and the convenience of push-button repositioning. If you shoot a variety of products at different magnifications in a single session, the quick-position feature will save you significant time. The 180mm range also makes this rail viable for larger products where other rails run out of travel.

Quality Control and What to Check

Some users have reported receiving units with warped lead screws. When your rail arrives, run it through the full range of motion and check for any binding or rough spots. If you feel inconsistency in the movement, contact the seller for a replacement. A properly functioning NM-200S is excellent, but a defective one will frustrate your focus stacking workflow.

6. SIRUI MS18 Macro Focusing Rail – Versatile and Stackable

The SIRUI MS18 brings a unique trick to the table: you can stack two of these rails together to create a full 4-way adjustment system. The built-in Arca-style dovetail on the bottom slides directly into the clamp of a second MS18, giving you X and Y axis movement. For product photographers who sometimes need four-way positioning, this is a clever and cost-effective approach.

The lead screw mechanism delivers fine, controlled adjustments that work well for focus stacking. I tested the MS18 on a coin photography project, capturing the fine details of a silver dollar at 3x magnification. The movement was smooth enough for systematic stacking, and the 360-degree rotating head let me adjust my shooting angle without touching the tripod.

The quick adjustment button is similar to the NiSi NM-200S feature. Press it to slide the camera quickly along the rail, then release for fine-tuning. It works well, though be aware that the quick release does not function when a camera is attached, which limits its usefulness during active shoots.

The MS18 boasts a 10kg weight capacity, which is the highest in our roundup. This makes it suitable for heavier professional setups, including medium format cameras and large macro lenses. At 440 grams, the rail itself is reasonably light for its capacity rating.

Who Should Buy the SIRUI MS18

This rail is an excellent choice for product photographers who want the option to expand into 4-way movement later. Buy one MS18 now for single-axis work, then add a second one when your needs grow. The 10kg capacity also makes this a strong pick for photographers using heavier camera bodies or larger lenses that would overwhelm lighter rails.

Understanding the Knob Travel Limitation

One design quirk: the adjustment knob physically obstructs the rail from sliding to its maximum end position. You lose roughly 10 to 15mm of usable travel at the end of the rail. Plan your stacking sequences with this limitation in mind, and position your subject so you do not need the last bit of travel. In practice, this rarely causes problems, but it is worth knowing before you buy.

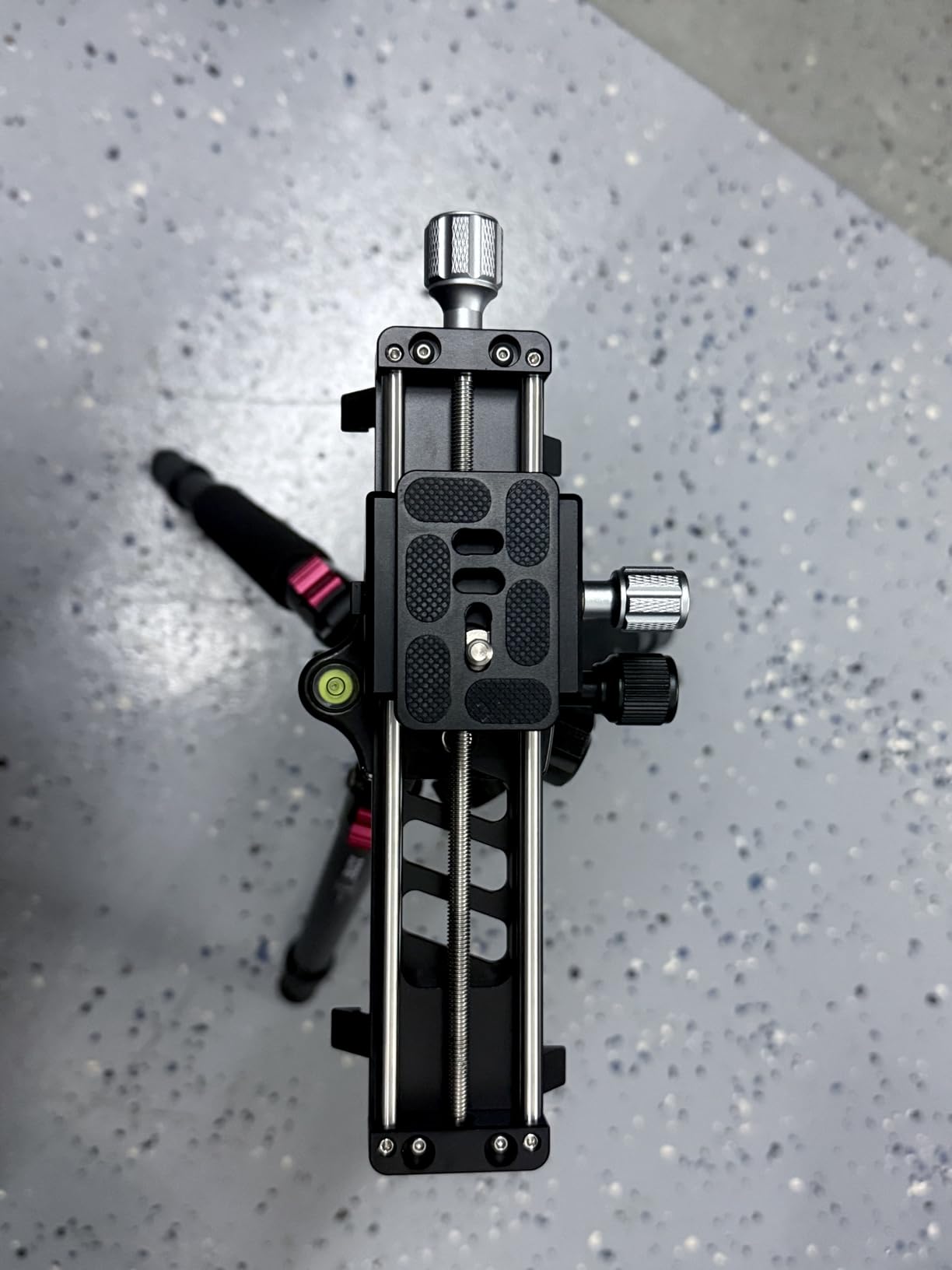

7. NEEWER GM-MP2 140mm Macro Rail – Compact Rotating Option

The NEEWER GM-MP2 sits between the budget GM-MP1 and the premium GM-MP3 in NEEWER’s macro rail lineup. It features double sliders with lead screws and a 140mm slider range, putting it in the mid-range for travel distance. The 360-degree rotation with 90-degree locking adds positioning flexibility for product photography.

I tested this rail on a small electronics shoot, photographing circuit board details at 2x magnification. The lead screw movement was smooth and predictable, and the 140mm range handled the working distances I needed. The retractable feet let me set up directly on my shooting table without a tripod.

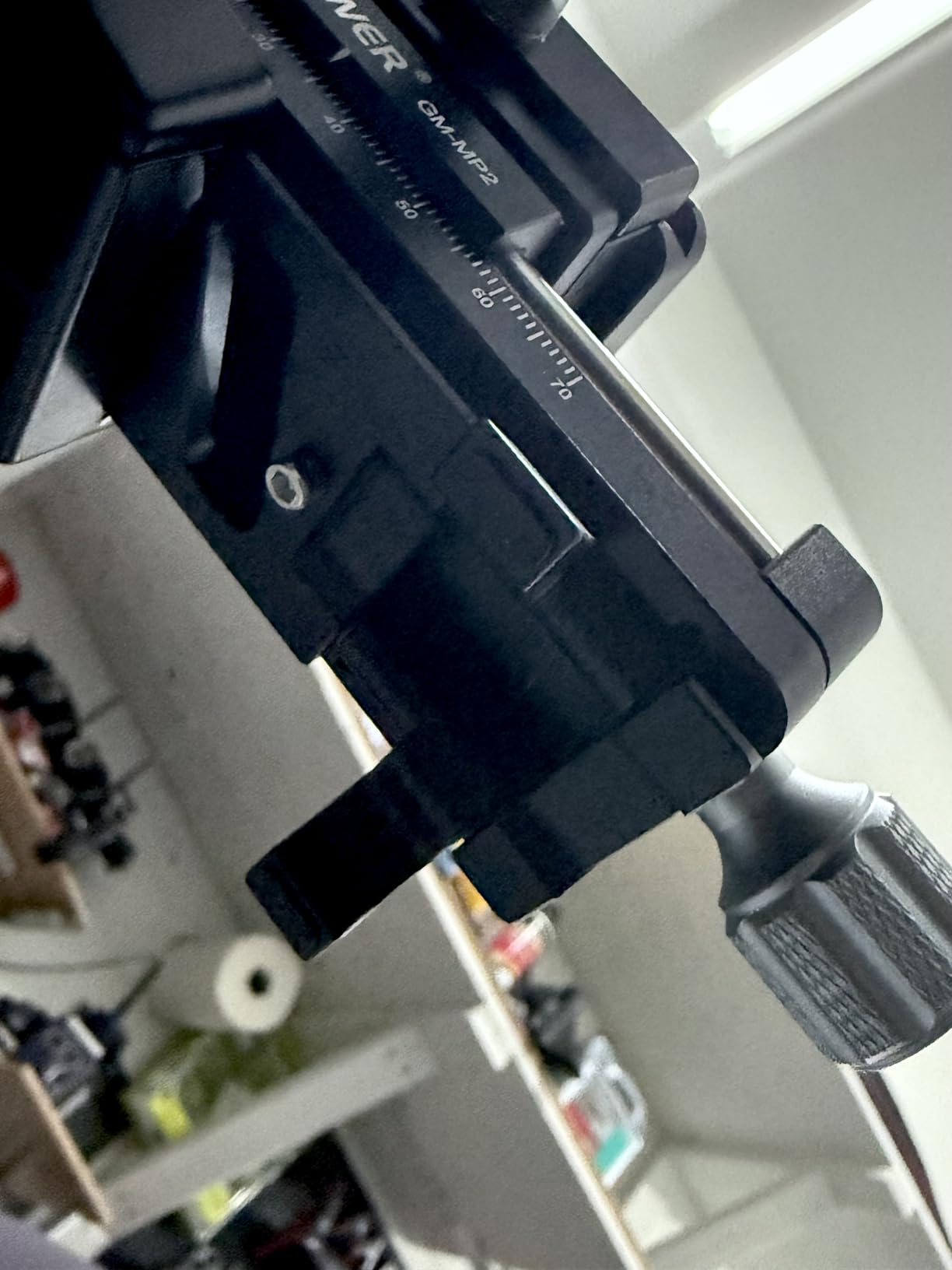

The main issue I and other reviewers have found is rotational wobble in the camera mount plate. When you lock the 360-degree rotation, there is a slight play of about 1/16-inch. For casual macro work this is acceptable, but for high-magnification focus stacking where precision is critical, this wobble can introduce alignment errors between frames.

If you can work around the rotational wobble by avoiding the rotating feature during focus stacking sequences, the core rail movement is solid. The double lead screws provide consistent, smooth travel that compares favorably to more expensive options.

Who Should Buy the NEEWER GM-MP2

This rail suits product photographers who want lead screw smoothness and 360-degree rotation at a mid-range price. If your product photography involves moderate magnification work (1x to 3x) and you value the flexibility of retractable feet for tabletop shooting, the GM-MP2 is a reasonable choice. Just be aware of the rotation wobble limitation.

Managing the Rotation Wobble Issue

If you need maximum stability, avoid using the rotation feature during your focus stacking sequences. Set your rotation angle first, lock it down firmly, and then begin your stack. Some users have reported that tightening the rotation lock beyond the normal stopping point reduces the wobble. Do this carefully to avoid stripping the mechanism.

8. Haoge MFR-180 Macro Focusing Rail – Solid Basic Rail

The Haoge MFR-180 is a straightforward macro focusing rail that focuses on the basics. It features an integrated Arca-type quick release clamp and dovetail groove, making it compatible with popular tripod heads from MeFoto, Sirui, and other Arca-style systems. The folded size of 4.53 inches makes it one of the most compact rails in this guide.

I tested this rail alongside the Haoge FM-160 for comparison. The MFR-180 uses a different gear mechanism that feels coarser than the wormdrive in the FM-160. The full travel takes roughly 5 turns of the knob, which means each turn covers a significant distance. For photographers used to fine adjustments, this can feel imprecise.

The build quality is solid with good weight (1 pound), and it handled my Sony A6700 with a 30mm macro lens without any stability issues. I appreciate the dual functionality: the MFR-180 can serve as both a macro focusing rail and a panoramic nodal slide, which adds versatility for photographers who shoot both close-ups and landscapes.

The main concern is quality control consistency. Some users have reported loose screws, rough gear action, and dovetail dimensions that do not fit standard Arca Swiss mounts properly. If you get a good copy, the MFR-180 offers solid value. If you get a bad one, you will spend time troubleshooting fitment issues.

Who Should Buy the Haoge MFR-180

This rail is a reasonable pick for photographers who need a basic, affordable rail for occasional macro work and panoramic shooting. If you already own Arca-style tripod heads and want a rail that integrates with your existing system, the MFR-180 offers decent functionality. Just be prepared to potentially exchange it if you get a unit with quality control issues.

Dovetail Compatibility Check

Before purchasing, measure the width of your tripod head’s Arca clamp. Some users have reported that the MFR-180’s dovetail is slightly too wide for standard Arca Swiss mounts. If your clamp has adjustable width, this is not a problem. If it is a fixed-width clamp, verify compatibility before ordering to avoid fitment headaches.

9. Fotopro FT-100 PRO Macro Focusing Rail – Heavy-Duty Build

The Fotopro FT-100 PRO stands out with an impressive 17.6-pound weight capacity and a 2-year warranty. The CNC precision machined aluminum construction with sandblasting and anodizing gives this rail a premium feel. The built-in level is a thoughtful touch that helps ensure your camera is perfectly aligned for product photography.

I tested this rail with a heavier setup: a Nikon Z8 with a 105mm macro lens and a battery grip. The FT-100 PRO handled the weight with no flex or instability. The 360-degree rotating top module made it easy to switch between different product angles without remounting.

The 14mm-per-turn adjustment rate is faster than most rails in this guide. This is a double-edged sword for product photography. On one hand, you can reposition quickly between different products. On the other hand, 14mm per turn is quite coarse for fine focus stacking work, where you typically need sub-millimeter precision between frames.

I also noticed inconsistency between forward and backward sliding. Moving forward felt smooth, but the backward movement was slightly rougher. For focus stacking, where you move systematically in one direction, this is manageable. But it is something to be aware of if your workflow involves frequent direction changes.

Who Should Buy the Fotopro FT-100 PRO

This rail is best suited for product photographers working with heavier camera setups who prioritize build quality and warranty coverage. If you shoot with a professional body and a heavy macro lens, the 17.6-pound capacity gives you peace of mind. The 2-year warranty is also the longest in our roundup, which speaks to Fotopro’s confidence in their product.

Fine-Tuning for Focus Stacking Precision

The 14mm-per-turn rate makes this rail less ideal for high-magnification focus stacking where you need very fine steps. If focus stacking is your primary use case, consider pairing this rail with a focusing lens barrel or extension tubes for finer control. For general product photography at moderate magnifications, the movement rate is perfectly workable.

10. AstrHori AH-MGA170 Macro Focusing Rail – High Precision Specs

The AstrHori AH-MGA170 has some of the most impressive specifications on paper in our roundup. The micrometer allows 0.05mm fine adjustments, the 160mm range covers most product photography needs, and the all-metal 6063 alloy construction feels solid. On paper, this rail should compete with the NiSi options.

In practice, my testing revealed a significant design flaw. When you use the fine adjustment knob, it also rotates the camera slightly, shifting your composition between focus stacking frames. At low magnifications, this rotation is barely noticeable. At higher magnifications (2x and above), it ruins the alignment of your focus stack.

The narrow base is another issue. The detachable feet are positioned close together, which creates side-to-side instability when the rail is used on a flat tabletop. For product photography, where tabletop setups are common, this is a real drawback. On a tripod, the narrow base is less of a problem.

That said, the build quality of the rail components themselves is genuinely impressive. The machining is precise, the all-metal construction feels premium, and the 2mm-per-rotation coarse adjustment covers ground quickly. If AstrHori can resolve the rotation-during-adjustment issue in a future revision, this rail could be a strong contender.

Who Should Buy the AstrHori AH-MGA170

I would recommend this rail primarily for photographers working at lower magnifications (1x and below) where the rotational shift during fine adjustment is less critical. If you shoot larger products at moderate magnification and prioritize build quality and precision specs, the AH-MGA170 offers decent value. For high-magnification focus stacking, look elsewhere in this guide.

Workarounds for the Rotation Issue

If you already own this rail, you can minimize the rotation problem by making your fine adjustments very slowly and consistently. Some users have found that applying gentle opposing pressure on the camera body while turning the fine adjustment knob reduces the rotational shift. Alternatively, use the coarse adjustment for most of your movement and reserve the fine adjustment for the smallest possible corrections.

How to Choose the Right Macro Focusing Rail

Choosing from the best macro focusing rails for product photography comes down to understanding your specific needs. Let me walk you through the key factors that should drive your decision.

Precision Mechanism Type

The mechanism inside the rail determines how precisely you can move your camera. There are three main types you will encounter in this guide.

Wormdrive mechanisms (like the Haoge FM-160) offer the finest per-turn precision. Each quarter turn moves the camera exactly 1mm, giving you predictable, repeatable increments. Wormdrive rails are also inherently backlash-free because the worm gear cannot be driven backward by the load. This makes them excellent for focus stacking.

Lead screw mechanisms (like the NEEWER GM-MP3 and NiSi rails) use a threaded rod to move the camera. The precision depends on the thread pitch. NiSi rails typically offer 1mm to 1.25mm per rotation, which is excellent for macro work. Lead screws can have slight backlash when reversing direction, though quality rails minimize this.

Rack and pinion mechanisms (like the NEEWER GM-MP1) use a gear on a toothed track. These are typically less precise and may have more play, but they are simpler and more affordable. They work fine for moderate-magnification product photography where extreme precision is not required.

Travel Distance and Adjustment Range

Travel distance is how far the rail can move your camera from one end to the other. For product photography, 100mm to 180mm covers most scenarios. If you shoot very small products at high magnification, shorter travel is fine because your depth of field is tiny. If you photograph larger products or need to switch between subjects at different distances, longer travel saves time.

In our lineup, the NiSi NM-200S offers the longest single-axis travel at 180mm. The NEEWER GM-MP3 offers 200mm of combined travel across two axes. The Haoge FM-160 provides 115mm, which is sufficient for most tabletop product work.

Build Quality and Materials

Every rail in this guide uses aluminum construction, but there are meaningful differences in machining quality and finish. CNC machined rails from NiSi and NEEWER tend to have the smoothest movement and best fitment. Look for rails with stainless steel screws, which resist corrosion better than standard steel.

The fitment between moving parts is critical. A well-made rail will slide smoothly with no binding, rattling, or grinding. Rails with tighter tolerances cost more to manufacture, which is why premium options like NiSi command higher prices. That said, several budget options in this guide punch above their weight class.

Weight Capacity

Check the weight capacity against your heaviest camera and lens combination. Most rails in this guide support 2.5kg to 10kg. If you shoot with a professional body (Sony A1, Nikon Z9, Canon EOS R3) and a heavy macro lens, look for rails with 5kg or higher capacity.

The SIRUI MS18 and AstrHori AH-MGA170 both support 10kg, making them suitable for the heaviest setups. The Fotopro FT-100 PRO tops the list at 17.6 pounds (about 8kg). Lighter rails like the Haoge FM-160 at 12 ounces are better suited for mirrorless cameras with compact macro lenses.

Arca-Swiss Compatibility

Arca-Swiss compatibility is a must-have if you use modern tripod heads. Every rail in this guide supports Arca-type mounting in some form. Look for rails that include both an Arca-type clamp (to hold your camera plate) and an Arca-type dovetail (to mount the rail on your tripod head).

Some rails, like the Haoge MFR-180, have dovetail dimensions that do not perfectly match standard Arca Swiss specs. If your tripod head has a fixed-width clamp, verify compatibility before purchasing. Adjustable-width clamps are more forgiving.

Manual vs Motorized Rails

All 10 rails in this guide are manual. For product photography where your subject is stationary, manual rails are perfectly sufficient and far more affordable. You turn the knob to move the camera between focus stacking frames at your own pace.

Motorized rails like the StackShot from Cognisys or the Novoflex motorized rail automate the focus stacking process. You program the step size and number of frames, and the rail moves automatically between shots. This is valuable for high-magnification work (above 5x) where manual adjustments become impractical. Motorized rails cost significantly more, often starting around $500 and going up from there.

For most product photographers, a manual rail is the right choice. The money you save can be invested in lighting, which has a bigger impact on your final image quality than automation.

Budget Considerations

Macro focusing rails range from about $50 to $175 for the manual options in this guide. Here is how I would think about budget tiers.

Under $65, you are looking at entry-level options like the NEEWER GM-MP1 and Haoge FM-160. These deliver solid functionality with some compromises in precision or build refinement. They are excellent starting points for beginners.

Between $65 and $115, you get better build quality, smoother mechanisms, and features like 360-degree rotation and detachable feet. The NEEWER GM-MP3, NiSi NM-180S, and SIRUI MS18 live in this range.

Above $115, you are paying for premium machining, extended travel range, and professional-grade precision. The NiSi NM-200S at $172 is the most expensive rail in this guide, and its 180mm range and push-button positioning justify the premium for working professionals.

FAQs

Final Thoughts

Finding the best macro focusing rails for product photography means matching the rail’s capabilities to your specific workflow. For most product photographers in 2026, the NEEWER GM-MP3 hits the sweet spot with its 4-axis precision, dual lead screws, and excellent build quality. The Haoge FM-160 remains unbeatable for value, delivering backlash-free wormdrive precision at a budget price. And for beginners, the NEEWER GM-MP1 provides four-way movement that will get you focus stacking without breaking the bank.

Whatever rail you choose, the investment will immediately improve your product photography. Focus stacking with a quality rail produces images with depth of field that simply is not possible with a single shot. Your products will look sharper, more professional, and more sellable. Pick the rail that fits your budget and camera setup, and start stacking.
