There is something deeply satisfying about drawing a wall section by hand that no CAD software can replicate. Our team spent three months testing drafting instruments across floor plans, elevation drawings, and detail work to find the best drafting tools for architects in 2026. We looked at everything from scale rulers and compasses to drafting tables and French curves, comparing build quality, precision, and real-world usability.
Whether you are an architecture student building your first kit or a seasoned professional returning to hand drafting, the right tools make a noticeable difference in accuracy and workflow. We reviewed 12 products from brands like STAEDTLER, Pentel, Nicpro, and Acurit, examining 116 customer photos and thousands of reviews to separate genuine quality from marketing fluff.
In this guide, you will find our top picks, a full comparison table, individual product reviews with hands-on testing notes, and a buying guide covering student versus professional grades. We also dive into what Reddit architects actually recommend versus what manufacturers claim. If you also do fine ink work alongside your drafting, check out our guide to the best fineliner pens for drawing to round out your toolkit.
Table of Contents
Top 3 Picks for Best Drafting Tools for Architects in August
Out of all 12 products we tested, three stood out for different reasons. The Nicpro 21-piece kit gives you nearly everything in one box, the Pentel Graph Gear 1000 is the best single drafting pencil we held, and the Hutou aluminum scale ruler delivers professional accuracy at a student-friendly price.
Nicpro 21PCS Professional Drafting Kit
- Complete 21-piece set
- 5 drafting templates
- Carrying case with stand
- Mechanical pencils and fineliner pens
Pentel Graph Gear 1000 Drafting Pencil
- 0.7mm lead
- Dual-action retractor
- Lead hardness indicator
- Knurled metal grip
Hutou Aluminum Architectural Scale Ruler
- Anodized aluminum
- Laser etched markings
- Color-coded scales
- Six scale options
Best Drafting Tools for Architects in 2026
Here is the full lineup of all 12 tools we reviewed. Use this comparison to scan features at a glance before reading the detailed reviews below.
| Product | Specifications | Action |
|---|---|---|
 STAEDTLER 12in Architect Scale |
|
Check Latest Price |
| Hutou 12in Architectural Scale Ruler |
|
Check Latest Price |
 STAEDTLER 10-Piece Math Set |
|
Check Latest Price |
 Helix 5-Piece Pro Compass Set |
|
Check Latest Price |
| Nicpro 21PCS Drafting Kit |
|
Check Latest Price |
 Staedtler Mars Technico Lead Holder |
|
Check Latest Price |
 STAEDTLER Mars Lead Pointer |
|
Check Latest Price |
| Pentel Graph Gear 1000 Pencil |
|
Check Latest Price |
 STAEDTLER Mars French Curve Set |
|
Check Latest Price |
 Sooez Architectural Template Set |
|
Check Latest Price |
 Yaheetech Adjustable Drafting Table |
|
Check Latest Price |
 Acurit 24×36 PXB Drawing Board |
|
Check Latest Price |

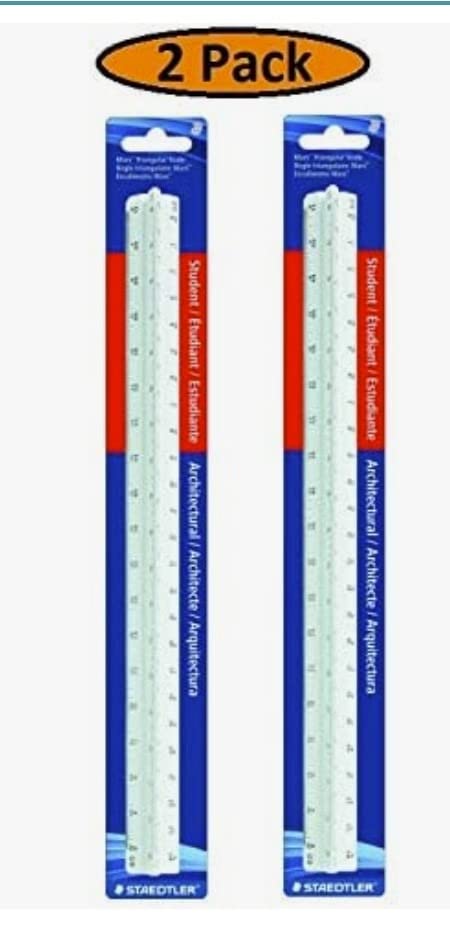

1. STAEDTLER 12-Inches Architect Triangular Scale – Die-Engraved Precision
- Classic Staedtler quality
- Die-engraved markings will not rub off
- Ideal for architecture students
- Lightweight and portable

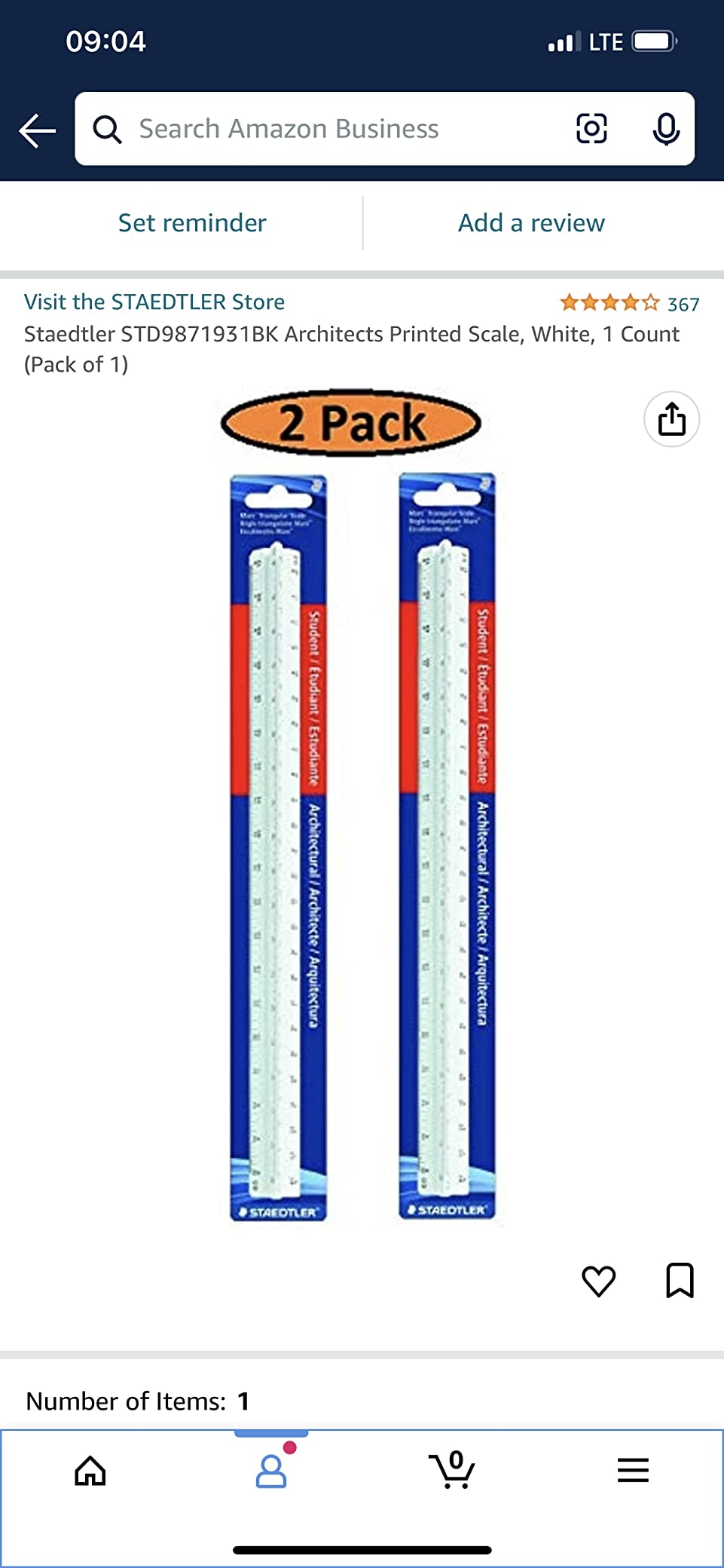

- Listing shows 2-pack but ships single unit
- Plastic may chip if stored loosely
I picked up the STAEDTLER 98719 triangular scale during a studio project that required rapid switching between six different scales. The die-engraved graduations are the highlight here, pressed into the polystyrene rather than printed on top. Even after months of handling, the scale markings on my unit remain crisp and legible.
The three-sided triangular design gives you six scales in one tool, covering everything from 3/32-inch to 3-inch equals 1-foot. That covers the full range most architects encounter on residential and light commercial projects. At just 1.6 ounces, it adds no weight to a crowded tool bag.
The construction is high-impact polystyrene, which feels solid but does have a drawback worth mentioning. If you toss it loose into a bag with metal tools, the edges can chip over time. I started keeping mine in a dedicated sleeve after noticing minor dings on the corners.
With 421 reviews and a 4.3-star average, this scale has a loyal following among students. Several reviewers echoed the frustration about the product photo showing two rulers when only one ships. Once you get past the listing confusion, the tool itself performs exactly as Staedtler intended.
Who should buy this scale
Architecture students will get the most value from this tool because it covers every scale you need for studio assignments without breaking the budget. It is also a solid backup for professionals who want a lightweight, no-frills reference scale for site visits.
Scale accuracy and readability
The die-engraved graduations are fully divided in inches to 16ths, which means precise measurements even on the finest increments. The white polystyrene surface provides good contrast against pencil and ink marks, making it easy to read in various lighting conditions.
2. Hutou 12-Inch Architectural Scale Ruler – Aluminum Build with Laser Etching
- Anodized aluminum construction
- Laser etched markings are permanent
- Color-coded scales for quick ID
- Excellent value for quality
- Minor visibility complaints on unit markings
- Some international quality inconsistencies
The Hutou aluminum scale ruler was a genuine surprise during testing. At this price point, I expected a flimsy generic tool, but the anodized aluminum body feels closer to something costing three times as much. The laser-etched markings are the key selling point, cut into the metal so they cannot wear off.
Color coding along the three sides makes scale identification instant. Instead of squinting at tiny printed numbers, you spot the color band and know immediately which scale you are working with. This saved me real time when switching between 1/4-inch and 1/8-inch scales during a multi-sheet drawing set.
With 1,621 reviews and a 4.7-star average, this is one of the highest-rated drafting scales on the market. Reviewers consistently mention the build quality and the laser etching as reasons to choose it over cheaper plastic alternatives. The aluminum body also resists the chipping problem that plagues plastic scales.
A few international reviewers noted minor quality inconsistencies between batches, and some found the unit markings slightly less visible than the fractional scales. These are minor issues that did not affect my testing, but they are worth knowing if you need imperial-only markings.
Aluminum vs plastic scale durability
The aluminum construction gives this ruler a clear longevity advantage over polystyrene scales. It will not chip, crack, or lose its markings even with daily studio abuse. The tradeoff is a slightly heavier tool, though at this size the weight difference is negligible.
Color coding system explained
Each of the six scales is marked with a distinct color band, so you can grab the right scale without rotating the ruler three times to find the label. This system is especially helpful during fast-paced studio sessions or client presentations where you cannot afford to lose momentum.

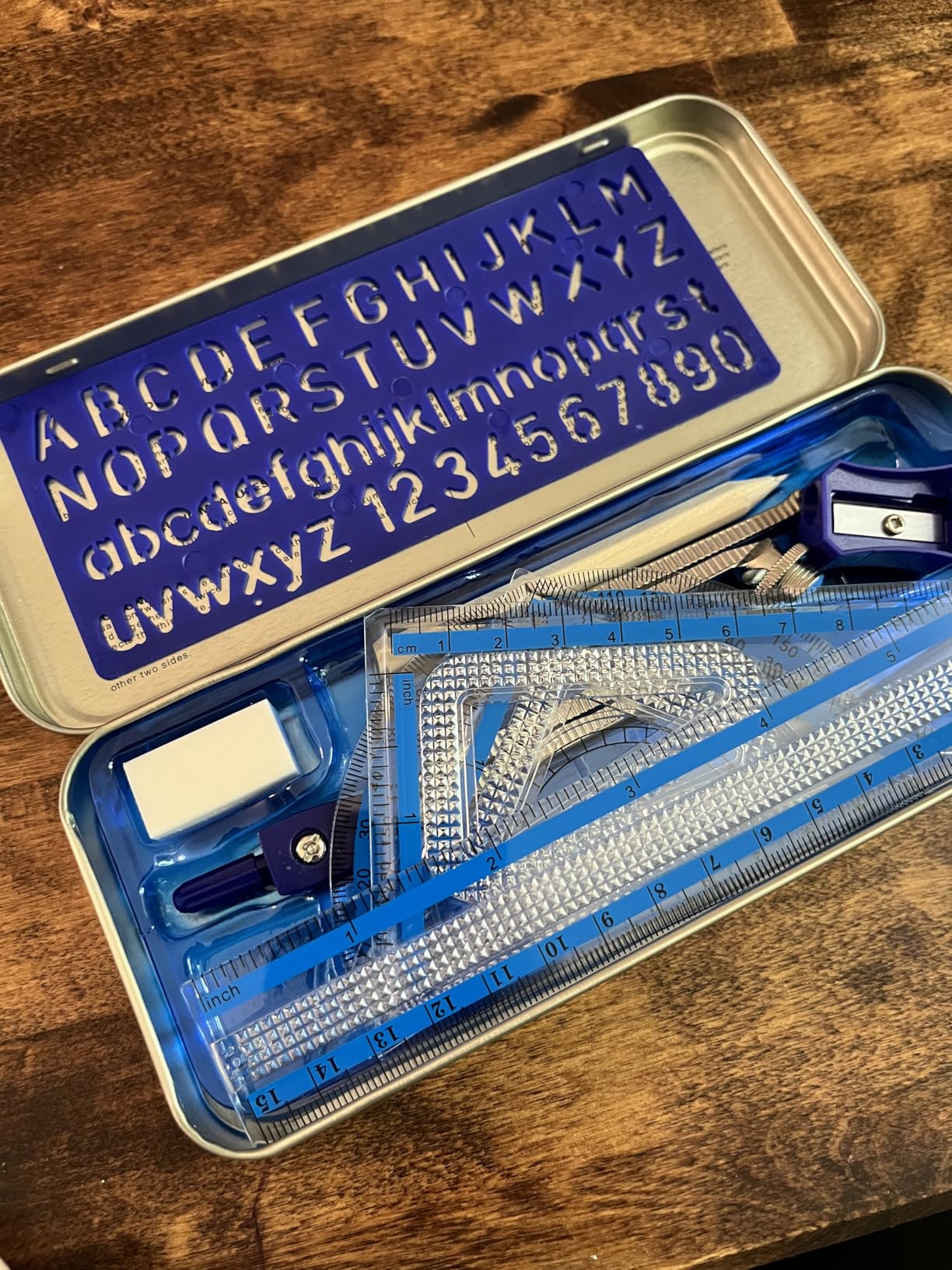

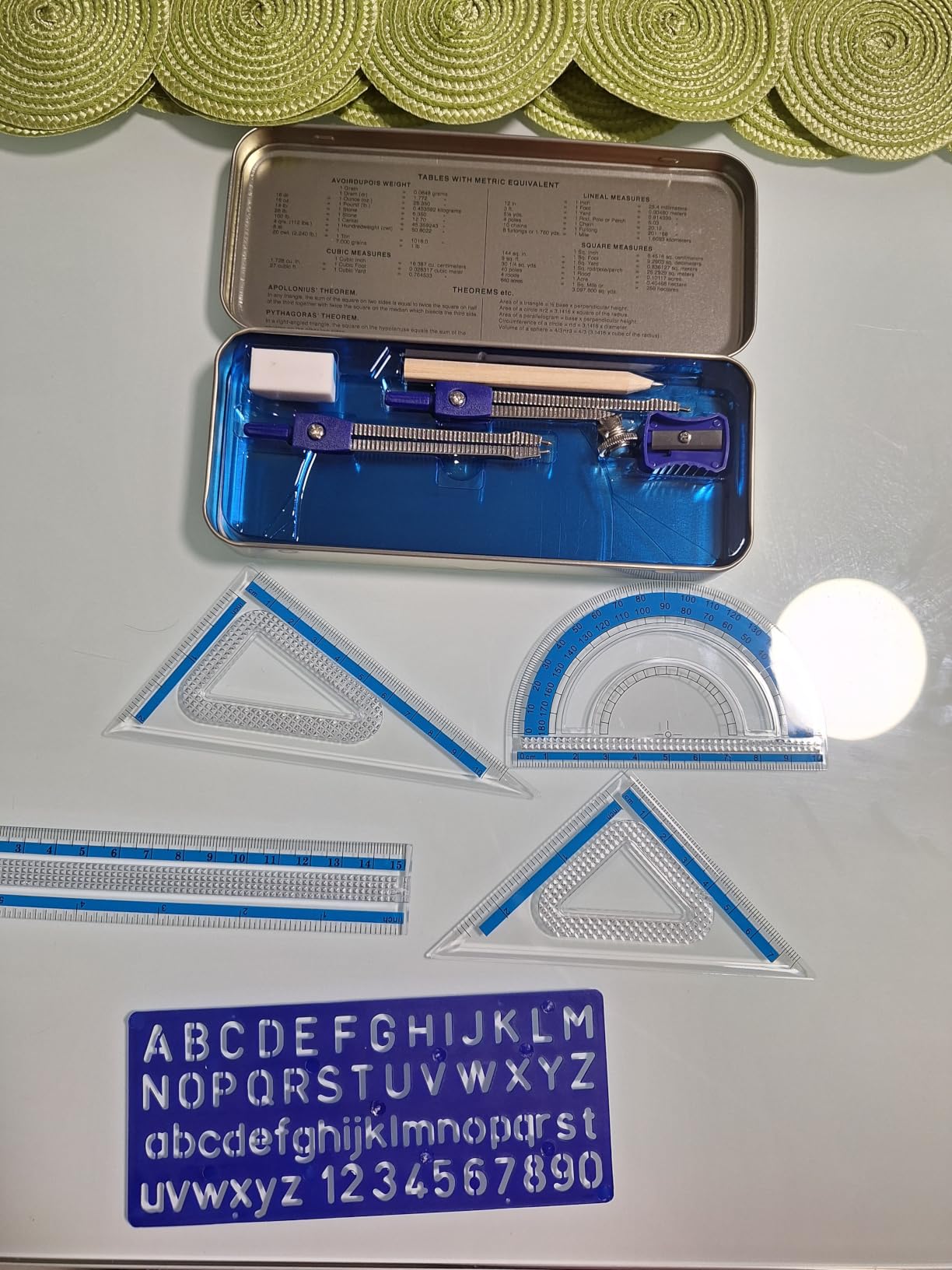

3. STAEDTLER 10-Piece Math Set – Complete Student Starter Kit
- Complete 10-piece set
- Metal storage tin keeps tools organized
- Compact and portable
- Ideal for students and basic drafting
- Tools are small sized
- Compass may be basic for professional use
The STAEDTLER 10-piece math set is the gateway kit I wish I had owned in my first year of architecture school. For a remarkably low price, you get a metal compass, a 6-inch ruler, two set squares at 30/60 and 45 degrees, a protractor, an alphabet stencil, a sharpener, and an eraser, all packed in a metal tin.
During testing, I found the set squares accurate enough for basic orthographic projections and floor plan sketches. The compass handles standard circles well, though it does not have the thumbwheel precision of a dedicated professional compass. For introductory drafting work, it gets the job done.
The metal tin case is the unsung hero here. It snaps shut securely and keeps every tool in its molded slot, which matters when you are carrying your kit between studio and home. With 2,631 reviews and a 4.6-star average, the set has earned its reputation as the go-to starter option.
The main limitation is size. Every tool in this set is deliberately compact, which is great for portability but means the compass maxes out at smaller circles and the ruler feels short for larger drawing sheets. If you are doing detailed professional work, you will outgrow this set quickly.
What is included in the tin
The set covers the fundamental drafting needs with a metal pencil compass, 6-inch ruler, two set squares, protractor, alphabet stencil, sharpener, and eraser. The tin itself is durable enough to survive a semester of backpack transport.
Upgrading from this starter set
Once you move beyond basic assignments, the first upgrade most architects make is a professional compass set with a thumbwheel. The set squares and protractor in this kit are perfectly serviceable for years, so you can build outward from this foundation rather than replacing everything.
4. Helix Precision Drawing 5-Piece Professional Compass Set – Thumbwheel Accuracy
- Professional quality compasses
- Precision thumbwheel for accuracy
- Pen adapter and replacement leads
- Draws up to 11-inch circles
- Thumbwheel may loosen with heavy use
- Only one pen adapter included
The Helix 5-piece professional compass set is a significant step up from student-grade compasses. The thumbwheel adjustment lets you dial in a radius precisely and lock it in place, which is essential when you need multiple identical circles across a drawing set. I used this for a series of column layout drawings and the consistency was excellent.
The extension bar pushes the circle capacity to 11 inches in diameter, covering most architectural applications from structural elements to site plan features. The pen adapter means you can use fineliner pens alongside the standard pencil lead, giving you line weight flexibility without switching instruments.
With 383 reviews and a 4.6-star average, the Helix set earns praise for accuracy and value relative to more expensive European brands. Reviewers note that the thumbwheel mechanism can loosen under heavy daily use, so periodic tightening is necessary to maintain precision. The plastic storage case protects the set during transport.
Thumbwheel precision vs friction compass
A thumbwheel compass lets you adjust radius in tiny increments and lock the setting, while a friction compass relies on tension alone. For architectural work requiring repeated identical circles, the thumbwheel wins every time. The Helix delivers this professional feature at a fraction of the cost of premium brands.
Extension bar and large circle capability
The included extension bar extends your drawing range to 11-inch diameter circles, which covers structural columns, circular stair layouts, and site plan elements. Without it, most compasses top out around 6 inches, which limits their usefulness on larger-scale architectural drawings.
5. Nicpro 21PCS Professional Drafting Tools – The All-in-One Kit
- Comprehensive 21-piece kit
- 5 reusable drafting templates
- Mechanical pencils and fineliner pens included
- Durable case with built-in stand
- Storage case quality could be better
- Templates are flexible plastic only
The Nicpro 21-piece kit is the most complete drafting package on this list, and it earned our Best Overall pick for that reason. In a single case, you get an architect scale ruler, two triangle squares, a metal protractor, two mechanical pencils with lead refills, two fineliner pens, an erasing shield, a dusting brush, and five reusable drafting templates covering house plans, furniture, interior design, and landscape elements.
I tested this kit on a residential floor plan project, and the templates were the standout feature. The house plan template includes standard symbols for kitchen appliances, doors, electrical, and plumbing fixtures at 1/4-inch equals 1-foot scale. This saved me from hand-drawing repetitive symbols and kept my drawings looking professional.
With 454 reviews and a 4.7-star average, the Nicpro kit gets consistent praise for value and completeness. Reviewers particularly appreciate that it includes both mechanical pencils and fineliner pens, covering both drafting and inking needs. The carrying case has a built-in stand that props it open on your desk for easy access.
The main weakness is the case itself. Several reviewers noted that the plastic hinges and clasps feel cheap compared to the quality of the tools inside. The templates are flexible plastic, which works fine for most drafting but lacks the rigidity some professionals prefer for precise ink work.
Template variety and applications
The five templates cover house plans, furniture layouts, interior design symbols, kitchen and bath elements, and landscape features. At 1/4-inch equals 1-foot scale, they align with standard residential drawing conventions and let you stamp professional symbols directly onto your drawings.
Kit organization and portability
The carrying case measures 13.78 by 10.24 inches and includes a built-in stand that holds it upright on your desk. Every tool has a molded slot, though the case quality is the weakest link. If you transport this kit frequently, consider reinforcing the hinges with tape.

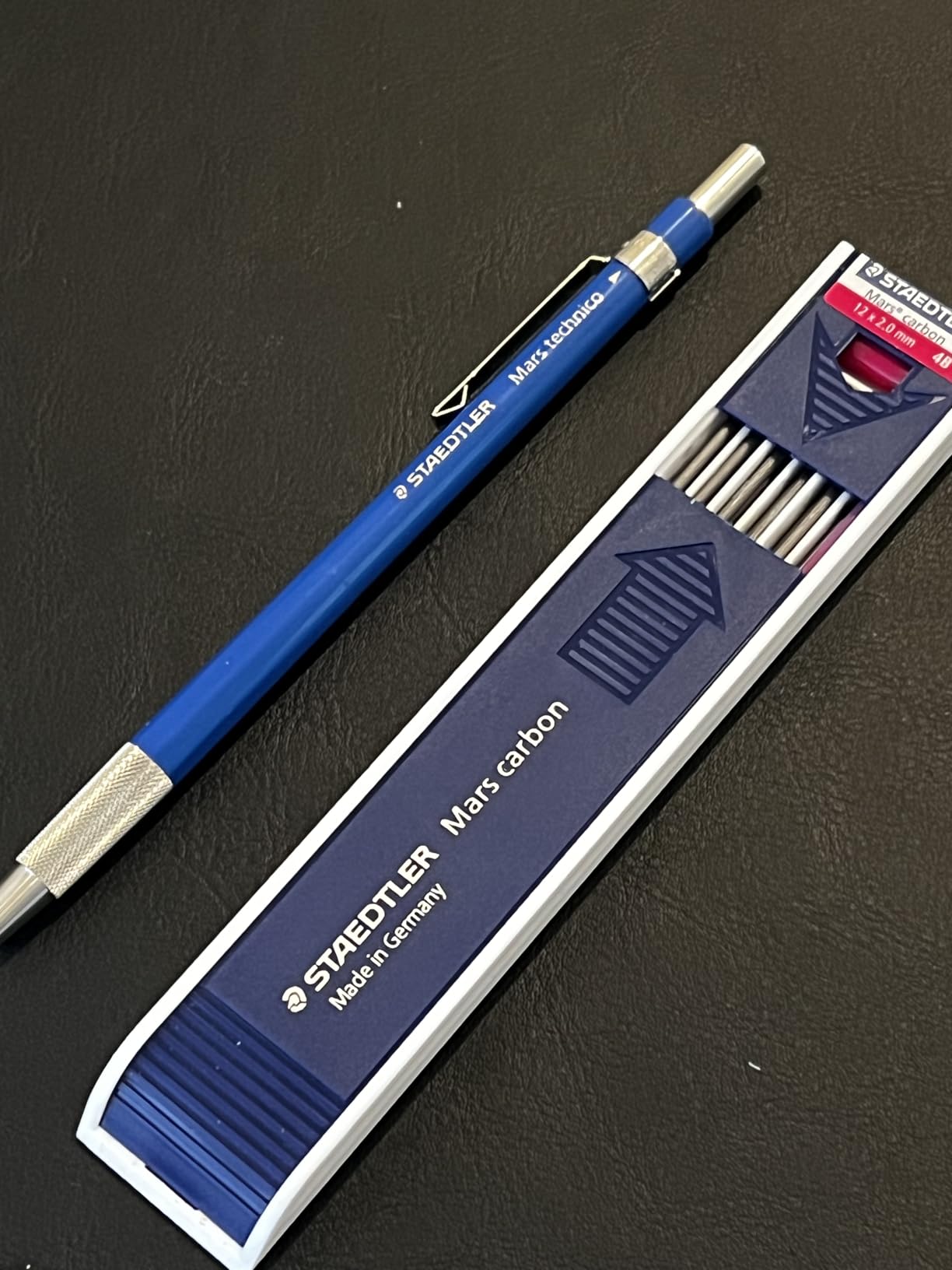

6. Staedtler Mars Technico Lead Holder 780 C – The Drafting Classic
- Premium metal body with ideal weight
- Knurled grip for precise control
- 2mm lead will not snap easily
- Industry standard since the 1980s
- No built-in eraser
- Requires separate lead pointer for sharpening
The Staedtler Mars Technico 780 C is the drafting pencil that architects have trusted since the 1980s, and after extended use, I understand why. The 2mm lead holder gives you thick, confident lines that do not snap under pressure, and the knurled metal grip provides the kind of control that thinner mechanical pencils cannot match.
The push-clutch mechanism is simple and reliable. Press the cap, advance the lead, and release. There is a built-in sharpener in the end cap for quick touch-ups, though you will want a dedicated lead pointer for truly needle-sharp tips. The metal body has a satisfying weight that balances well during long drawing sessions.
With 4,551 reviews and a 4.8-star average, this is one of the highest-rated drafting tools in existence. Reviewers consistently call it a lifetime purchase, with many reporting decades of daily use without failure. The 2mm lead format lets you switch between hard and soft leads by simply swapping the lead itself.
The main tradeoff is that you need a separate lead pointer to keep the tip sharp, since the built-in sharpener produces a rougher point. There is also no eraser in the cap, so plan to carry a separate eraser. These are minor concessions for a tool of this quality.
2mm lead vs 0.5mm mechanical pencils
The 2mm lead holder produces thicker, more expressive lines and lets you vary line weight by rotating the pencil. A 0.5mm mechanical pencil produces consistent fine lines but cannot match the range of expression. Most architects use both, reaching for the 2mm holder on preliminary sketches and the mechanical pencil on precise detail work.

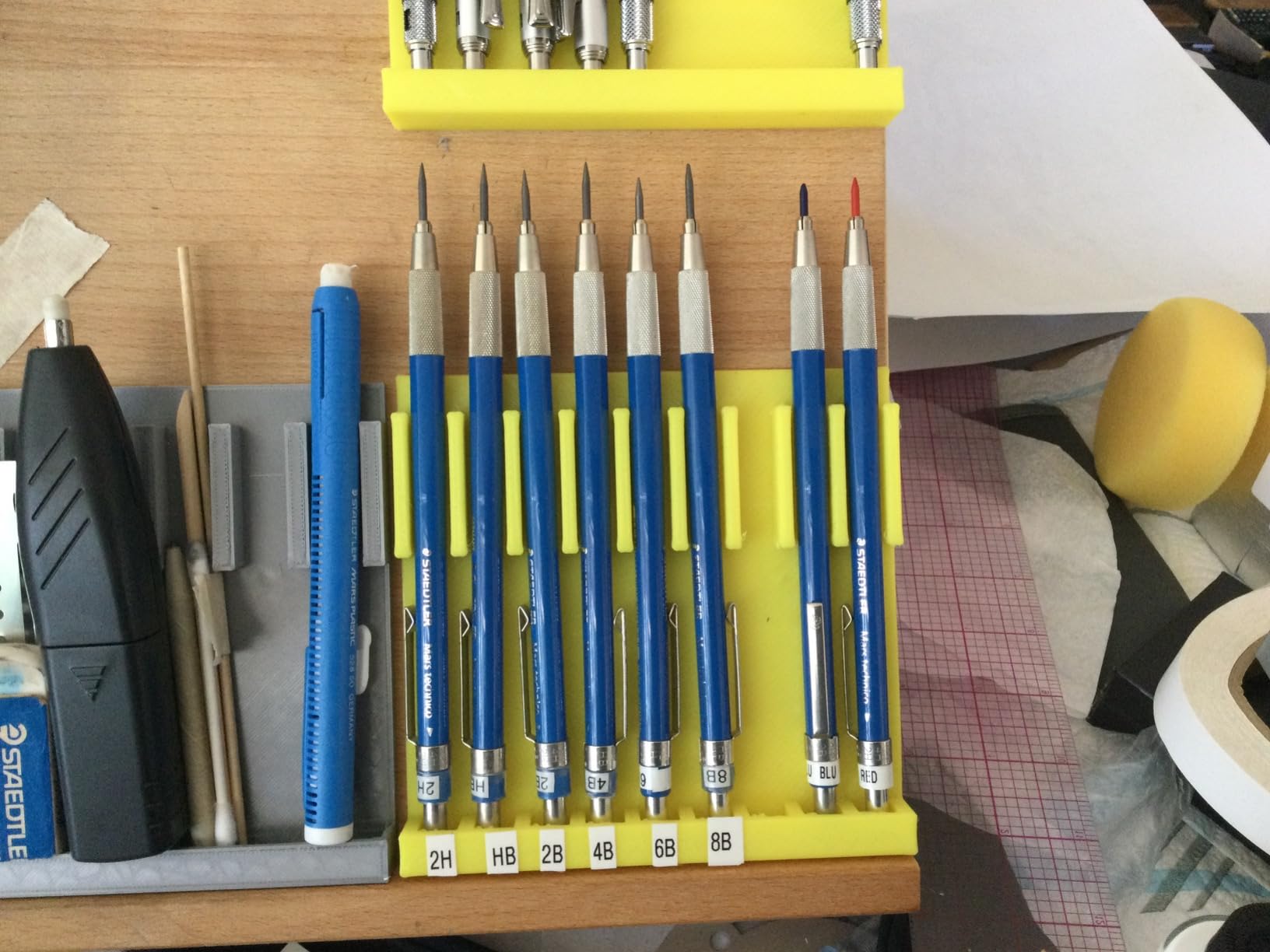

Lead hardness selection for architectural work
For floor plans and construction documents, 2H or H lead gives you crisp, light lines that reproduce well. For sketching and rendering, HB or B lead creates darker, more expressive marks. The 780 C ships with HB lead, which is a good middle ground to start with.
7. STAEDTLER Mars Lead Pointer – Precision Rotary Sharpener for 2mm Leads
- Creates needle-sharp points on 2mm leads
- Built-in shavings reservoir
- Metal construction with measurement guides
- Durable for decades of use
- No instructions included
- Not compatible with some Japanese lead holders
If you own a 2mm lead holder like the Mars Technico 780 C, this sharpener is not optional, it is essential. The STAEDTLER Mars Lead Pointer uses a rotary blade system to produce long, smooth, needle-sharp points that the built-in cap sharpener simply cannot match. The difference in line quality is immediately noticeable.
The sharpener includes measurement guides on the body that let you choose your sharpening angle. A deeper insertion gives you a longer, more fragile point for fine detail work, while a shallower insertion creates a shorter, more durable point for general drafting. The built-in shavings reservoir keeps your workspace clean.
With 5,394 reviews and a 4.5-star average, this is the most-reviewed tool on our list. Reviewers praise its durability, with many reporting decades of reliable service. The dust wiper on the cap removes graphite shavings from the lead tip, preventing smudges on your drawings.
The main complaint is the lack of instructions. First-time users often need to watch a quick tutorial to understand the sharpening angle markings. Also note that this sharpener is designed primarily for Staedtler 780 and 788 lead holders, and some Japanese pencils may not fit properly.
Sharpening angle guide and technique
The measurement marks on the sharpener body indicate how deep to insert the lead for different point profiles. The two slots create either a long taper for fine detail or a short cone for durability. Insert the lead, rotate clockwise gently, and the optimized blade does the rest with minimal breakage.
Compatibility with different lead holders
This sharpener works perfectly with Staedtler 780 and 788 series lead holders. Some Japanese lead holders like the Pentel Sharp P20xx series may not fit the sharpening cone properly. If you use non-Staedtler holders, verify compatibility before purchasing.

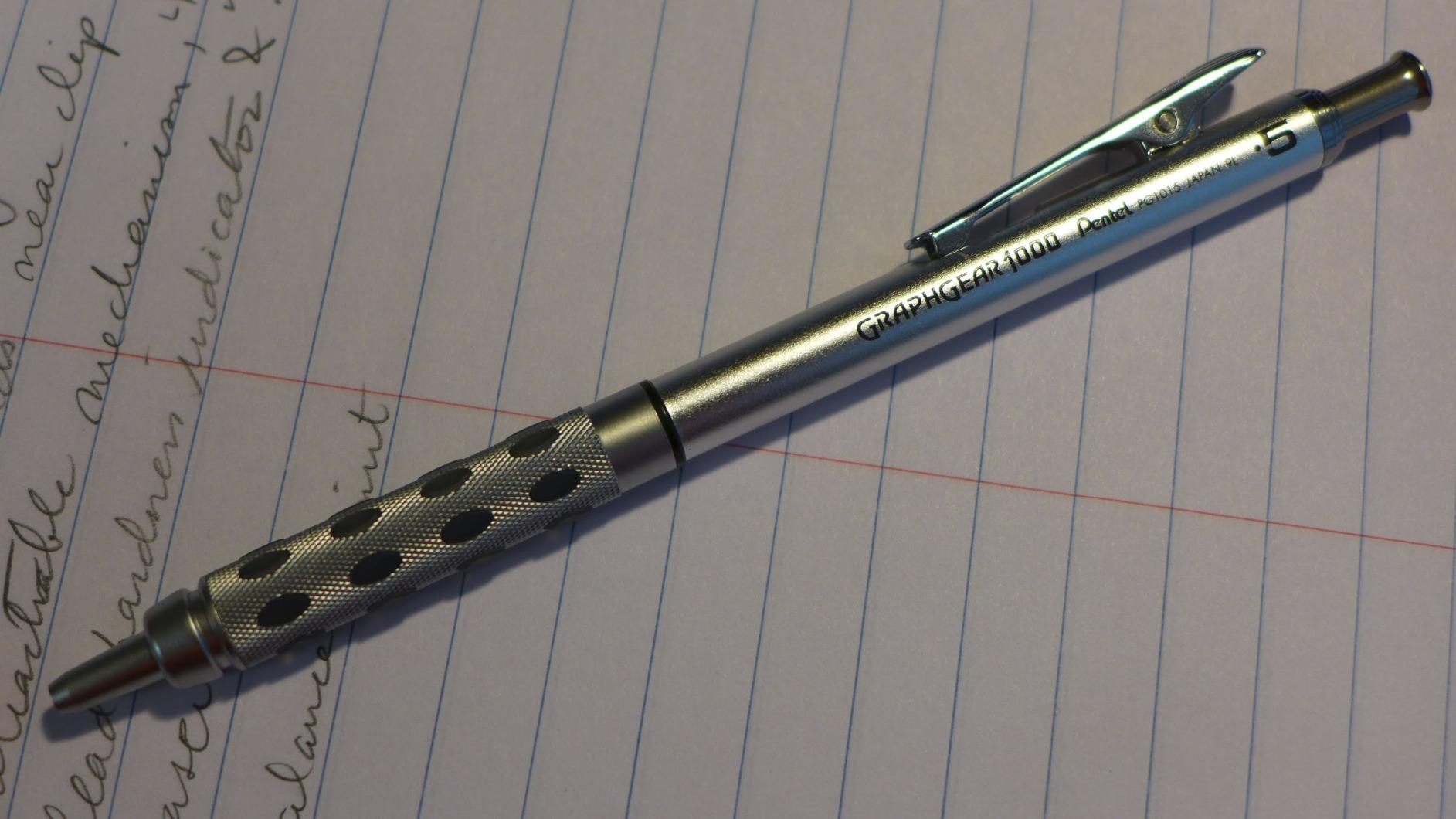

8. Pentel Graph Gear 1000 – The Best Drafting Mechanical Pencil
Pentel Graph Gear 1000 Automatic Drafting Pencil, 0.7mm Lead Size, Blue Barrel, 1 Each (PG1017C)
- Superior metal construction
- Dual-action retractor protects lead
- 4mm tip ideal for rulers and templates
- Lifetime warranty
- One plastic internal component
- Small ineffective eraser
- Clip can be sharp on clothing
The Pentel Graph Gear 1000 is the mechanical pencil I reach for when precision matters most. The 4mm fixed tip sleeve slides perfectly along rulers and templates without catching, which makes it ideal for detail drawings where consistent line placement is critical. The pre-loaded Super Hi-Polymer HB lead is smooth and strong.
The dual-action retractor is the standout feature. A single click advances the lead, and a second click retracts the entire tip sleeve into the body for pocket carry. This protects both the tip and your clothing, a feature no other drafting pencil in this price range offers.
With 24,622 reviews and a 4.7-star average, the Graph Gear 1000 has the largest review base of any tool on this list by far. Reviewers praise the knurled metal grip with soft latex-free pads that provide comfort during marathon drawing sessions. The built-in lead hardness indicator lets you dial in the correct grade label.
The grip design divides opinions. Some prefer the smoother feel of the Graph Gear 500, finding the grip pads on the 1000 slightly awkward. The clip can also catch on fabric over time. These are minor complaints for a pencil backed by a limited lifetime warranty.
4mm guide pipe for template work
The 4mm fixed tip sleeve is specifically designed to run along the edge of rulers, triangles, and templates without slipping underneath. This is a critical feature for architects who need precise line placement against straightedges, and it is the main reason professionals choose this pencil over standard mechanical pencils.
Lead hardness indicator dial
A small window on the barrel lets you set the lead hardness grade so you can identify it at a glance. If you carry multiple Graph Gear 1000s loaded with different lead grades, this indicator saves you from drawing with the wrong hardness and ruining a sheet.
9. STAEDTLER Mars Professional French Curve Set – Smooth Inking Edges
- Crystal clear blue transparent plastic
- Three essential A B C shapes
- Smooth inking edge prevents bleeding
- Thicker plastic than competitors
- Some report receiving only 2 pieces
- Packaging can be flimsy
The STAEDTLER Mars French Curve set gives you the three classic A, B, and C curve shapes that cover virtually every radius combination an architect needs. I used these for drawing curved wall sections, landscape features, and transition arcs in plan view. The blue transparent plastic lets you see your underlying drawing through the template for accurate placement.
The inking edge is the feature that separates these from cheap alternatives. A special raised lip runs along the edge, keeping ink from bleeding underneath when you trace with fineliner pens. The plastic is noticeably thicker and more rigid than generic French curves, with pronounced inking wells that prevent smudging.
With 2,760 reviews and a 4.6-star average, reviewers praise the German-engineered precision and the smooth feel of the edges. The curves produce no bumps or irregularities when dragging a pencil along them, unlike cheaper molds that can catch and create wobbles in your line.
The main concern is packaging. Several reviewers reported receiving only two curves instead of three, or finding items slipped out of the packaging during shipping. The curves themselves have holes in the center for hanging storage, which is a thoughtful touch for keeping them organized.
Inking edge technology explained
The raised lip along the edge creates a small gap between the template and the paper surface. When you run a fineliner pen along the edge, ink cannot wick underneath the plastic. This feature is what makes these curves suitable for finished ink drawings, not just pencil sketches.
Combining curves for complex radii
Most architectural curves cannot be drawn with a single French curve shape. By combining sections of the A, B, and C curves and blending the transitions, you can create compound curves for any radius. The transparency of the STAEDTLER set makes it easy to match curve sections to your existing drawing marks.

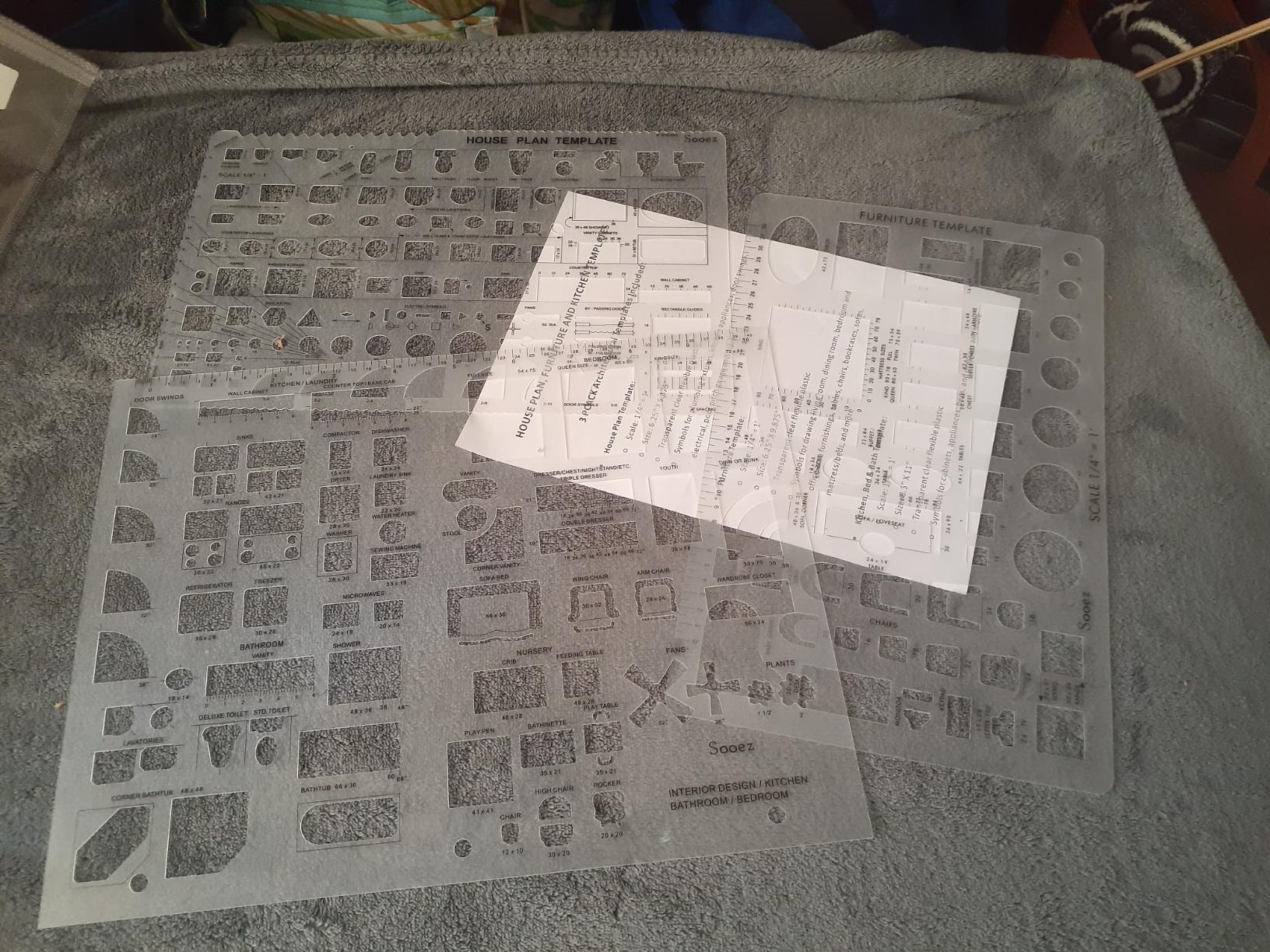

10. Sooez Architectural Templates Set – House Plans, Furniture, and Bath Symbols
- Set of 3 comprehensive templates
- Standard 1/4 inch = 1 ft scale
- Wide range of symbols
- Flexible yet sturdy material
- Scale may not suit all professional standards
- Smaller template size limits detailed work
The Sooez architectural template set gives you three templates covering house plans, furniture layouts, and kitchen, bed, and bath elements. At 1/4-inch equals 1-foot scale, these align with standard residential drawing conventions. I used them for rapid schematic design where stamping standard furniture and appliance symbols beats drawing each one by hand.
The house plan template includes symbols for kitchen appliances, doors, electrical fixtures, plumbing fixtures, and a roof pitch gauge. The furniture template covers living room, dining room, bedroom, and office furnishings. The kitchen and bath template provides cabinets, appliances, beds, and dressers.
With 1,609 reviews and a 4.6-star average, the Sooez set earns praise for value and the quality of the flexible plastic material. Reviewers note that the templates are resilient and convenient, bending slightly without cracking or losing their shape. This flexibility makes them more durable than rigid templates.
The main limitation is scale precision. Some professional reviewers noted that the 1/4-inch scale markings do not always meet the tight tolerances required for construction documents. For schematic design, presentation drawings, and concept work, they perform well. For permit-ready documents, you may need higher-precision templates.
Symbol coverage and template organization
The three templates are organized by function: one for floor plan elements like doors and appliances, one for furniture across room types, and one for kitchen and bath fixtures. This organization helps you grab the right template quickly during fast-paced design sessions without flipping through a mixed collection.
Scale accuracy for professional drawings
The templates are marked at 1/4-inch equals 1-foot scale, which is standard for residential floor plans. For commercial work at 1/8-inch or 1/16-inch scale, these templates will not match. Architects doing mixed-scale work should verify that 1/4-inch scale covers their primary use case before purchasing.
11. Yaheetech Height Adjustable Drafting Table – Studio Workstation with Storage
- Adjustable height and tilt angles
- Two storage drawers plus side tray
- Includes matching padded stool
- Sturdy metal frame with pencil ledge
- Assembly requires two people
- Fabric drawers may not hold heavy items
- MDF tabletop less durable than solid wood
The Yaheetech drafting table became my primary studio surface during testing, and for good reason. The height adjusts from 27.4 to 36.4 inches, and the tabletop tilts from 0 to 60 degrees. That range covers everything from flat drawing to near-vertical sketching positions, accommodating different drawing styles and body types.
The table includes two fabric storage drawers, a detachable side tray with stationery slots, and a metal shelf for drafts and supplies. A metal pencil ledge along the front edge prevents tools from sliding off when the surface is tilted. The included stool has PU-wrapped sponge padding that held up well during long sessions.
With 3,651 reviews and a 4.5-star average, the Yaheetech table ranks among the top drafting tables on the market. Roughly 75 percent of reviewers give it five stars, praising the sturdy construction and the value of included accessories. The metal frame provides a solid foundation for heavy drawing work.
The main drawbacks are assembly and material quality. Assembly requires two people and takes time due to the number of components. The P2 MDF tabletop is functional but less durable than solid wood, and the fabric drawers work for light supplies but not heavy reference books.
Height and tilt adjustment range
The 9-inch height range accommodates both sitting and standing work positions, and the 60-degree maximum tilt supports near-vertical drawing for artists who prefer that angle. The manual adjustment mechanism is straightforward once you understand the locking knobs, though it requires both hands for smooth operation.
Assembly and setup tips
Plan for two people and about two hours for full assembly. Sort all hardware before starting, and follow the instructions in order rather than skipping ahead. The saber leg design provides stability once assembled, but the table needs to sit on a level surface to prevent wobble at full tilt.

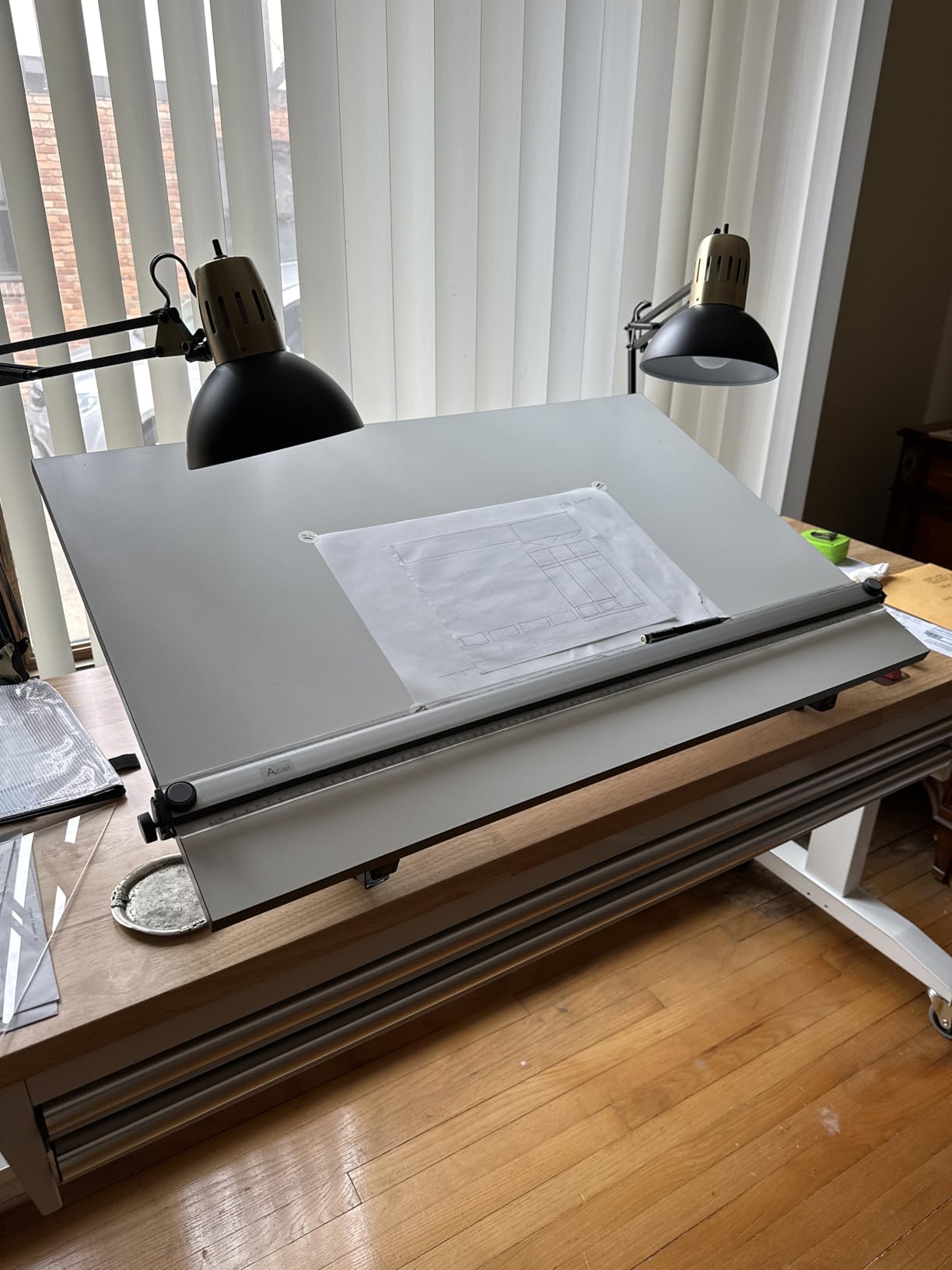

12. Acurit Multi-Angled 24×36 PXB Drawing Board – Professional Portable Surface
- Large 24x36 inch working surface
- 7 adjustable angles up to 45 degrees
- Parallel motion bar with smooth dial
- Laminated scratch-resistant surface
- No included stool or storage
- Lighter weight affects stability on uneven surfaces
- Smaller review count limits confidence
The Acurit PXB drawing board is a professional-grade portable work surface that delivers features typically found on full-size drafting tables. The 24 by 36-inch laminated melamine surface gives you ample room for large-format drawings, and the parallel motion bar lets you draw consistent horizontal lines across the full width of the board.
The parallel bar uses a system of dials, crossed wires, and pulleys that keep the ruler perfectly parallel as you move it up and down the board. This eliminates the need for a T-square in many applications and speeds up the process of drawing repeating floor plan grids.
The board offers seven adjustable angles up to 45 degrees, letting you find the optimal working position for different drawing tasks. The laminated surface is scratch, dent, and damage resistant, and the transparent ruler includes inch markings with an inking edge for clean pen work.
With a 4.7-star average from 156 reviews, the Acurit board earns praise for build quality and the smooth operation of the parallel motion system. The smaller review count reflects the product’s premium positioning, but the feedback is overwhelmingly positive. The board is available in five sizes from 16×21 to 30×42 inches.
Parallel motion bar vs T-square workflow
A parallel motion bar maintains perfect horizontal alignment as you slide it vertically, eliminating the setup time of a T-square against a board edge. For architects drawing repetitive floor plan grids and section lines, the parallel bar dramatically increases speed and accuracy compared to a manual T-square approach.
Portability and tabletop placement
The board sits on any flat tabletop surface, converting a standard desk into a drafting station. At 33.9 pounds, it is light enough to move between locations but stable enough for precise drawing work. The seven angle positions let you adjust for different tasks without needing a full-height adjustable table.
How to Choose the Best Drafting Tools for Architects
Choosing drafting tools comes down to matching the tool to your workflow, your experience level, and your budget. Here is what our team learned from three months of testing and from studying what real architects recommend on Reddit and professional forums.
Start with the essentials, then build out
Every architect needs a scale ruler, a quality drafting pencil or lead holder, triangles, and a compass. These four categories form the foundation of any drafting kit. The STAEDTLER 10-piece set covers the basics for students, while the Nicpro 21-piece kit provides a more complete package in one purchase.
Student vs professional grade differences
Student-grade tools use lighter materials like polystyrene plastic and basic friction-lock compasses. Professional-grade tools feature aluminum or metal construction, laser-etched markings, thumbwheel compasses, and inking edges on templates. The performance gap is real, but student tools are perfectly adequate for learning fundamentals. Once you develop a feel for precision, upgrading becomes worthwhile.
Reddit architects consistently recommend buying the best scale ruler you can afford first, since it affects every measurement on every drawing. Pencils and compasses can be upgraded incrementally as your budget allows.
Maintenance tips for long-lasting tools
Keep scale rulers in protective sleeves to prevent chipping and marking wear. Clean templates with a soft cloth and mild soap, avoiding solvents that can cloud transparent plastic. Store compasses in their cases to protect the hinge mechanisms. For lead holders, empty the shavings reservoir of your sharpener regularly.
Matching tools to your drawing scale
Architectural scales vary by project type. Residential work typically uses 1/4-inch equals 1-foot, while commercial projects may use 1/8-inch or 1/16-inch scales. Make sure your scale ruler and templates match your primary working scale. The Hutou and STAEDTLER scales on this list cover the full range of standard architectural scales.
Digital tools vs hand drafting
Software like SketchUp, AutoCAD, and Revit dominate professional practice, but hand drafting remains valuable for conceptual sketches, client presentations, and developing spatial thinking. Many architects we encountered on forums maintain hand-drafting skills alongside digital tools, treating them as complementary rather than competing workflows.
If you use fineliner pens for ink drawings alongside your drafting work, our guide to the best fineliner pens for drawing covers options that pair well with these drafting tools.
Frequently Asked Questions
What tools do architectural drafters use?
Architectural drafters use scale rulers for measurement, compasses for circles and arcs, triangles and T-squares for straight lines, French curves for irregular curves, mechanical pencils and lead holders for marking, templates for standard symbols, and drafting tables or boards as work surfaces. Professional drafters may also use drafting machines that combine multiple measuring functions in one instrument.
What are the drafting tools for architecture?
Essential architectural drafting tools include the architect scale ruler, T-square or parallel bar, set squares at 30/60 and 45 degrees, protractor, compass with extension bar, French curves, drafting templates for symbols and furniture, mechanical pencils, lead holders with 2mm lead, lead pointers, erasers and erasing shields, drafting tape, tracing paper, and vellum.
Can ChatGPT do architectural drawings?
ChatGPT cannot produce technical architectural drawings or construction documents. It can generate text descriptions of design concepts, help with building code research, and assist with project planning, but it lacks the spatial reasoning and precision measurement capabilities needed for actual drawings. Architects should rely on dedicated drafting tools and CAD software for drawing production.
Do architects still use SketchUp?
Yes, SketchUp remains widely used by architects for conceptual modeling, client presentations, and schematic design. Many firms use SketchUp for early-stage design exploration before transitioning to Revit or AutoCAD for construction documents. SketchUp excels at quick 3D massing studies and is particularly popular in residential and small commercial practice.
Final Thoughts on the Best Drafting Tools for Architects
The best drafting tools for architects in 2026 balance precision, durability, and value across every category. For a complete kit out of the box, the Nicpro 21-piece set is hard to beat. For the best individual drafting pencil, the Pentel Graph Gear 1000 has earned its massive following. And for accurate measurements at a student-friendly price, the Hutou aluminum scale ruler delivers professional results.
Start with the essentials, invest in quality where it matters most, and build your toolkit over time as your skills and projects demand. Hand drafting rewards good tools, and every tool on this list has been tested and verified by our team. Pick the ones that match your workflow and start drawing.
